Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SKDZ |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Wooden Case |
Delivery Time: | In Stock |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000pcs per month |
Apply: | GJ10-25 | Diameter: | 10mm |
---|---|---|---|
Model: | SKDZ-0.5 | Weight: | 3.5kg |
Application: | Transmission Power Line | Product Name: | Self Gripping Earth Wire Gripper |
High Light: | Self Gripping Earth Wire Rope Gripper,Building Construction Cable Wire Gripper 2kg,Steel Strand Earth Wire Gripper |

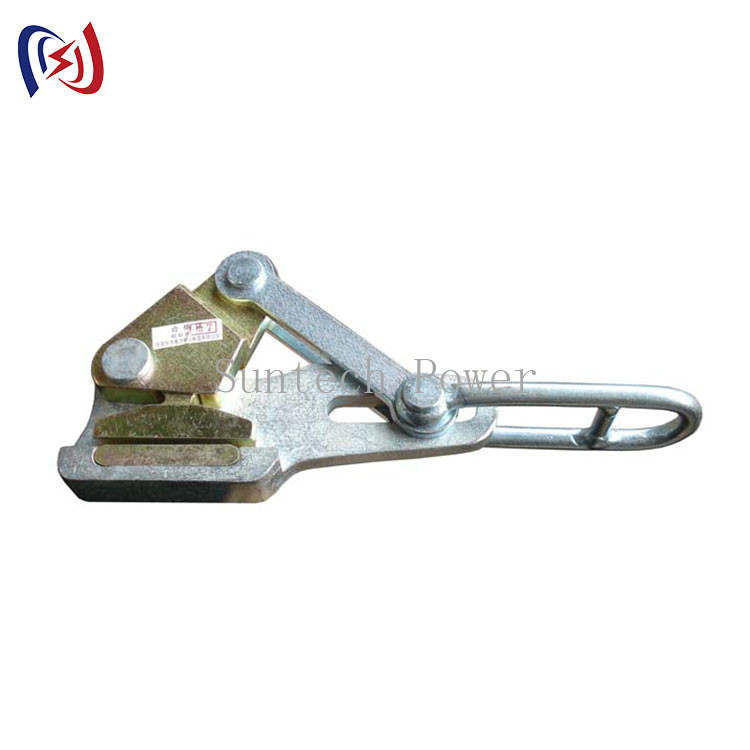

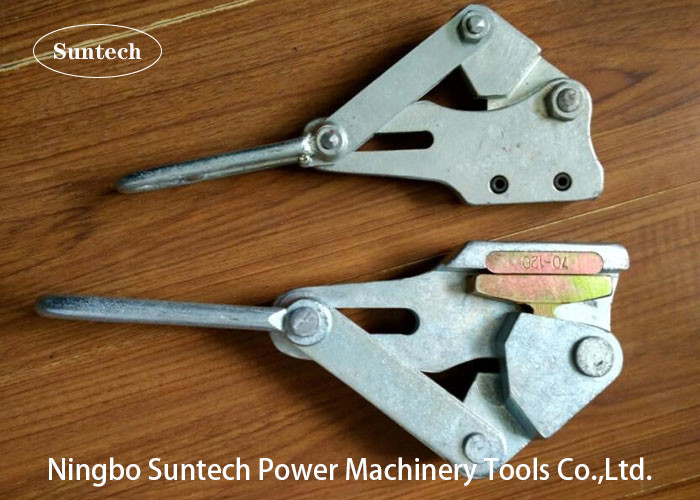

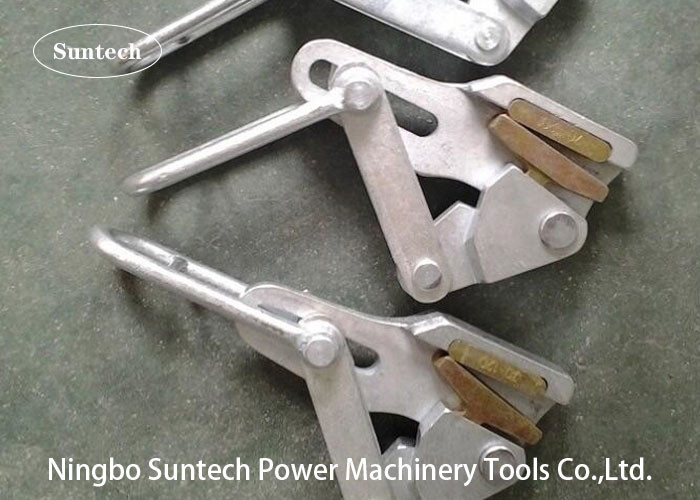

SKDZ Model Rated Load 5KN Self Gripping Earth Wire Gripper For GJ10-25 Steel Wire
Self Gripping Earth Wire Gripper Steel Strand come along clamp:
Item number | Model |
Applicable Steel Strand |
(KN) Rated Load |
Applicable Wire Diameter |
Weight(kg) |
13101 | SKDZ-0.5 | GJ10-25 | 5 | 10 | 2 |
13102 | SKDZ-1 | GJ25-50 | 10 | 12 | 2 |
13103 | SKDZ-2 | GJ50-70 | 20 | 14 | 2.9 |
13104 | SKDZ-3 | GJ70-120 | 30 | 16 | 3.5 |
13105 | SKDZ-5 | GJ150-185 | 50 | 20 | 8.3 |
Quick Information:
1) Suntech Brand
2) Self Gripping earthwire gripper
3) rated load 5kn
4) applicable wire diameter is 10mm
5) Cable pulling power tools for steel stand wire rope GJ25-50
Contact Person: Peter
Tel: 86-13958364836
