Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SK50DP2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | 7-9 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Type: | Multi - Segment Type | Name: | Conductor Cable Pulling Grips |
|---|---|---|---|
| Structure: | Tight Wire | Weight: | 26kg |
| Max Open: | 50mm | Tightening Torque: | 150N.M |
| High Light: | Conductor Cable Pulling Grips,15T Cable Pulling Grips,Multi Segment Type Cable Wire Gripper |
||

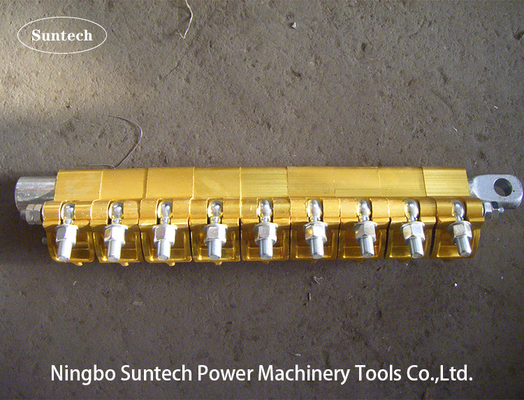

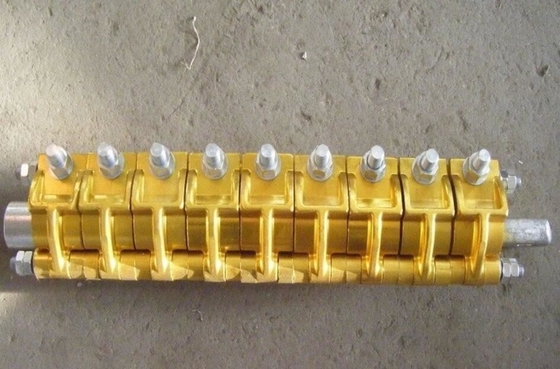

SK50DP2 15Ton Multi-segment Type Conductor Wire Grip Conductor Pulling Gripper
Multi-segment Type Conductor Wire Grip Conductor
| Item number | Model | Rated Load(KN) |
Applicable Conductor Diameter(MM) |
N.m) Tightening Torque |
(KG) Weight |
| 13230L | SK35DP2 | 120 | Φ35(MAX) | 150 | 20 |
| 13231L | SK50DP2 | 150 | Φ50(MAX) | 150 | 26 |
Configuration: Apply to large cross-section conductor under high tension and long span construction situation.
Feature: wire diameter is need indicated when customer place order
Quick Information:
1) Model SK50DP2
2) Rated laod 150KN
3) Appliable comductor diameter 50max
4) Tightening torque: 150 N.m
5) 26kg weight
6) Suntech brand, come along clamp
Contact Person: Peter
Tel: 86-13958364836
