| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO & CE |
| Model Number: | SKG |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported cartons or cases |
| Delivery Time: | In Stock |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 800pcs per month |
| Material: | SKG-10 | Capacity: | 10Ton |
|---|---|---|---|
| Weight: | 20 Kgs | Model: | Bolt Type |
| Application: | Steel Rope Gripper | Apply: | 19-22mm |
| High Light: | Bolt Type Steel Wire Rope Gripper,Wire Rope Gripper 10T,Basic Construction Steel Wire Gripper 22mm |
||

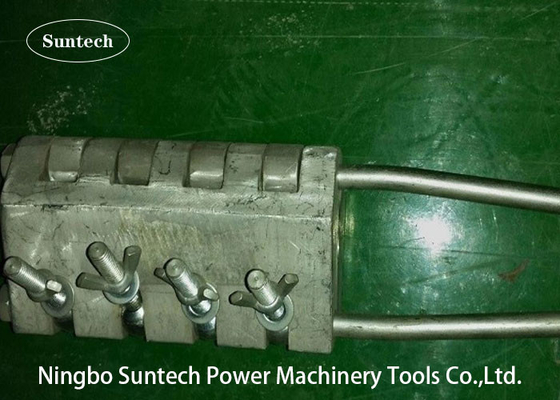

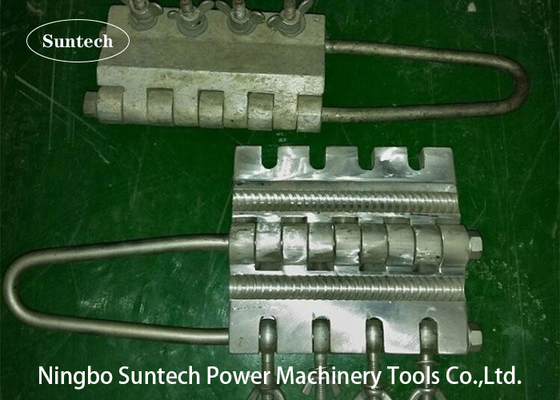

SKG-10 10Ton Bolt Type Round Steel Rope Gripper for 19-22mm Steel Wire Rope
Bolt Type Round Steel Rope Gripper Products
| Item number | Model |
KN) Rated Load |
Applicable Steel Wire Rope |
(KG) Weight |
| 13161 | SKG-4 | 40 | Φ13-15.5 | 5.6 |
| 13162 | SKG-7 | 70 | Φ16-18 | 18 |
| 13163 | SKG-10 | 100 | Φ19-22 | 20 |
Configuration:Apply to round strand wire rope.
Explain: Comression nuts must tigten again and again in order to reach the torque specificaiton.
Quick Information:
1. Bolt type round steel rope gripper
2. 100 Kn rated load
3. applicable for 19-22 mm diameter steel wire rope
4. Donghuan Brand
5.20 Kg
