Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SKG |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | In Stock |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Model: | SKG70N | Name: | Cable Gripper |
|---|---|---|---|
| Diameter: | 16-18mm | Weight: | 8.0kg |
| Application: | Transmission Line | ||
| High Light: | 70KN Self Gripping Clamps,Anti Twisting Come Along Clamp,18mm Steel Rope Come Along Clamp |
||

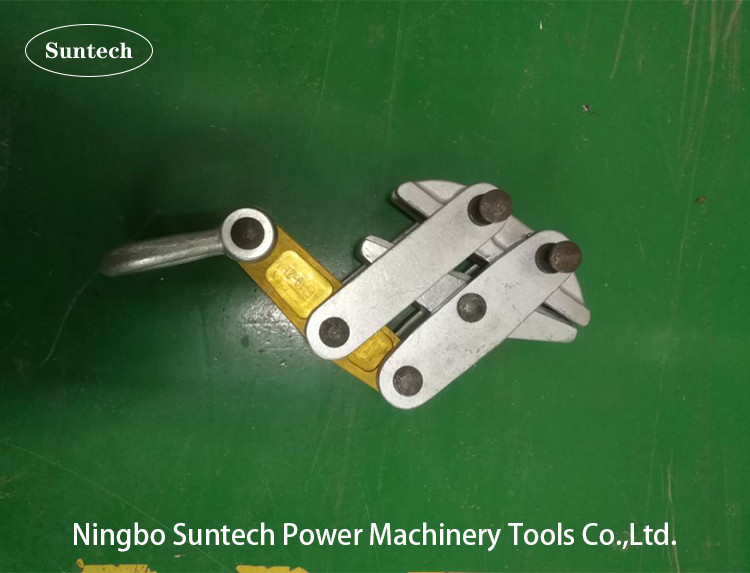

SKG50N Anti-twisting Steel Rope Gripper Steel Rope Gripper for 11-15mm Diameter
Steel Rope Gripper Quick Information:
1) mode: SKG70N anti-twisting steel rope clamp, steel rope gripper
2) rated load 70KN, weight 8kg
3) DONGHUAN brand
4) Transmission line stringinging tools
5) applicable for 16-18 anti twist steel rope
Anti Twist Steel Rope Gripper
| Item number | Model | Rated Load(kn) | Applicable Anti Twist Steel Rope | Weight(kg) |
| 13155 | SKG50N | 50 | □ 11-15 | 7.0 |
| 13156 | SKG70N | 70 | □ 16-18 | 8.0 |
| 13157 | SKG120N | 120 | □ 19-21 □ 22-24 | 11.6 |
| 13158 | SKG200N | 200 | □ 26-28 □ 30 | 23.5 |
Wire Rope Gripper Configuration: Apply to grip anti-twisting steel rope.
Feature: Single"V" type grip, with symmetrical loading.
Explain: anti-twisitng steel rope specification is need indicated whrn customer order.
Contact Person: Peter
Tel: 86-13958364836
