Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | CE and ISO |
| Model Number: | SKL |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get the lastest price |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | In Stock |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000pcs per month |
| Model: | SKL15 | Product Name: | Cable Pulling Clamps |
|---|---|---|---|
| ACSR: | 95~120 | Max Open: | 18 Mm |
| Weight: | 1.4 Kg | Item: | Cable Pulling Grip Tool |
| High Light: | 18MM Open Wire Grip Clamp,Wire Sag Adjusting Come Along Clamp,Tensioning Wire Grip Clamp |
||

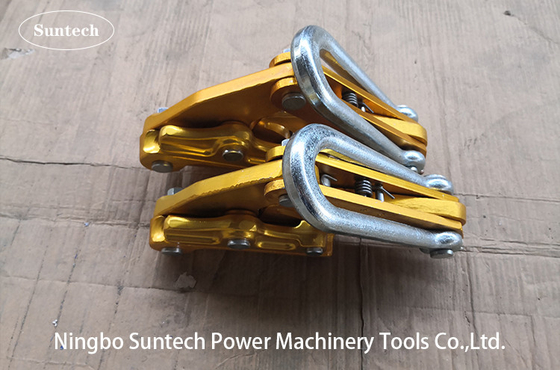

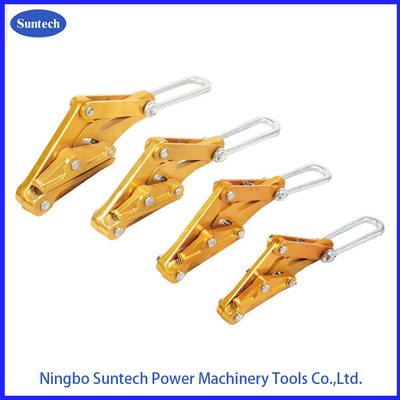

18MM Max Open Cable Pulling Clamps Cable Grips For Sag Adjusting / Tensioning
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Cable Pulling Clamp Application:
18MM Max Open Cable Pulling Clamps Cable Grips For Sag Adjusting / Tensioning
1) For overhead power line wire sag with tighting or adjustment.
2) Forging of high strength aluminum titanium alloy used,light weight.
3) Suitable for steel core aluminum stranded wire and aluminum wire.
| Item No. | Model No. |
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
| 0101 | SKL-7 | 7 | 25~70 | 14 | 1.0 |
| 0102 | SKL-15 | 15 | 95~120 | 18 | 1.4 |
| 0103 | SKL-25 | 25 | 150~240 | 24 | 3.0 |
| 0104 | SKL-40 | 40 | 300~400 | 32 | 4.0 |
| 0105 | SKL-50 | 50 | 500~630 | 36 | 6.6 |
Contact Person: Peter
Tel: 86-13958364836
