Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | CE and ISO |
Model Number: | SKL |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Exported Wooden Case |
Delivery Time: | In Stock |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000pcs per month |
Material: | Aluminum Alloy | Rated Load: | 7-80KN |
---|---|---|---|
Application: | Power Construction | Usage: | Tightening |
Type: | Conductor Gripper | Function: | Tighten Conductor |
High Light: | Power Construction Wire Grip Clamp 80KN,Tightening Overhead Wire Grip Clamp,Conductor Gripper Cable Pulling Clamp |

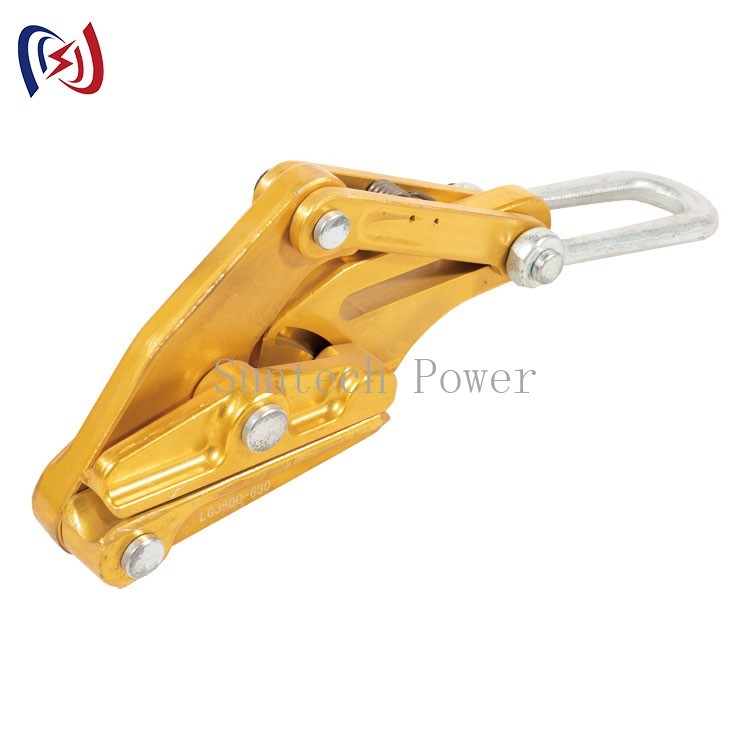

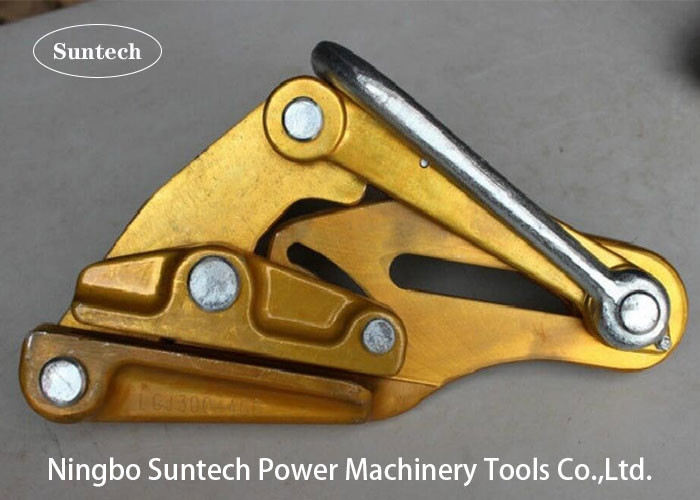

Aluminum Alloy Overhead Line Tools Come Along Clamps Conductor Gripper
This aluminum alloy conductor gripper serves to adjust the sag and tighten the overhead line conductors. It is forged from high strength aluminum alloy material, which possesses small size and light weight.
Characteristic
Conductor Grip is made of high quality aluminum alloy material. It has light weight and sizes. The jaw part adopts a special texture processing so that it can firmly clamp the cable and does not hurt the inner core whether winter or summer.
Use

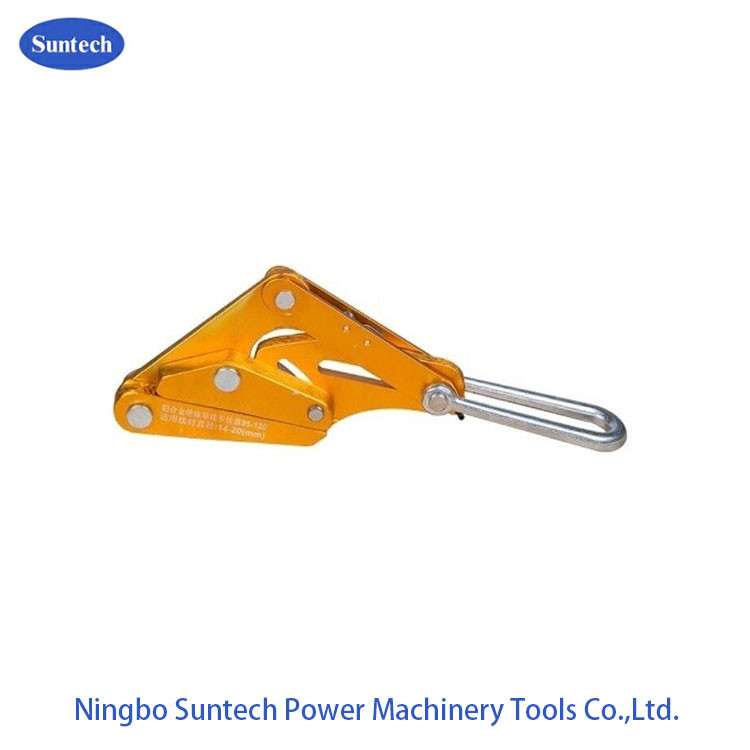

Aluminum Alloy Overhead Line Tools Come Along Clamps Conductor Gripper
Apply to sag adjusting and tensioning on overhead line construction.
Feature

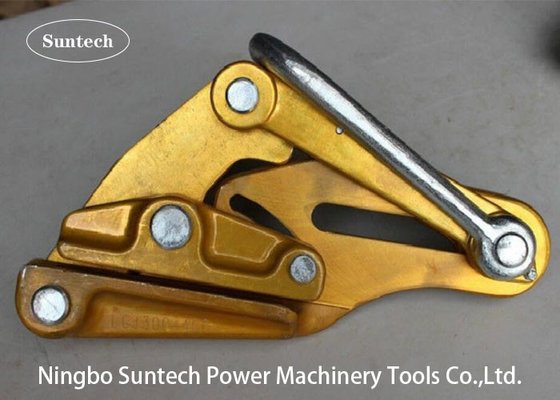

Aluminum Alloy Overhead Line Tools Come Along Clamps Conductor Gripper
1. Product has the safety latch with "G" symbol.
2. Product has safety latch can achieve 3 times of rated load tensile testing without wire damage. It is most suitable for the line construction by transmission and transformation facilities company;
3. Other specification of conductor clamp can customized accordingly.

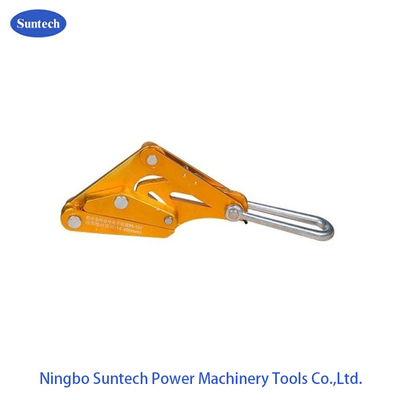

Aluminum Alloy Overhead Line Tools Come Along Clamps Conductor Gripper Specification
Item No. | Model No. | Rated Load (KN) |
Applicable Conductor (ACSR-MM2) |
Max Open (MM) |
Unit Weight (KG) |
0201 | SKL-7 | 7 | 25~70 | 14 | 1.0 |
0202 | SKL-15 | 15 | 95~120 | 18 | 1.4 |
0203 | SKL-25 | 25 | 150~240 | 24 | 3.0 |
0204 | SKL-40 | 40 | 300~400 | 32 | 4.0 |
0205 | SKL-50 | 50 | 500~630 | 36 | 6.6 |
0206 | SKL-40G | 40 | 400 | 32 | 4.3 |
0207 | SKL-50G | 50 | 500 | 34 | 7.0 |
0208 | SKL-50GA | 50 | 630 | 36 | 7.3 |
0209 | SKL-60G | 60 | 720 | 38 | 9.2 |
0210 | SKL-70G | 70 | 900 | 42 | 14.0 |
0211 | SKL-80G | 80 | 1000 | 45 | 18.0 |
0212 | SKL-80GA | 80 | 1200 | 48 | 18.0 |

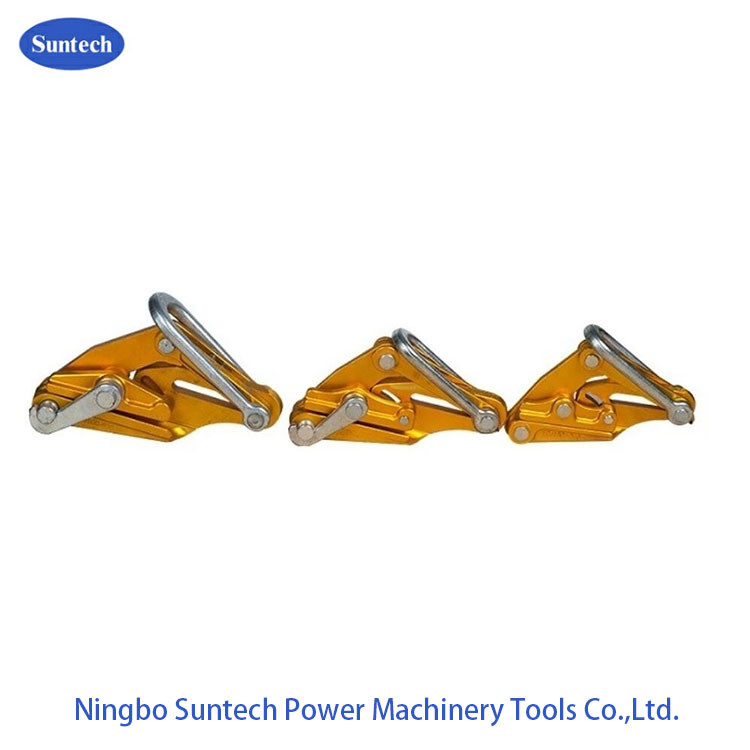

Conductor Grip
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
