Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | NINGBO |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 660mm |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Wooden Cases |
| Delivery Time: | 9-15DAYS AFTER DEPOSIT |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 SETS PER MONTH |
| Trade Term:: | FOB,CFR,CIF | Name: | Conductor Stringing Blocks |
|---|---|---|---|
| Conductor Diameter:: | Up To 30mm | Material: | Nylon Wheels |
| Application: | Transmission Line | Usage: | Site Work |
| High Light: | Nylon Wheel Bundled Conductor Stringing Blocks,Conductor Stringing Blocks Dia660mm,Conductor Wire Pulling Blocks |
||

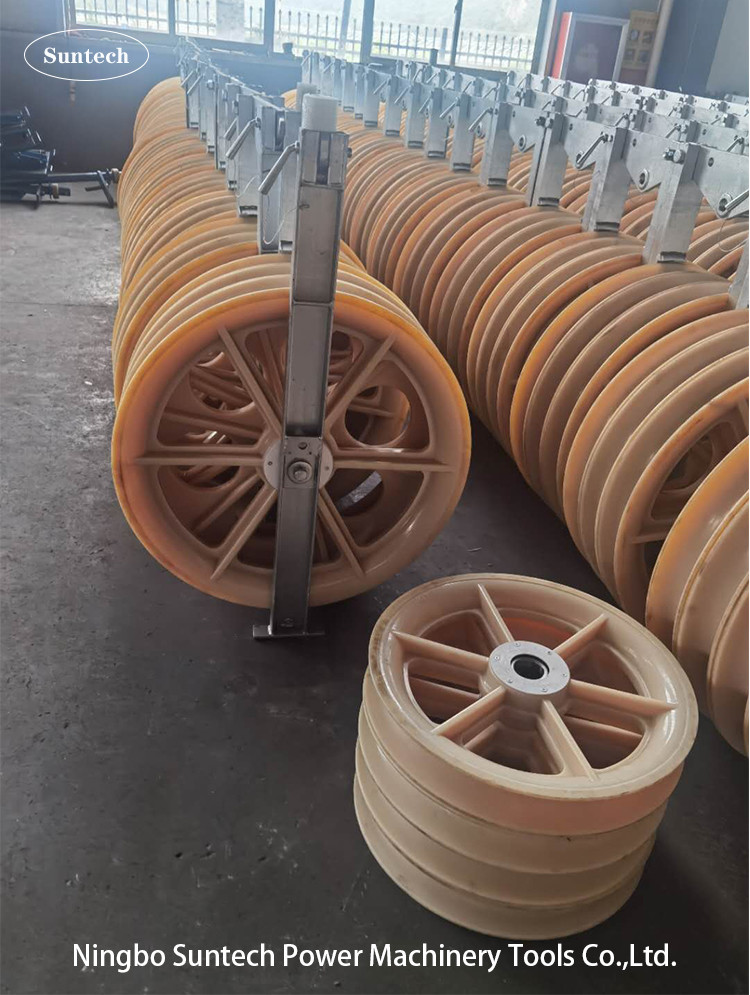

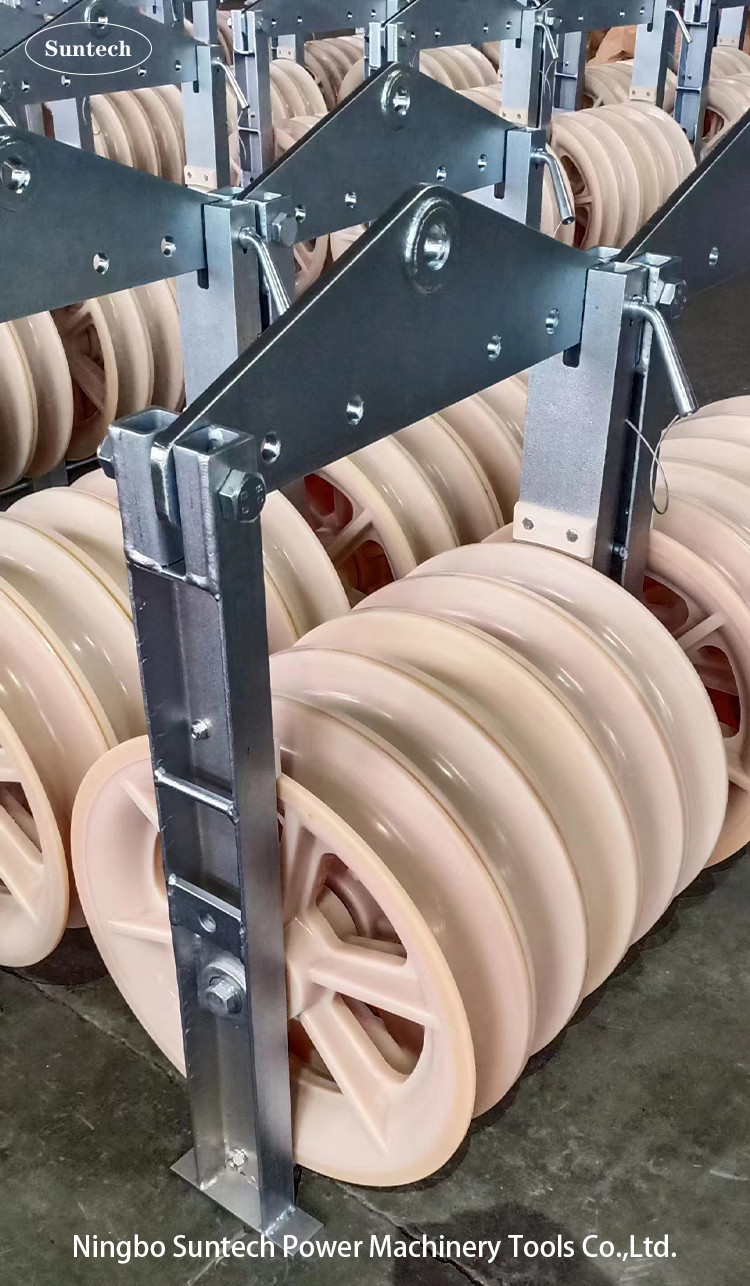

660mm Nylon Wheel Used To Large Diameter Bundled Conductor Stringing Block Pulley
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120x30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160x40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200x40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200x60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250x40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250x60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270x60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320x60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400x80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove.
508MM Overhead Transmission Line Cable Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10101 | SHD508 | 300-400 | 20 | 18 | Aluminum alloy |
| 10104 | SHDN508 | 300-400 | 20 | 16 | MC Nylon |
| 10104A | SHDN508X100 | 300-400 | 20 | 17 | MC Nylon |
| 10102 | SHS508 | 300-400 | 40 | 61 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105 | SHSLN508 | 300-400 | 40 | 47 | |
| 10107 | SHSQN508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10107A | SHSQN508X100 | 400 | 40 | 46 | |
| 10108 | SHWQN508 | 300-400 | 60 | 70 | |
| 10108A | SHWQN508X100 | 300-400 | 60 | 76 |
Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.
