Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJQ5 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Get newest price |
| Packaging Details: | Exported cartons or cases |
| Delivery Time: | 5-7 workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

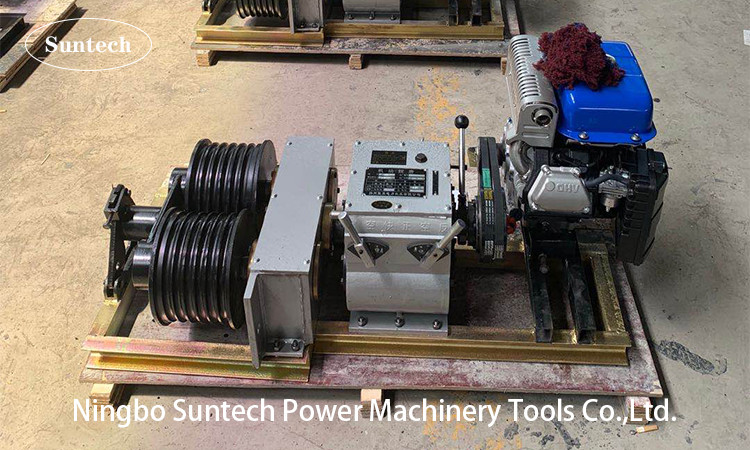

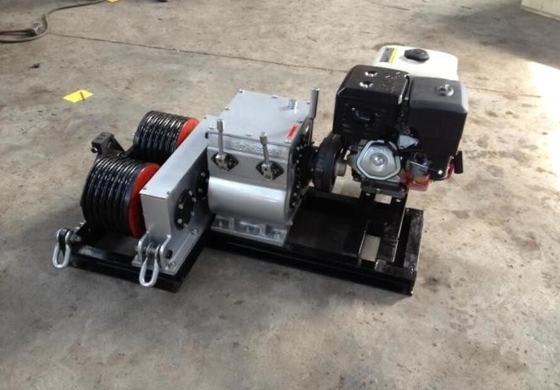

| Model: | JJQ5 | Name: | DRUM HOIST WINCH |
|---|---|---|---|
| Engine: | GAS AND DIESEL | Speed: | 3600RPM |
| Power: | 9HP | Weight: | 270KGS |
| High Light: | 3600RPM Cable Winch Puller,Diesel Engine Drum Hoist Winch,Electric Cable Winch Puller 9HP |
||
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments,stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Application: Wire Rope Electric Hoist Winch for Lifting is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools , tower erection , pole setting,stringing wire in electrical power line construction, the electric winch is driven by a belt,effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure construction safety.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Engine Powered Winch Type 1. Diesel engine. 2. Gasoline engine. 3. Elecric Motor.
| Item number | 09162A | 09162B | 09162 | |
| Model | JJCS-50 | JJQS-50 | JJCS-50 | |
| Engine | Model | Diesel Engine | Gasoline Engine | Diesel Engine |
| Power(KW) | 9 | 9 | 9 | |
| Speed(rpm) | 2000 | 3600 | 2000 | |
|
Pull(KN) speed force/ (M/MIN) |
Slow | 50/5 | 50/5 | 50/3.1,40/9.6 |
| Moderate | 25/9 14/14 | 25/9 14/14 | 45/7.1,17/22.3 | |
| Fast | 8/22 | 8/22 | 33/11.3,10/35.6 | |
| Reverse | -/5 -/9 | -/5 -/9 | -/7.35 | |
| Drum bottom of groove diamete(MM) | Φ230 | Φ230 | Φ300 | |
| outline size (MM) | 1000x670x600 | 1000x670x600 | 2230x1210x1135 | |
| Weight(KG) | 300 | 300 | 700 | |
Contact Person: Peter
Tel: 86-13958364836
