Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SLU |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing |
| Delivery Time: | 7 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000pcs / month |
| Name: | Swivel Connector | Material: | Steel |
|---|---|---|---|
| Model: | SLU | Color: | Silver |
| Load: | 10-250kn | Surface Treat: | Polish |
| High Light: | U Shape Pilot Wire Connectors 250kn,Polish Fixed Joint Cable Pulling Tools,50KN Pilot Wire Swivel Connector |
||

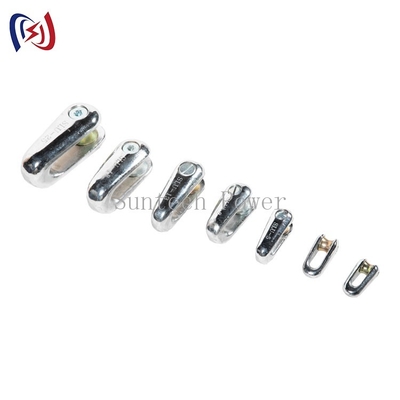

SLU-5 50KN Fixed Joints U Shape Pilot Wire Connectors For Cable Pulling
It is applicable to connecting anti-twisting steel rope for traction operation. it has small size, light weight ,it can pass through the corners, pulley, tension machine, traction machin and other equipment.

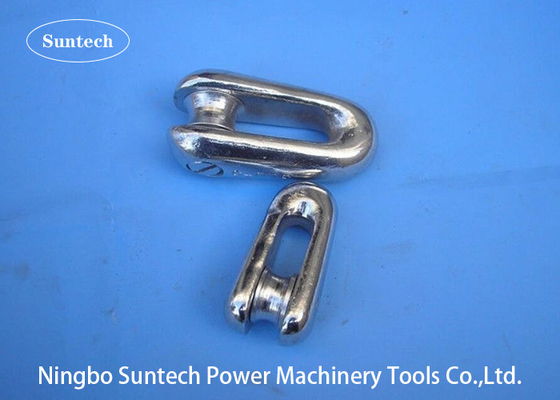

SLU-5 50KN Fixed Joints U Shape Pilot Wire Connectors For Cable Pulling
High

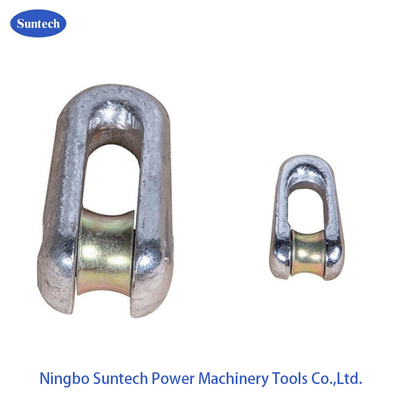

Fixed Joints U Shape Pilot Wire Connector Data Sheet
| Model | Main size(mm) | Rated load(KN) | Weight(kg) | |||||
| A | B | C | d | D | E | |||
| SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
| SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
| SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
| SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
| SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
| SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
| SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
| SLU-25 | 80 | 178 | 44 | 30 | 35 | 72 | 250 | 3.0 |
| SLU-28 | 80 | 178 | 44 | 30 | 35 | 72 | 280 | 3.0 |
| SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
Anti-bending Connector Joint usually packed by carton or can as your demand.
