Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | Overhead Lines Bicycles |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case packing |
Delivery Time: | 7 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs per month |
Name: | Overhead Lines Bicycles | Rated Load: | Max. 1.5 KN |
---|---|---|---|
Conductor: | Single, 2, 3, 4, 6 | Type: | Bicycle Or Air Cart |
Diameter: | Max. 160 Mm | Packing: | Plywood Case |
High Light: | Overhead Line Stringing Tools ISO,Trolleys Bicycles Overhead Line Stringing Tools,Air Space Transmission Line Stringing Tools |

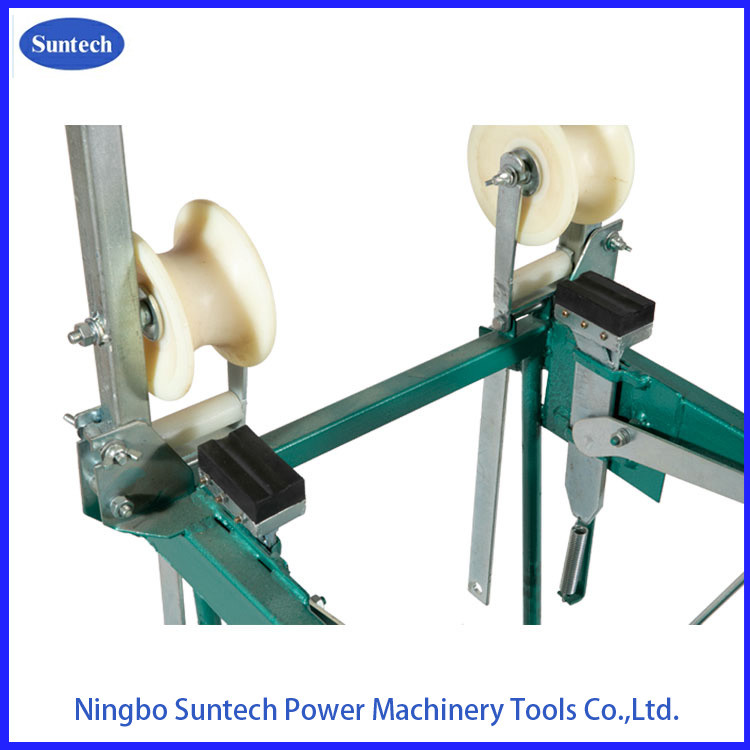

Air Space Trolleys And Bicycles Overhead Line Stringing Tools Iso

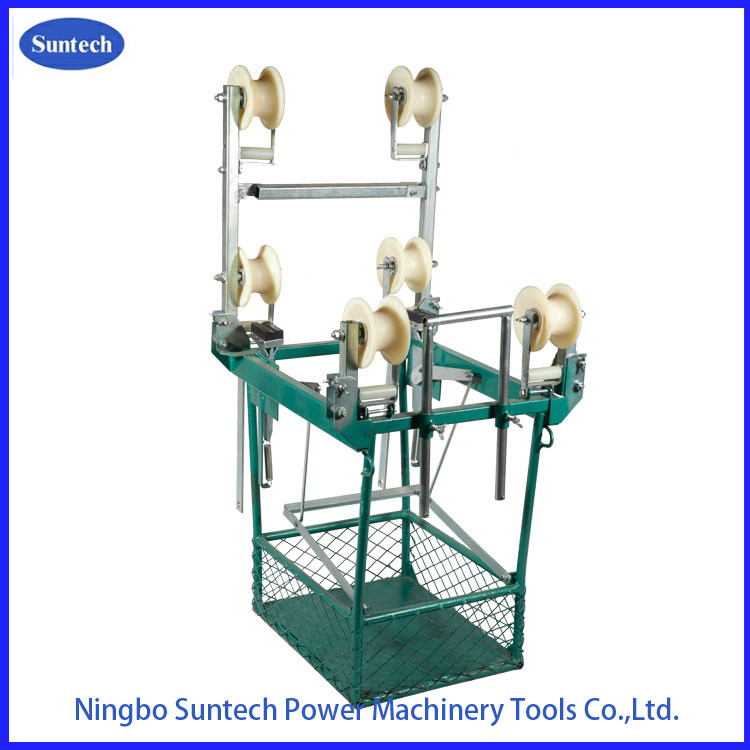

This Four Bundle Conductors Line Cart is commonly used to install the conductor attachments, and overhaul the lines on the four bundle conductor, among others. The distance between the conductors should be clearly explained while an order is placed.
Technical Parameters
Item Number | Model | Rated Load (kN) | Maximum Through Diameter (mm) | Distance between Conductors (mm) | Weight (kg) |
17271 | SFS1 | 1.5 | Φ70 | 450 | 40 |
500 | |||||
17272 | SFS3 | 1 | Φ40 | 400 450 500 |
36 |
450 | 38 | ||||
500 | 40 | ||||
17273 | FCS400/450 | 1 | Φ60 | 400~450 | 43.5 |
Contact Person: Peter
Tel: 86-13958364836
