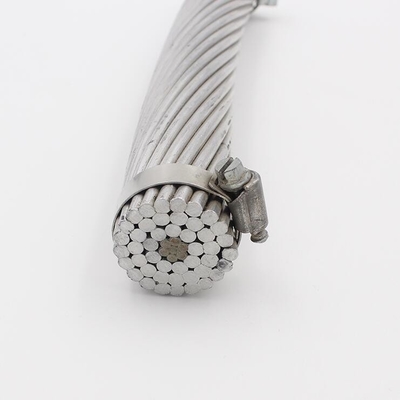

DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines

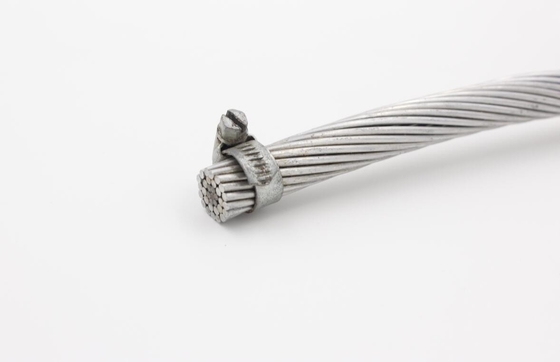

DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines

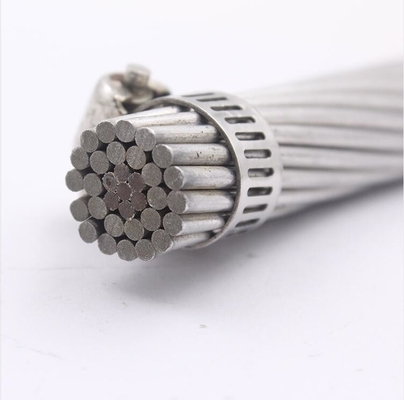

  • DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines

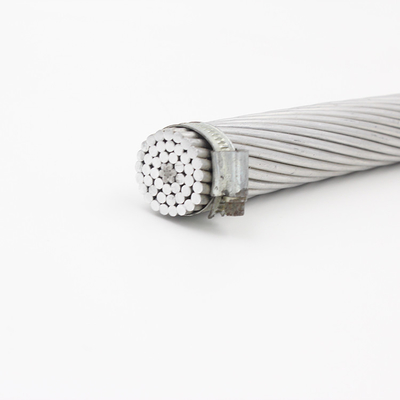

  • DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines
  • DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines
  • DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines
DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech Power
Certification: ISO9001
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Negotiation
Packaging Details: Iro-wooden Drum
Delivery Time: 15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000Ton/Month
Contact Now
Detailed Product Description
Name: ACSR / SCA Bare Conductor Cable Model Number: ACSR
Application: Overhead Type: LOW VOLTAGE
Conductor: Aluminum Standard: DIN 48204
High Light:

SCA Bare Conductor Cable

,

Overhead Bare Conductor Cable

,

120/20 ACSR Conductor Cable

DIN 48204 70/12 120/20 ACSR /SCA bare conductor cable overhead transmission lines

Product Description

ACSR (aluminum conductor steel-reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.DIN 48204 70/12 120/20 ACSR /SCA bare conductor cable overhead transmission lines



ACSR Technical Characteristics Based on Standard BS 215

Code name Nominal aluminum area Stranding and wire diameter Sectional area of aluminum Total sectional area Approx. overall diameter Approx. mass Calculated D.C. resistance at 20oC Calculated breaking load
Al Steel
mm2 No./mm mm2 mm2 mm kg/km ohm/km kN
RABBIT 50 6/3.35 1/3.35 52.88 61.7 10.05 214 0.5426 18.35
DOG 100 6/4.72 7/1.57 105 118.5 14.15 394 0.2733 32.7
WOLF 150 30/2.59 7/2.59 158.1 194.9 18.13 726 0.1828 69.2
DINGO 150 18/3.35 1/3.35 158.7 167.5 16.75 506 0.1815 35.7
LYNX 175 30/2.79 7/2.79 183.4 226.2 19.53 842 0.1576 79.8
ZEBRA 400 54/3.18 7/3.18 428.9 484.5 28.62 1621 0.0674 131.9



ACSR Technical Characteristics Based on Standard ASTM B 232



Code name

Nominal

AWG/MCM

Stranding and wire diameter Sectional area of aluminium Total sectional area Approx. overall diameter Approx. mass Calculated D.C. resistance at 20oC Calculated breaking load
Al Steel
  No./mm mm2 mm2 mm kg/km Ω/km kN
Turkey 6 6/1.68 1/1.68 13.29 15.48 5.04 54 2.1586 5.24
Swan 4 6/2.12 1/2.12 21.16 24.71 6.36 85 1.3557 8.32
Sparrow 2 6/2.67 1/2.67 33.61 39.22 8.01 136 0.8535 12.7
Robin 1 6/3.0 1/3.0 42.39 49.49 9.0 171 0.6767 15.85
Raven 1/0 6/3.37 1/3.37 53.48 62.38 10.11 216 0.5364 19.32
Quail 2/0 6/3.78 1/3.78 67.42 78.65 11.34 273 0.4255 23.62




DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines 1

Our Services
Product Service is the key point between the business cooperation ,we have our own special services as below:
1).Free 3-5 Year Product Warranty;
2).We can provide the pre-sale ,sale and after-sale instruction and technical support.
3).We have the standard wooden drum packing and strict product inspect process etc.
Packaging & Shipping

We usually use the standard wooden drum to package as the belowing picture.We also can design the different package types according to the customer's requirements.

Shipping port: Qingdao, Shanghai or other ports as per your requirements

Sea freight: FOB/CFR/CIF etc quotation are all available

DIN 48204 70 / 12 120 / 20 ACSR SCA Bare Conductor Cable Overhead Transmission Lines 2
