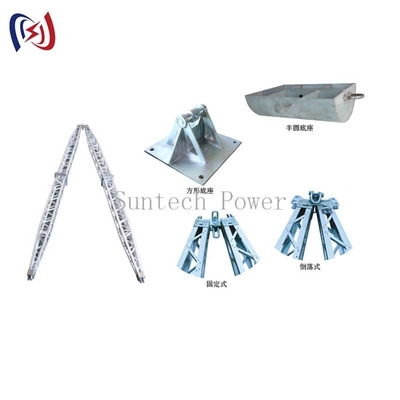

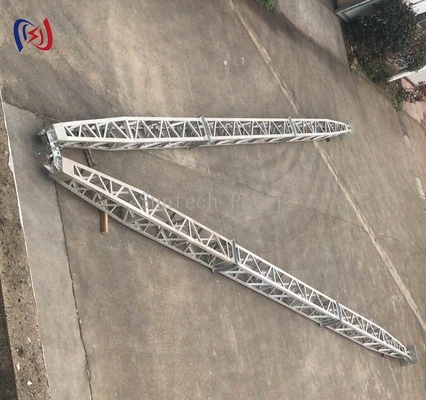

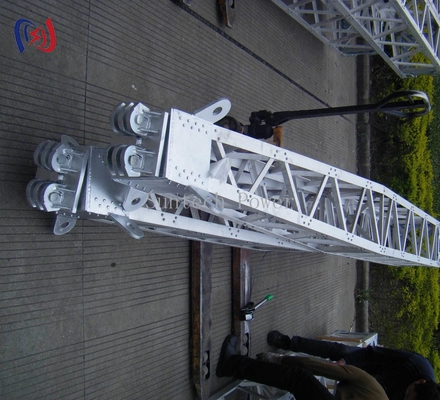

A-Shape Lattice Gin Pole LBR-250 for Tower Erection 8-28M Range

1 PCS
MOQ
Negotiation
Price
A-Shape Lattice Gin Pole LBR-250 for Tower Erection 8-28M Range
Features Gallery Product Description Request A Quote
Features
Specifications
Name: A-Shape Lattice Gin Pole
Item No.: 03361-03615
Model: LBR-250
Range: 8-28M
Safety Factor: 2.5k
Weight: 10.5x2-75x2KG/M
Highlight:

SCA Bare Conductor Cable

,

Overhead Bare Conductor Cable

,

120/20 ACSR Conductor Cable
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech Power
Certification: ISO9001
Model Number: LBR-250
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 2000 PCS/month
Product Description
Heavy Duty A Shape Gin Pole With Reinforced Steel Joints
Attribute Value
Name A-Shape Lattice Gin Pole
Item No. 03361-03615
Model LBR-250
Range 8-28M
Safety Factor 2.5k
Weight 10.5x2-75x2KG/M
Product Introduction
  • Specialized A-frame lifting system for transmission tower erection
  • Triangular lattice structure provides superior stability
  • Essential equipment for professional power line construction crews
Key Features
Stable A-Frame Design
  • Wide base prevents tipping
  • Even weight distribution
Modular Construction
  • Interlocking lattice sections
  • Adjustable height options
Load Capacity
  • Reinforced steel joints
  • Multiple anchor points
Safety Assurance
  • Integrated load cells
  • Visual stability indicators
Operational Efficiency
  • Color-coded assembly
  • Tool-free connections
Typical Applications
  • Transmission tower assembly
  • Substation structure erection
  • Temporary lifting operations
  • Emergency tower repairs
Workflow Integration
  • Compatible with most crane systems
  • Works with standard rigging
  • Integrates with monitoring devices
Maintenance Advantages
  • Corrosion-resistant coating
  • Easy visual inspections
  • Minimal maintenance
User Guidelines
  1. Site Preparation
    • Level the work area
    • Verify ground conditions
  2. Assembly
    • Follow color sequence
    • Secure all connections
  3. Operation
    • Monitor load indicators
    • Maintain clear zones
  4. Dismantling
    • Reverse assembly steps
    • Proper component storage
Industry Compliance
  • Meets ASTM A36 standards
  • OSHA compliant
  • Utility certified
Why Professionals Choose Us
  • 35% more stable than single poles
  • 25% faster assembly
  • 1-year warranty
Customer Support
  • Free training videos
  • 24/7 technical line
  • Replacement parts
Purchasing Options
  • Standard heights 20-60ft
  • Custom configurations
  • Volume discounts
Technical Specifications
Item No. Model Range(M) Section(MM) Main part size(MM) Accessory size(MM) Vertical Load(KN) Safety Factor(K) Weight(KG/M)
03361 LBR-250 8-13 250*250 50*50*4 25*25*3 72-26 2.5 10.5*2
03371 LBR-300A 8-16 300*300 50*50*4 25*25*3 90-26 10.5*2
03380 LBR-300B 300*300 50*50*5 30*30*3 11.0*2
03381 LBR-350 8-16 350*350 50*50*5 30*30*3 120-35 10.5*2
03391 LBR-400A 11-18 400*400 50*50*5 30*30*3 147-38 11.0*2
03401 LBR-400B 400*400 60*60*5 30*30*3 14.6*2
03411 LBR-500A 13-20 500*500 60*60*5 30*3*3 162-81 18*2
03415 LBR-500B 500*500 60*60*5 40*40*3 20*2
03421 LBR-500C 500*500 70*70*6 40*40*3 256-127 21*2
03425 LBR-500D 500*500 70*70*6 50*50*4 22*2
03431 LBR-600A 15-22 600*600 60*60*6 40*40*3 171-96 20*2
03435 LBR-600B 600*600 70*70*6 40*40*3 21*2
03441 LBR-600C 600*600 70*70*6 50*50*4 275-150 22*2
03445 LBR-600D 600*600 80*80*6 50*50*4 24*2
03611 GBR-300 10-15 300*300 50*50*5 30*30*3 75-35 33*2
03612 GBR-400 12-18 400*400 56*56*5 30*30*3 100-75 43*2
03613 GBR-500 14-24 500*500 63*63*5 40*40*4 185-125 54*2
03614 GBR-600 16-26 600*600 70*70*6 40*40*4 420-145 63*2
03615 GBR-700 18-28 700*700 80*80*6 50*50*4 600-230 75*2
