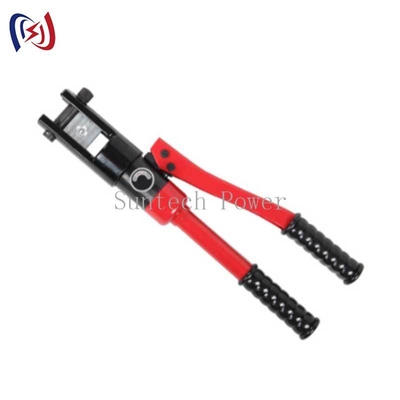

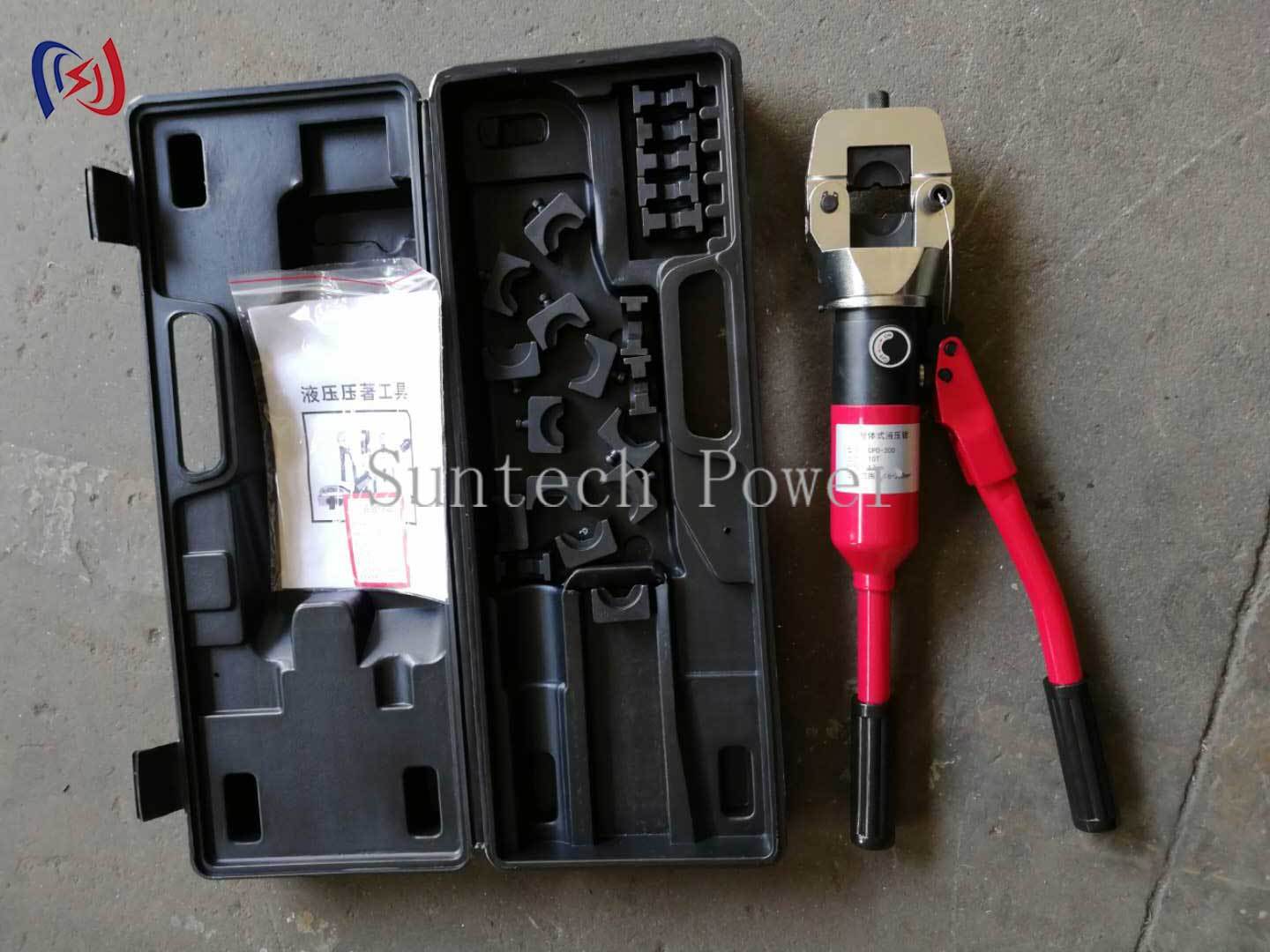

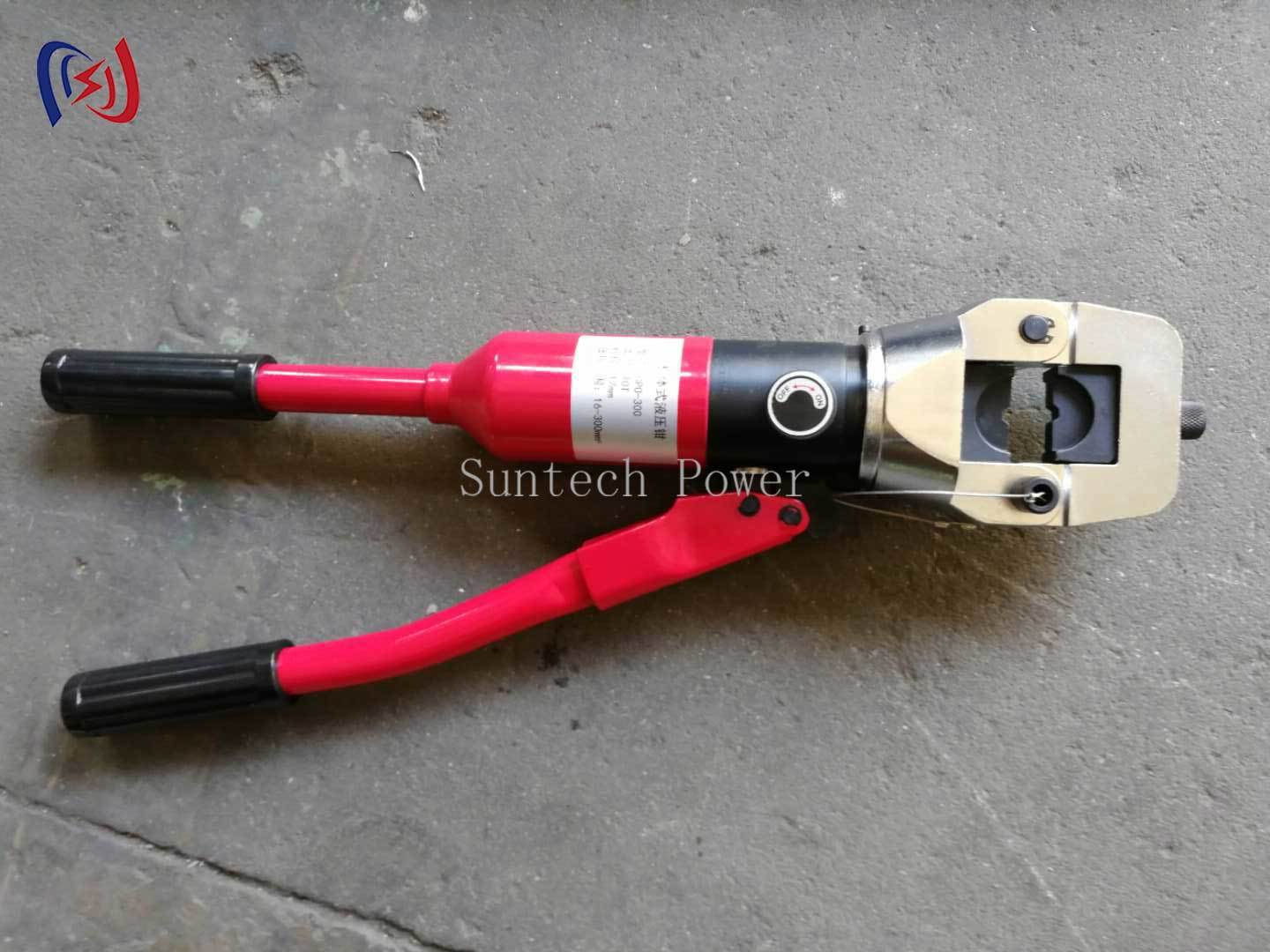

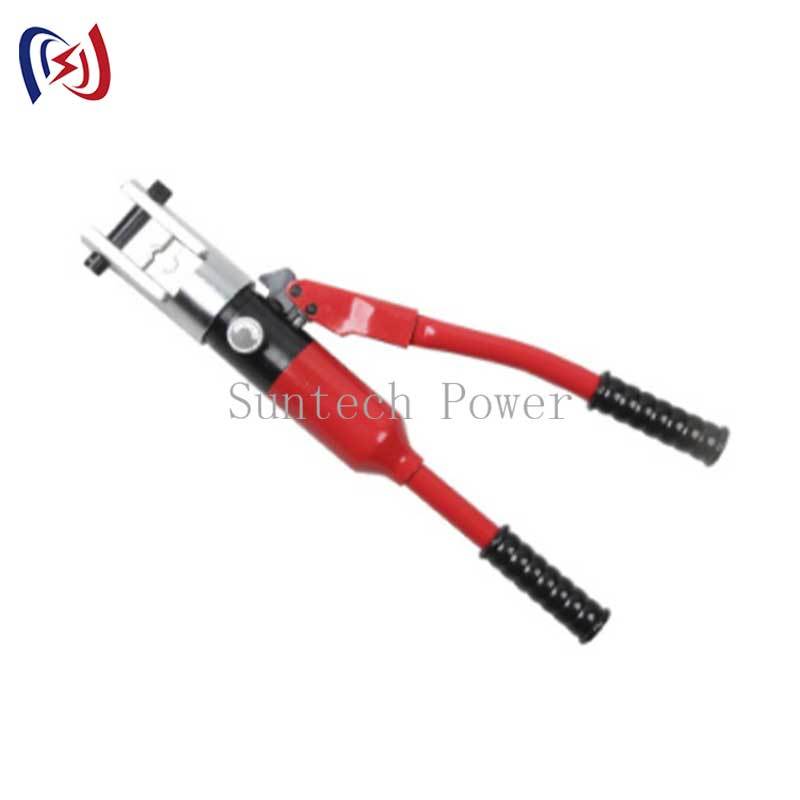

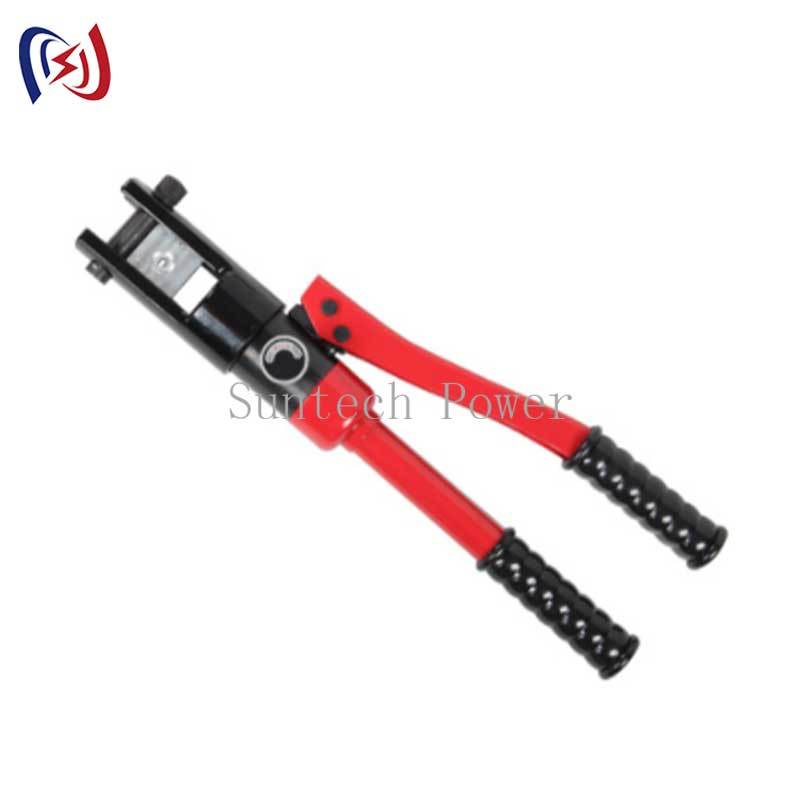

Integral Hydraulic Crimper 80-120KN for 10-630mm2 Cables

1 PCS
MOQ
Negotiation
Price
Integral Hydraulic Crimper 80-120KN for 10-630mm2 Cables
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Integral Hydraulic Crimping Pliers
Item No.: 16181-16186A
Model: YQK-120
Crimping Force: 80-120KN
Crimping Range: 10-630mm2
Weight: 4.5-9.5KG
Highlight:

Aluminium Conductor Alloy Reinforced

,

Overhead Bare Steel Conductor

,

Steel Bare Aluminum Cable
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001
Model Number: YQK-120
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 3000 PCS/Month
Product Description
Heavy Duty Integral Hydraulic Crimper With Steel Reinforced Frame
Attribute Value
Name Integral hydraulic Crimping Pliers
Item No. 16181-16186A
Model YQK-120
Crimping force 80-120KN
Crimping Range 10-630mm2
Weight 4.5-9.5KG
Product Introduction
  • Advanced hydraulic crimping tool for power line connector installation
  • Integrated hydraulic system provides consistent crimping force
  • Essential equipment for professional cable termination crews
Key Features
Hydraulic Performance
  • Self-contained oil-filled system
  • Consistent pressure for perfect crimps
Robust Construction
  • Forged steel jaws withstand heavy use
  • Reinforced pivot points
Safety Assurance
  • Double insulated handles
  • Pressure relief safety valve
Precision Crimping
  • Calibrated dies for uniform compression
  • Visual crimp indicator
Operational Efficiency
  • One-handed operation capability
  • Quick-release valve for fast reset
Typical Applications
  • High voltage cable terminations
  • Underground cable splicing
  • Substation connector installations
  • Emergency repair crimping
Workflow Integration
  • Compatible with standard utility tool belts
  • Works with all common cable types
  • Integrates with connector systems
Maintenance Advantages
  • Sealed hydraulic system
  • Easy to clean and inspect
  • Long service life
User Guidelines
Pre-Operation
  • Inspect tool condition
  • Select proper die set
During Use
  • Position connector correctly
  • Apply steady pressure
Post-Use
  • Clean tool surfaces
  • Store in protective case
Industry Compliance
  • Meets OSHA 1910.269 standards
  • Complies with IEEE 837
  • Certified by major utilities
Why Professionals Choose Us
  • 50% more consistent crimps than manual tools
  • 40% faster operation than competitors
  • 1-year hydraulic system warranty
Customer Support
  • Free training videos
  • 24/7 technical support
  • Replacement parts program
Purchasing Options
  • Single units or crew kits
  • Custom die configurations
  • Volume discounts
Model Specifications
Item number 16185 16186 16186A
Model KYQ-400 KYQ-300 KYQ-300C
Crimping force 120KN 100KN 100KN
Crimping range 16-400mm² 16-300mm² 16-300mm²
Type hexagon crimping hexagon crimping hexagon crimping
Dies 50,70,95,120,150,185,240,300,400mm² 16,25,35,50,70,95,120,150,185,240,300mm² 16,25,35,50,70,95,120,150,185,240,300mm²
Stroke 32mm 17mm 17mm
Length approx.540mm approx.500mm approx.500mm
Weight(KG) approx.N.W6.7KG G.W9.5KG approx.N.W4.9KG G.W7.7KG approx.N.W4.9KG G.W7.7KG
Package plastic box plastic box plastic box
Integral Hydraulic Crimper 80-120KN for 10-630mm2 Cables 0
