Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO9001,CCC |
Model Number: | ACSR,AAAC |
Minimum Order Quantity: | 1000m |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Wooden Case or Containers |
Delivery Time: | 10-15 workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000Ton/Month |

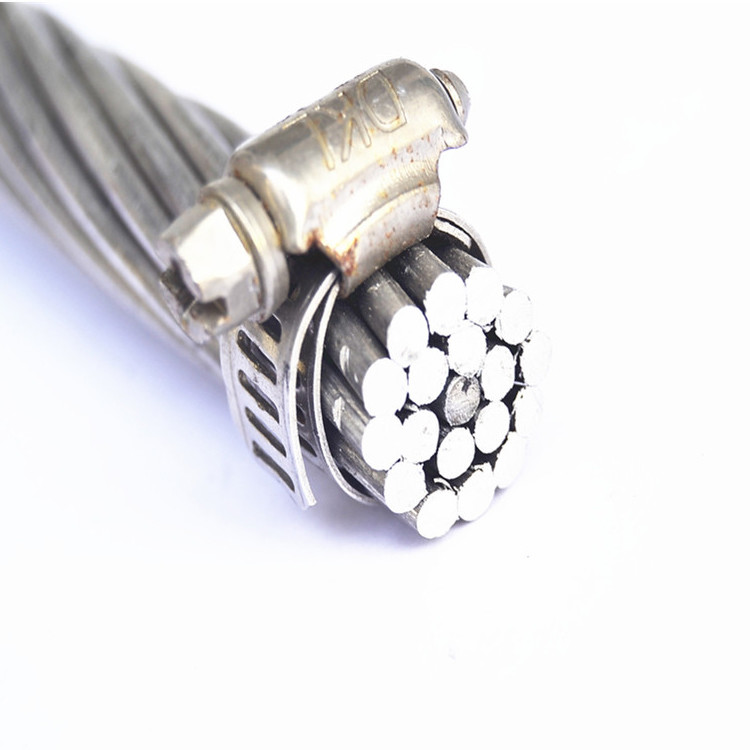

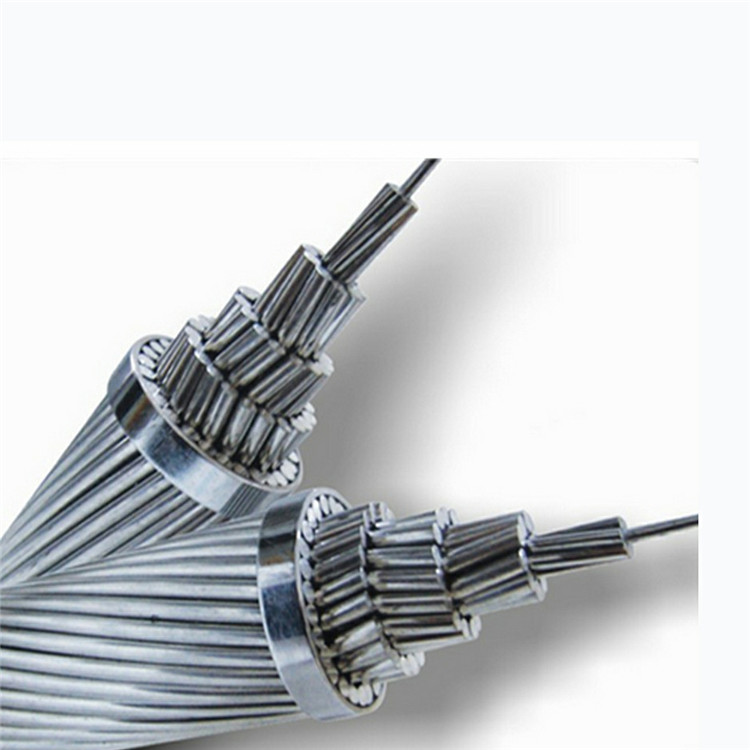

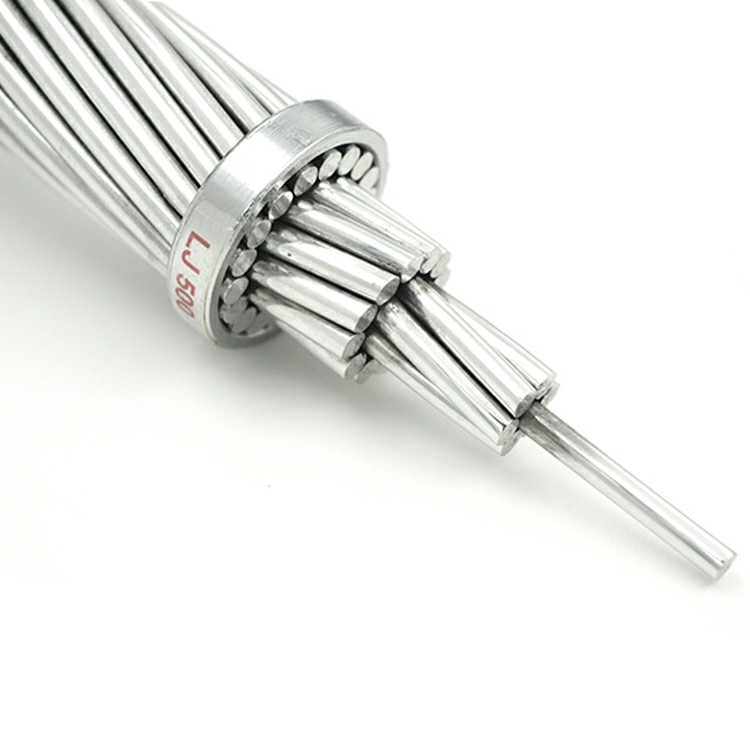

Name: | Aluminum Alloy Steel Conductor | Type: | Bare |
---|---|---|---|
Application: | State Grid,Power Station | Insulation Material: | No |
Material: | Aluminum | Usage: | Overhead |
High Light: | Aluminium Conductor Alloy Reinforced,Overhead Bare Steel Conductor,Steel Bare Aluminum Cable |
Bare Conductor Types
(1) all aluminum conductor (AAC)
(2) all aluminum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminum conductor aluminum clad steel reinforced(ACSR/AW)
(6)rear earth aluminum conductor steel reinforced(ACSR/RE)
(7)aluminum conductor aluminum alloy reinforced(ACAR)
1.Application
(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient
installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2.Service Performance
(1).The permissible long-time operating temperature for aerial conductor is 70℃.
(2).Under the circumstance that rare climate is occurring and ice coverage rate low in
heavy ice area,the biggest stress of cable at the lowest point of the sag should not
exceed 60% of the short-time destructive power.
(3).When connecting conductors,the conductor beside the connecting tube can't be
prominent.Otherwise,the force on the operating conductors will be unbalanced.After
connectors are install,the connecting tube should be painted by moisture proof varnish in order to protect it from corrosion.
Contact Person: Peter
Tel: 86-13958364836
