Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO9001,CCC |
Model Number: | ACSR |
Minimum Order Quantity: | 2000m |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Wooden Case or Containers |
Delivery Time: | 10-15 workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000Ton/Month |
Name: | Aluminum Conductor Steel Reinforced | Type: | Bare |
---|---|---|---|
Application: | Transmission Line | Insulation Material: | No |
Standard: | State Grid,Power Station | Material: | Aluminum |
High Light: | ACSR Bare Aluminum Cable,Steel Reinforced Aluminum Alloy Conductor,Transmission Line Bare Aluminium Conductor |

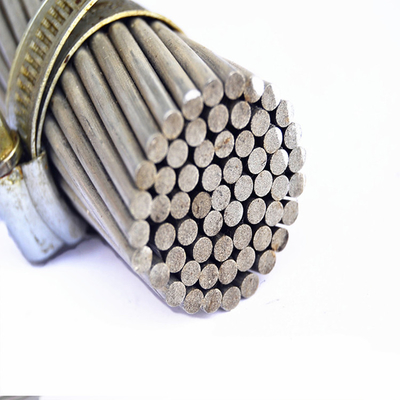

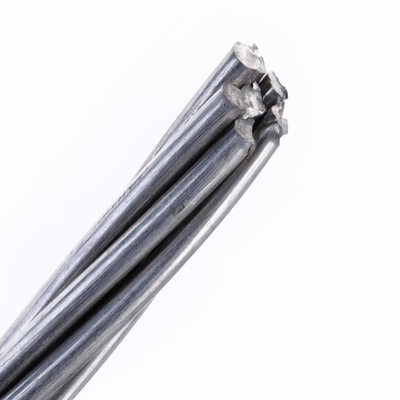

Bare aac/acsr/aaac conductor
1 Application
(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2 Service Performance
(1).The permissible long-time operating temperature for aerial conductor is 70oC.
(2).Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3).When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
ACSR Technical Characteristics Based on Standard BS 215
Code name | Nominal aluminum area | Stranding and wire diameter | Sectional area of aluminum | Total sectional area | Approx. overall diameter | Approx. mass | Calculated D.C. resistance at 20oC | Calculated breaking load | |
Al | Steel | ||||||||
mm2 | No./mm | mm2 | mm2 | mm | kg/km | ohm/km | kN | ||
RABBIT | 50 | 6/3.35 | 1/3.35 | 52.88 | 61.7 | 10.05 | 214 | 0.5426 | 18.35 |
DOG | 100 | 6/4.72 | 7/1.57 | 105 | 118.5 | 14.15 | 394 | 0.2733 | 32.7 |
WOLF | 150 | 30/2.59 | 7/2.59 | 158.1 | 194.9 | 18.13 | 726 | 0.1828 | 69.2 |
DINGO | 150 | 18/3.35 | 1/3.35 | 158.7 | 167.5 | 16.75 | 506 | 0.1815 | 35.7 |
LYNX | 175 | 30/2.79 | 7/2.79 | 183.4 | 226.2 | 19.53 | 842 | 0.1576 | 79.8 |
ZEBRA | 400 | 54/3.18 | 7/3.18 | 428.9 | 484.5 | 28.62 | 1621 | 0.0674 | 131.9 |
ACSR Technical Characteristics Based on Standard ASTM B 232
Code name |
Nominal AWG/MCM |
Stranding and wire diameter | Sectional area of aluminium | Total sectional area | Approx. overall diameter | Approx. mass | Calculated D.C. resistance at 20oC | Calculated breaking load | |
Al | Steel | ||||||||
No./mm | mm2 | mm2 | mm | kg/km | Ω/km | kN | |||
Turkey | 6 | 6/1.68 | 1/1.68 | 13.29 | 15.48 | 5.04 | 54 | 2.1586 | 5.24 |
Swan | 4 | 6/2.12 | 1/2.12 | 21.16 | 24.71 | 6.36 | 85 | 1.3557 | 8.32 |
Sparrow | 2 | 6/2.67 | 1/2.67 | 33.61 | 39.22 | 8.01 | 136 | 0.8535 | 12.7 |
Robin | 1 | 6/3.0 | 1/3.0 | 42.39 | 49.49 | 9.0 | 171 | 0.6767 | 15.85 |
Raven | 1/0 | 6/3.37 | 1/3.37 | 53.48 | 62.38 | 10.11 | 216 | 0.5364 | 19.32 |
Quail | 2/0 | 6/3.78 | 1/3.78 | 67.42 | 78.65 | 11.34 | 273 | 0.4255 | 23.62 |
