Home /Products/Hydraulic Crimping Tools/Split-Type Hydraulic Crimping Pliers 300KN Steel Frame

Split-Type Hydraulic Crimping Pliers 300KN Steel Frame

1 PCS
MOQ
Negotiation
Price
Split-Type Hydraulic Crimping Pliers 300KN Steel Frame
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Split-type Hydraulic Crimping Pliers
Item No.: 16101-16106
Crimping Force: 300KN-300T
Stroke: 24-35mm
Weight: 20-130KG
Warranty: 1 Year
Highlight:

ACSR Bare Aluminum Cable

,

Steel Reinforced Aluminum Alloy Conductor

,

Transmission Line Bare Aluminium Conductor
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: CO-630B
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 3000 PCS/month
Product Description
Heavy Duty Split Type Hydraulic Crimper With Steel Frame
Product Specifications
Attribute Value
Name Split-type Hydraulic Crimping Pliers
Item No. 16101-16106
Crimping force 300KN-300T
Stroke 24-35mm
Weight 20-130KG
Warranty 1 year
Product Introduction
  • Advanced split-type hydraulic tool for power line connector installation
  • Modular design allows flexible operation in confined spaces
  • Essential equipment for professional cable termination teams
Key Features
  1. Modular Hydraulic System - Detachable pump unit for versatile use with consistent crimping pressure
  2. Robust Construction - Forged steel jaws for heavy-duty crimping with reinforced pivot mechanism
  3. Safety Assurance - Double insulated ergonomic handles with automatic pressure relief valve
  4. Precision Crimping - Interchangeable die sets for various connectors with visual crimp quality indicator
  5. Operational Flexibility - Remote pump operation capability with lightweight head for overhead work
Typical Applications
  • High voltage cable terminations
  • Underground splice installations
  • Substation connector crimping
  • Emergency line repairs
Technical Specifications
Item number Model Crimping force Crimping range Type Dies Stroke Height Weight Package
16101 CO-630B 300KN 150-630mm² hexagon crimping 150,185,240,300,400,500,630mm² 24mm approx.275mm approx.N.W11.5KG G.W20KG wooden case
16101A CO-630A 350KN 150-630mm² hexagon crimping 150,185,240,300,400,500,630mm² 24mm approx.350mm approx.N.W16.7KG G.W25.5KG wooden case
16101B CO-1000 550KN 400-1000mm² hexagon crimping 400,500,630,800,1000mm² 26mm approx.400mm approx.N.W32KG G.W39KG wooden case
16101C CO-400 200KN 16-400mm² hexagon crimping 16,25,35,50,70,95,120,150,185,240,300,400mm² 24mm approx.250mm approx.N.W5.4KG G.W10KG paper box

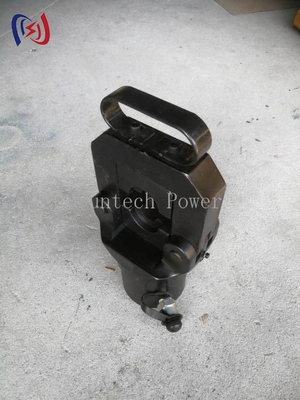

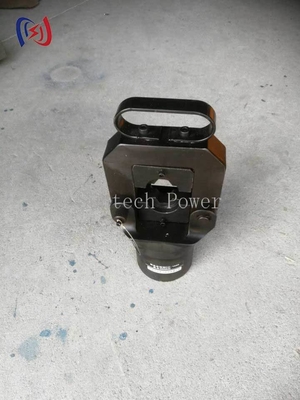

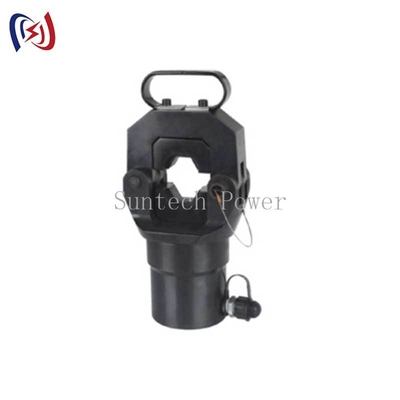

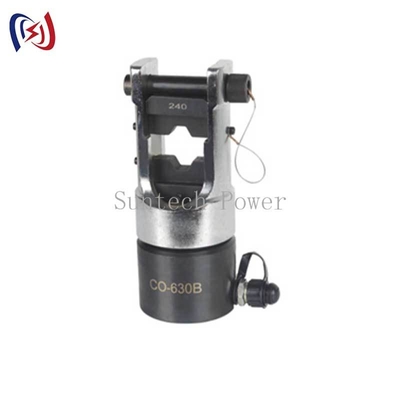

Product Image
Split-Type Hydraulic Crimping Pliers 300KN Steel Frame 0
