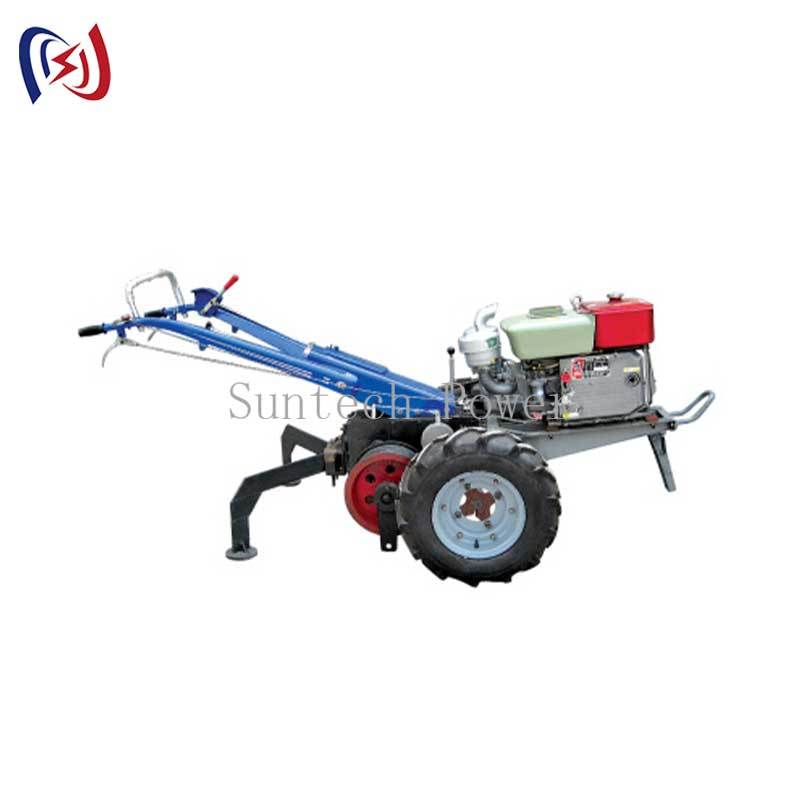

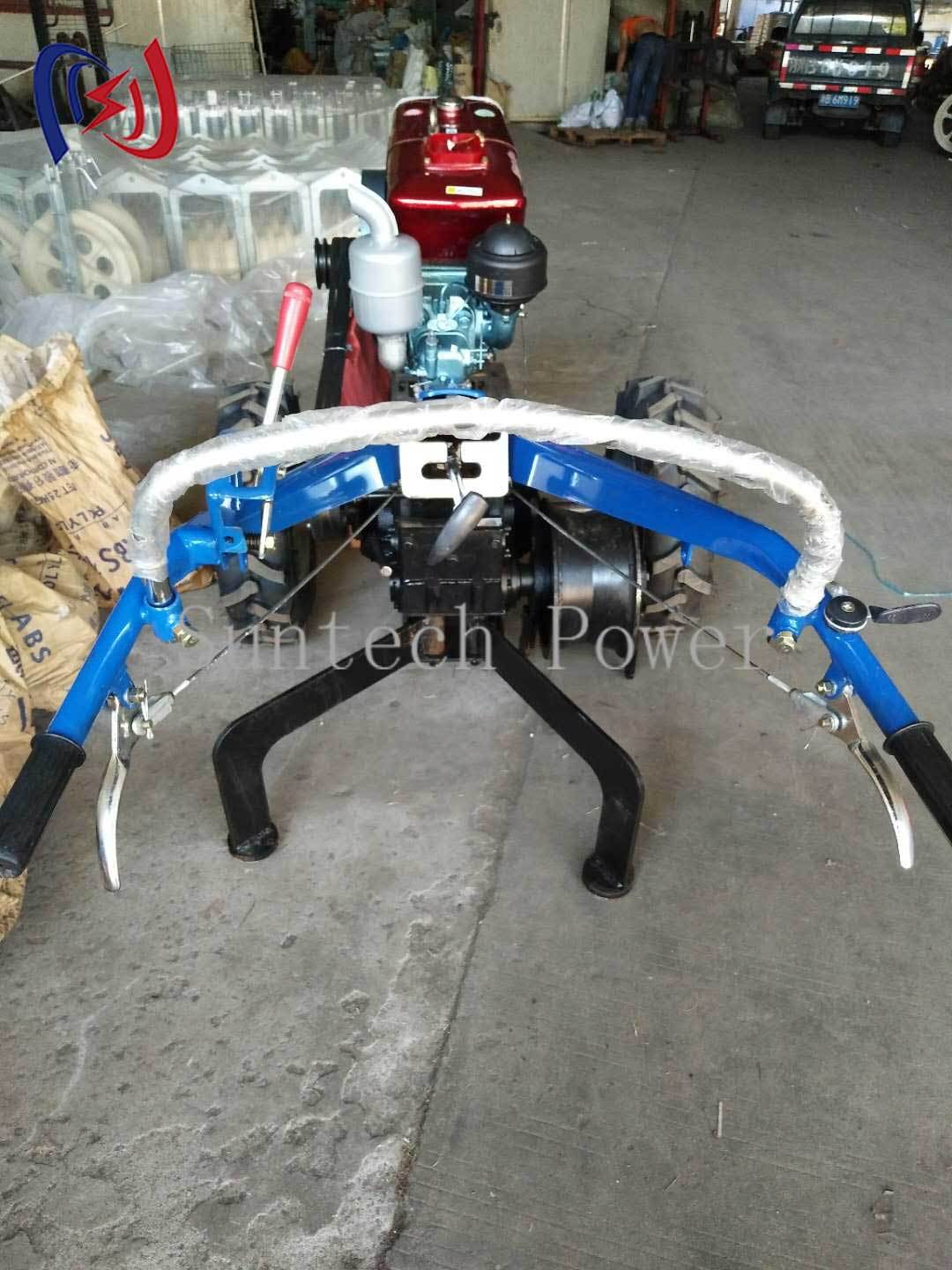

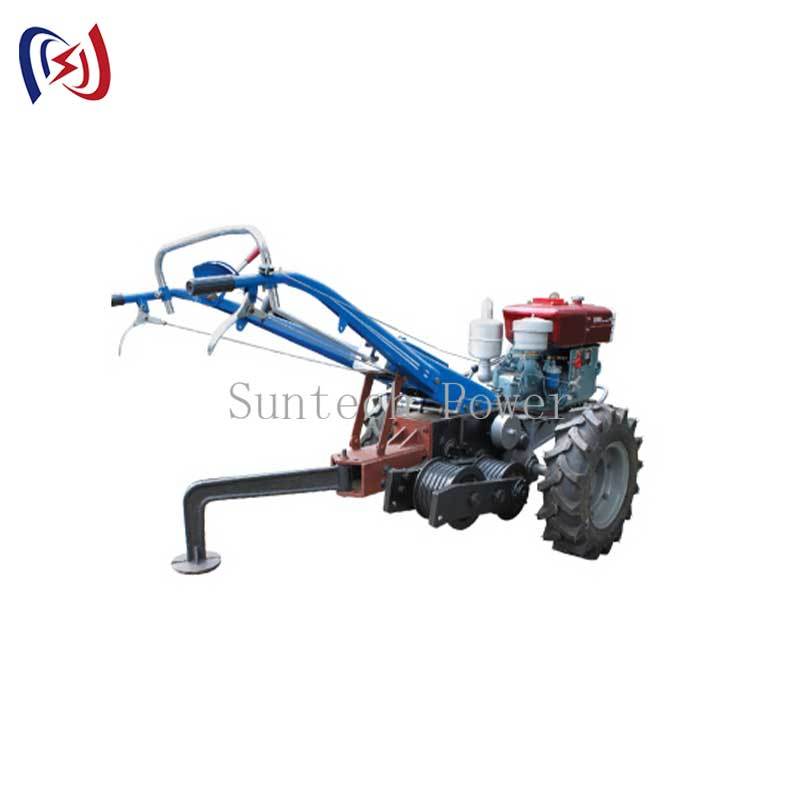

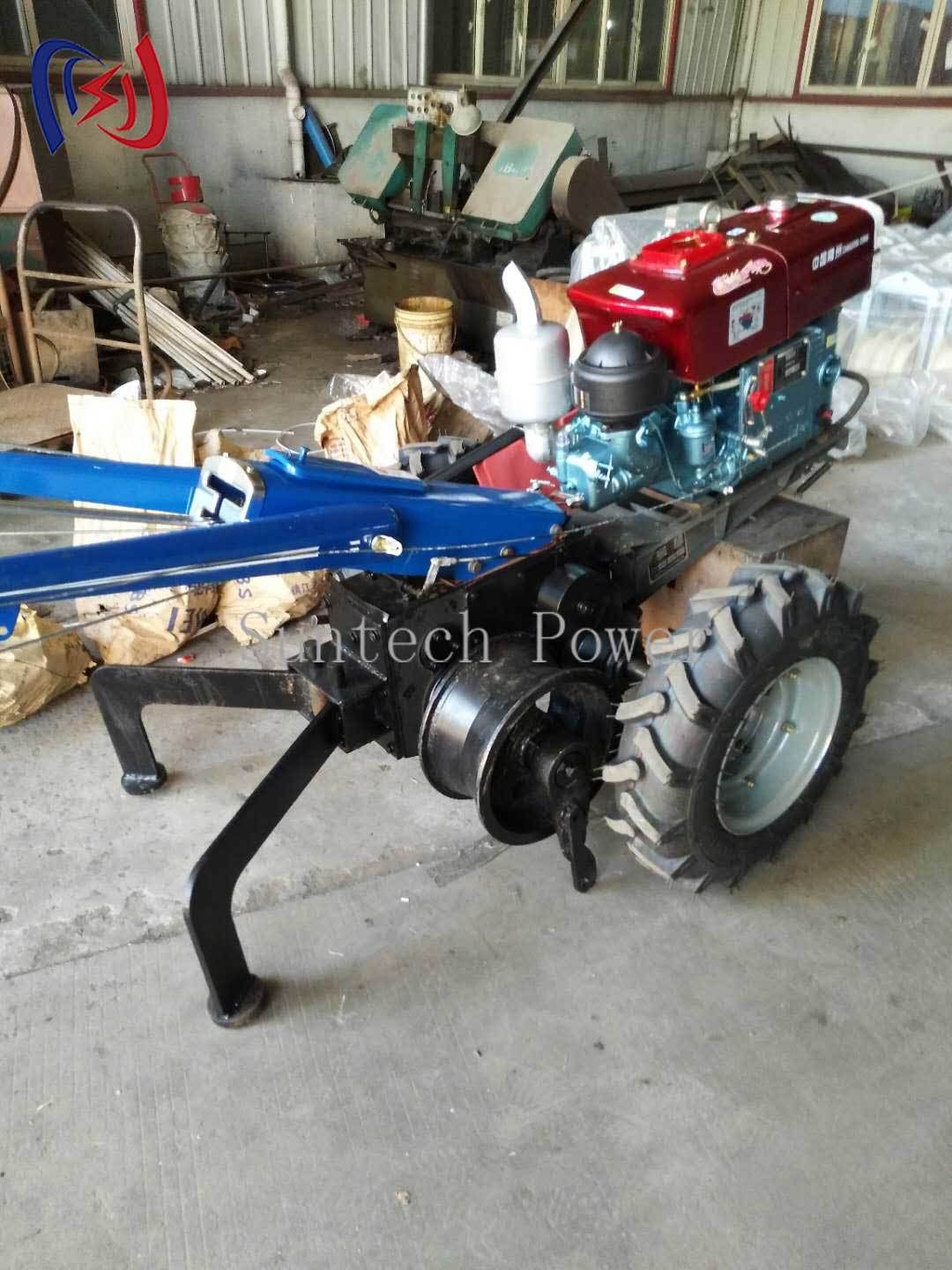

15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction

1 PCS
MOQ
Negotiation
Price
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Walking Tractor Winch
Item No.: 09171
Model: 12-A
Wheel-base: 1040mm
Power: 15HP
Speed: 2000RPM
Weight: 550-600KG
Warranty: 1 Year
Highlight:

Bare ACSR Moose Conductor

,

Aluminium ACSR Moose Conductor

,

Solid AAAC Bare Conductor
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: 12-A
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-6days
Payment Terms: L/C,T/T
Supply Ability: 8000 PCS/month
Product Description
Professional Walking Tractor Winch For Power Line Construction
Attribute Value
Name Walking Tractor Winch
Item No. 09171
Model 12-A
Wheel-base 1040mm
Power 15HP
Speed 2000RPM
Weight 550-600KG
Warranty 1 year
Product Introduction
  • Essential portable winch equipment for power line installation
  • Designed for easy maneuverability in difficult terrain
  • Trusted by utility crews for reliable performance
Key Features
  1. Portable Design
    • Compact size for easy transportation
    • Quick setup and operation
  2. Robust Construction
    • Steel drum with reinforced flanges
    • Heavy-duty frame construction
  3. Safety Assurance
    • Automatic brake system
    • Load limit protection device
  4. Operational Efficiency
    • Easy cable feeding and guiding
    • Smooth operation under load
  5. Maintenance Advantages
    • Self-lubricating bearings
    • Easy access for service
Typical Applications
  • Remote cable installation
  • Mountainous terrain projects
  • Temporary cable pulling
  • Emergency repair work
Technical Specifications
Item No. Model Ground Clearance (MM) Wheel-base (MM) Power (HP) Speed (RPM) Travel speed (KM/H) Outline size (MM) Weight (KG)
09171 12-A 150 1040 15 2000 3-13 2670*1040*1300 550
09172 12-B 150 1040 15 2000 3-13 2670*1040*1300 600
Gear Ⅰ Ⅱ Ⅲ 4 Reversal Ⅰ Reversal Ⅱ
Traction force (T) 60 37 20 12 / /
Traction speed (M/MIN) 11.7 18.9 34.4 55.6 6.2 21.3
15HP Walking Tractor Winch 1040mm Wheel-base for Power Line Construction 0
