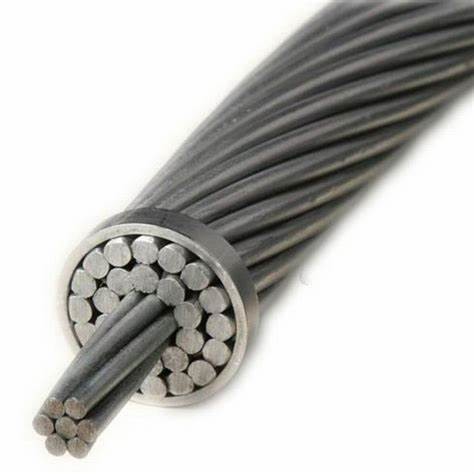

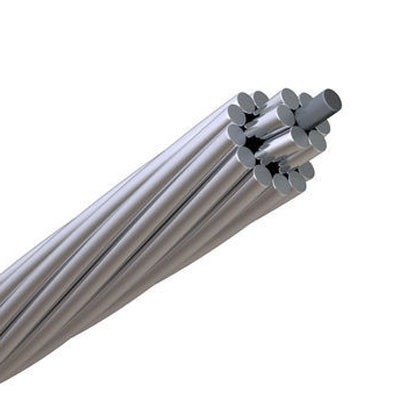

556.5 MCM Dove ACSR Bare Aluminum Conductor Steel Reinforced

556.5 MCM Dove ACSR Bare Aluminum Conductor Steel Reinforced

  • 556.5 MCM Dove ACSR Bare Aluminum Conductor Steel Reinforced
  • 556.5 MCM Dove ACSR Bare Aluminum Conductor Steel Reinforced
556.5 MCM Dove ACSR Bare Aluminum Conductor Steel Reinforced
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 5000m
Price: Negotiation
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 10-15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000Ton/Month
Contact Now
Detailed Product Description
Name: Dove ACSR Aluminum Conductor Steel Reinforced Item: Bare Conductor
Usage: Power Transmission Line Insulation: No
Standard: State Grid,Power Station Material List: Aluminum
High Light:

ACSR Aluminum Conductor 556.5 MCM

,

ACSR Overhead Line Conductor

,

Aluminium Conductor Steel Reinforced

556.5 MCM Dove ACSR Aluminum Conductor Steel Reinforced



What is 556.5 Dove ACSR Cable ?


Aluminium Conductors Steel Reinforced (ACSR), also known as Bare aluminium conductors, are one of the most widely used conductors for transmission. 556.5 MCM Dove ACSR Cable consists of one or more layers of aluminium wires stranded over a high strength steel core that can be single or multiple strands depending on the requirement. There can be various stranding combinations of Al and steel wires lending flexibility to obtain suitable current carrying capacity and mechanical strength for the application.


What is the specifications of 556.5 MCM Dove ACSR Cable ?


Size (AWG or MCM): 556.5
Stranding (AL/STL): 26/7
Diameter Inches: Aluminum: 0.1463
Diameter Inches: Steel: 0.1138
Diameter Inches: Steel Core: 0.3414
Diameter Inches: Cable OD: 0.927
Weight lb/1000FT: Aluminum: 525.0
Weight lb/1000FT: Steel: 241.0
Weight lb/1000FT: Total: 766.0
Content %: Aluminum: 68.53
Content %: Steel: 31.47
Rate Breaking Strength (lbs.): 22,500
OHMS/1000ft: DC at 20ºC: 0.0306
OHMS/1000ft: AC at 75ºC: 0.038
Ampacity: 726 Amps


What is the application of 556.5 Dove ACSR Cable ?


556.5 Dove ACSR Cable is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
ACSR (aluminum conductor steel reinforced) conductor has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.


What is the standards of 556.5 Dove ACSR Cable ?


ASTM B-230 Aluminum wire, 1350-H19 for Electrical Purposes
ASTM B-231 Aluminum conductors, concentric lay stranded
ASTM B-232 Aluminum conductors, concentric lay stranded, coated steel reinforced (ACSR)
ASTM B-341 Aluminum coated steel core wire for aluminum conductors, steel reinforced (ACSR/AZ)
ASTM B-498 Zinc coated steel core wire for aluminum conductors, steel reinforced (ACSR)

Squirrel Conductor List to Choose

Code name acsr squirrel conductor
Nominal aluminum area mm 2 20
Stranding structure Al. No. 6
Al. Dia. 2.11
St. No. 1
St. Dia 2.11
Sectional area of aluminum mm 2 20.94
Total sectional area mm 2 24.43
Overall diameter mm 6.33
Total kg/km 85
Calculated breaking load daN 788
Calculate D.C resistance at 20 ℃ Ω/km 1.368
Current Rating A 109
