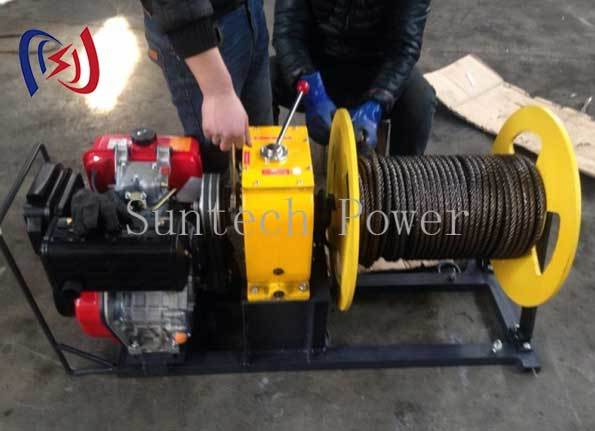

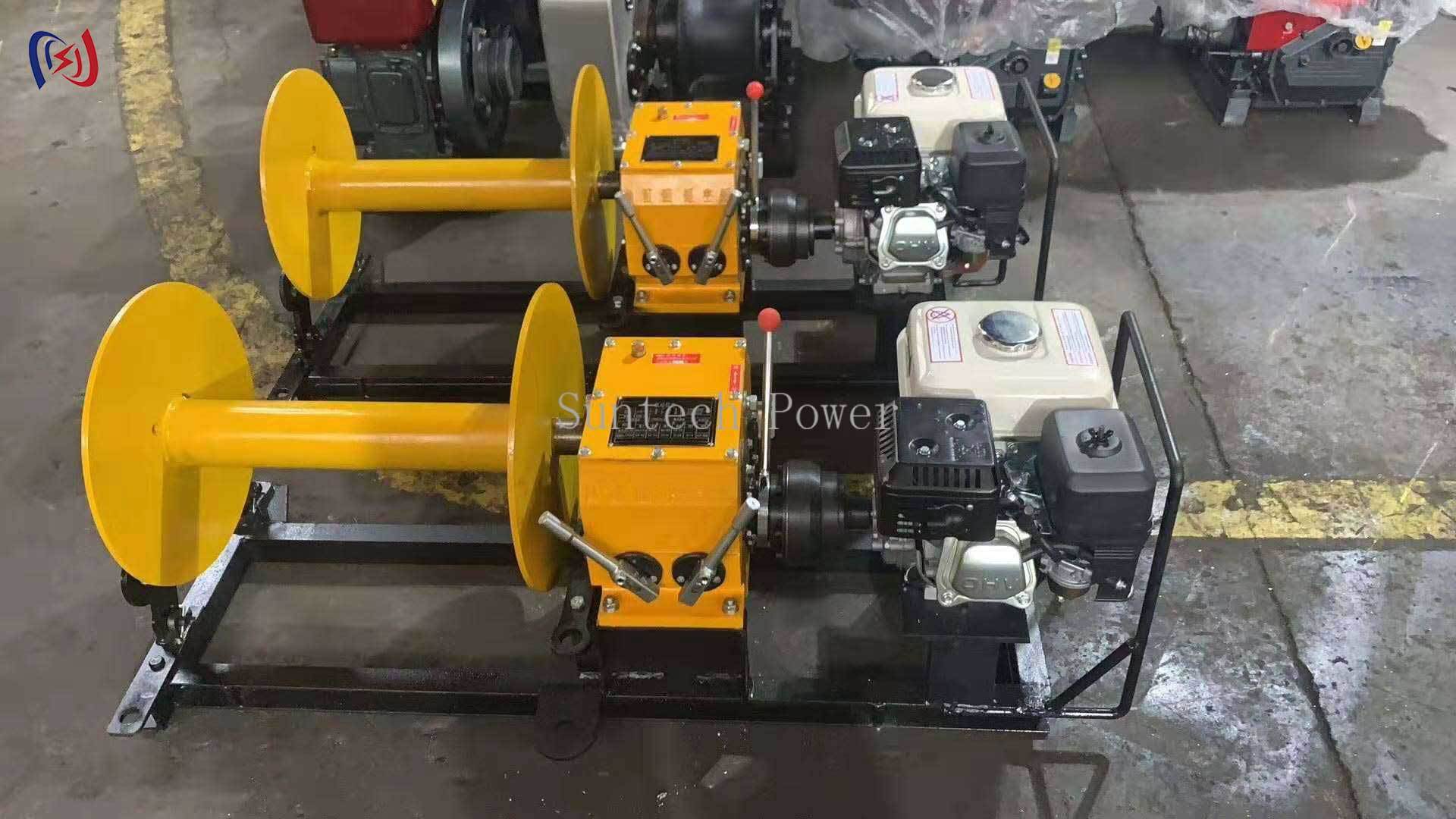

3-5T Cable Pulling Winch JJQ-30 for Power Line Construction

1 PCS
MOQ
Negotiation
Price
3-5T Cable Pulling Winch JJQ-30 for Power Line Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cable Pulling Winch
Item No.: 08155-08156
Model: JJQ-30
Tractive Force: 3-5T
Power: 4.04-6.61KW
Weight: 100-150KG
Highlight:

ACSR Aluminum Conductor 556.5 MCM

,

ACSR Overhead Line Conductor

,

Aluminium Conductor Steel Reinforced
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001
Model Number: JJQ-30
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-6days
Payment Terms: L/C,T/T
Supply Ability: 8000 PCS/Month
Product Description
Professional Cable Pulling Winch For Power Line Construction
Product Specifications
Attribute Value
Name Cable Pulling Winch
Item No. 08155-08156
Model JJQ-30
Tractive force 3-5T
Power 4.04-6.61KW
Weight 100-150KG
Product Introduction
  • Essential cable installation equipment for power line projects
  • Designed for smooth and controlled cable pulling operations
  • Trusted by utility professionals for reliability and safety
Key Features
Smooth Cable Pulling
  • Precision gear system for controlled operation
  • Even cable tension maintenance
Robust Construction
  • Steel drum with reinforced flanges
  • Heavy-duty frame construction
Safety Assurance
  • Automatic brake system
  • Load limit protection device
Operational Efficiency
  • Easy cable feeding and guiding
  • Smooth operation under load
Maintenance Advantages
  • Self-lubricating bearings
  • Easy access for service
Technical Specifications
Item No. Model Rotation direction Gear Rotational speed (RPM) Traction speed (M/MIN) Tractive force(T) Power(KW) Outline(mm) Weight(KG)
08155 JJQ-30 6HP Gasoline engine corotation I slow 9.0 4.0 3.0 4.04 1000*500*560 100
Ⅱ fast 16.0 6.6 1.8
reversal reverse gear 7.5 3.3 No lifting
08156 JJQ-50 9HP Gasoline engine corotation I slow 6.5 4.0 5.0 6.61 1400*510*650 150
Ⅱ fast 16.0 9.0 2.2
reversal reverse gear 7.0 4.0 No lifting
Typical Applications
  • Underground cable installation
  • Overhead line stringing
  • Substation cable pulling
  • Emergency cable replacement
Workflow Integration
  • Compatible with standard pulling grips
  • Works with all common cable types
  • Integrates with tension monitoring systems
Maintenance Benefits
  • Corrosion-resistant components
  • Minimal maintenance required
  • Long service life
User Guidelines
Setup
  • Secure winch to stable base
  • Check cable alignment
Operation
  • Maintain steady pulling speed
  • Monitor tension readings
Post-Use
  • Clean and inspect equipment
  • Store in dry conditions
Industry Compliance
  • Meets OSHA equipment standards
  • Complies with IEEE specifications
  • Certified by major utilities
Why Professionals Choose Us
  • 30% smoother operation than competitors
  • 40% more durable than standard winches
  • 1-year performance warranty
Customer Support
  • Free operation training
  • 24/7 technical support
  • Replacement parts program
Purchasing Options
  • Single units or crew sets
  • Custom configurations
  • Volume discounts
