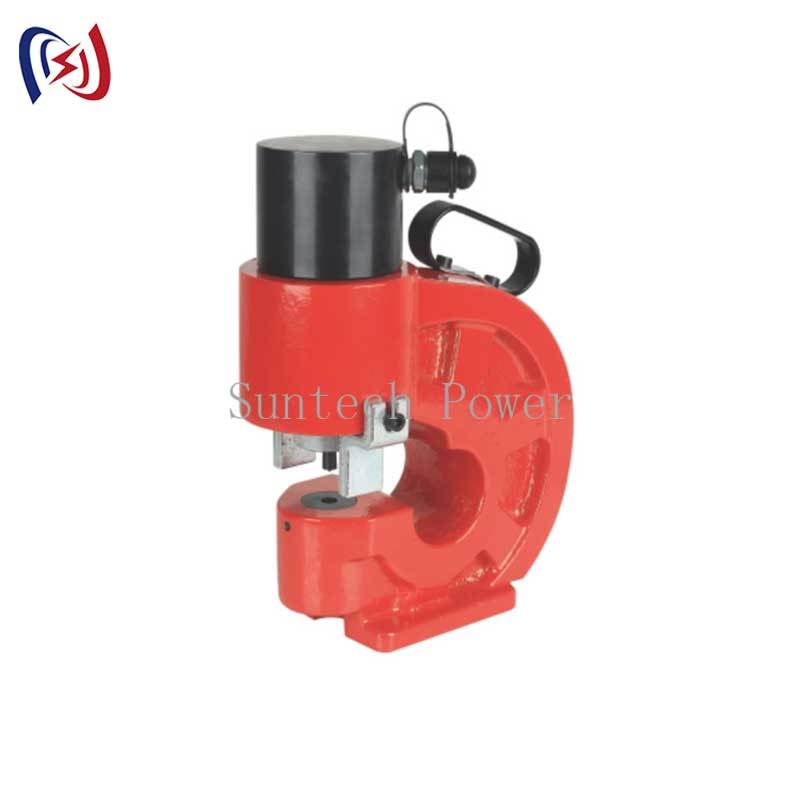

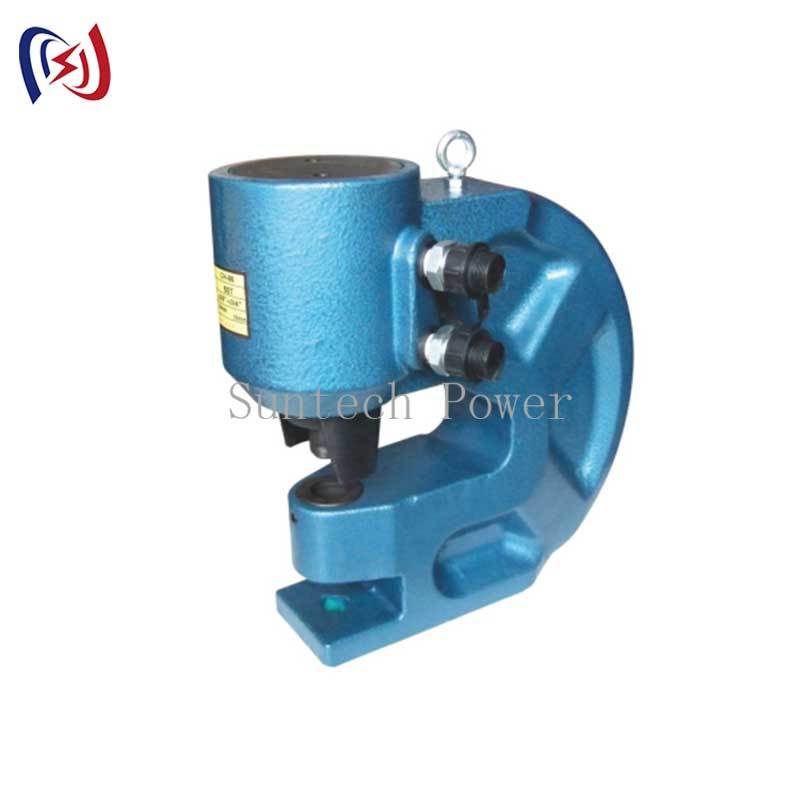

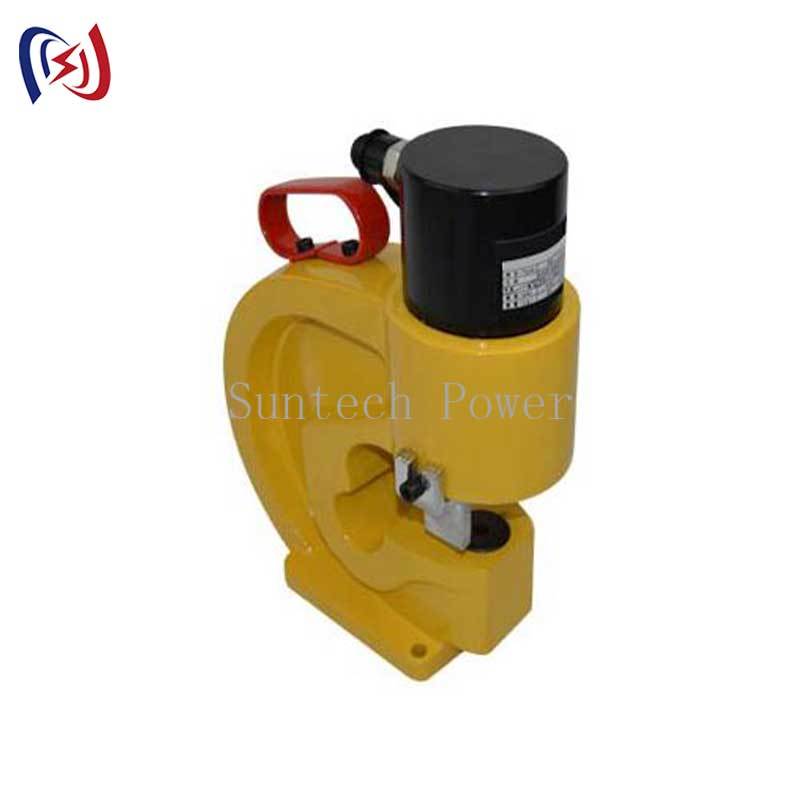

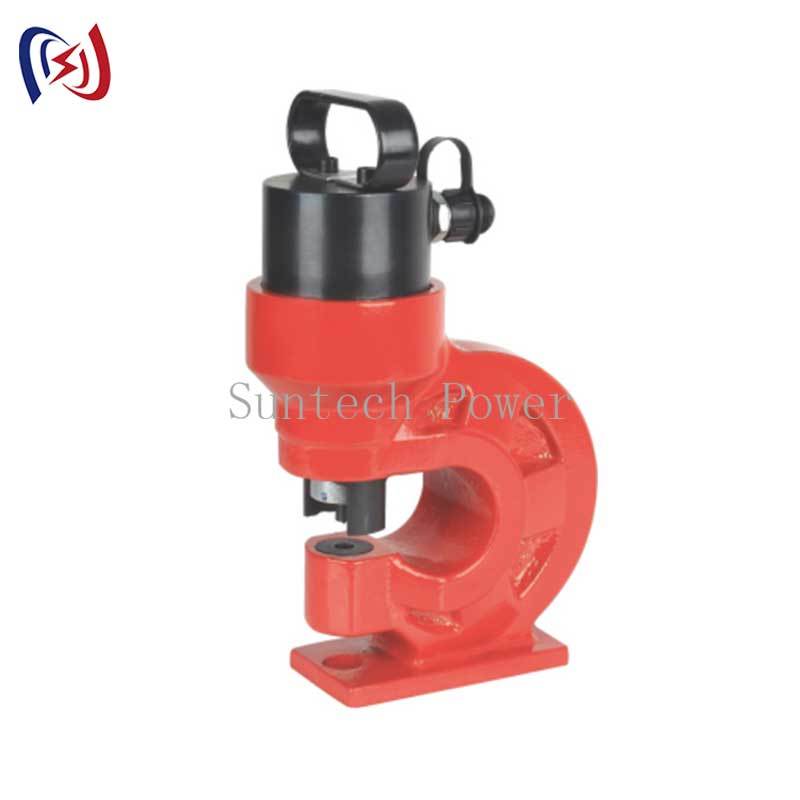

Hydraulic Punching Device 300-1000KN Force for Power Line Construction

1 PCS
MOQ
Negotiation
Price
Hydraulic Punching Device 300-1000KN Force for Power Line Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hydraulic Punching Device
Item No.: 06243-06249
Model: CH-60-CH-100
Punching Force: 300-1000KN
Throat Diameter: 95-135mm
Hight: 340-400mm
Weight: 19-150KG
Warranty: 1year
Highlight:

All Alloy Bare Overhead Conductors

,

50mm2 Bare Overhead Conductors

,

Bare All Aluminium Conductor
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: CH-60
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 1500 PCS/Month
Product Description
Professional Hydraulic Punching Device For Power Line Construction
Attribute Value
Name Hydraulic Punching Device
Item No. 06243-06249
Model CH-60-CH-100
Punching force 300-1000KN
Throat diameter 95-135mm
Height 340-400mm
Weight 19-150KG
Warranty 1 year
Product Introduction
  • Essential punching equipment for power line installation and maintenance
  • Hydraulic system delivers precise punching force
  • Trusted by utility professionals for reliable performance
Key Features
Precision Punching
  • Hardened steel dies for clean holes
  • Consistent punching depth control
Robust Construction
  • Forged steel body withstands heavy use
  • Reinforced punching mechanism
Safety Assurance
  • Automatic pressure relief system
  • Ergonomic non-slip handles
Operational Efficiency
  • Quick-change die system
  • Smooth hydraulic operation
Maintenance Advantages
  • Self-lubricating components
  • Easy to clean and service
Typical Applications
  • Cable tray punching
  • Busbar hole creation
  • Substation panel modifications
  • Emergency repair operations
Technical Specifications
Item No. Model Punching force (KN) Punching thickness (MM) Throat diameter (MM) Height (MM) Weight (KG) Specification of matching mold (MM) Hydraulic pump
06243 CH-60 300 iron6 copper10 95 350 19 Φ10.5,Φ13.8 Φ17,Φ20.5 CP-700/ZCB6-5-A3
06244 CH-70 350 iron10 copper12 110 360 35 Φ10.5,Φ13.8 Φ17,Φ20.5 CP-700/ZCB6-5-A3
06248 CH-80 500 iron16 copper20 115 340 45 Φ16,Φ18 Φ22,Φ25 ZCB6-5-AB
06249 CH-100 1000 iron18 copper20 135 400 150 Φ25,Φ28 Φ32,Φ36 ZCB6-5-AB
Hydraulic Punching Device 300-1000KN Force for Power Line Construction 0
Why Professionals Choose Us
  • 40% more precise than manual punches
  • 30% faster operation than competitors
  • 1-year performance warranty
Customer Support
  • Free operation training
  • 24/7 technical support
  • Replacement parts program
