Name: Compact Manual Cable Shear For Copper / Aluminum Conductors
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: CC325
Price: 285,715.00 USD
Availability: InStock

Compact Manual Cable Shear For Copper / Aluminum Conductors

1 PCS

MOQ

Get the newest price

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Cable Cutter

Item No.: 21442B-21440A

Model: CC325

Warranty: 1 Year

Highlight:

Aluminum Conductor Stringing Tools

Copper Conductor Stringing Tools

Conductor Stringing Shear

Basic Infomation

Place of Origin: China

Brand Name: Suntech

Certification: ISO CE

Model Number: CC325

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 7-10 days after deposit

Payment Terms: L/C,T/T

Supply Ability: 9000PCS/Month

Gallery

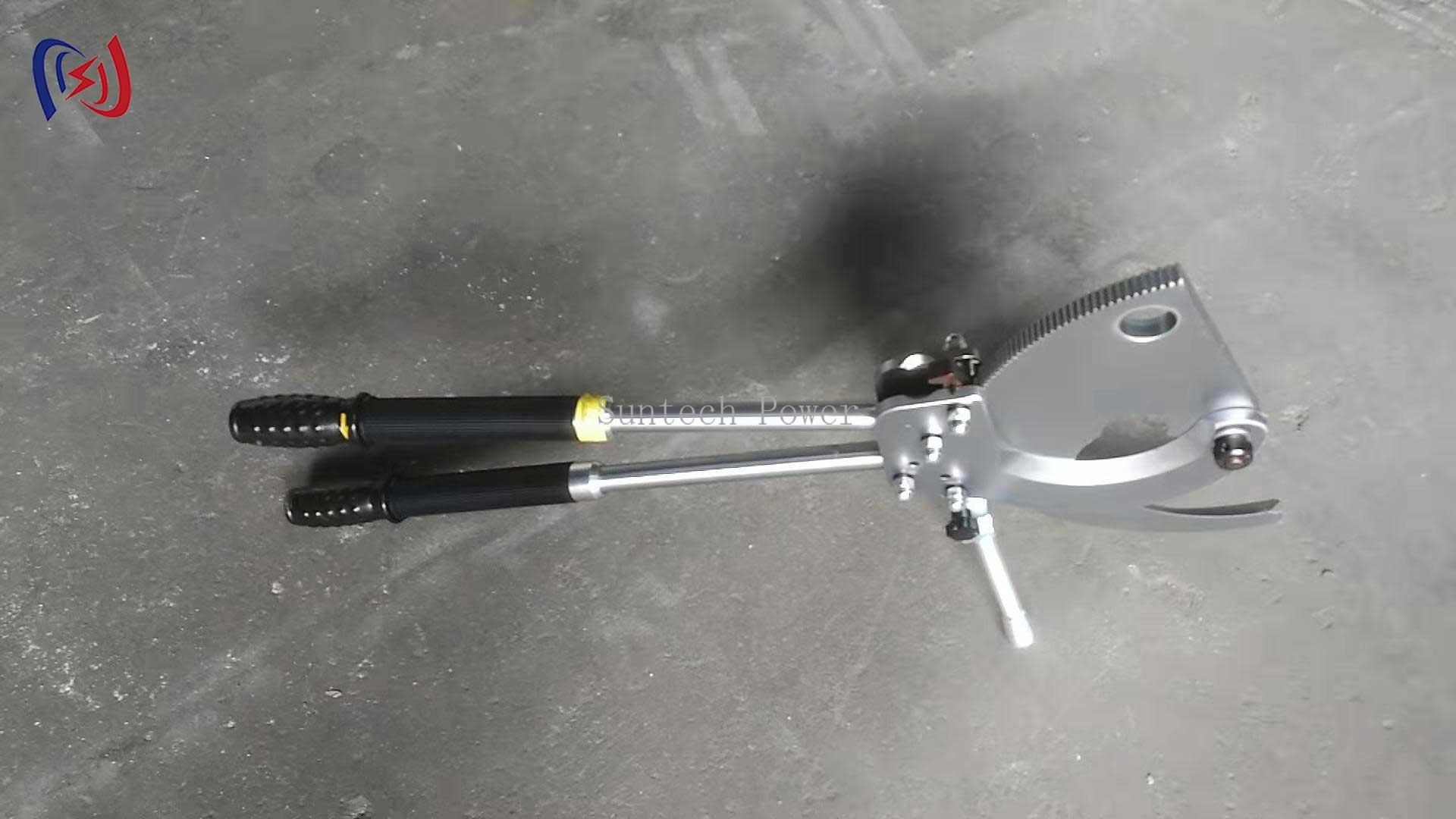

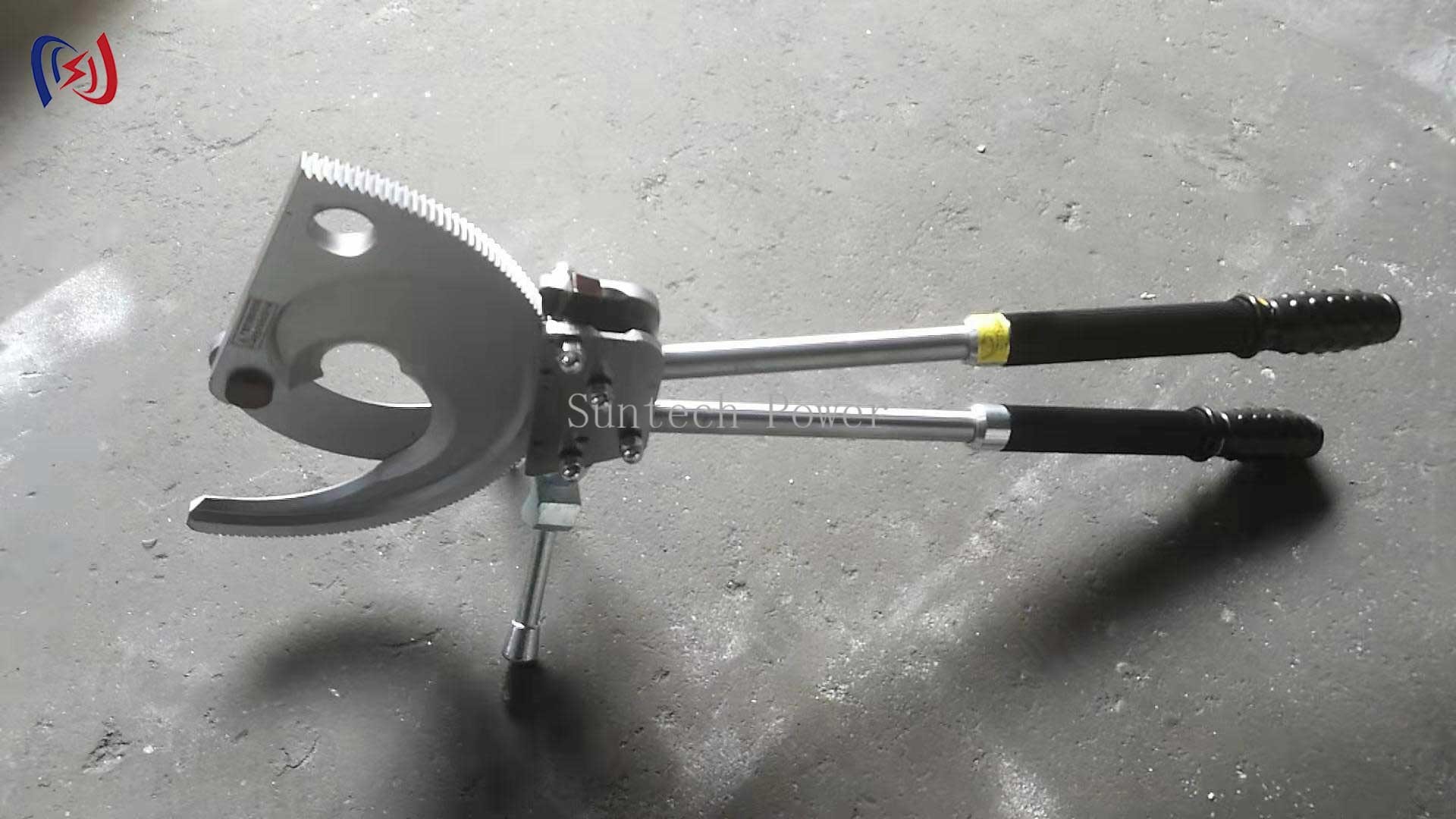

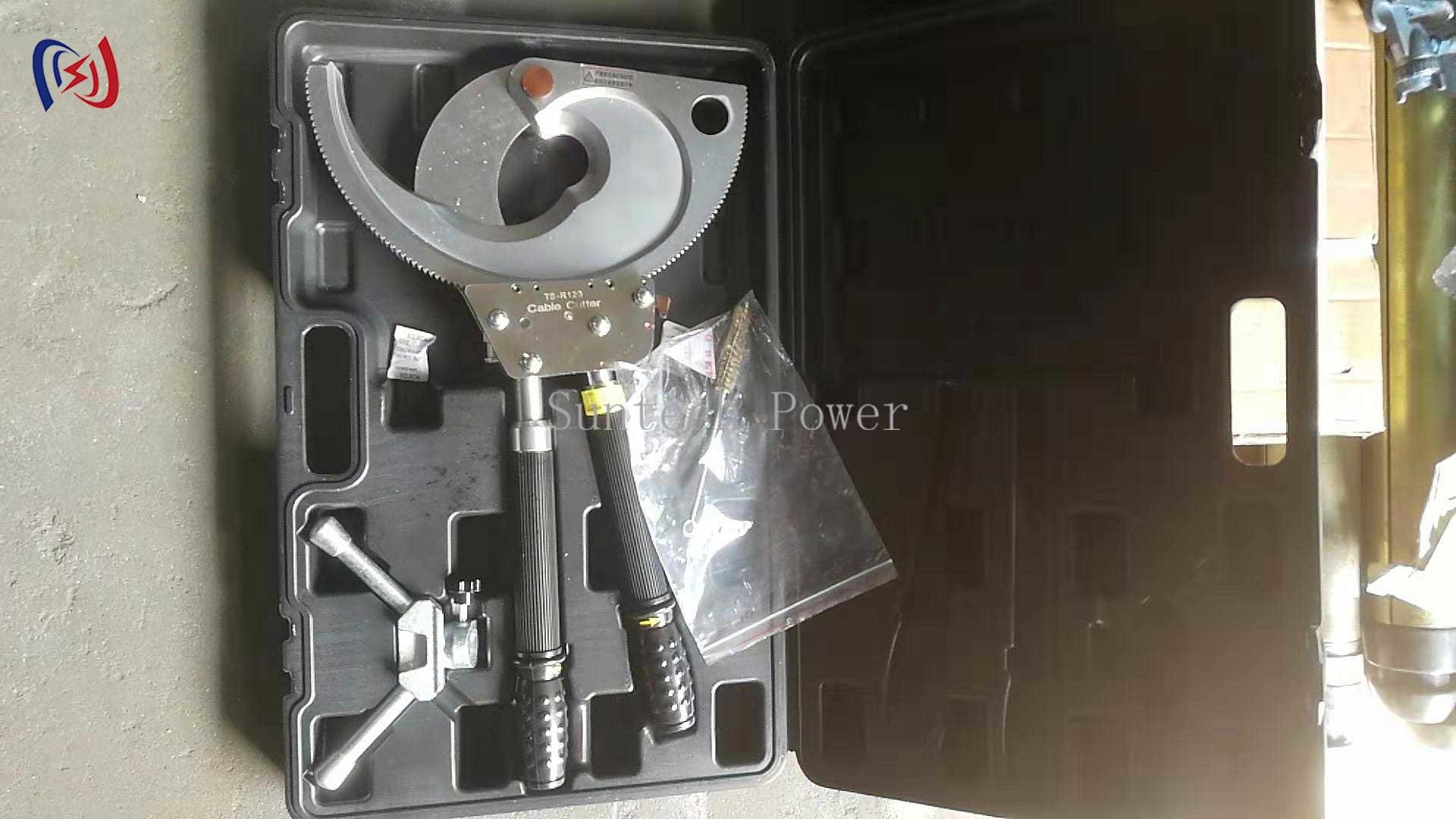

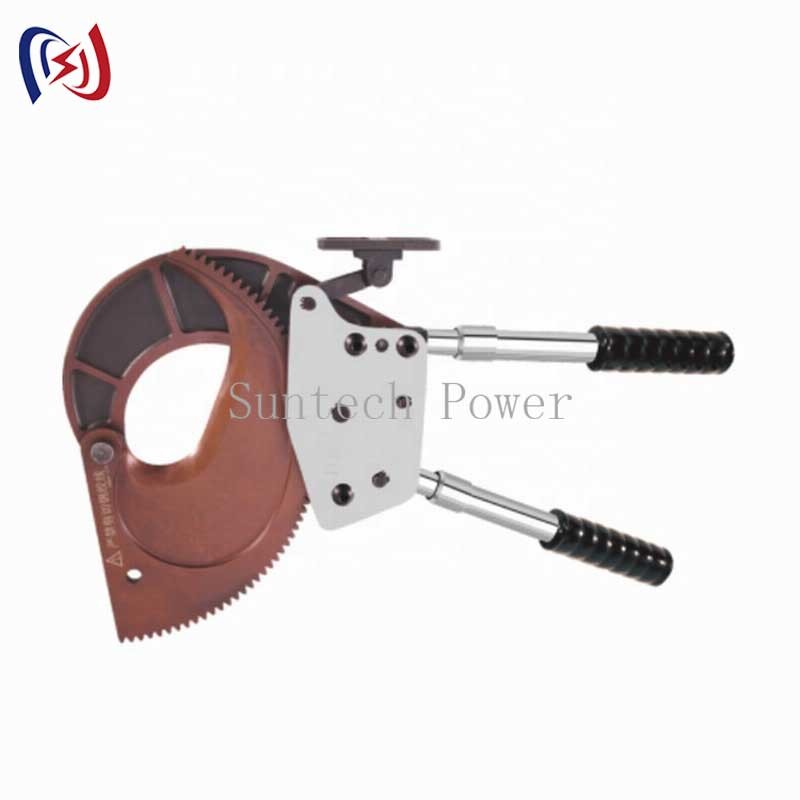

Compact Manual Cable Shear For Copper / Aluminum Conductors

Product Description

Compact Manual Cable Shear for Copper/Aluminum Conductors

Key Features:
Cutting Capacity: Handles conductors from 6mm² to 500mm² (including ACSR, copper, and aluminum cables)
Blade Technology: Tungsten carbide or hardened steel blades maintain sharpness through 5,000+ cuts
Specialized Models: Available for steel-armored cables, pre-formed wire ropes, and high-voltage terminations

Technical Specifications:
Cut Quality: Clean perpendicular cuts with <0.5mm deformation
Applications:
Transmission line construction (ACSR conductor cutting)
Substation cable terminations
Underground distribution repairs
Wind turbine cable management
Railway electrification projects

Advantages vs. Alternatives:
✔ 50% Less Hand Fatigue with ergonomic designs
✔ Precision Cuts eliminate filing/reaming needs

Maintenance & Support:
Blade Replacement: Every 1,200 cuts (average)
Warranty: 1 years

Technical Data

Item number	Model	Cutting Range
21442B	CC325	Cutting Off Copper Or Aluminum Cable below240 mm2
21442A	J40B	Cutting Off Copper Or Aluminum Cable below240 mm2
21442C	J40A	Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
21442D	J40C	Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
21445C	J40D	Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm.
21445	J40	Cutting Copper Or Aluminum armored cable below300 mm2. Maximum opening is 40 mm.
21445A	J52	Cutting Copper Or Aluminum armored cable below 500mm2. Maximum opening is 52 mm.
21445B	J75	Cutting Copper and Aluminum armored cables diameter below Φ 75mm
21441	J95	Cutting Copper and Aluminum armored cables diameter below Φ 95m
21441A	J100	Cutting Copper and Aluminum armored cables diameter below Φ 100m
21440	J130	Cutting Copper and Aluminum armored cables diameter below Φ 130mm
21440A	J160	Cutting Copper and Aluminum armored cables diameter below Φ 160mm
