High Strength Steel Tubular Gin Pole For Internal Suspension Lifting

High-Strength Steel Tubular Gin Pole for Internal Suspension Lifting

Features:
The Inner-Suspended Tubular Gin Pole is a high-performance lifting system specifically designed for internal suspension applications in transmission tower construction and maintenance. Its robust tubular design offers exceptional strength-to-weight ratio and features:

High-grade steel or aluminum construction with optional galvanization

Smooth inner wall surfaces for reduced friction during operation

Integrated lifting lugs for secure load attachment

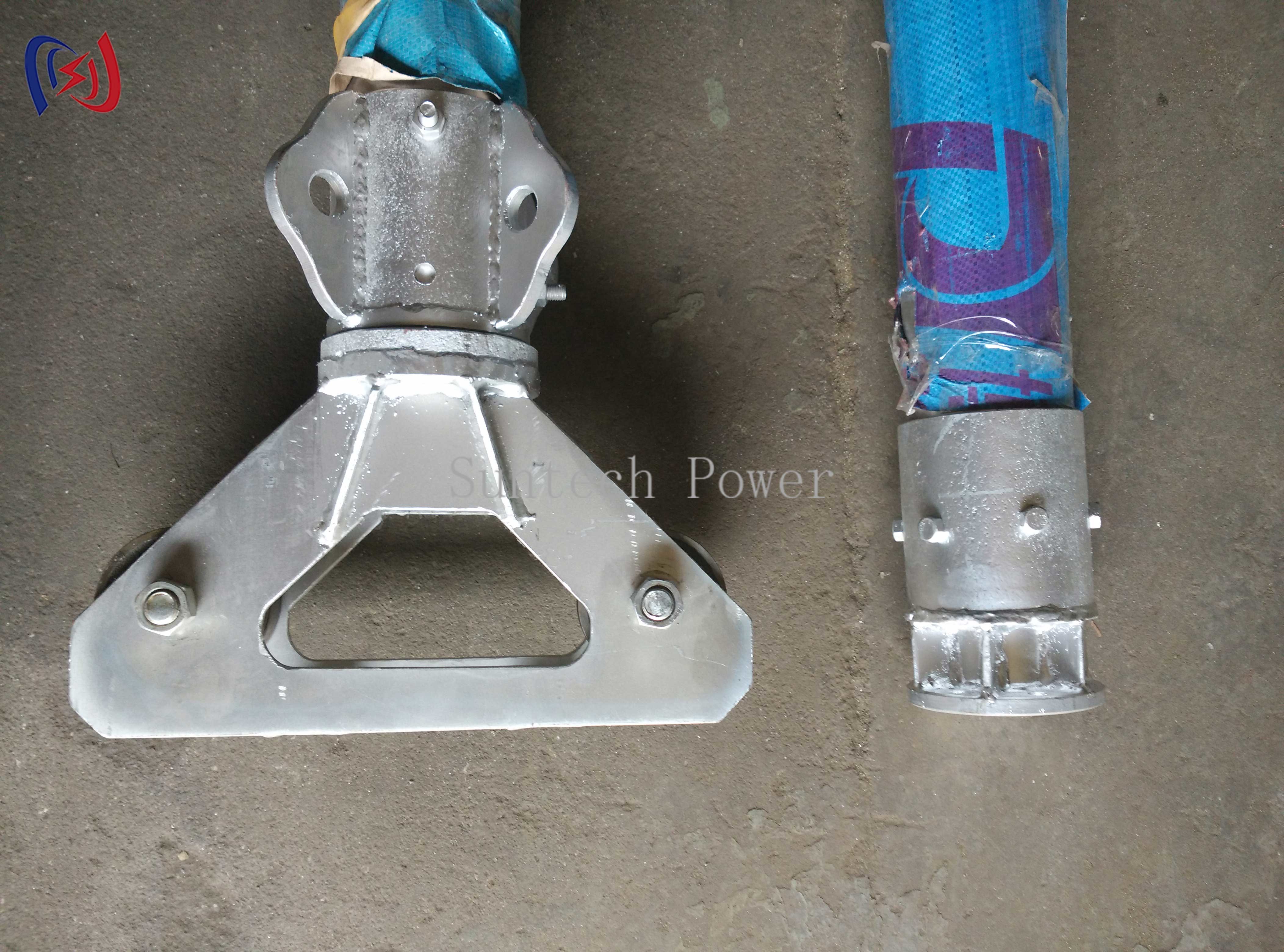

Precision-engineered base plate for stable mounting

Corrosion-resistant finishes suitable for coastal environments

Working Principle:
The tubular pole is suspended internally within the tower structure

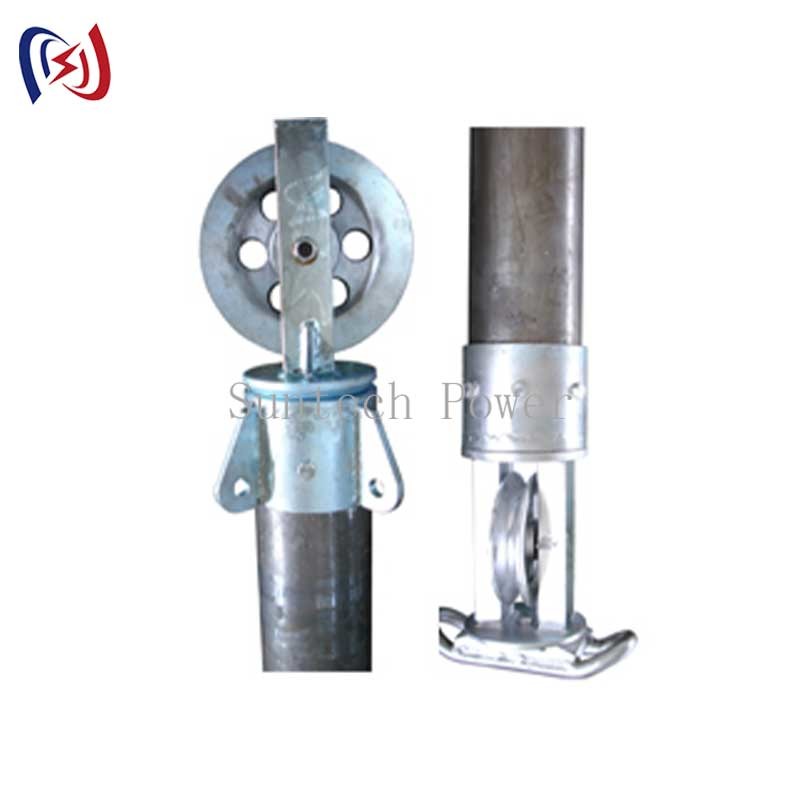

A top-mounted sheave assembly guides the lifting cable

The load is raised vertically through the center of the pole

Stabilizing guides prevent load swing during elevation

The modular design allows incremental height adjustments as construction progresses

Applications:
Transmission tower erection and component installation

High-voltage equipment maintenance

Substation construction projects

Telecommunication tower assembly

Bridge cable installation

Advantages:
✔ Space-efficient design - operates within the tower's footprint
✔ Superior load control - minimal lateral movement during lifts
✔ Weather-resistant construction - performs in all conditions
✔ Reduced setup time - quick assembly with minimal components
✔ Enhanced safety - eliminates external swing hazards

Service & Support:
Site-specific engineering analysis available

Load test certification with each unit

24/7 technical support for installation queries

Specifications
