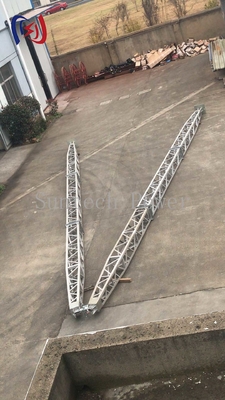

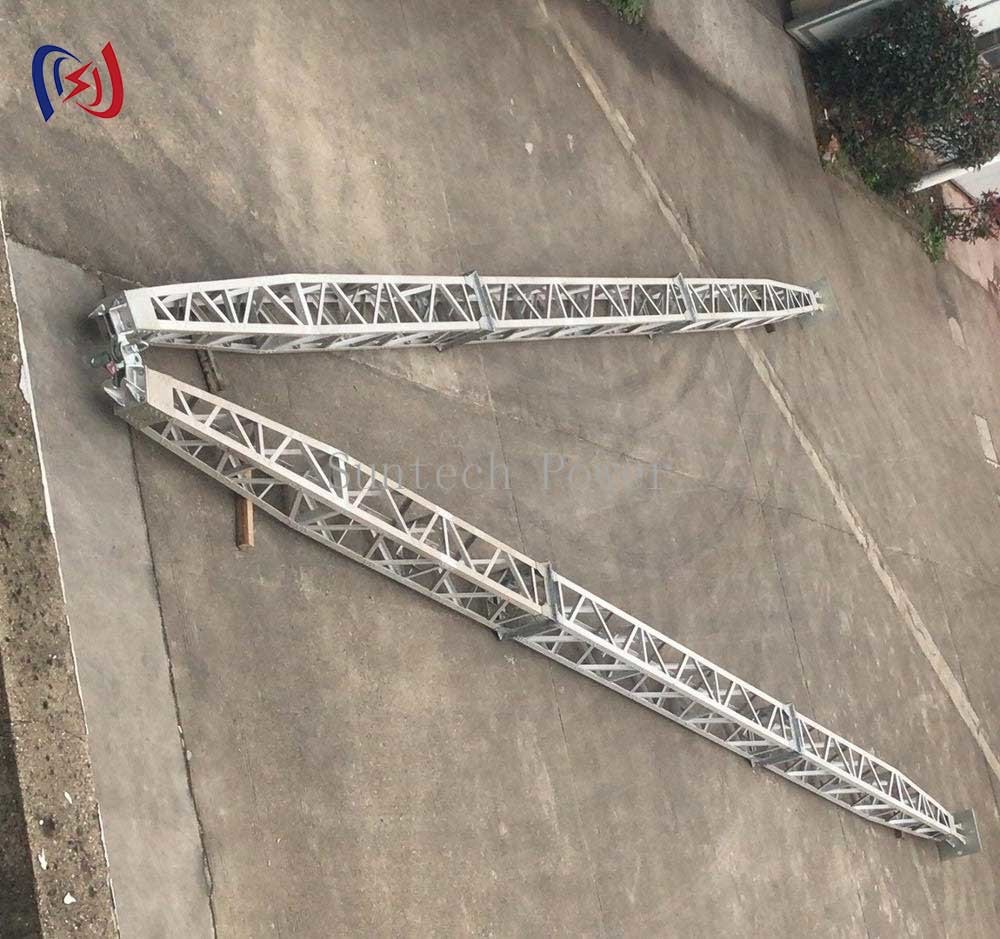

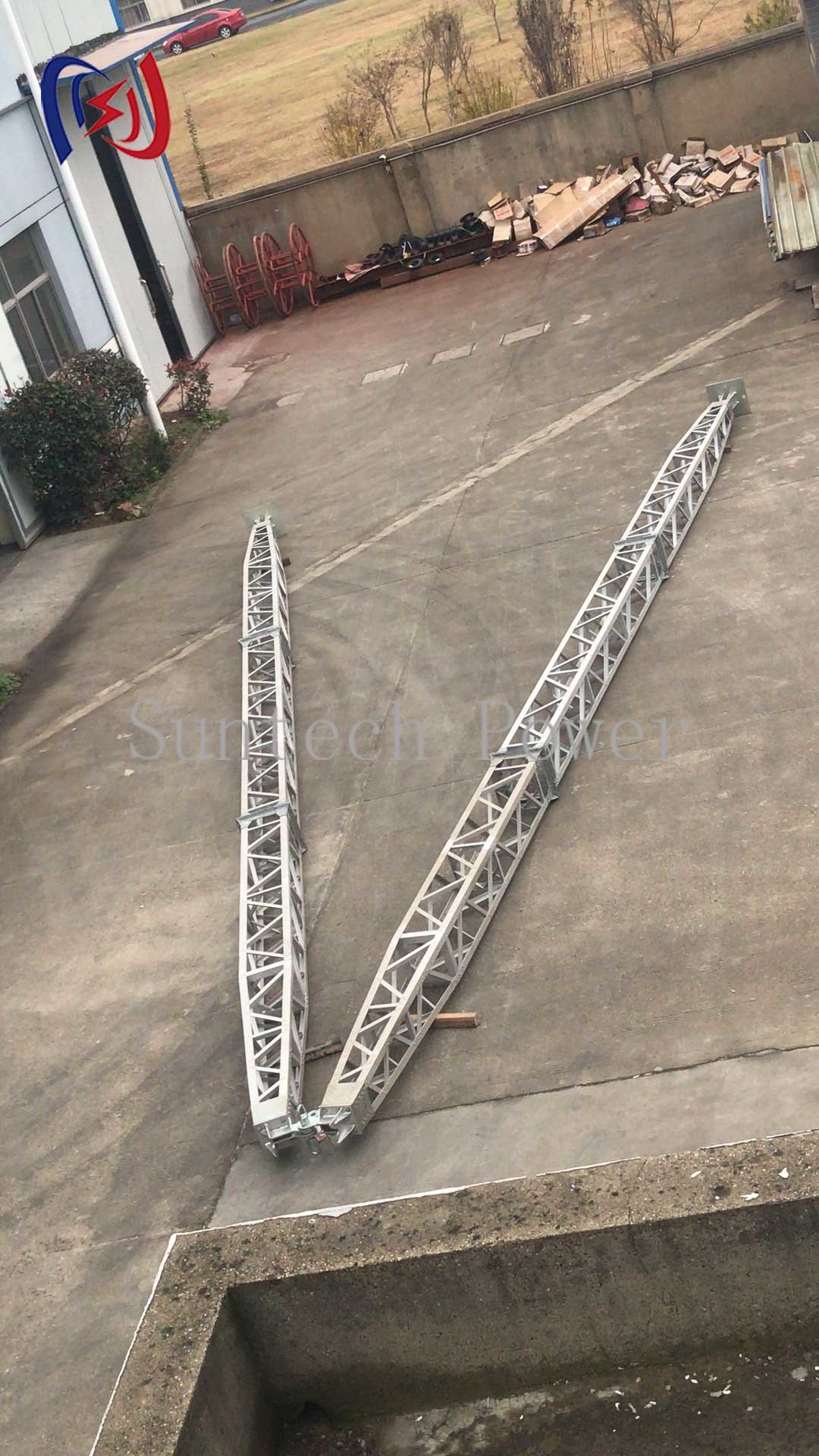

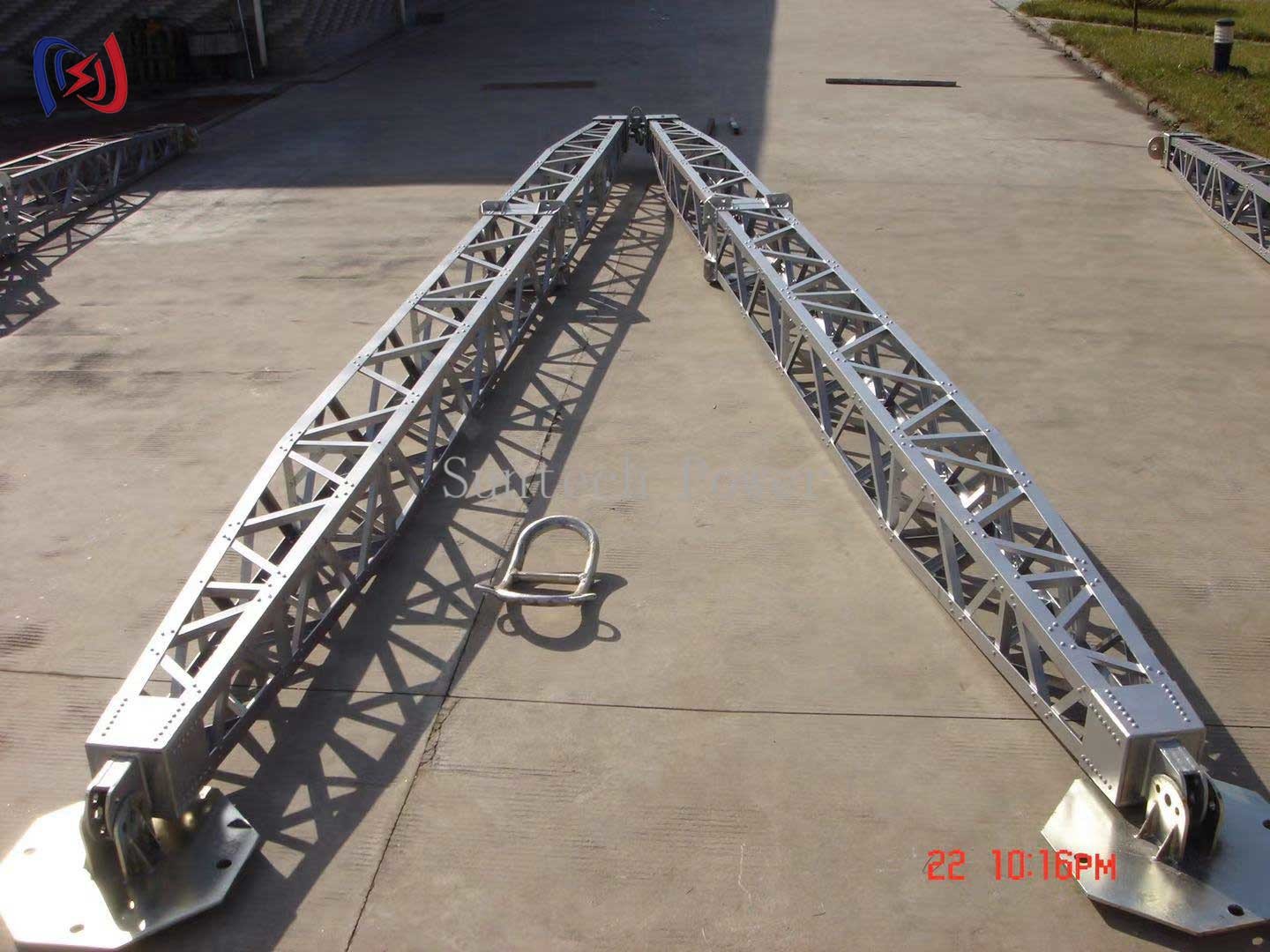

Engineered A-Shape Lattice Gin Pole for Heavy Load Lifting
Features:
The A-Shape Lattice Gin Pole is a heavy-duty lifting system specifically engineered for transmission tower erection, maintenance, and high-voltage line installation. Its distinctive A-frame design provides superior stability and load-bearing capacity compared to single-pole systems. Key features include:
High-Strength Construction: Available in galvanized steel or lightweight aluminum with corrosion-resistant coatings
Modular Lattice Design: Interlocking sections allow quick assembly and height adjustment (typically 6m to 25m)
Wide Base Stability: A-frame configuration prevents tipping during heavy lifts
Integrated Rigging Points: Multiple attachment points for precise load control
Safety Locking Mechanisms: Automatic pawl systems prevent accidental release
Optional Accessories: Including load cells, guy wire kits, and rotation systems
Working Principle:
The A-frame base is secured to the tower foundation or supporting structure
Guy wires (when used) provide additional lateral stability
A hoisting mechanism (manual chain hoist or powered winch) is mounted at the apex
The load is lifted vertically between the two legs of the A-frame
Guiding rollers ensure smooth operation and prevent load swing
Applications:
Transmission tower erection and component installation
High-voltage conductor stringing operations
Substation equipment lifting and placement
Cell tower antenna installation
Bridge cable installation projects
Advantages:
✔ Superior Stability - A-frame design resists side loads and wind forces
✔ Higher Load Capacity - Typically 1.5-2x capacity of single-pole systems
✔ Precision Control - Excellent for aligning heavy tower components
✔ Adaptable Configuration - Modular design suits various project needs
Service & Support:
Site-specific engineering calculations available
Custom fabrication for special applications
Complete inspection and maintenance manuals
Explain:

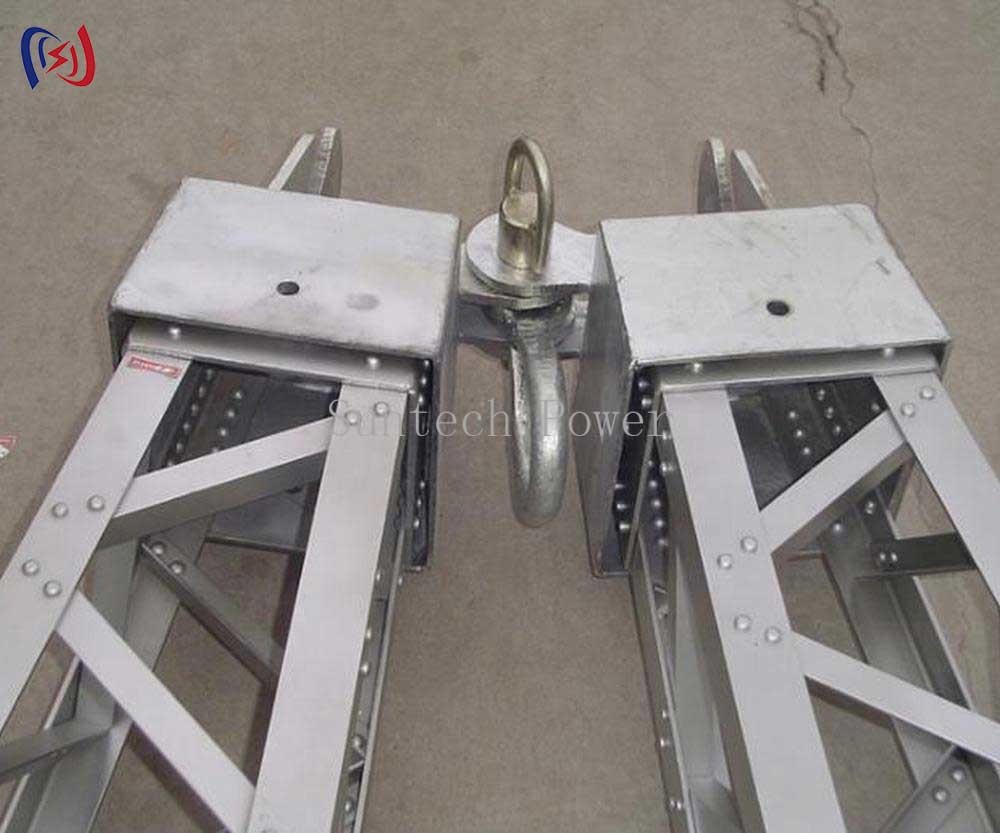

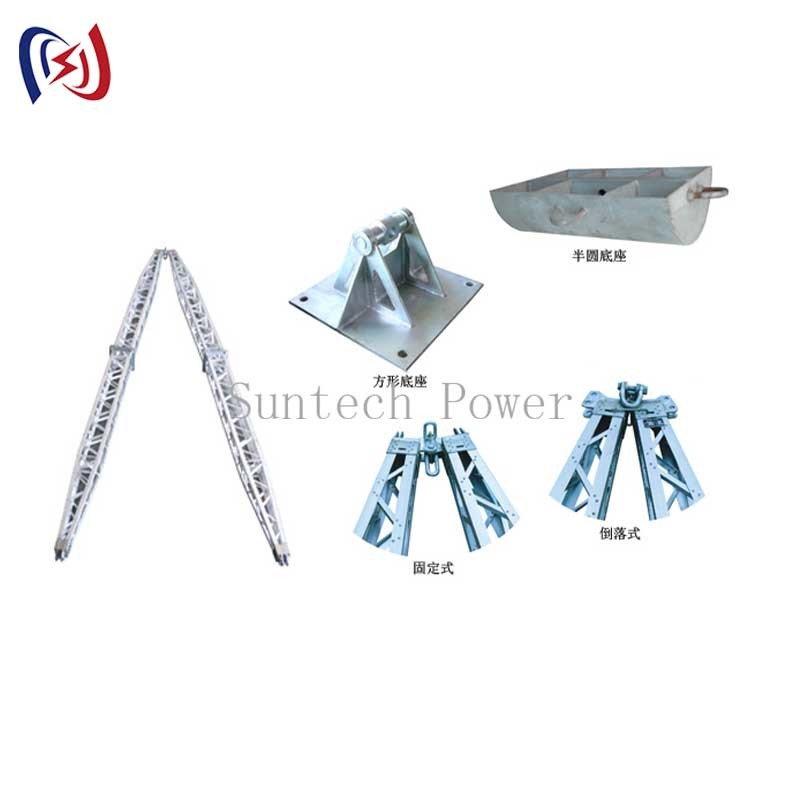

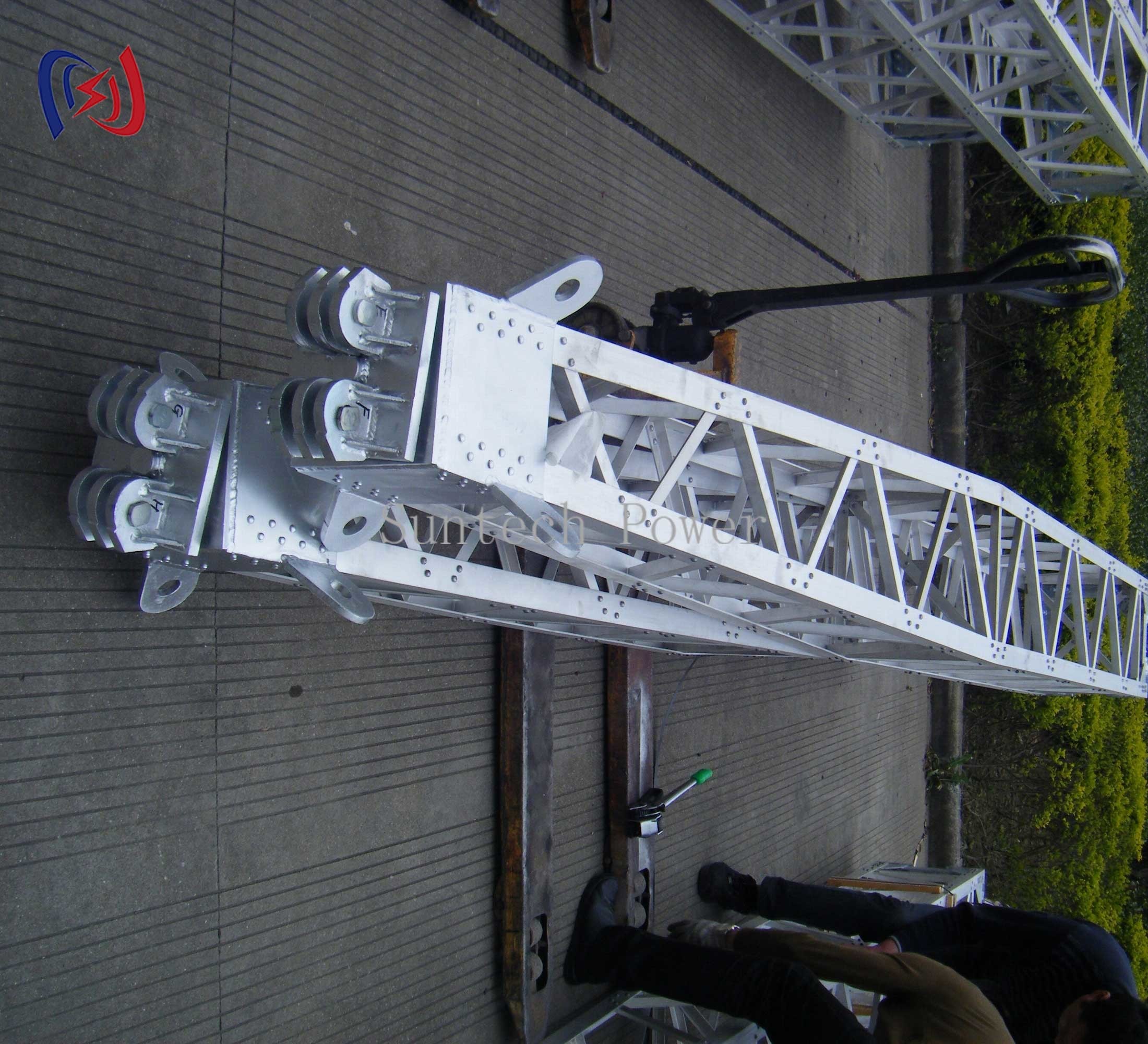

The head part of the Gin Poles is inverted,and the base part of gin pole is semicircle or square.And it should be noted when ordering.
03361-03445 is aluminum alloy material.03611-03615 is manganese steel material.
| Item No. |
Model |
Range(M) |
Section(MM) |
Main part size(MM) |
Accessory size(MM) |
Vertical Load(KN) |
Safety Factor(K) |
Weight(KG/M) |
| 03361 |
LBR-250 |
8-13 |
250*250 |
50*50*4 |
25*25*3 |
72-26 |
2.5 |
10.5*2 |
| 03371 |
LBR-300A |
8-16 |
300*300 |
50*50*4 |
25*25*3 |
90-26 |
10.5*2 |
| 03380 |
LBR-300B |
300*300 |
50*50*5 |
30*30*3 |
11.0*2 |
| 03381 |
LBR-350 |
8-16 |
350*350 |
50*50*5 |
30*30*3 |
120-35 |
10.5*2 |
| 03391 |
LBR-400A |
11-18 |
400*400 |
50*50*5 |
30*30*3 |
147-38 |
11.0*2 |
| 03401 |
LBR-400B |
400*400 |
60*60*5 |
30*30*3 |
14.6*2 |
| 03411 |
LBR-500A |
13-20 |
500*500 |
60*60*5 |
30*3*3 |
162-81 |
18*2 |
| 03415 |
LBR-500B |
500*500 |
60*60*5 |
40*40*3 |
20*2 |
| 03421 |
LBR-500C |
500*500 |
70*70*6 |
40*40*3 |
256-127 |
21*2 |
| 03425 |
LBR-500D |
500*500 |
70*70*6 |
50*50*4 |
22*2 |
| 03431 |
LBR-600A |
15-22 |
600*600 |
60*60*6 |
40*40*3 |
171-96 |
20*2 |
| 03435 |
LBR-600B |
600*600 |
70*70*6 |
40*40*3 |
21*2 |
| 03441 |
LBR-600C |
600*600 |
70*70*6 |
50*50*4 |
275-150 |
22*2 |
| 03445 |
LBR-600D |
600*600 |
80*80*6 |
50*50*4 |
24*2 |
| 03611 |
GBR-300 |
10-15 |
300*300 |
50*50*5 |
30*30*3 |
75-35 |
33*2 |
| 03612 |
GBR-400 |
12-18 |
400*400 |
56*56*5 |
30*30*3 |
100-75 |
43*2 |
| 03613 |
GBR-500 |
14-24 |
500*500 |
63*63*5 |
40*40*4 |
185-125 |
54*2 |
| 03614 |
GBR-600 |
16-26 |
600*600 |
70*70*6 |
40*40*4 |
420-145 |
63*2 |
| 03615 |
GBR-700 |
18-28 |
700*700 |
80*80*6 |
50*50*4 |
600-230 |
75*2 |
