Large Diameter MC Nylon Cable Pulling Conductor Stringing Block

1 Set
MOQ
Negotiation
Price
Large Diameter MC Nylon Cable Pulling Conductor Stringing Block
Features Gallery Product Description Request A Quote
Features
Specifications
Material: MC Nylon, Cast-steel Sheave
Item: Overhead Line Stringing Pulley
Name: Stringing Blocks
Conductor: Rubber Lined Aluminum Sheave
Size: SHD660
Weight: 100kg
Highlight:

Large Diameter Conductor Stringing Blocks

,

Cable Pulling Stringing Block

,

MC Nylon Stringing Block

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001
Model Number: SHD660
Payment & Shipping Terms
Packaging Details: Exported Box or Pallets
Delivery Time: 5-7 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800pcs per month
Product Description

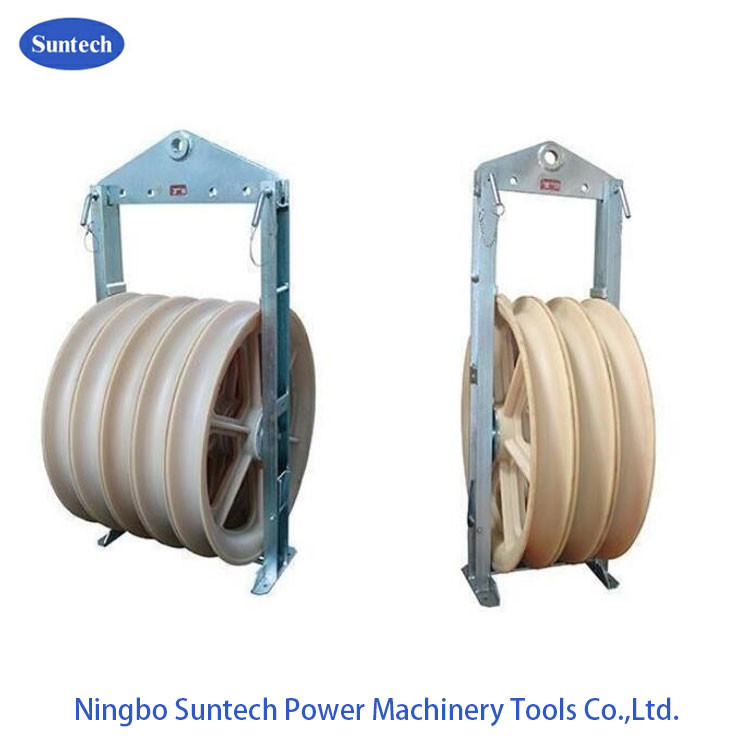

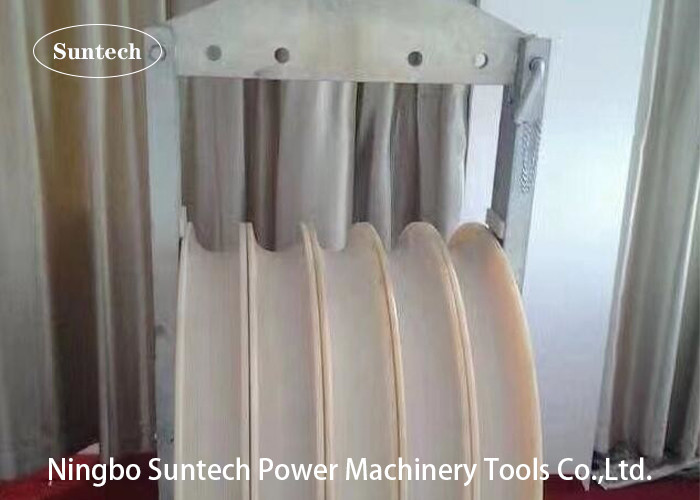

Large Diameter MC Nylon Cable Pulling Conductor Stringing Block


In transmission power line and communications cable installation work, stringing job is a must,and various of tools will be applied for this job, in which conductor stringing block is one of them. It is a very good tool to protect cables and conductors.



1. Transmission Line Stringing Accessories
2. Conductor/Cable/OPGW Bundled Conductor Pulley
3. Diameter: 660mm, Width: 110mm
4. One, Three, Five wheel
5. With Rubber Covered or Without

6. Middle:cast steel sheave.



Item Number Model Number of Sheave

Rated Load

(kN)

Weight (kg) Features
10121 SHD660 1 20 30 Rubber coated aluminum sheave
10122 SHS660 3 40 106 Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave
10123 SHW660 5 60 150
10124 SHDN660 1 20 24 MC nylon sheave
10125 SHSLN660 3 40 92 Middle: MC nylon sheave Conductor: rubber coated aluminum sheave
10126 SHWLN660 5 60 120
10127 SHSQN660 3 40 76 MC nylon sheave
10128 SHWQN660 5 60 110
10129 SHQZ660 7 80 268 Middle: cast steel sheave Conductor: rubber coated aluminum sheave
10130 SHQ660A 7 75 190 Middle: cast steel sheave Conductor: MC nylon sheave



Large Diameter MC Nylon Cable Pulling Conductor Stringing Block 0



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
