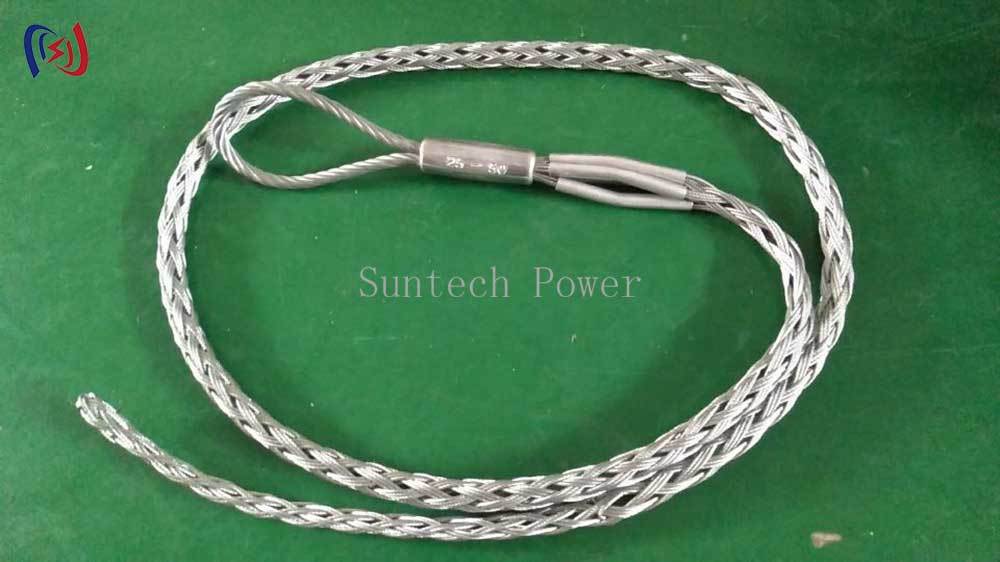

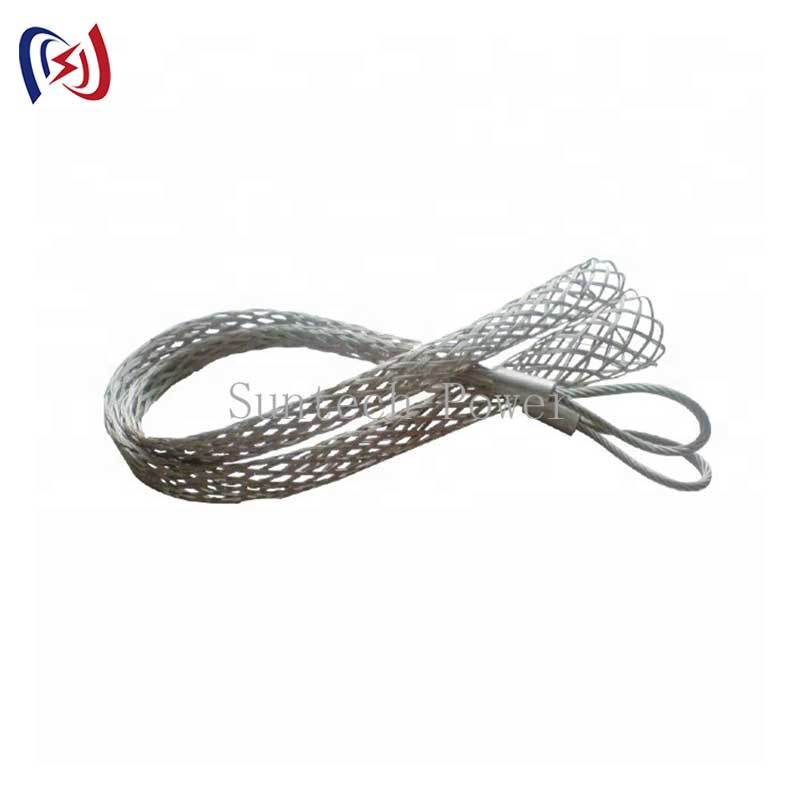

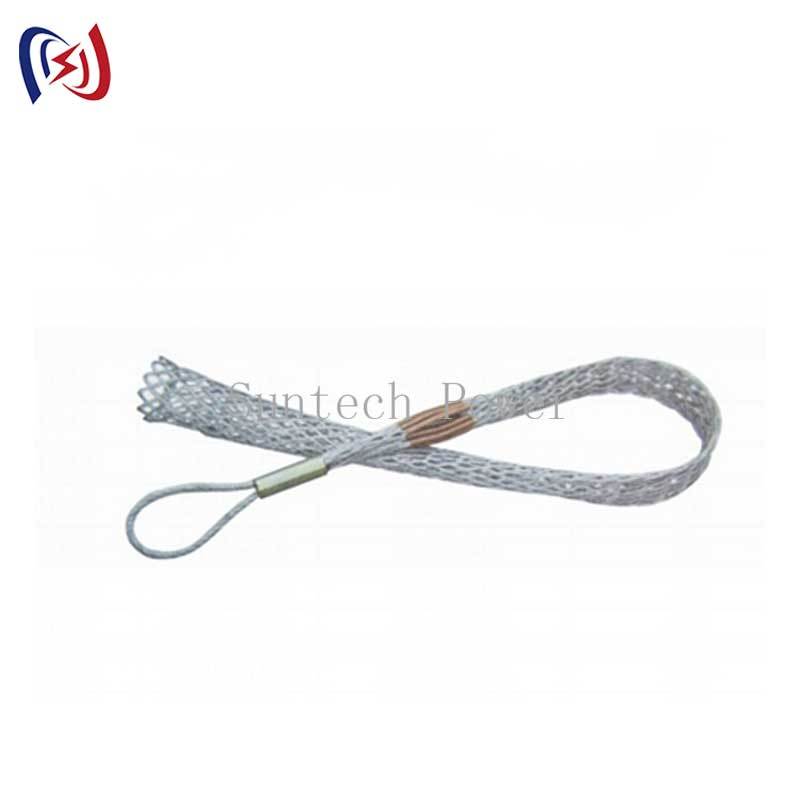

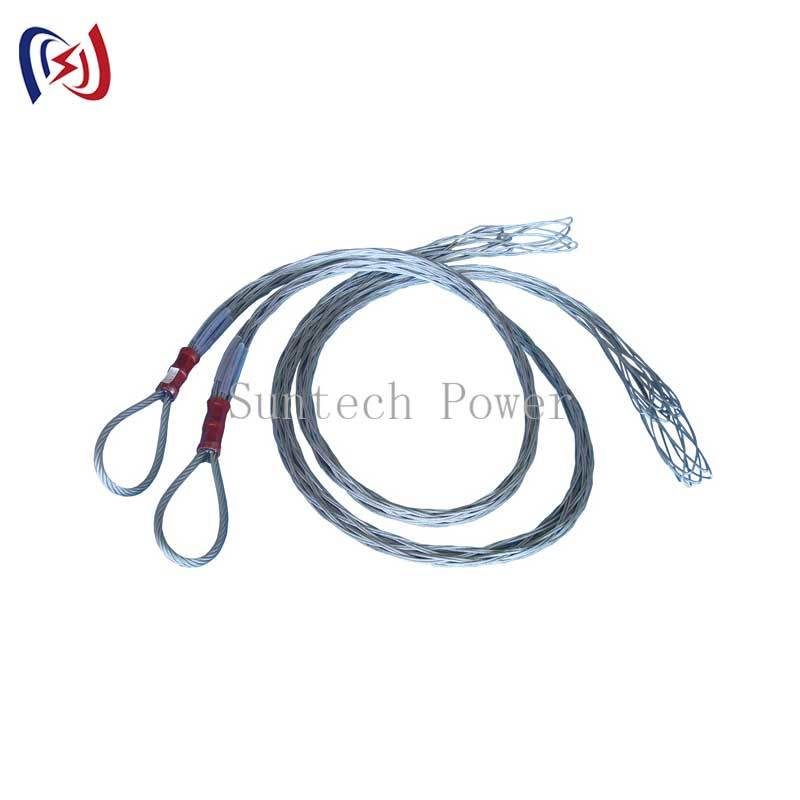

Cable Mesh Sock Joints Heavy Duty Termination System For Power Line Construction​

Cable Mesh Sock Joints Heavy Duty Termination System For Power Line Construction​

​​Core Design Features​​

• ​​High-strength stainless steel mesh​​ (304/316 grade) with flexible braiding
• ​​Forged carbon steel end fittings​​ (Grade 8.8) with hot-dip galvanized coating
• ​​Working Load Limit (WLL):​​ 5-50 tons (color-coded identification)
• ​​Compatible with 15-80mm diameter cables​​ (XLPE/EPR/OPGW types)
• ​​Interchangeable mesh sleeves​​ for different cable types (3 standard sets)
• ​​Mechanical overload protection​​ via shear pin (fails at 150% WLL)

​​Operational Advantages​​
✔ ​​Uniform pressure distribution​​ prevents cable insulation damage
✔ ​​40% faster installation​​ vs traditional cable grips
✔ ​​Corrosion-resistant​​ (ISO 9227 C5-M class for harsh environments)
✔ ​​Quick-change sleeve system​​ (tool-free in <90 seconds)
✔ ​​Integrated load indicator​​ with visual tension marks

​​Safety Certifications​​
✓ ​​IEC 60502​​ cable accessory standard compliance
✓ ​​IEEE 404​​ cable joint testing requirements
✓ ​​EN 50393​​ cable accessories for HV applications
✓ ​​Non-sparking materials​​ (ATEX Zone 2 compliant)

​​Maintenance Specifications​​
• ​​Self-cleaning mesh design​​ requires no lubrication
• ​​Field-replaceable wear parts​​ using standard tools
• ​​10,000-cycle​​ service life guarantee
• ​​UV-resistant markings​​ for long-term identification

​​Typical Applications​​
➔ ​​HV cable pulling termination​​
➔ ​​Submarine cable installation​​
➔ ​​Underground cable pulling heads​​
➔ ​​Temporary cable support systems​​
➔ ​​Cable splicing tension holding​
