Place of Origin: | China |
Brand Name: | Suntech Tower |
Certification: | ISO, CE |
Model Number: | Monopole Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Get the Newest Price |
Packaging Details: | Exported Containers |
Delivery Time: | 30-35 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 70000 Metric Ton/Metric Tons Per Year |
Name: | Steel Monopole Galvanized Tower | Surface Treatment: | Hot-dip Galvanized |
---|---|---|---|
Height: | 10-100m | Material: | Q235B & Q355B Equivalent To A36/S235JR & Gr50/S355JR |
Wind Speed: | 110~160km/h_3 Second Gust | Lifetime: | 20-30 Years |
High Light: | Q235B Steel Galvanized Tower,Palm Tree Camouflaged Galvanized Tower |

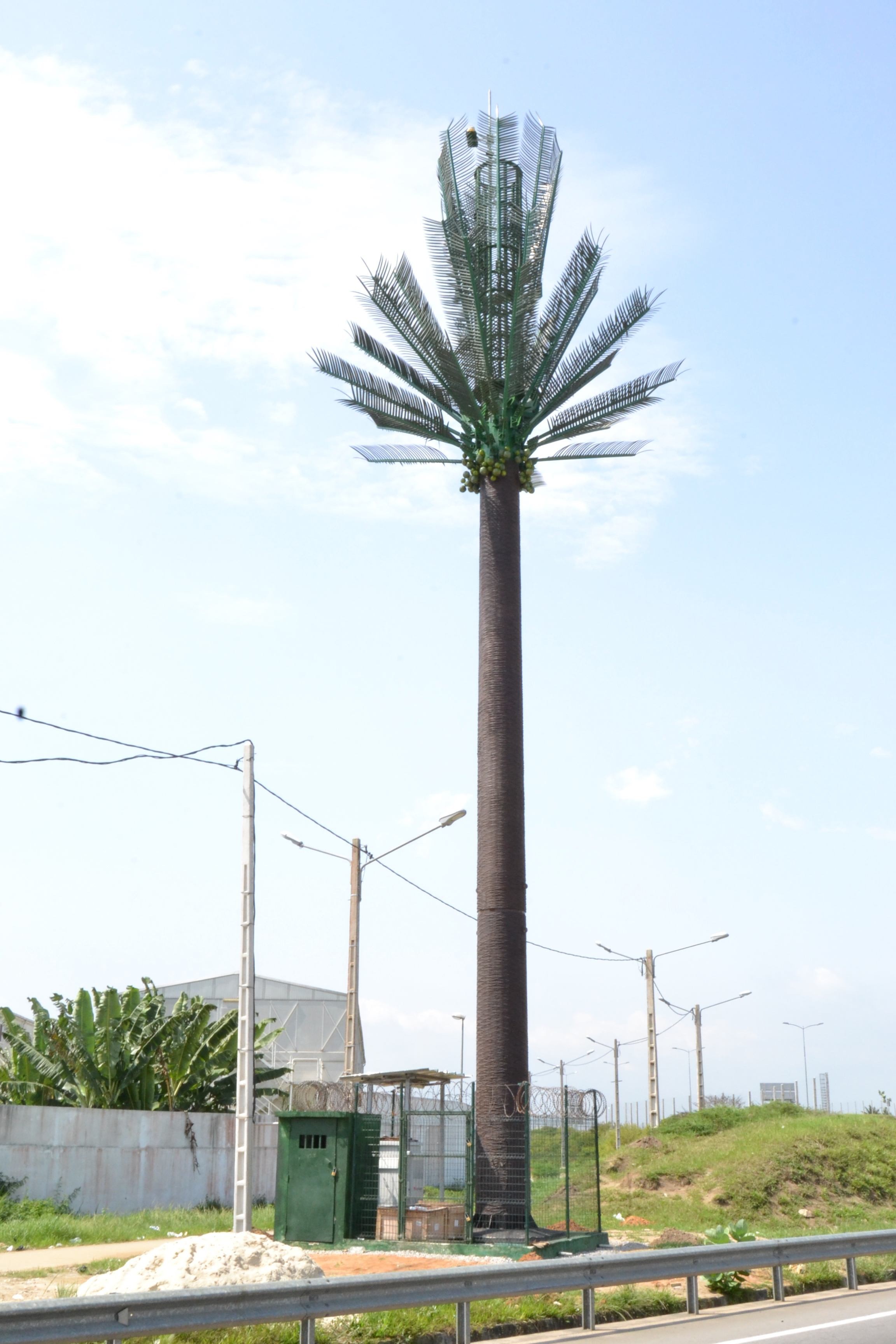

Telecommunication Palm Tree Camouflaged Steel Monopole Galvanized Tower
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged
in the field of electric power more than 26 years.
Production Process
Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.
Monopole cell tower telecom toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.
Detailed Product description as follows :
1. Circle /Polygonal
2. Slip joint/Flange Joint
3. Hot Dip Galvanization (ASTM123)
4. ISO9001 / ISO14001 certificate
5. Slip joints result in easy field assembly and erection
6. Painting Optional: according to customer's requirements
7. Design standard: TIA/EIA-222-G/F
8. Design software: MS TOWER
Products Features:
Available Height:10m-60M
Wind Pressure:50KM/H-280 KM/H
Material:main shaft :Q345B/S355JR/ASTM572;Spare parts:Q235B/S235JR/ASTM A36
Anchor bolts:grade 8.8 hot-dipped zinc galvanization
Zinc thickness: minimum 100um for main structure
Vivid appearance,less space,easy to install

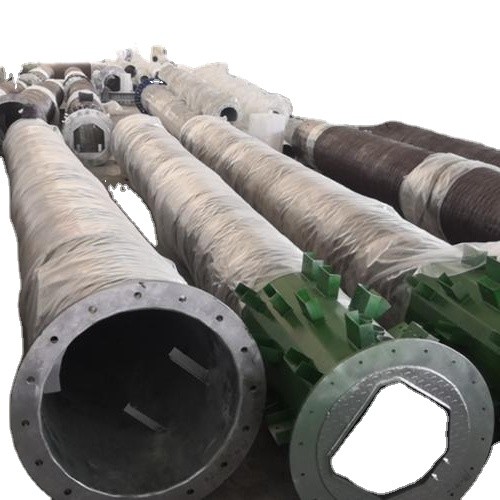

Structure:Slip joint/Flange Joint
Lifetime:main shaft and steel parts more than 30 years
Delivery Lead Time: 35 Days after we receive deposit or LC
Antenna Loading Quantity Range:3-18 PCS
Microwave Dish loading Quantity Range :3-18 PCS
Working &Resting Platform Quantity Range:1-3 PCS
Concealed mounts available
Cable and Ladder: can be assembled by customer's request
Typically assembled and erected within a matter of hours
May be fitted with various combinations of feedline entry, feedline exit, and personal access ports
Cable line:supported on internal J-hooks
Earthing Cable and earthing bar : according to customer's request,generally our offer not including this part
Complete line of antenna mounts and accessories available
Provided with step bolts and cable-type safety climb system
Normal camouflaged pine tree tower including : lightning rod ,antenna support ,microwave suppport ,platform ,main section shaft,connection bolts ,anchor bolts ,templates ,internal/external ladder ,cable tray and etc
Aviation light: we can make it if customer request
Telecommunication Tower- Goods description and major parameters | ||
No. | Description | Detailed Specification and Major design Parameters |
1 | Design Code | ANSI/TIA222G, European Standard and others |
2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. |
2. Wind speed as per requested by the clients. | ||
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. | ||
4 | Structure Classification | II |
5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
6 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR | ||
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR | ||
7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
9 | Tower Type | 1. 3 Leg Self supported Angular Towers |
2. 3 Leg Self supported Tubular Towers | ||
3. 4 Leg Self supported Angular Towers | ||
4. 4 Leg Self supported Tubular Towers | ||
5. Guyed Mast | ||
6. Monopole Tower | ||
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree | ||
8. RDS Tower: Rapid Deploy Site/Tower | ||
9. Rooftop Towers | ||
10. Smart Poles | ||
10 | Warranty | 1. Tower structures: 10 years |
2. Camouflaged towers | ||
a. Barks: 10 years | ||
b. Branches and leaves: 3 years | ||
11 | Return Period | 50 Years |
12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White |
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light | ||
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. | ||
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. | ||
5. ACDB as per specified by clients | ||
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. | ||
7. Fall arrest system: GB and CE certificate fall arrest system. | ||
8. Optical Fiber Cable: as per specified by client | ||
9. Generator: as per specified by client | ||
10. Canopy and Generator Cage: as per specified by clients |
