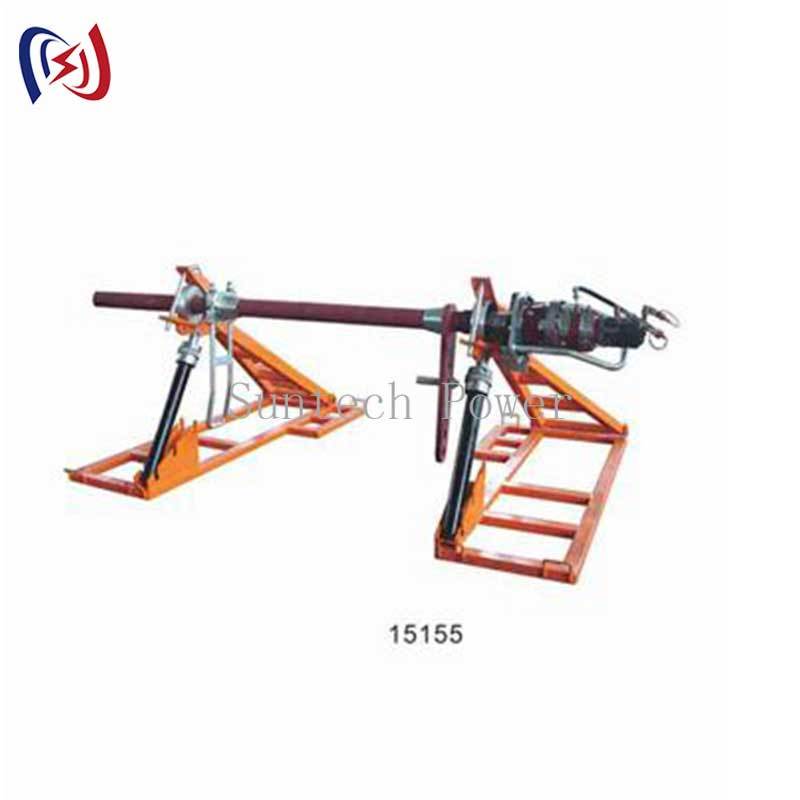

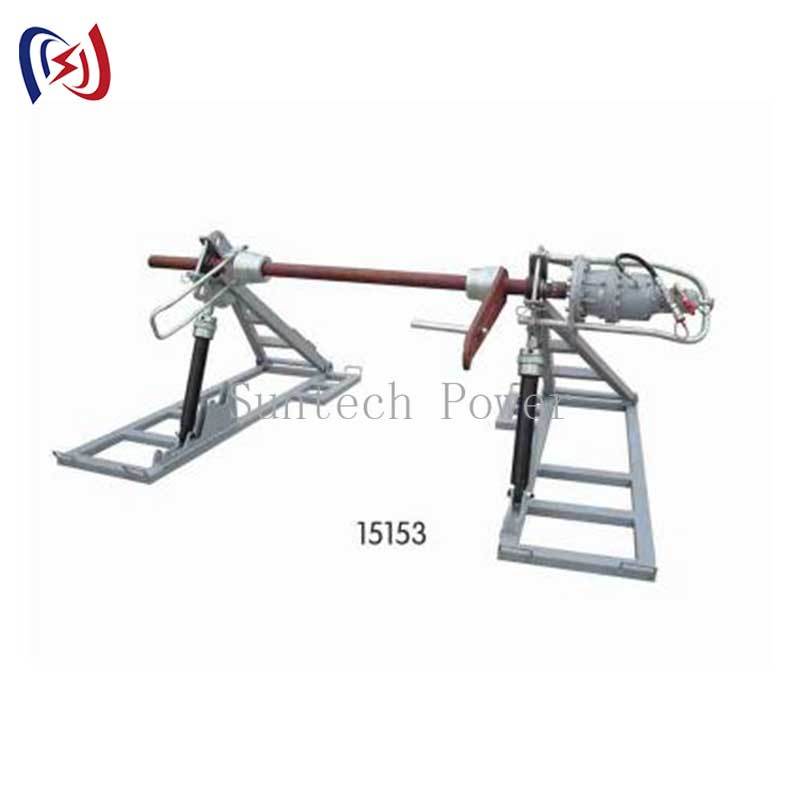

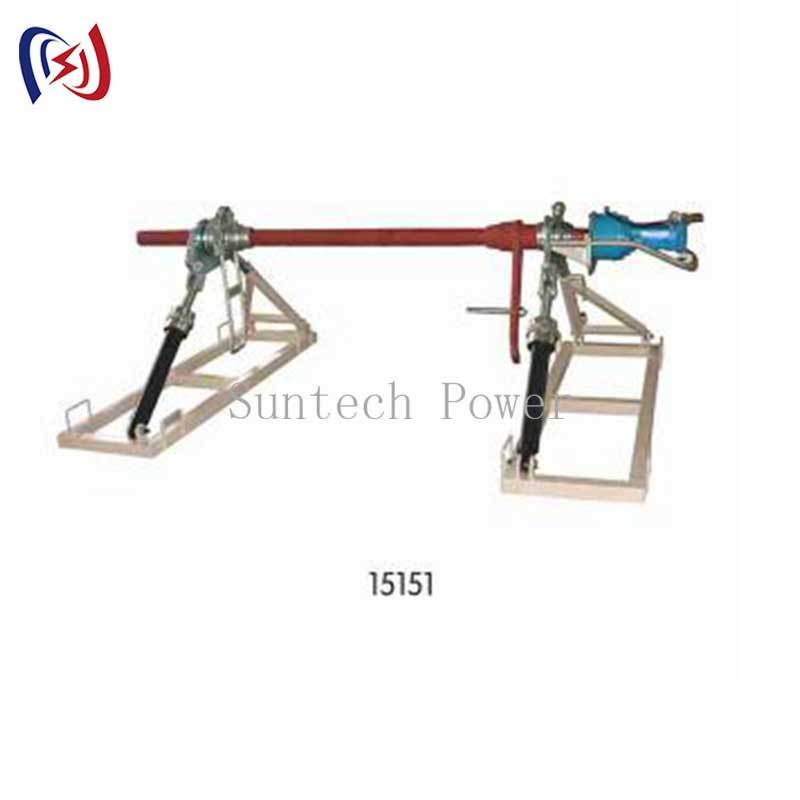

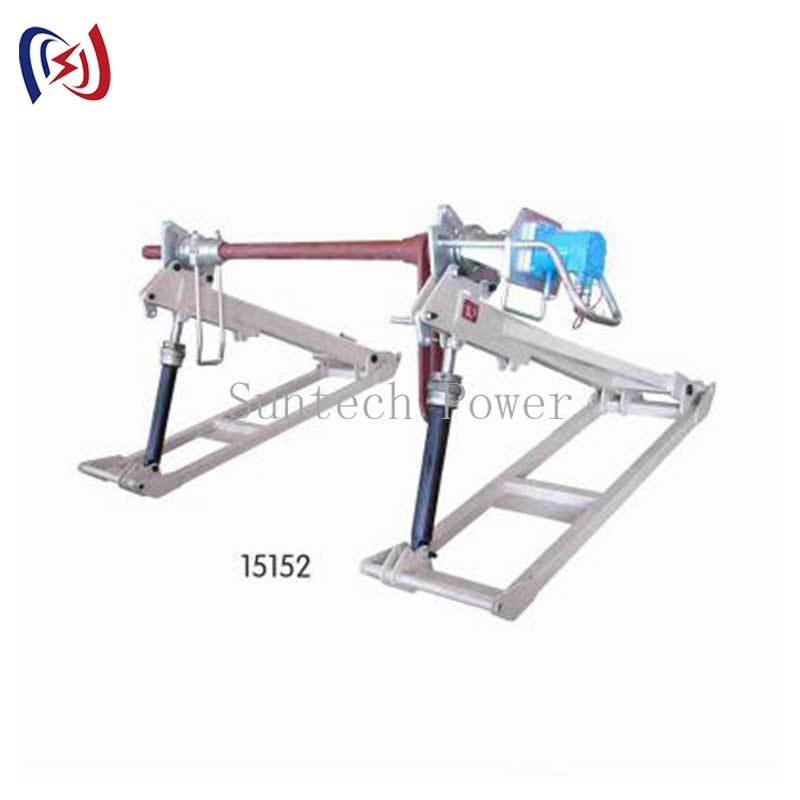

Hydraulic Conductor Reel Stand Professional Lifting Equipment For Transmission Lines​

Hydraulic Conductor Reel Stand Professional Lifting Equipment For Transmission Lines​

Core Design Features​​

• ​​Heavy-duty hydraulic lifting system​​ with 15-ton capacity (25-ton overload protection)
• ​​Reinforced steel frame​​ with corrosion-resistant powder coating
• ​​Adjustable reel arms​​ for 800-3000mm diameter conductor drums
• ​​360° rotating platform​​ with low-friction roller bearings
• ​​Dual hydraulic cylinders​​ for balanced lifting (50mm/sec lifting speed)
• ​​Integrated load cell​​ (±1% accuracy digital display)

​​Operational Advantages​​
✔ ​​Single-operator control​​ with ergonomic hydraulic pump
✔ ​​Precision height adjustment​​ (100-2000mm vertical range)
✔ ​​Smooth rotation​​ reduces conductor payout tension by 50%
✔ ​​Quick-change reel adapters​​ (tool-free in <90 seconds)
✔ ​​Stabilizing jacks​​ with 300mm ground clearance adjustment

​​Hydraulic System Specifications​​
• ​​Working pressure:​​ 80MPa
• ​​Pump oil capacity:​​ 3.2L (ISO VG 68 hydraulic oil)
• ​​Double-acting cylinders​​ with 1200mm stroke
• ​​Emergency manual descent​​ with fail-safe brake

​​Safety Features​​
✓ ​​Automatic pressure relief​​ (set at 120% max load)
✓ ​​Mechanical safety locks​​ at 10 height positions
✓ ​​Non-slip diamond plate​​ stepping surfaces
✓ ​​High-intensity warning lights​​ for low-light conditions

​​Maintenance Requirements​​

• ​​Bi-weekly inspection​​ of hydraulic components
• ​​Semi-annual oil analysis​​ and replacement
• ​​Annual cylinder repacking​​
• ​​3-year structural integrity certification​​

​​Typical Applications​​
➔ ​​ACSR conductor stringing operations​​
➔ ​​AAAC conductor drum handling​​
➔ ​​Transposition tower conductor work​​
➔ ​​Emergency conductor replacement​​
➔ ​​High-capacity distribution line projects​
