Quad Bundle Conductor Head Boards for Power Line Construction

1 PCS
MOQ
Get the newest prices
Price
Quad Bundle Conductor Head Boards for Power Line Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Head Boards For Four Bundle Conductors
Item No.: 17231-17239
Model: SZ4A-13
Rated Load: 130-320KN
Weight: 139-150KG
Warranty: 1 Year
Highlight:

Angle Steel Tower Q235B

,

Transmission Line Angle Steel Tower

,

Transmission Line Tower Q235B
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SZ4A-13
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 60000 PCS/Month
Product Description
Professional Head Boards For Four Bundle Conductors Power Line Construction
Product Specifications
Attribute Value
Name Head Boards for Four Bundle Conductors
Item No. 17231-17239
Model SZ4A-13
Rated Load 130-320KN
Weight 139-150KG
Warranty 1 year
Product Introduction
  • Essential component for quad bundle conductor configurations
  • Specifically designed for ultra high voltage transmission lines
  • Ensures proper spacing and alignment of four parallel conductors
Key Features
Quad Conductor Support
  • Maintains precise square spacing pattern
  • Prevents conductor galloping and clashing
Enhanced Structural Integrity
  • High-strength galvanized steel construction
  • Reinforced connection points withstand extreme loads
Advanced Corrosion Protection
  • Hot-dip galvanized coating
  • Suitable for coastal and industrial areas
Safety Assurance
  • Non-conductive composite spacers
  • Rounded edges protect conductor insulation
Installation Efficiency
  • Pre-assembled modular components
  • Color-coded for quick identification
Technical Specifications
Item Number Model Rated Load (kN) Weight (kg) Width of Applicable Sheave (mm) Features
17231 SZ4A-13 130 96 100 Balanced pulley type
17232 SZ4B-13 130 65 100 Conductors are independent of each other
17233 SZ4B-18 180 95 110 Conductors are independent of each other
17234 SZ4B-25 250 110 110 Conductors are independent of each other
17238 SZ4C-25 250 88 110 Conductors are independent of each other
17239 SZ4B-32 320 150 125 Conductors are independent of each other

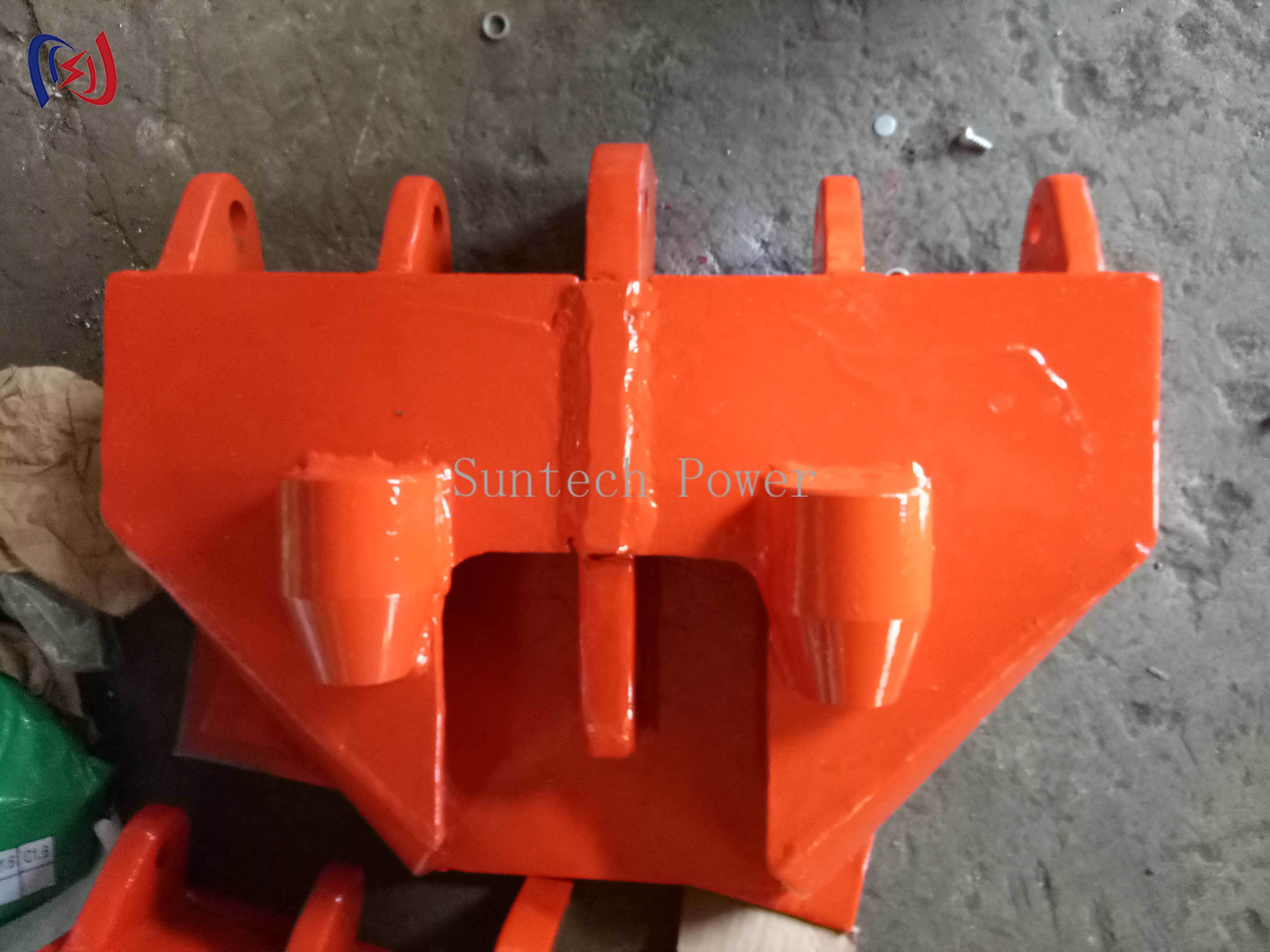

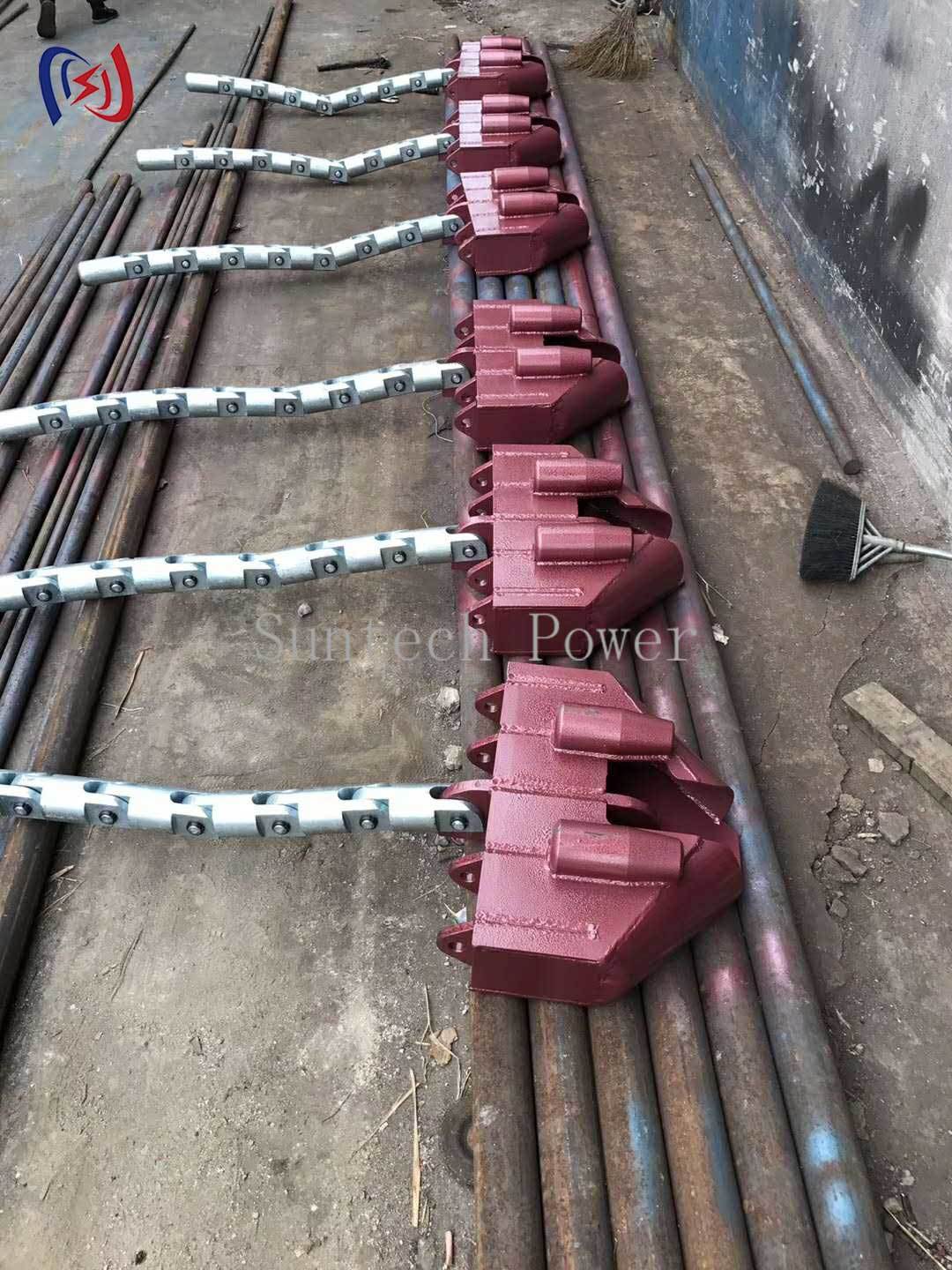

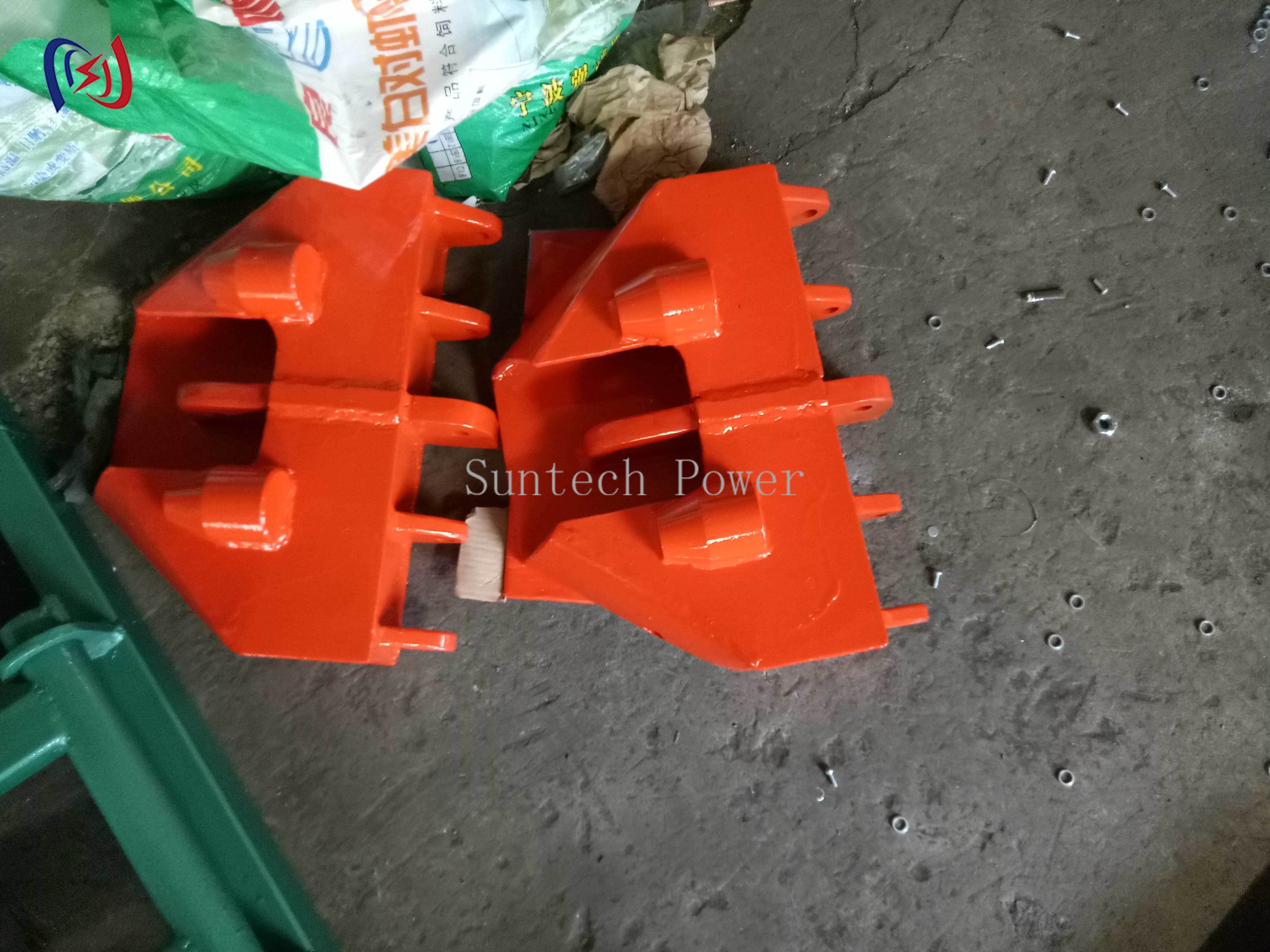

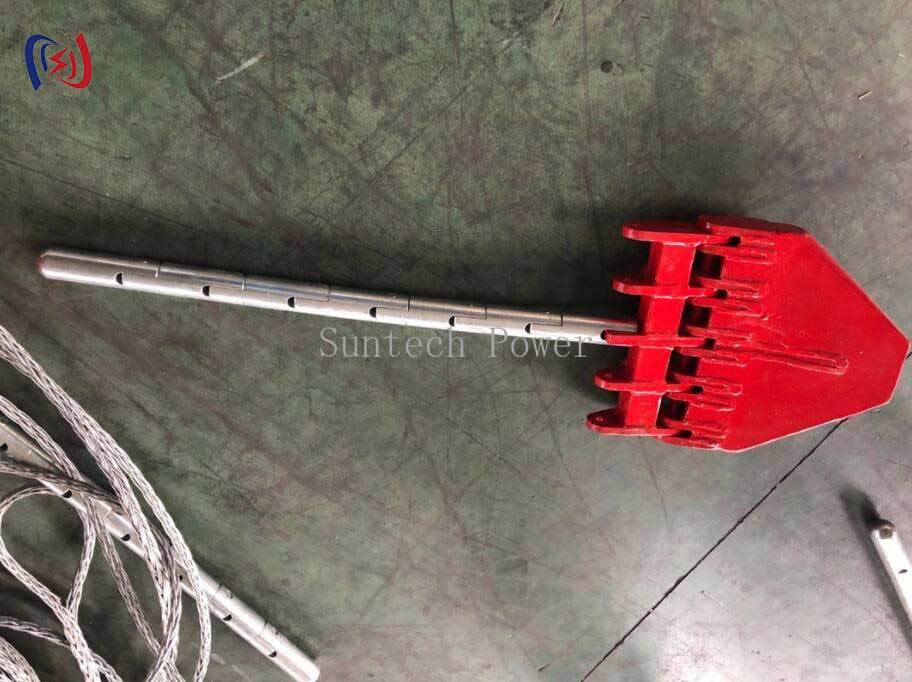

Product Image
Quad Bundle Conductor Head Boards for Power Line Construction 0
