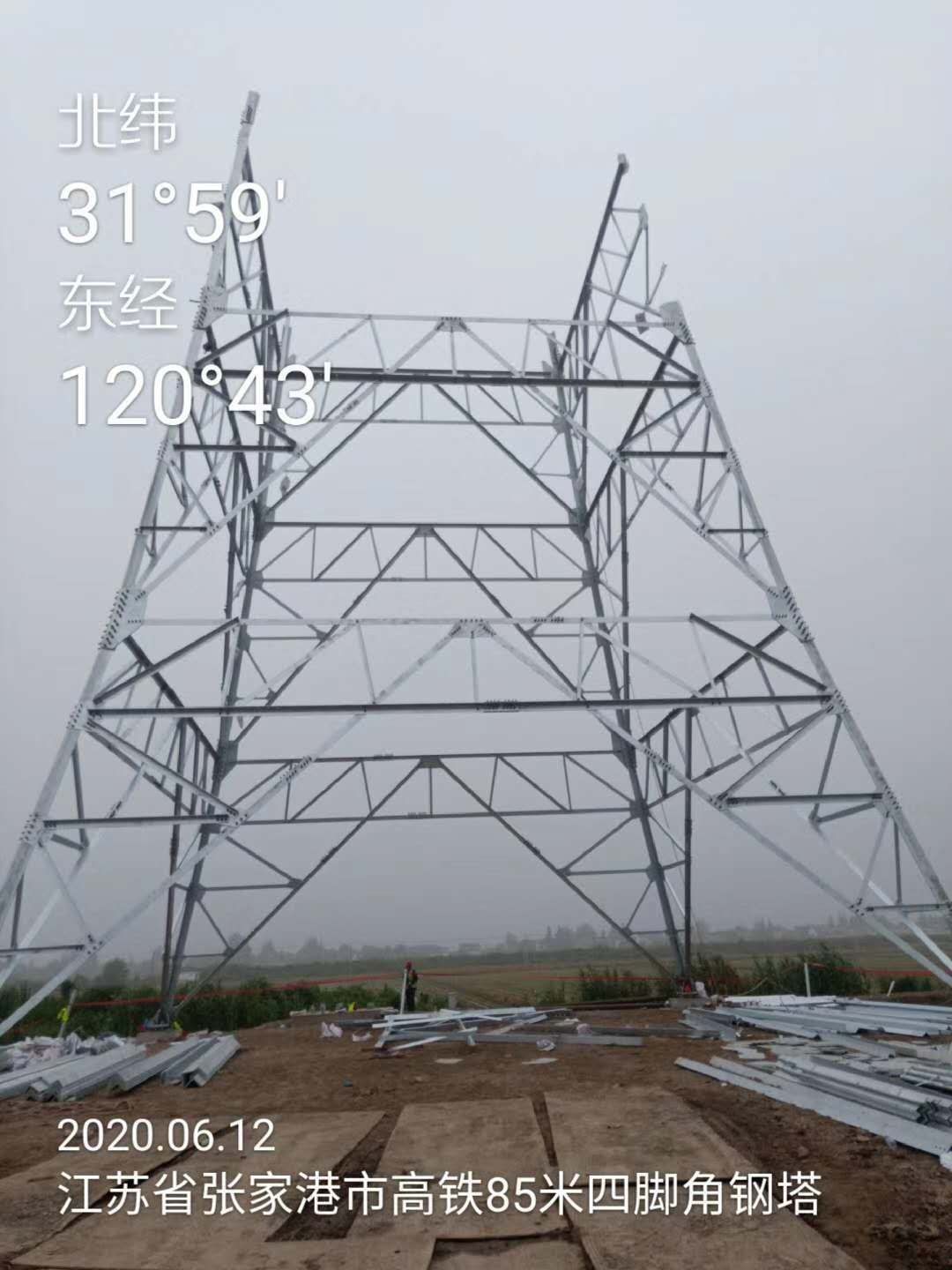

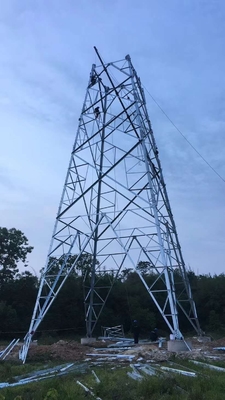

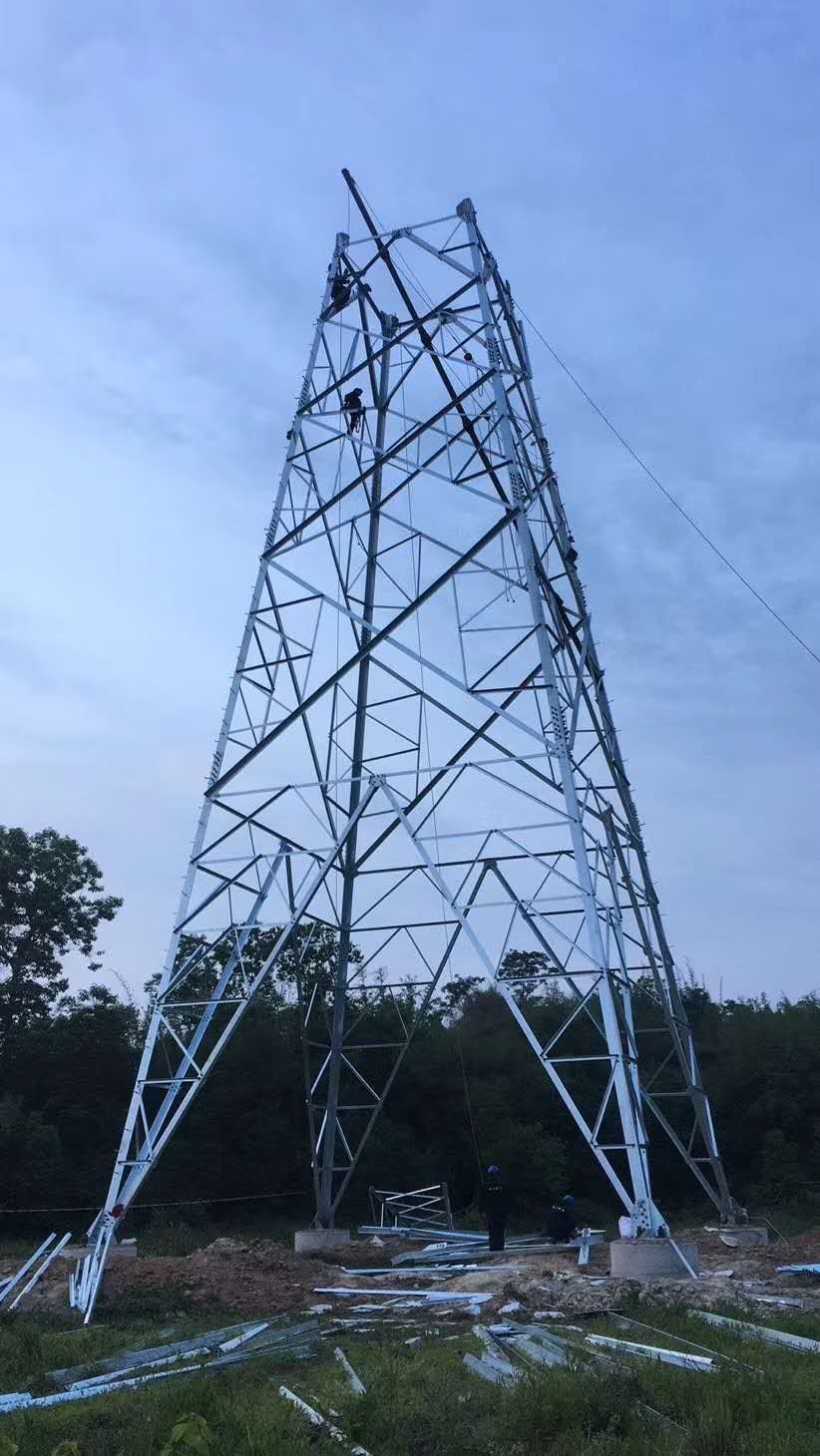

Circle Telecommunication Steel Tower 50m 60m Four Leg

Circle Telecommunication Steel Tower 50m 60m Four Leg

  • Circle Telecommunication Steel Tower 50m 60m Four Leg
  • Circle Telecommunication Steel Tower 50m 60m Four Leg
Circle Telecommunication Steel Tower 50m 60m Four Leg
Product Details:
Place of Origin: China,ningbo
Brand Name: Suntech
Certification: ISO,SE
Model Number: Telecom Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, D/P
Supply Ability: 3500 Sets Per Year
Contact Now
Detailed Product Description
Name: Tower Of Antenna Telecom Wind Speed: 110KM/H
Lifetime: 25-30 Years Tower Type: Suspension Tower, Tension Tower, Dead Tower, Substation Structure
Foundation: 50KPa, 100KPa, 150KPa Soil Bearing Capacity Mainly. Load Test/destructive Test: We Can Arrange It By Government Authority If It Is Necessary And The Cost Of Such Kind Of Test Is Separately From The Tower Pricing.
Design Loading: As Per Requirement And Specification By Clients Worldwide. Design Software: PLS And MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD Etc
High Light:

50meter Telecommunication Steel Tower

,

Circle Telecom Steel Tower

,

Four Leg Telecom Steel Tower

Circle Telecommunication Steel Tower 50m 60m Four Leg

20m 20meter 30m 40m 50m 60m 60meter Four Leg Steel GSM Cellular Telecom Tower



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.



Quick Detail:

Self supporting tower usually is 3-leg or 4-leg tower, and its material is steel pipe or angle steel. As for the connection,

tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.



Features

  • 1. Small coefficient of wind load, strong wind resistance.
    2. Save land resource, convenient location.
    3. Convenient transportation and installation.



With more than 26 years experiences on the steel pole,we have manufactured and exported huge quantity

of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which

service for the signal transmission industry development of the world.We have the complete production line

and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the

electric power poles everyday. A quick production period and delivery schedule ensured our client have more

obvious advantage in their market.

The Steel Antenna Microwave Communication Monopole is made by the high-quality hot rolled steel plate

which was bent into Trapezoid according to the poles's dimension,then welding ,grinding,hot dip galvanized

and packing for delivery as following shows:

1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,

and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing

worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can

save land resources and costs, and is especially suitable for construction in cities.



Detailed Product description as follows :

1. Circle /Polygonal

2. Slip joint/Flange Joint

3. Hot Dip Galvanization (ASTM123)

4. ISO9001 / ISO14001 certificate

5. Slip joints result in easy field assembly and erection

6. Painting Optional: according to customer's requirements

7. Design standard: TIA/EIA-222-G/F

8. Design software: MS TOWER



Circle Telecommunication Steel Tower 50m 60m Four Leg 0



No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type 1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10 Warranty 1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients
