Heavy-Duty Dual-Hook Steel Turnbuckle – Forged Carbon Steel | Adjustable Tensioning

1 PCS
MOQ
Negotiation
Price
Heavy-Duty Dual-Hook Steel Turnbuckle – Forged Carbon Steel | Adjustable Tensioning
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Dual-Hook Steel Turnbuckle
Item No.: 14111-14117
Model: SJS-0.5-SJS-10
Rated Load: 5-100KN
Max Center Distance: 800-1740mm
Adjustable Distance: 250-600mm
Weight: 2.5-10KG
Warranty: 1 Year
Highlight:

ansi lattice antenna tower

,

4 legged lattice antenna tower

,

astm a572 gr65 telecommunication steel tower

Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SJS-0.5
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 30-35 days after deposit
Payment Terms: L/C,T/T
Supply Ability: 3000 PCS/Month
Product Description

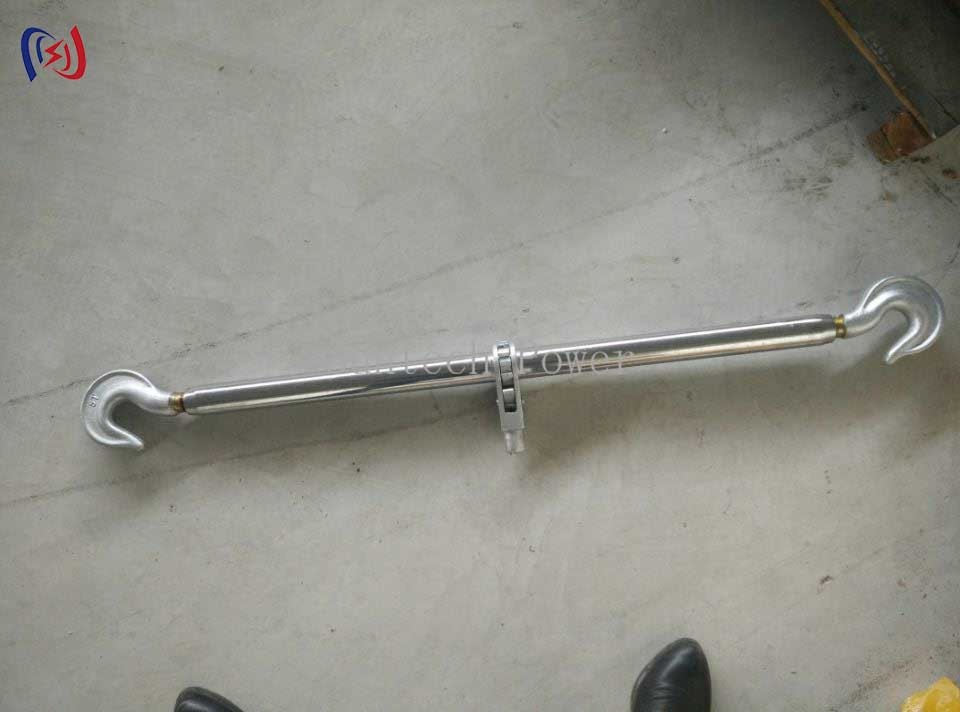

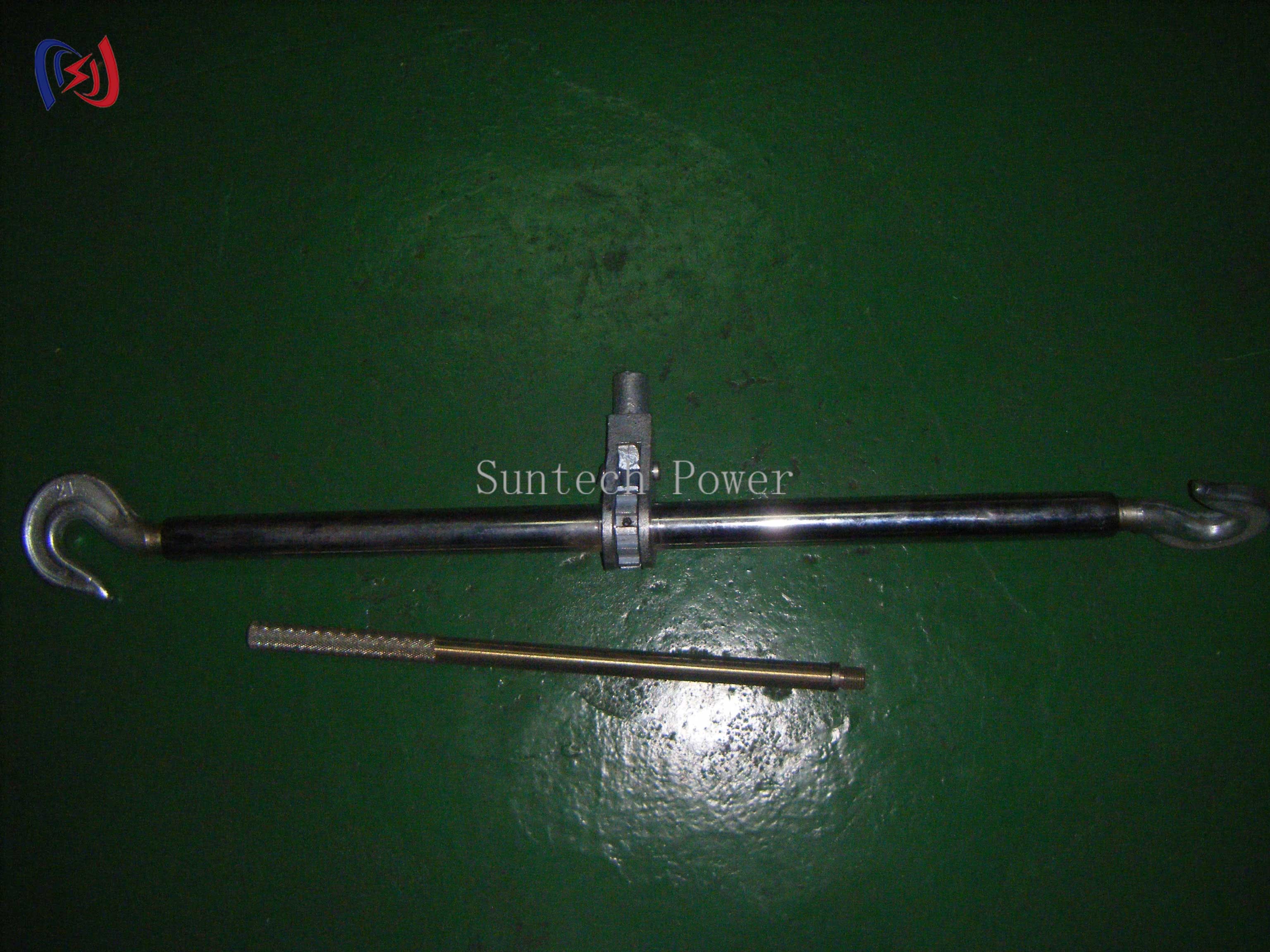

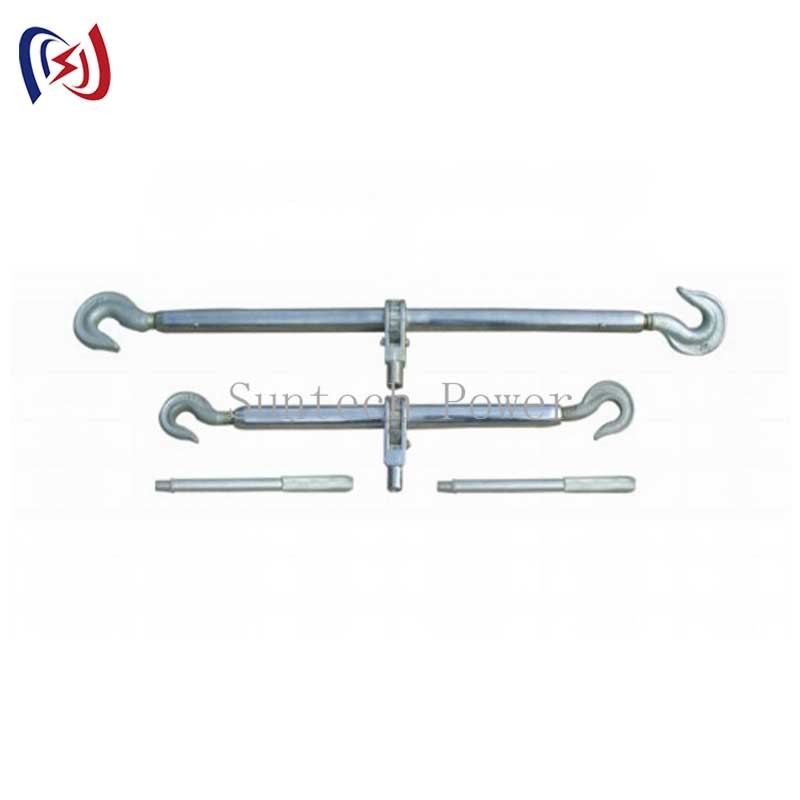

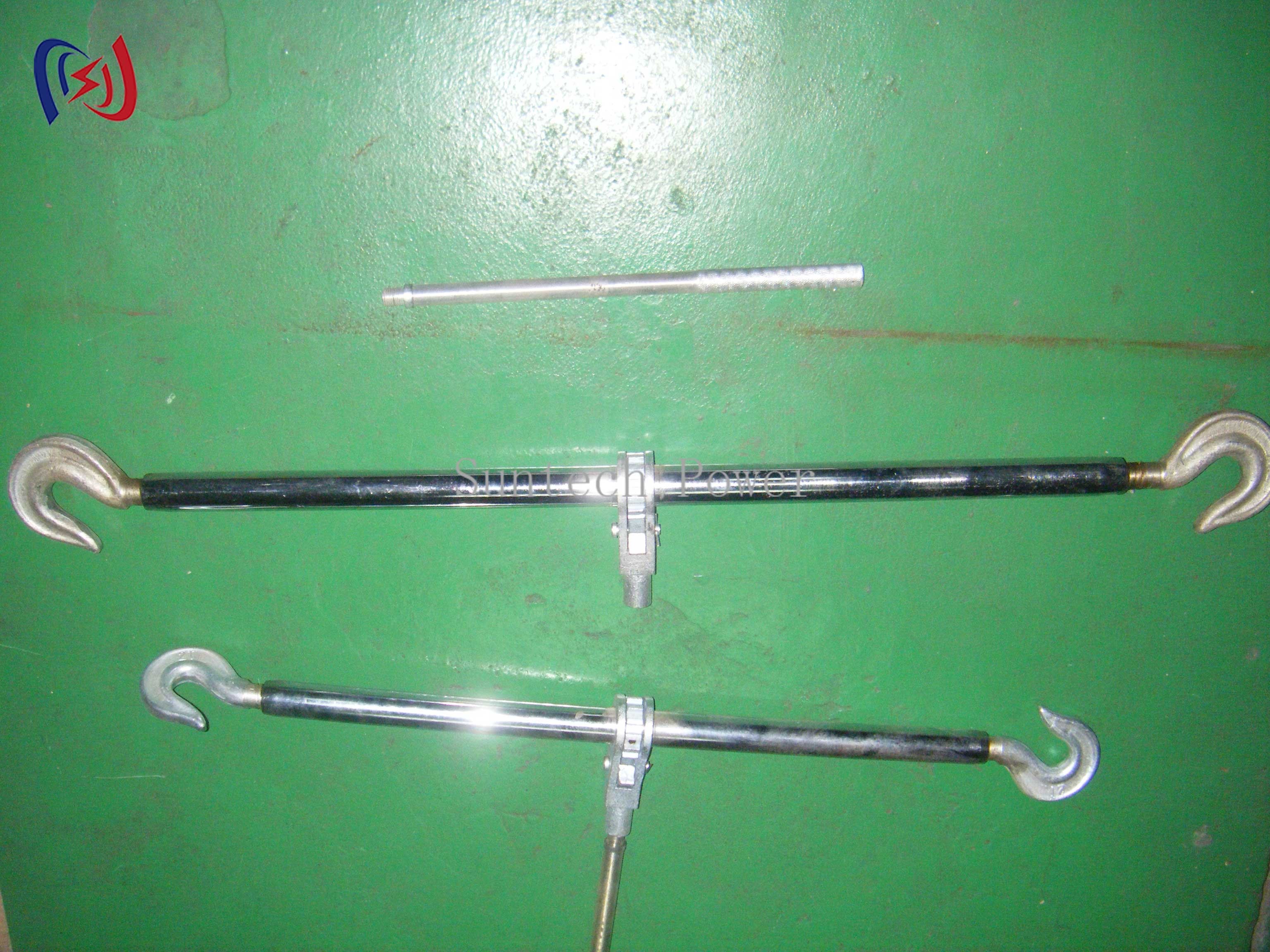

Heavy-Duty Dual-Hook Steel Turnbuckle – Forged Carbon Steel | Adjustable Tensioning


The ​​Dual-Hook Steel Turnbuckle​​ is a ​​heavy-duty tensioning device​​ designed for ​​rigging, lifting, and load-securing applications​​. Featuring ​​two forged steel hooks with opposing threads​​, it allows for ​​precise length adjustment and tension control​​ in structural, marine, and industrial settings. Unlike single-ended turnbuckles, the dual-hook design provides ​​360° rotation capability​​ and ​​easier installation in confined spaces​​.


Cooperate with lead wire stick wire implement, traction and tighten up lead wire. 2.Tightening range is big, practicability strong.

High Quality Model SJS Double Hook Turnbuckle is used in power transmission construction, telecommunications engineering, tighten the wire. Apply to tightening conductor,steel wire rope or steel standed wire on installing stay wire and replacing insulator string.


Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.


Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.


Item number Model Rated load (kN) Maximum center distance Adjustable distance (mm) Weight (kg) Remark
14111 SJS-0.5 5 800 300 2.5 Steel
14112 SJS-1 10 860 250 3.5
14113 SJS-2 20 1050 340 4
14114 SJS-3 30 1350 470 6
14115 SJS-5 50 1440 510 8
14116 SJS-8 80 1670 560 8.5
14117 SJS-10 100 1740 600 10
