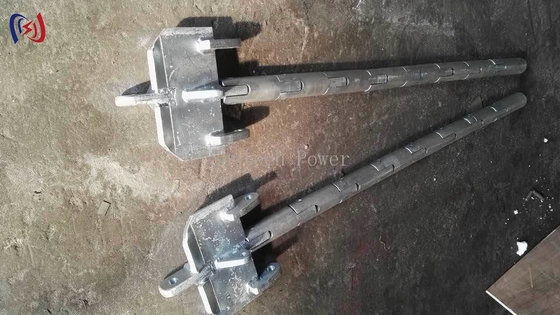

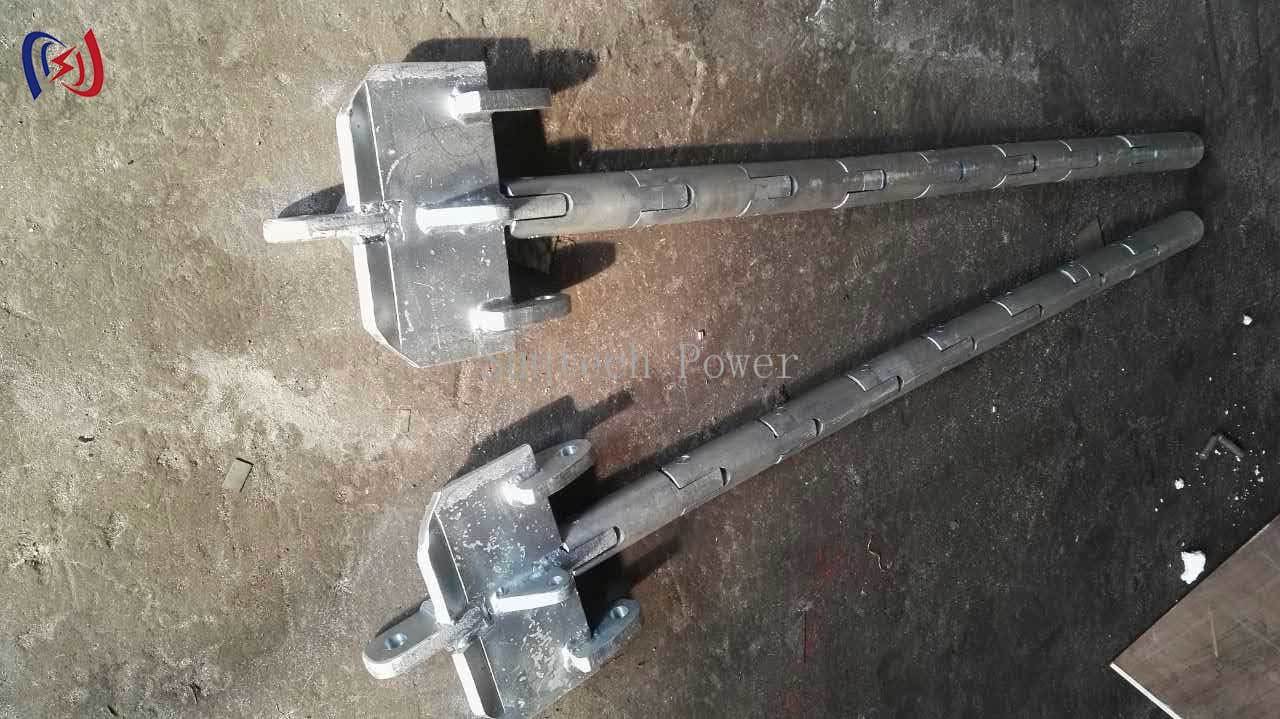

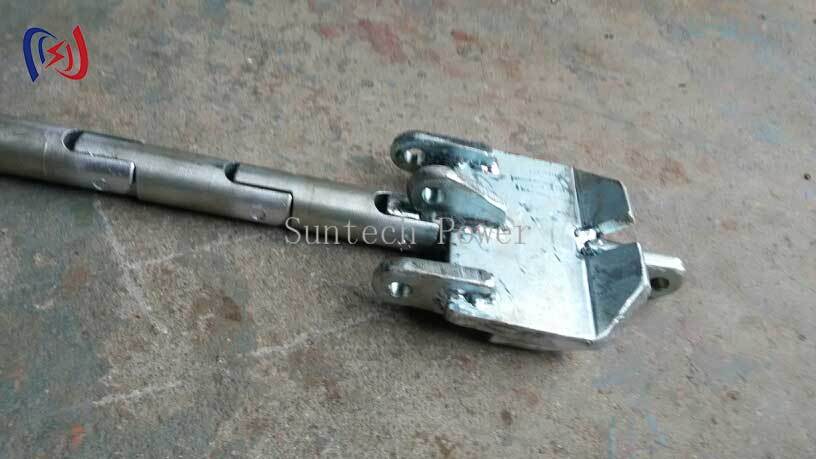

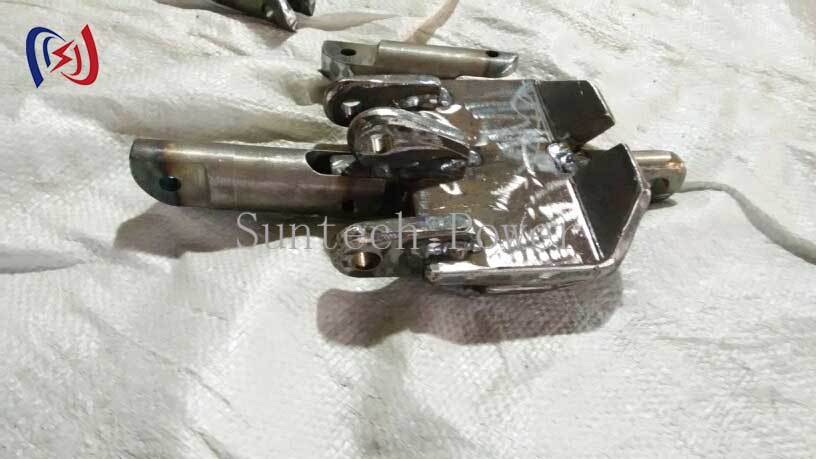

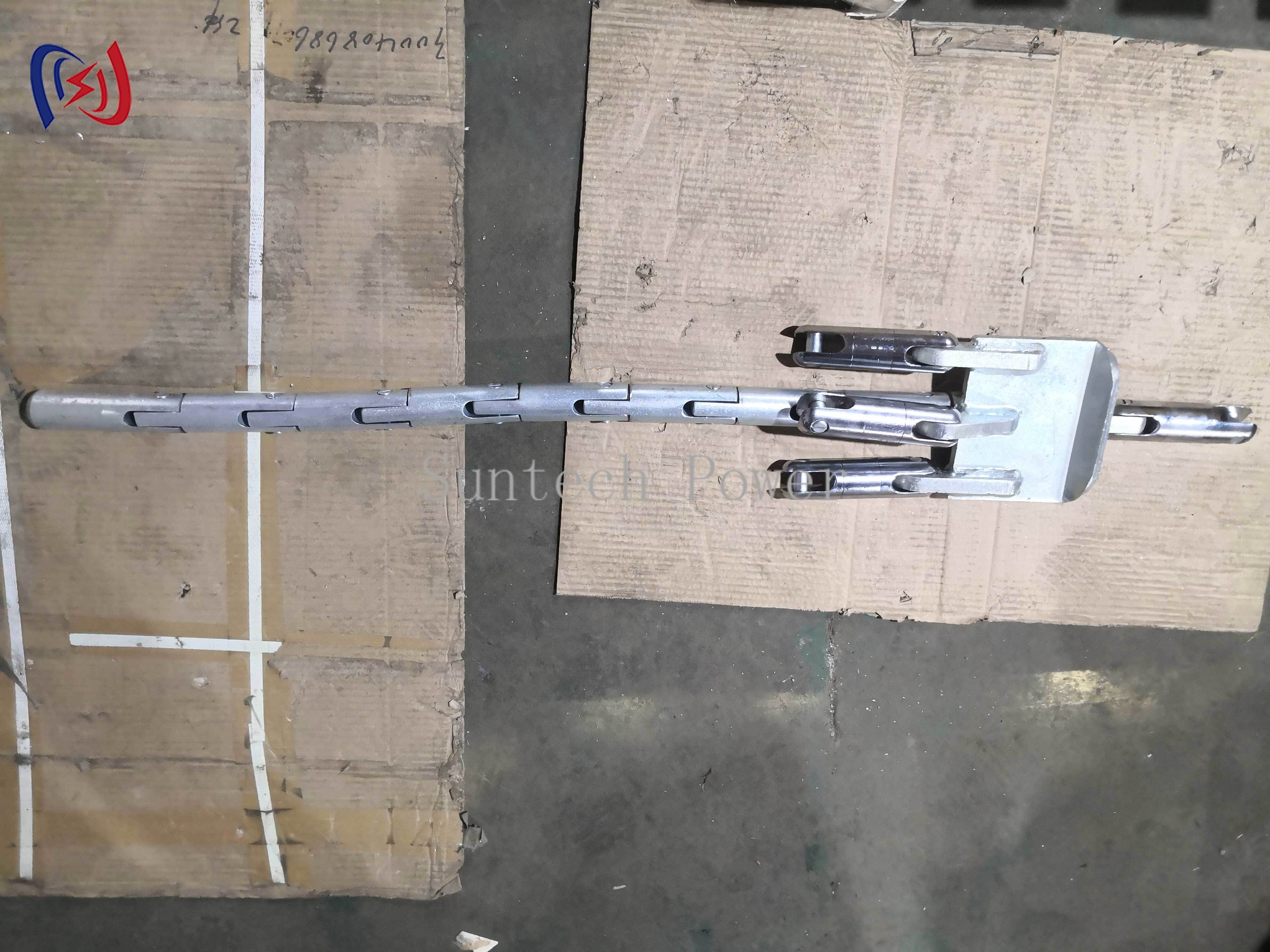

Head Boards for Three Bundle Conductor SZ3A-10 100-180KN

1 PCS
MOQ
Negotiation
Price
Head Boards for Three Bundle Conductor SZ3A-10 100-180KN
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Head Boards For Three Bundle Conductor
Item No.: 17228-17230
Model: SZ3A-10
Rated Load: 100-180KN
Weight: 114-142KG
Warranty: 1 Year
Highlight:

Q345B Steel Lattice Telecom Tower

,

Q235B Steel Lattice Telecom Tower

,

220kv Telecommunication Steel Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO9001
Model Number: SZ3A-10
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 50000 PCS/month
Product Description
Professional Head Boards For Three Bundle Conductors Power Line Construction
Product Specifications
Attribute Value
Name Head Boards for Three Bundle Conductor
Item No. 17228-17230
Model SZ3A-10
Rated Load 100-180KN
Weight 114-142KG
Warranty 1 year
Product Introduction
  • Critical component for three bundle conductor configurations
  • Engineered to maintain optimal conductor spacing and alignment
  • Essential for extra high voltage transmission line projects
Key Features
  • Triple Conductor Support: Maintains precise triangular spacing between conductors and prevents conductor clashing in high wind conditions
  • Enhanced Durability: High-grade aluminum alloy construction with reinforced stress points for heavy loads
  • Corrosion Protection: Anodized aluminum surface treatment withstands harsh weather conditions
  • Safety Features: Non-conductive spacer options available with smooth edges to prevent insulation damage
  • Installation Efficiency: Pre-assembled modular components with color-coded identification
Technical Specifications
Item No. Model Rated Load (KN) Applicable Stringing Block Sheave Width (MM) Weight (KG) Steel Rope Length (M)
17228 SZ3A-10 100 100 114 1*30+1*15
17229 SZ3A-13 130 110 130
17230 SZ3A-18 180 110 142
Typical Applications
  • 500kV+ transmission line installations
  • Bundle conductor stringing operations
  • Substation bus connections
  • Emergency repair situations
Workflow Integration
  • Compatible with all standard stringing equipment
  • Works with ACSR and AAAC conductors
  • Integrates with tension monitoring systems
Maintenance Advantages
  • Self-cleaning design minimizes debris buildup
  • Easy visual inspection process
  • Long service life with minimal upkeep
User Guidelines
Pre-Installation
  • Inspect all components for damage
  • Verify conductor size compatibility
Installation
  • Follow recommended torque sequence
  • Ensure proper triangular alignment
Post-Installation
  • Conduct visual inspection
  • Schedule annual maintenance checks
Industry Compliance
  • Meets IEC 61284 international standards
  • OSHA compliant for construction sites
  • Certified by major power utilities
Why Professionals Choose Us
  • 35% stronger than conventional designs
  • 45% faster installation process
  • 1-year extended warranty
Customer Support
  • Free installation training videos
  • Dedicated technical support line
  • Replacement parts inventory
Purchasing Options
  • Standard kits (5/10/20 pieces)
  • Custom configurations available
  • Priority shipping options
