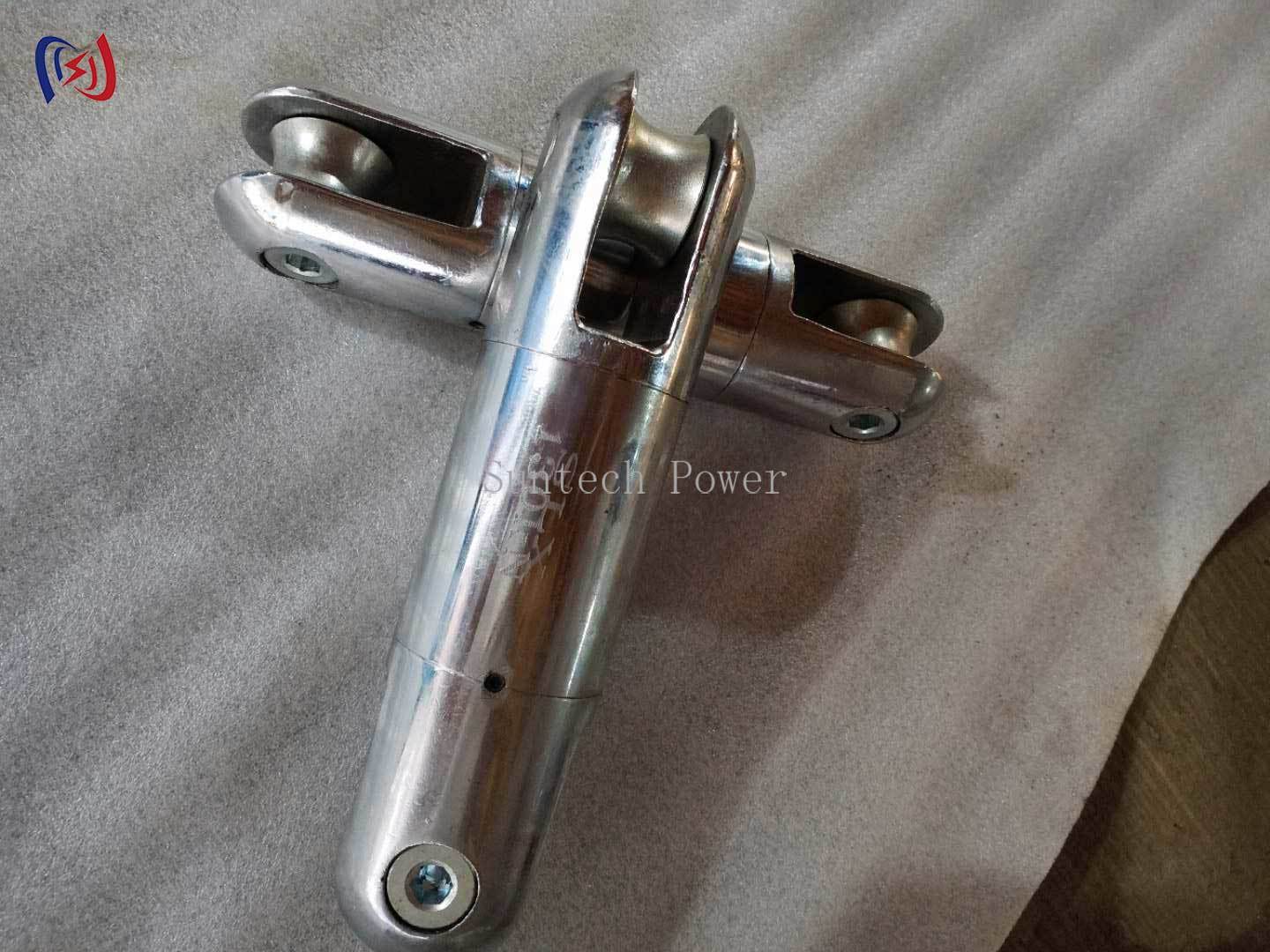

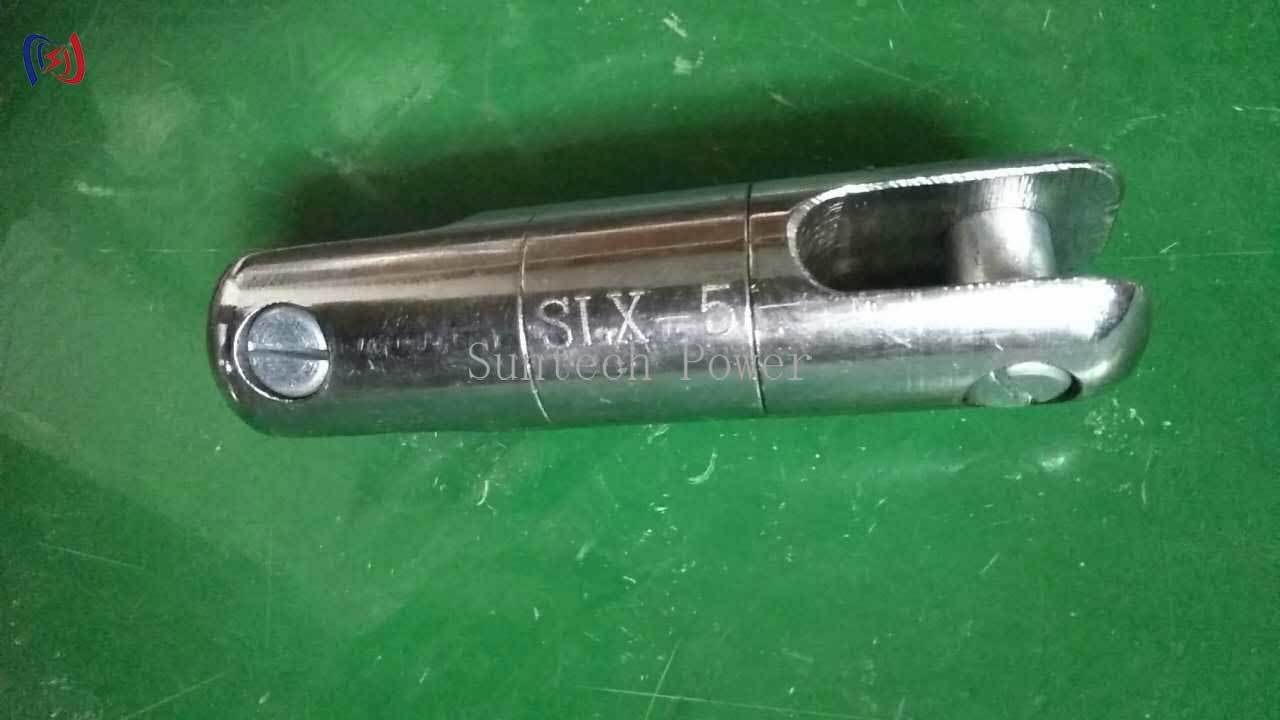

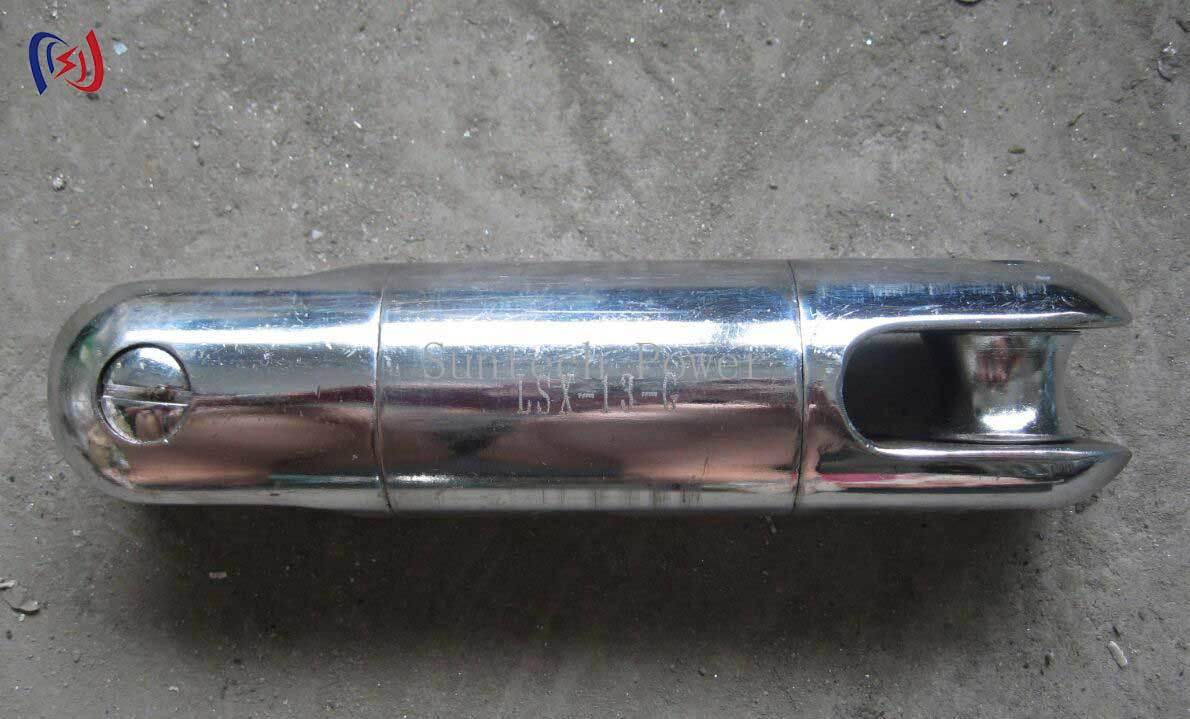

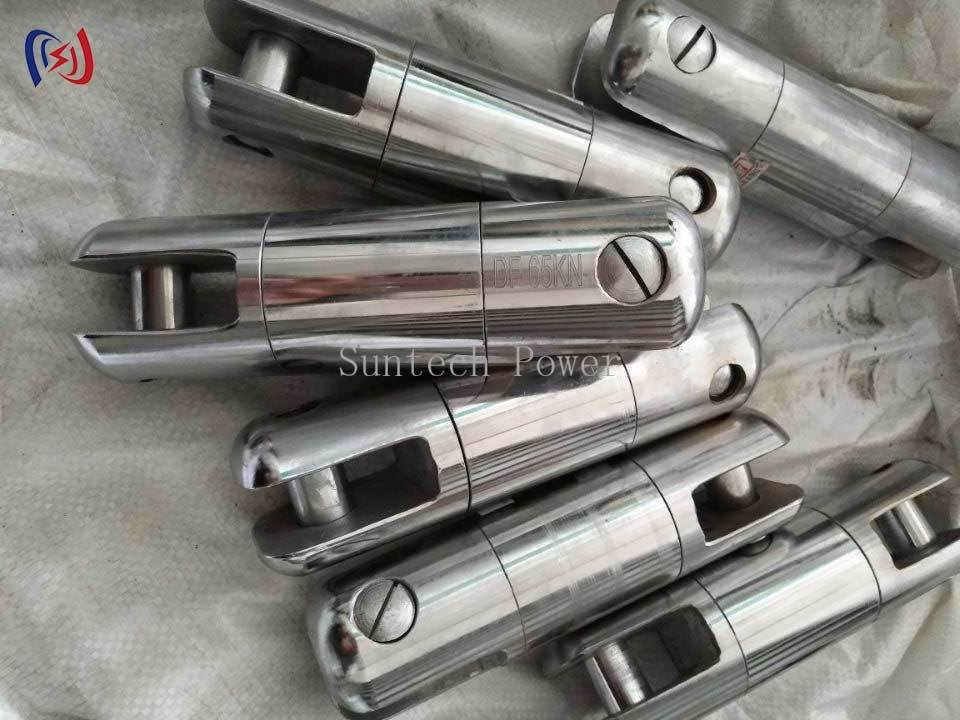

Heavy Duty Swivel Joint 5-250KN for Transmission Line Stringing

1 PCS
MOQ
Get the latest prices
Price
Heavy Duty Swivel Joint 5-250KN for Transmission Line Stringing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Swivel Joint
Item No.: 17121-17130
Model: SLX-0.5-SL250Y
Rated Load: 5-250KN
Weight: 0.2-8KG
Warranty: 1 Year
Highlight:

230kv Lattice Steel Towers

,

ASTM123 Lattice Steel Towers

,

400kv Transmission Line Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SLX-1
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 10000 PCS/Month
Product Description
Heavy Duty Swivel Joint With Reinforced Alloy Construction
Attribute Value
Name Swivel Joint
Item No. 17121-17130
Model SLX-0.5-SL250Y
Rated Load 5-250KN
Weight 0.2-8KG
Warranty 1 year
Product Introduction
  • Essential rotating component for power line construction and maintenance
  • Enables smooth directional changes during cable installation
  • Trusted by utility companies for reliable performance
Key Features
360° Rotation Capability
  • Smooth swivel action reduces cable torsion
  • Maintains proper cable alignment
Heavy Duty Construction
  • Forged steel body withstands extreme loads
  • Reinforced bearing system
Cable Protection
  • Rounded edges prevent jacket abrasion
  • Non-marring contact surfaces
Safety Assurance
  • Locking mechanism prevents accidental release
  • High-visibility safety markings
Installation Flexibility
  • Multiple mounting options available
  • Quick-connect design
Typical Applications
  • Overhead transmission line installations
  • Underground cable pulling operations
  • Substation equipment connections
  • Temporary cable routing
Workflow Integration
  • Compatible with standard pulling equipment
  • Works with all common conductor types
  • Integrates with tension monitoring systems
Maintenance Advantages
  • Self-lubricating bearings
  • Easy to inspect and service
  • Long service life
User Guidelines
Pre-Operation
  • Inspect for free rotation
  • Verify proper cable alignment
During Use
  • Monitor for smooth operation
  • Maintain steady pulling speed
Post-Use
  • Clean after exposure to contaminants
  • Store in dry conditions
Industry Compliance
  • Meets IEEE installation standards
  • OSHA compliant for construction
  • Certified by major utilities
Why Professionals Choose Us
  • 50% smoother rotation than standard joints
  • 40% longer service life than competitors
  • 5-year performance warranty
Customer Support
  • Free installation consultation
  • 24/7 technical support
  • Replacement parts program
Purchasing Options
  • Single units or crew kits
  • Custom configurations available
  • Volume discounts for utilities
Technical Specifications
Item number Model Rated Load (KN) Main Size (mm) Weight (Kg) A B C D E
17121 SLX-0.5 5 19 0.20 61 40 8 9
17122 SLX-1 10 30 0.40 100 70 12 13
17123 SLX-2 20 35 0.55 120 90 14 14
17124 SLX-3 30 37 0.65 129 95 16 16
17125 SLX-5 50 42 1.50 154 116 18 17
17126 SLX-8 80 57 2.40 220 165 24 22
17127 SL130 130 62 3.50 248 192 26 24
17128 SL180 180 75 7.20 294 222 26 26
17129 SL250 250 85 10.5 331 251 30 30
17130 SL250V 250 80 8.0 323 243 30 30
