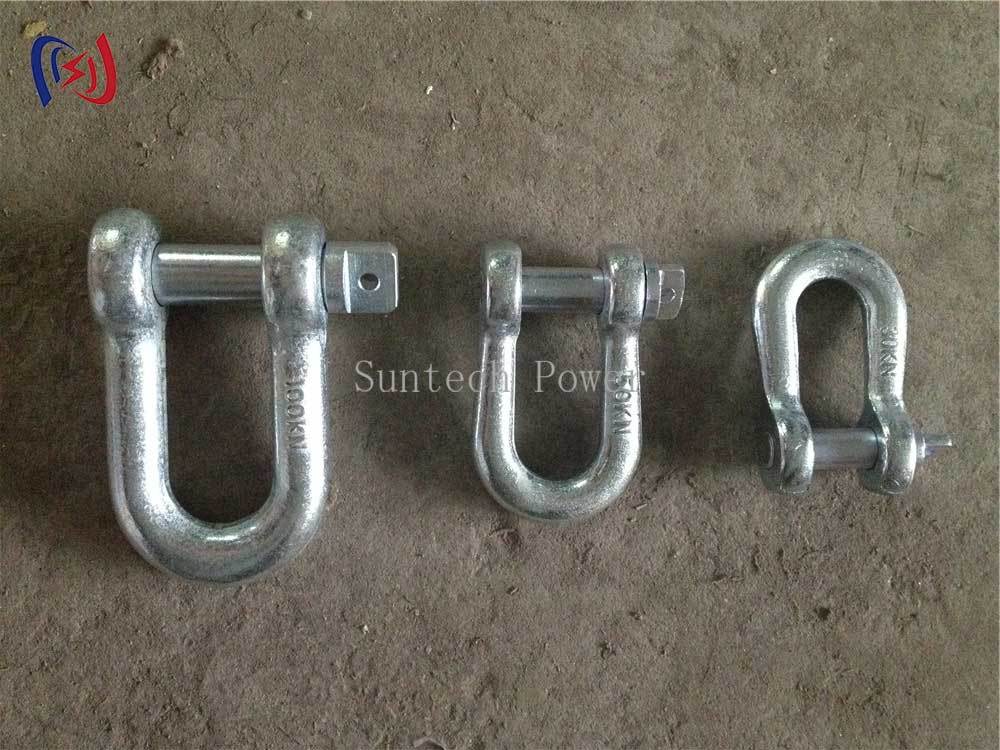

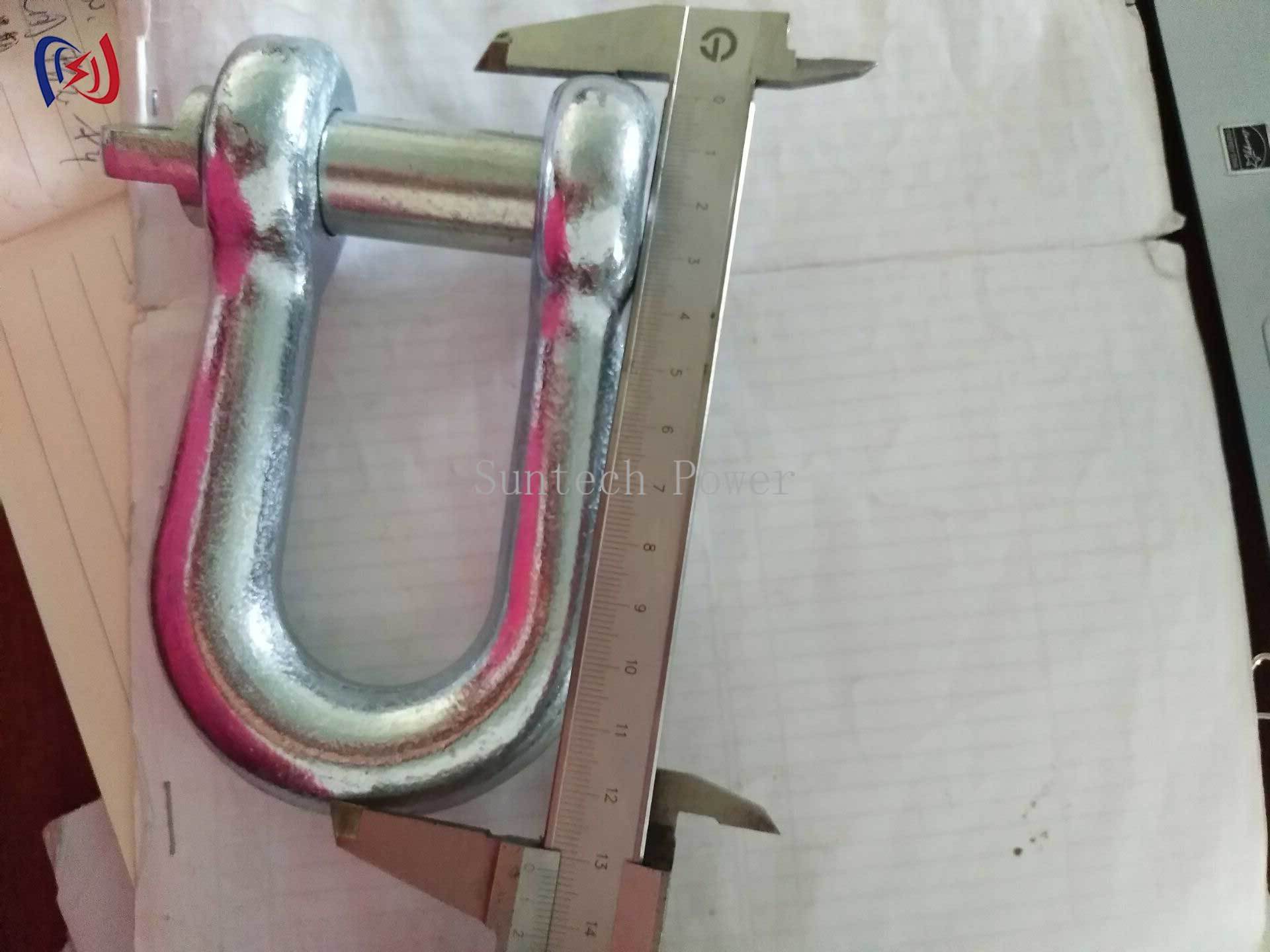

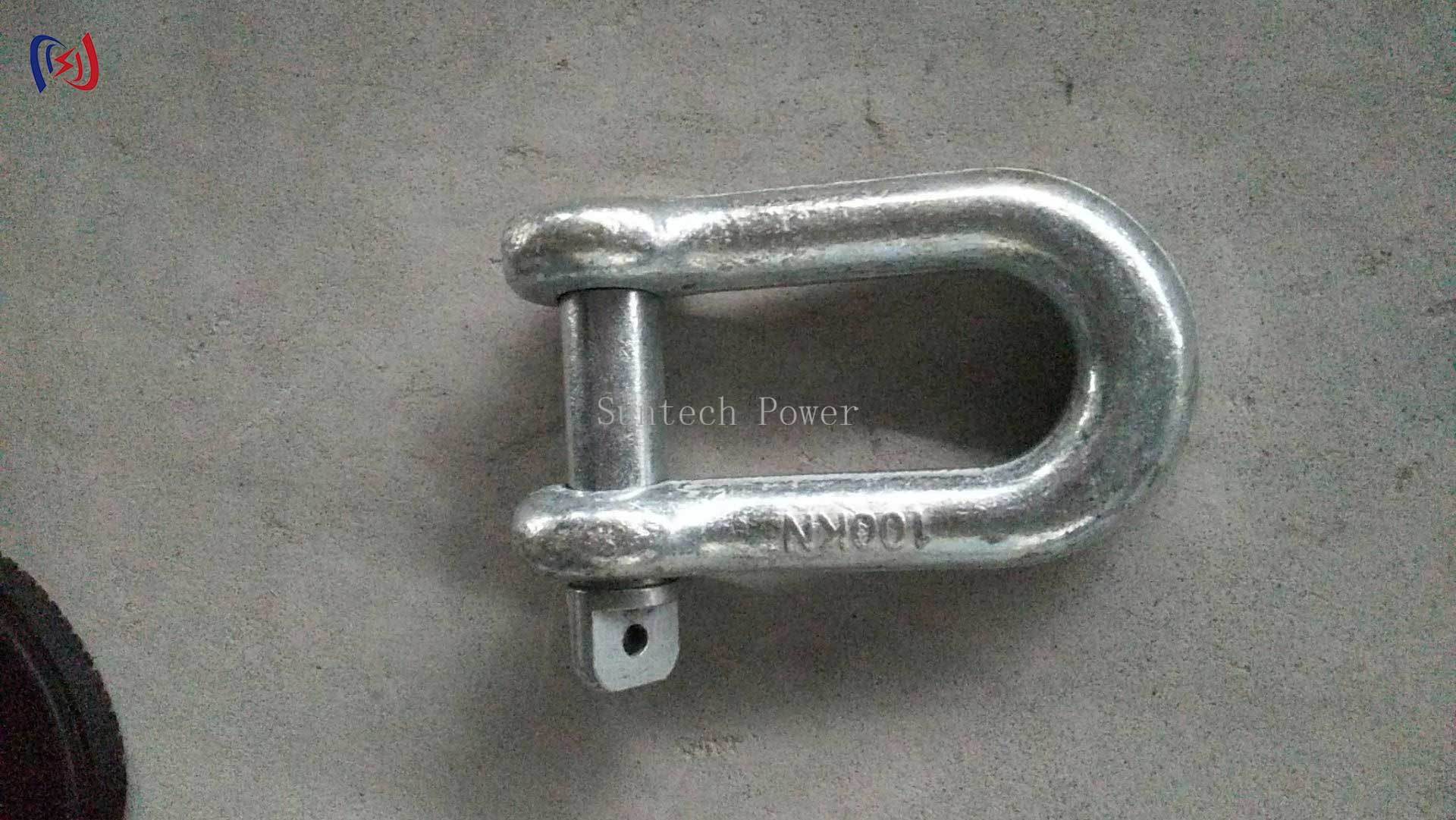

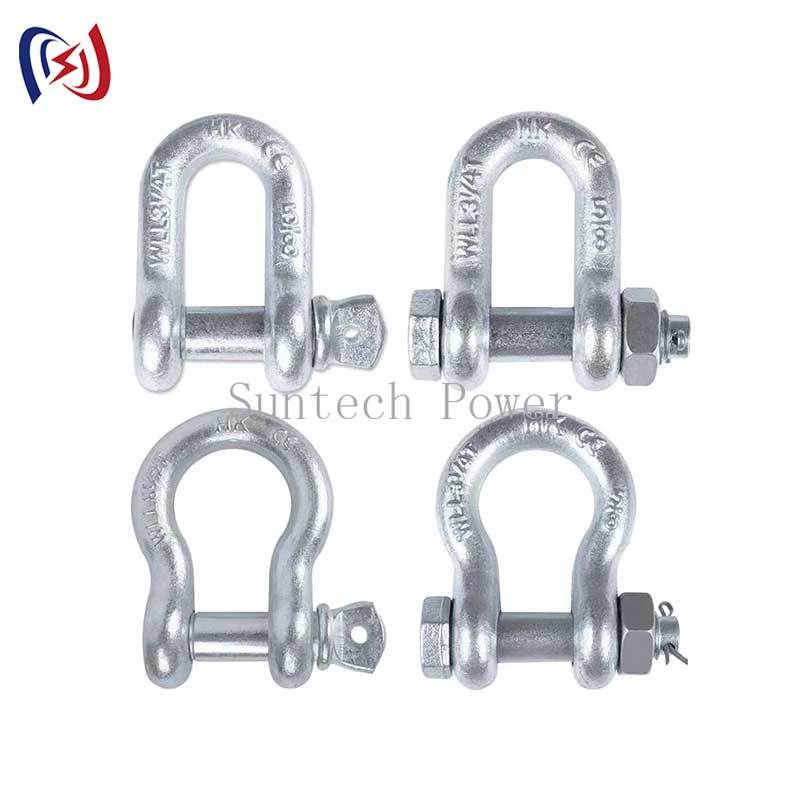

High Strength Shackle GXK-1 Forged Steel 10-300KN

1 PCS
MOQ
Get the latest prices
Price
High Strength Shackle GXK-1 Forged Steel 10-300KN
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Strength Shackle
Item No.: 17131-17139
Model: GXK-1
Rated Load: 10-300KN
Weight: 0.15-7.5KG
Warranty: 1 Year
Highlight:

1000KV Lattice Steel Towers

,

10KV Lattice Steel Towers

,

1000KV Electric Power Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: GXK-1
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 90000 PCS/Month
Product Description
Heavy Duty High Strength Shackle With Forged Steel Construction
Attribute Value
Name High Strength Shackle
Item No. 17131-17139
Model GXK-1
Rated Load 10-300KN
Weight 0.15-7.5KG
Warranty 1 year
Product Introduction
  • Critical lifting component for power line construction and maintenance
  • Engineered for maximum strength-to-weight ratio
  • Essential for safe rigging operations in utility projects
Key Features
Superior Strength
  • Forged alloy steel construction
  • Precision-machined load-bearing surfaces
Safety Assurance
  • Clearly marked working load limits
  • Non-slip pin design
Durability Features
  • Hot-dip galvanized finish
  • Corrosion-resistant materials
Operational Efficiency
  • Smooth radius design prevents cable damage
  • Quick-release pin for fast operation
Versatility
  • Multiple size options available
  • Compatible with various rigging configurations
Typical Applications
  • Transmission tower assembly
  • Conductor stringing operations
  • Substation equipment lifting
  • Temporary load securing
Workflow Integration
  • Compatible with all standard rigging equipment
  • Works with synthetic and wire rope slings
  • Integrates with load monitoring systems
Maintenance Advantages
  • Minimal maintenance requirements
  • Easy to inspect for wear
  • Long service life
User Guidelines
Pre-Operation
  • Inspect for cracks or deformation
  • Verify proper size selection
During Use
  • Never exceed working load limit
  • Monitor for proper alignment
Post-Use
  • Clean after exposure to contaminants
  • Store in dry conditions
Industry Compliance
  • Meets ASME B30.26 standards
  • OSHA compliant for construction
  • Certified by major utilities
Why Professionals Choose Us
  • 30% stronger than standard shackles
  • 40% longer service life than competitors
  • 1-year structural warranty
Customer Support
  • Free rigging consultation
  • 24/7 technical support
  • Replacement parts available
Purchasing Options
  • Single units or bulk packages
  • Custom configurations available
  • Volume discounts for contractors
Technical Specifications
Item number Model Rated Load (KN) A (mm) B (mm) C (mm) D (mm) Weight (kg)
17131 GXK-1 10 55 42 12 20 0.15
17132 GXK-2 20 67 58 16 22 0.29
17133 GXK-3 30 97 82 20 34 0.80
17133A GXK-3A 30 97 112 20 34 0.80
17134 GXK-5 50 107 89 22 39 1.12
17134A GXK-5A 50 107 131 22 39 1.29
17135 GXK-8 80 125 96 30 42 2.40
17136 GXK-10 100 141 114 34 48 3.56
17137 GXK-16 160 152 139 37 54 4.80
17138 GXK-20 200 164 140 39 60 5.17
17139 GXK-30 300 186 146 50 68 7.5
High Strength Shackle GXK-1 Forged Steel 10-300KN 0
