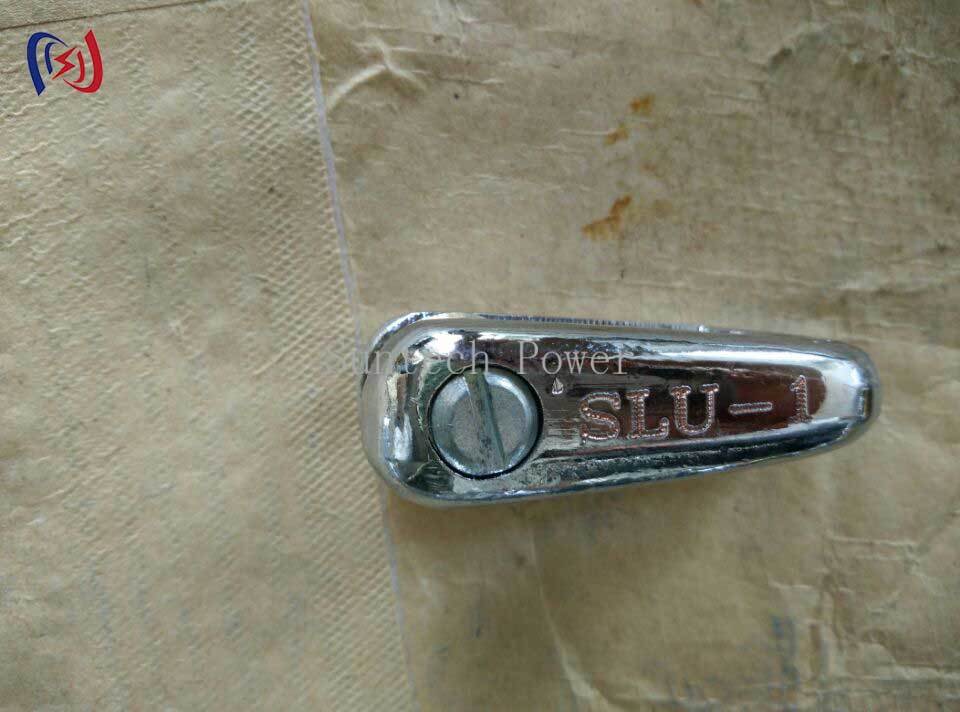

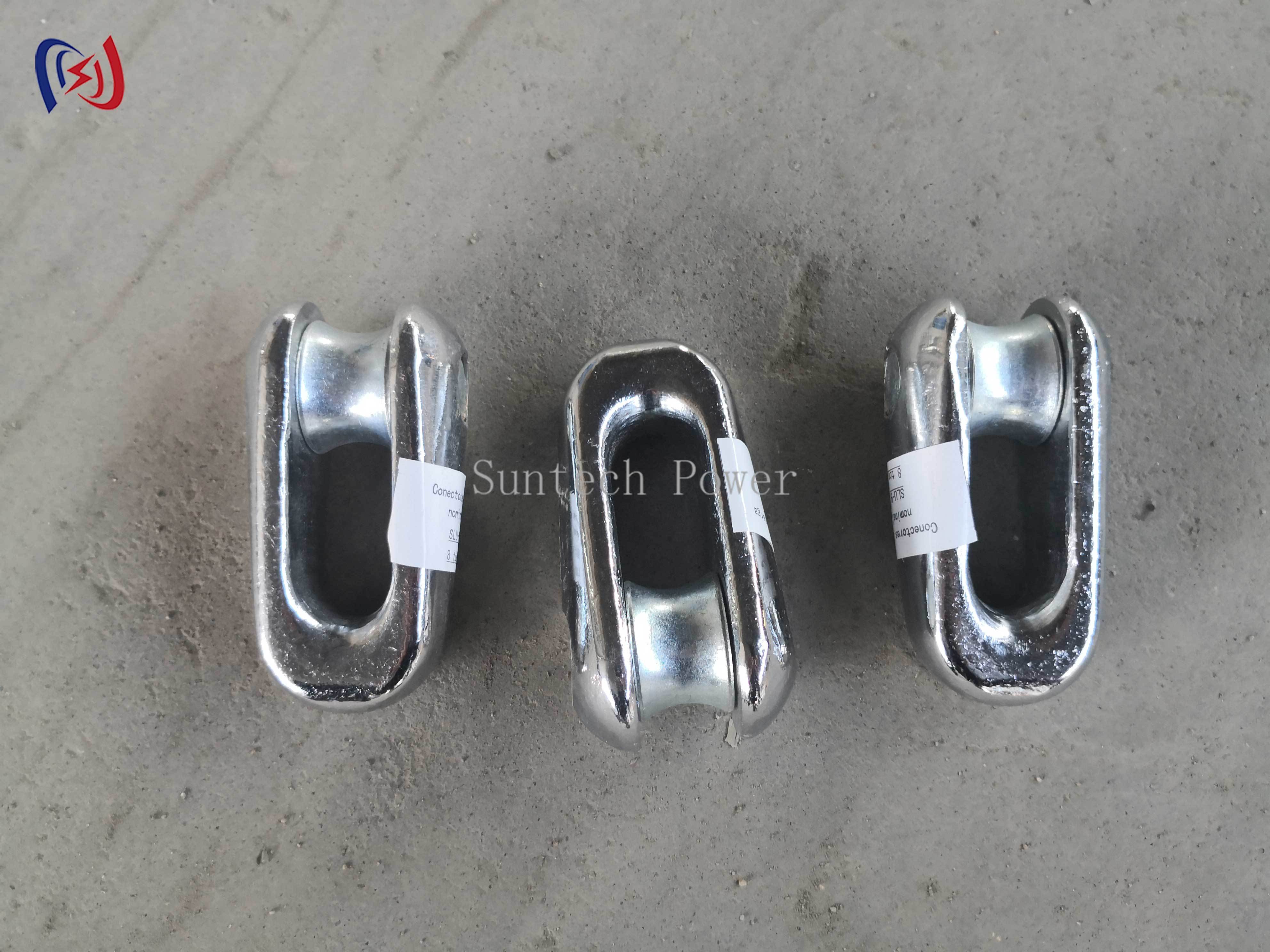

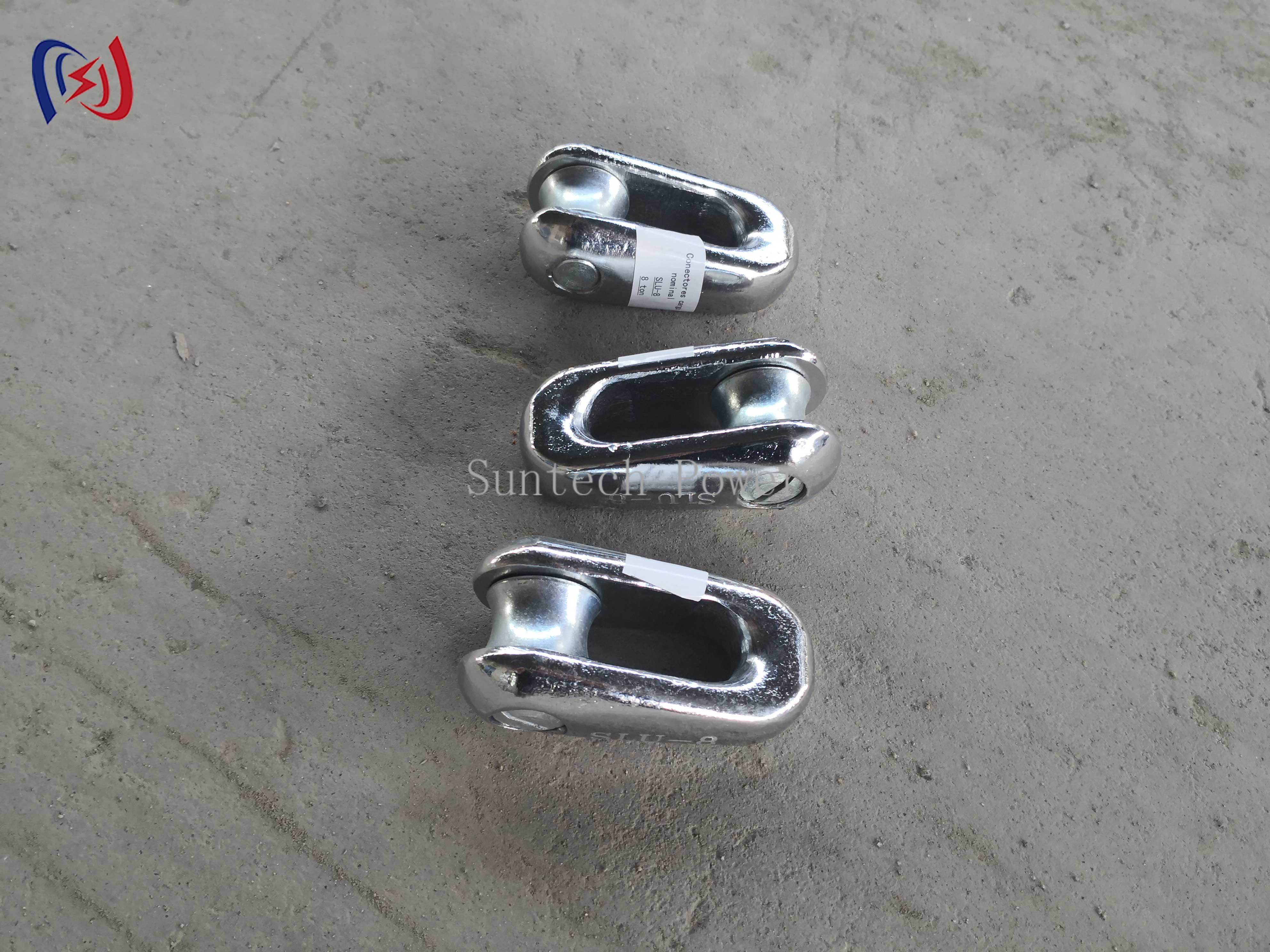

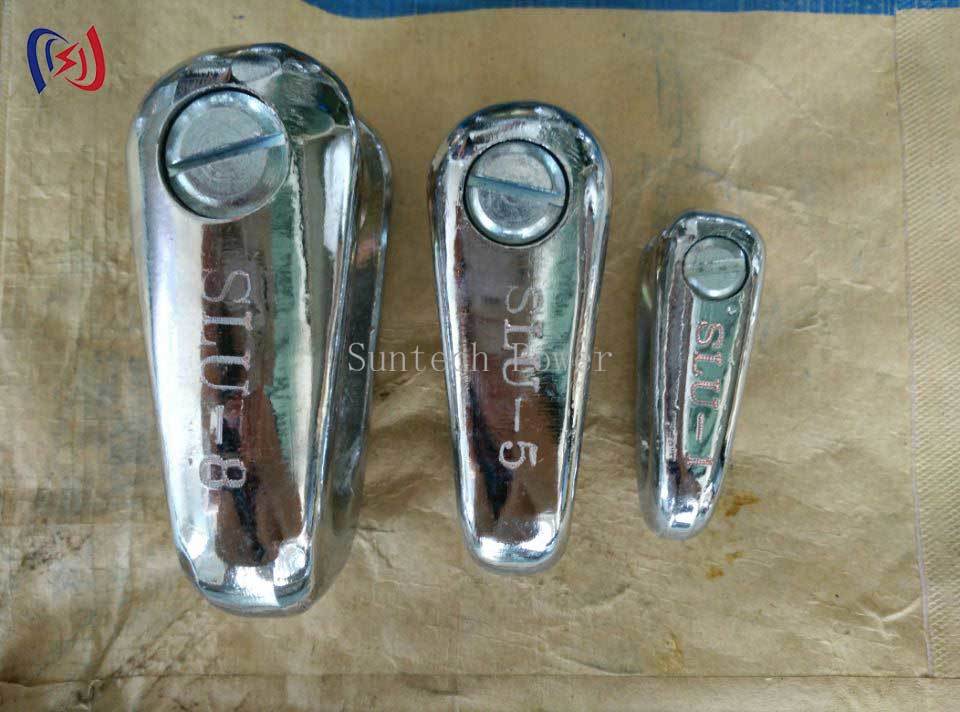

Fixed Joints for Power Transmission Lines 10-250KN Load

1 PCS
MOQ
Get the latest prices
Price
Fixed Joints for Power Transmission Lines 10-250KN Load
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Fixed Joints
Item No.: 17111-17118
Model: SLU-1
Rated Load: 10-250KN
Weight: 0.2-3KG
Warranty: 1 Year
Highlight:

Q420 Steel Lattice Tower

,

Q345B Steel Lattice Tower

,

Q235B Steel Power Transmission Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SLU
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 80000 PCS/Month
Product Description
Professional Fixed Joints For Power Transmission Line Construction
Attribute Value
Name Fixed Joints
Item No. 17111-17118
Model SLU-1
Rated Load 10-250KN
Weight 0.2-3KG
Warranty 1 year
Product Introduction
  • Essential structural components for power transmission systems
  • Engineered for secure and permanent connections
  • Trusted solution for tower assembly and maintenance
Key Features
Structural Integrity
  • Precision-machined mating surfaces
  • Even load distribution design
Robust Construction
  • High-grade alloy steel material
  • Reinforced stress points
Corrosion Protection
  • Hot-dip galvanized finish
  • Weather-resistant coating
Safety Assurance
  • Non-conductive insulation options
  • Fail-safe locking mechanism
Installation Efficiency
  • Pre-drilled mounting holes
  • Alignment guides for quick assembly
Typical Applications
  • Transmission tower structural connections
  • Crossarm installations
  • Insulator string attachments
  • Temporary bracing systems
Workflow Integration
  • Compatible with standard tower components
  • Works with all major tower designs
  • Integrates with structural monitoring systems
Maintenance Advantages
  • Minimal maintenance requirements
  • Easy to inspect for wear
  • Long service life
User Guidelines
Pre-Installation
  • Inspect for shipping damage
  • Verify proper component matching
Installation
  • Use recommended torque values
  • Ensure proper alignment
Post-Installation
  • Perform visual inspection
  • Schedule periodic checks
Industry Compliance
  • Meets IEEE structural standards
  • OSHA compliant for construction
  • Certified by major utilities
Why Professionals Choose Us
  • 30% stronger than standard joints
  • 40% faster installation than competitors
  • 1-year structural warranty
Customer Support
  • Free engineering consultation
  • 24/7 technical support
  • On-site installation training
Purchasing Options
  • Standard and custom configurations
  • Bulk discounts for large projects
  • Fast delivery options
Technical Specifications
Model A (mm) B (mm) C (mm) d (mm) D (mm) E (mm) Rated Load (KN) Weight (kg)
SLU-1 36 68 18 10 14 29 10 0.2
SLU-3 37 76 20 12 17 31 30 0.22
SLU-5 50 96 23 18 19 42 50 0.6
SLU-8 56 110 28 20 22 50 80 0.8
SLU-10 59 126 30 22 26 54 100 1.2
SLU-13 61 134 32 24 27 56 130 1.3
SLU-15 63 138 37 27 28 58 150 1.4
SLU-25 80 178 44 30 35 72 250 3.0
SLU-28 80 178 44 30 35 72 280 3.0
SLU-32 85 186 42 30 38 80 320 3.9
