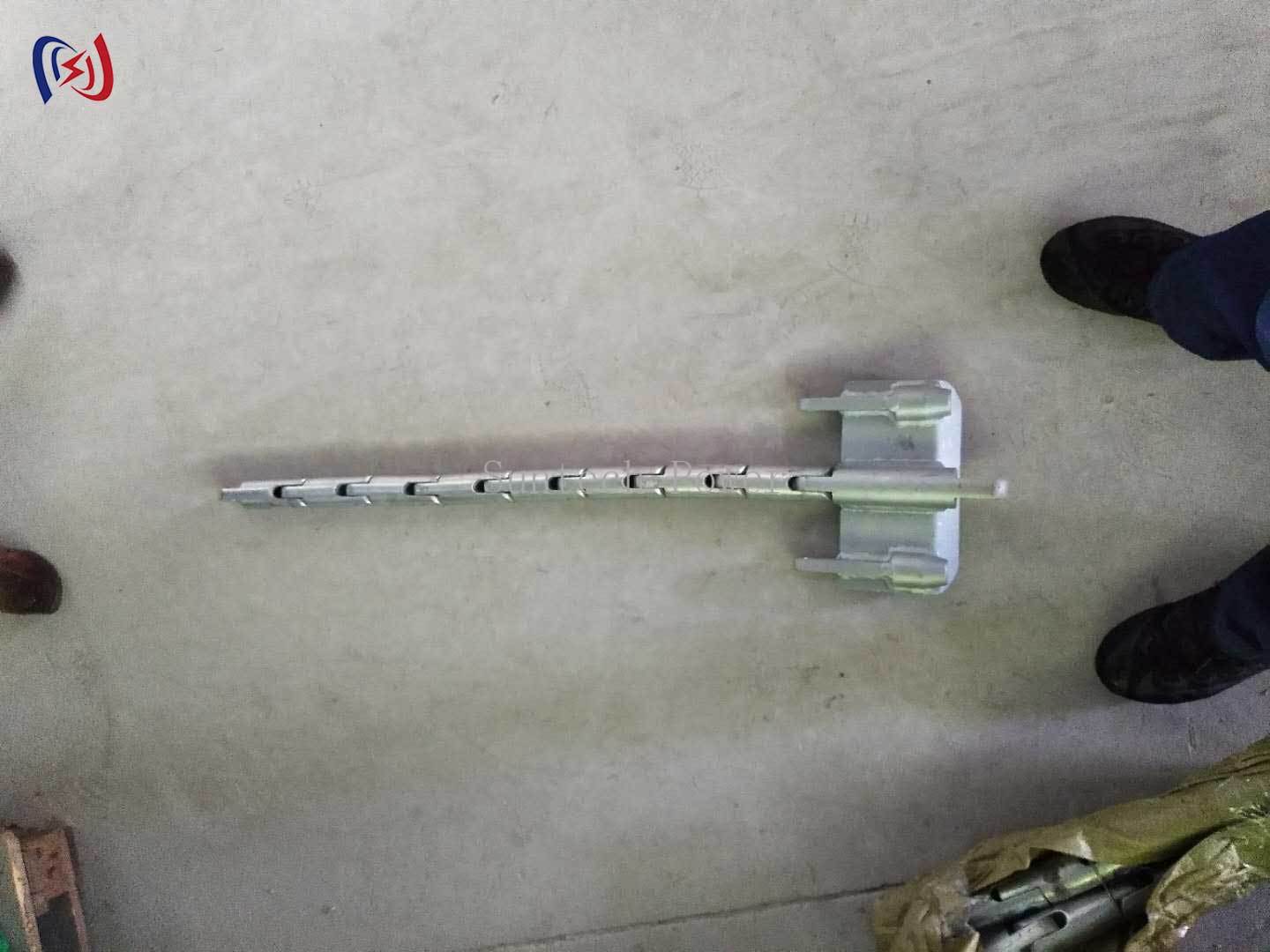

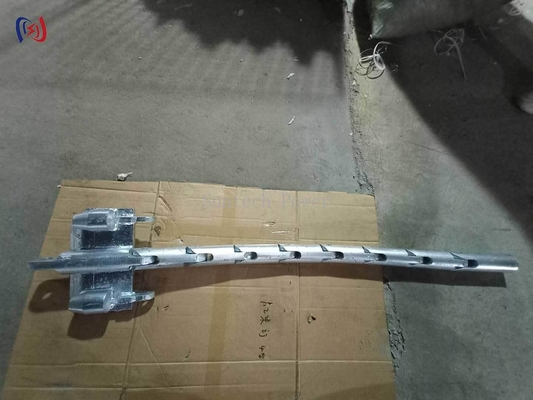

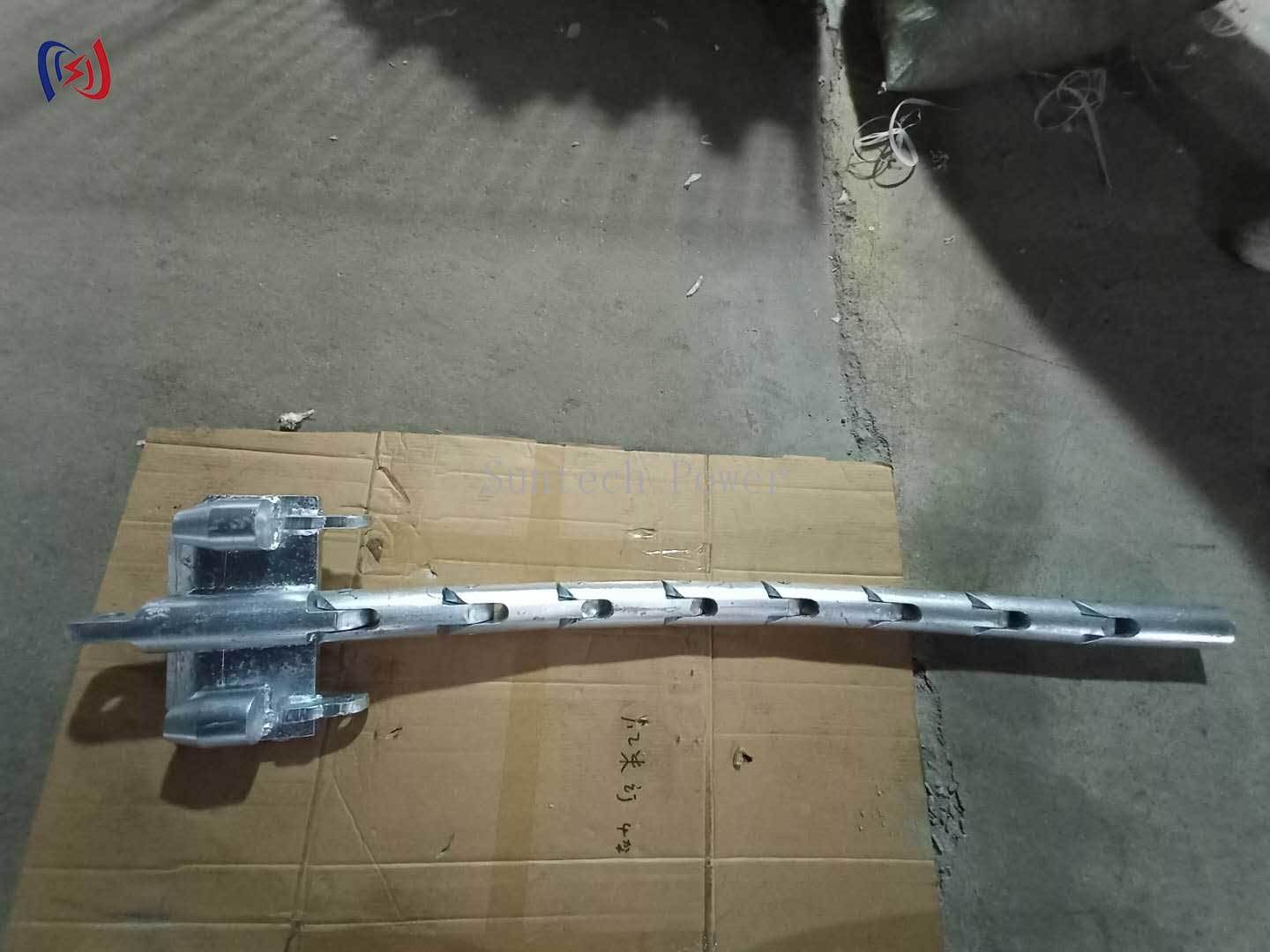

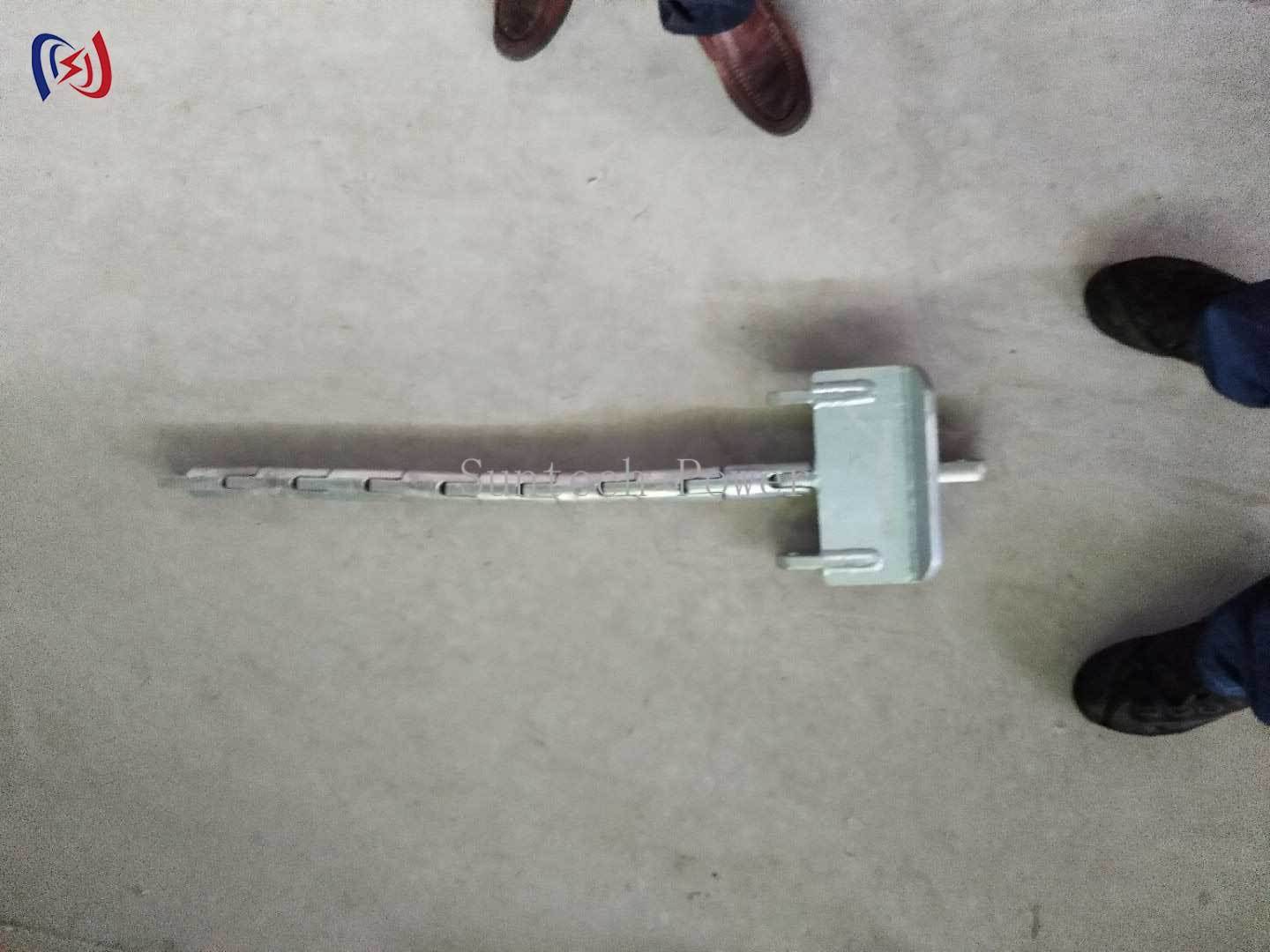

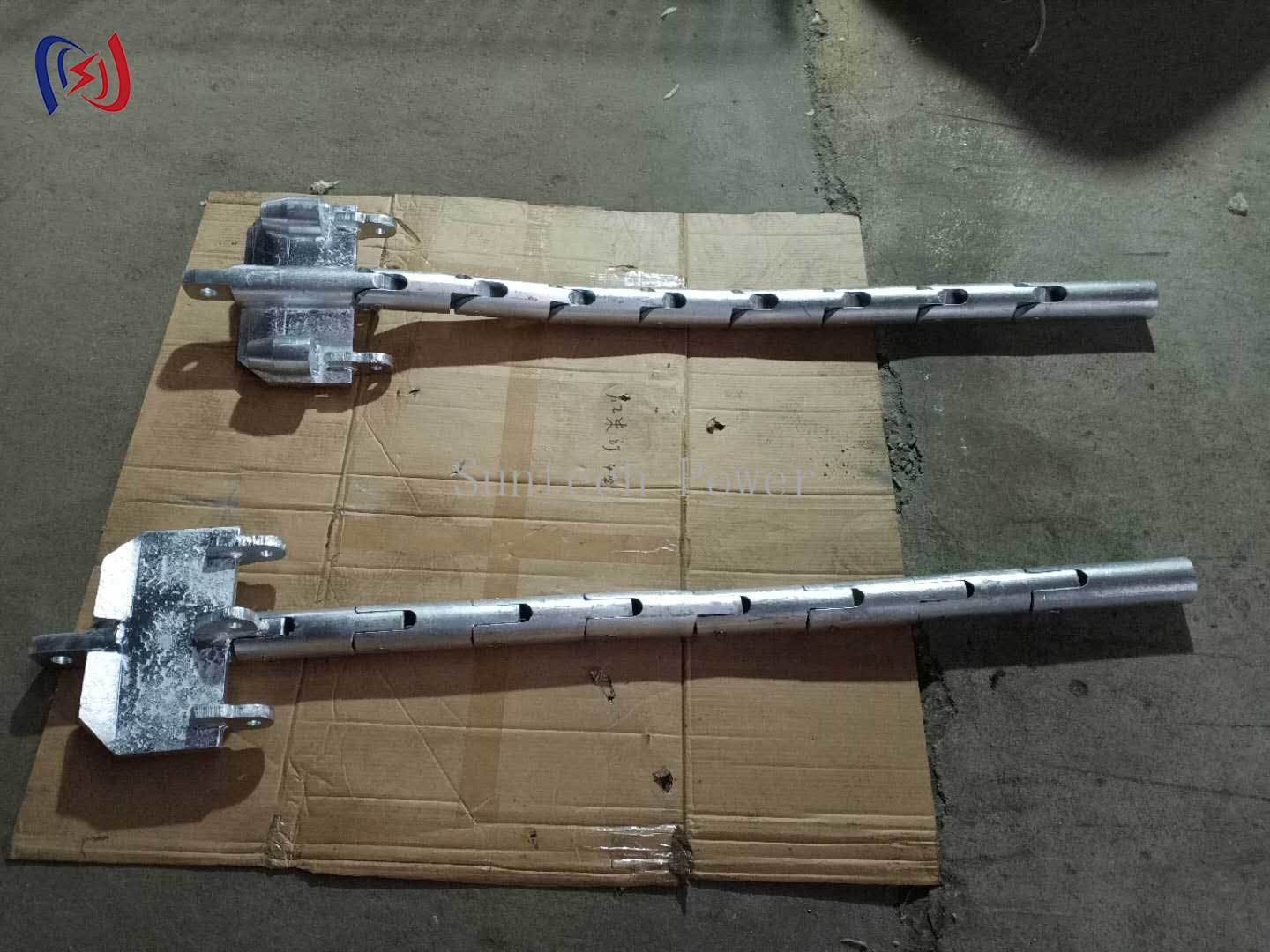

Head Boards for Two Bundle Conductors 80-180KN Power Line Construction

1 PCS
MOQ
Get the newest prices
Price
Head Boards for Two Bundle Conductors 80-180KN Power Line Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Head Boards For Two Bundle Conductors
Item NO.: 17220-17226
Model: SZ2-8
Rated Load: 80-180KN
Weight: 17-90KG
Warranty: 1 Year
Highlight:

Lattice Pylon Transmission Tower

,

Q245 Pylon Transmission Tower

,

Q355 Electric Power Towers
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SZ2-8
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 70000 PCS/Month
Product Description
Professional Head Boards For Two Bundle Conductors Power Line Construction
Product Specifications
Attribute Value
Name Head Boards for Two Bundle Conductors
Item NO. 17220-17226
Model SZ2-8
Rated Load 80-180KN
Weight 17-90KG
Warranty 1 year
Product Introduction
  • Essential component for two bundle conductor installations
  • Specifically designed to maintain proper conductor spacing
  • Trusted solution for high voltage transmission projects
Key Features
  • Dual Conductor Support: Maintains precise spacing between conductors and prevents conductor clashing during operation
  • Robust Construction: High-strength aluminum alloy frame with reinforced connection points
  • Corrosion Protection: Anodized surface treatment suitable for harsh environments
  • Safety Assurance: Non-conductive spacer options with rounded edges to prevent insulation damage
  • Installation Efficiency: Pre-assembled components with color-coded identification
Typical Applications
  • High voltage transmission lines
  • Bundle conductor installations
  • Substation bus connections
  • Temporary repair solutions
Technical Specifications
Item number Model Rated Load (KN) Applicable Sheave Width (MM) Weight (KG) Feature
17220 SZ2-8 80 75 17 Conductor are independent
17221 SZ2-8A 100 19
17222 SZ2-8B 110 19.5
17223 SZ2A-8 80 100 90 Poising sheave
17223T SZ2A-8T 110 100 Poising sheave
17224 SZ2B-13 130 110 55 Conductor are independent
17225 SZ2C-13 130 110 50 Conductor are independent
17226 SZ2B-18 180 125 90 Conductor are independent
