Aluminum Hoisting Tackle with Nylon Sheave 10-100KN Load

1 PCS
MOQ
Negotiation
Price
Aluminum Hoisting Tackle with Nylon Sheave 10-100KN Load
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hoisting Tackle(Aluminum Alloy Plate With Nylon Sheave)
Item No.: 11101-11153
Model: QHN1x1
Sheave: 1/2/3
Rated Load: 10-100KN
Max. Rope Diameter: 5.7-20mm
Weight: 1.8-13.2KG
Warranty: 1 Year
Highlight:

132KV Electric Transmission Line Tower

,

HDG Angle Steel Transmission Line Tower

,

132KV Electric Transmission Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: QHN
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 200000 PCS/Month
Product Description
Lightweight Aluminum Hoisting Tackle With Nylon Sheave
Product Specifications
Attribute Value
Name Hoisting Tackle (Aluminum Alloy Plate With Nylon Sheave)
Item No. 11101-11153
Model QHN1x1
Sheave 1/2/3
Rated Load 10-100KN
Max. Rope Diameter 5.7-20mm
Weight 1.8-13.2KG
Warranty 1 year
Key Features
  • Professional Lifting Performance: Working load limit: 5,000 lbs (2,268 kg), suitable for wire rope diameters: 6mm to 20mm, low friction operation with nylon sheave
  • Industrial-Grade Construction: High-strength aluminum alloy plate (6061-T6), nylon composite sheave, stainless steel hardware
  • Advanced Safety: Load tested to 4:1 safety factor, non-slip sheave surface, wear-resistant groove lining
  • Ergonomic Design: 60% lighter than steel, easy-to-operate swivel hook, balanced weight distribution
  • Versatile Applications: Construction, marine, utility maintenance, entertainment rigging, manufacturing
Technical Specifications
Item number Model Number of sheaves Rated load (kN) Roller Dia×width (MM) MAX. Rope Diameter (mm) Weight (kg)
11101 QHN1x1 1 10 Φ100×31 Φ8 2
11102 QHN1x2 2 10 Φ80×27 Φ6 2
11103 QHN1x3 3 10 Φ80×27 Φ6 2
11111 QHN2x1 1 20 Φ120×35 Φ10 2
11112 QHN2x2 2 20 Φ100×31 Φ8 3
11113 QHN2x3 3 20 Φ100×31 Φ8 4
11121 QHN3x1 1 30 Φ150×39 Φ11 3
11122 QHN3x2 2 30 Φ120×35 Φ10 4
11123 QHN3x3 3 30 Φ100×31 Φ8 5
11131 QHN5x1 1 50 Φ166×40 Φ13 5
11132 QHN5x2 2 50 Φ150×39 Φ11 6
11133 QHN5x3 3 50 Φ120×35 Φ10 5
11141 QHN8x1 1 80 Φ205×49 Φ18 7
11142 QHN8x2 2 80 Φ166×40 Φ13 8
11143 QHN8x3 3 80 Φ150×39 Φ11 8
11151 QHN10x1 1 100 Φ246×60 Φ20 11
11152 QHN10x2 2 100 Φ166×40 Φ13 10
11153 QHN10x3 3 100 Φ150×39 Φ11 12

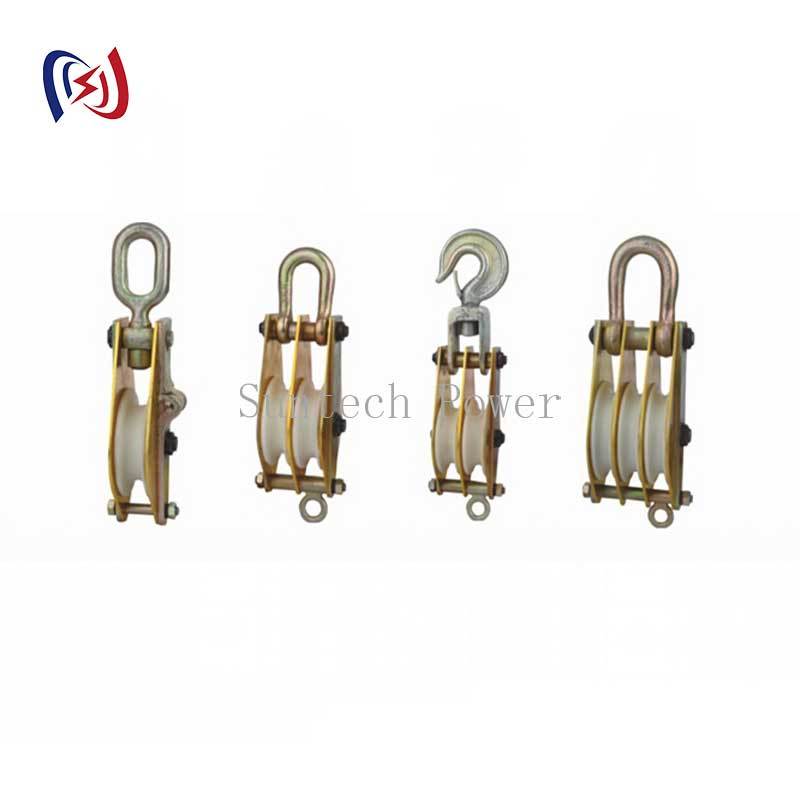

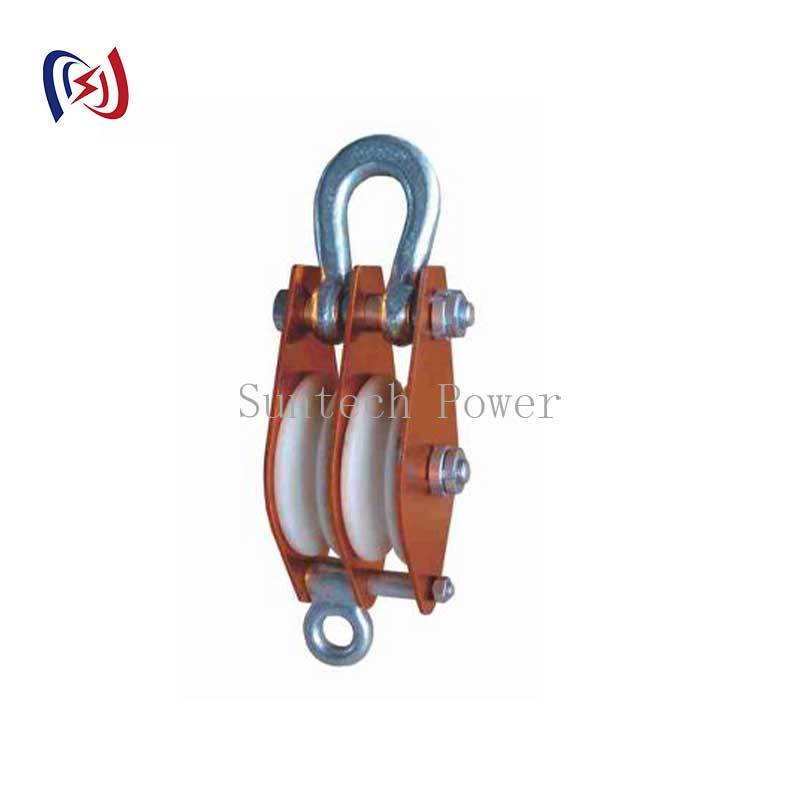

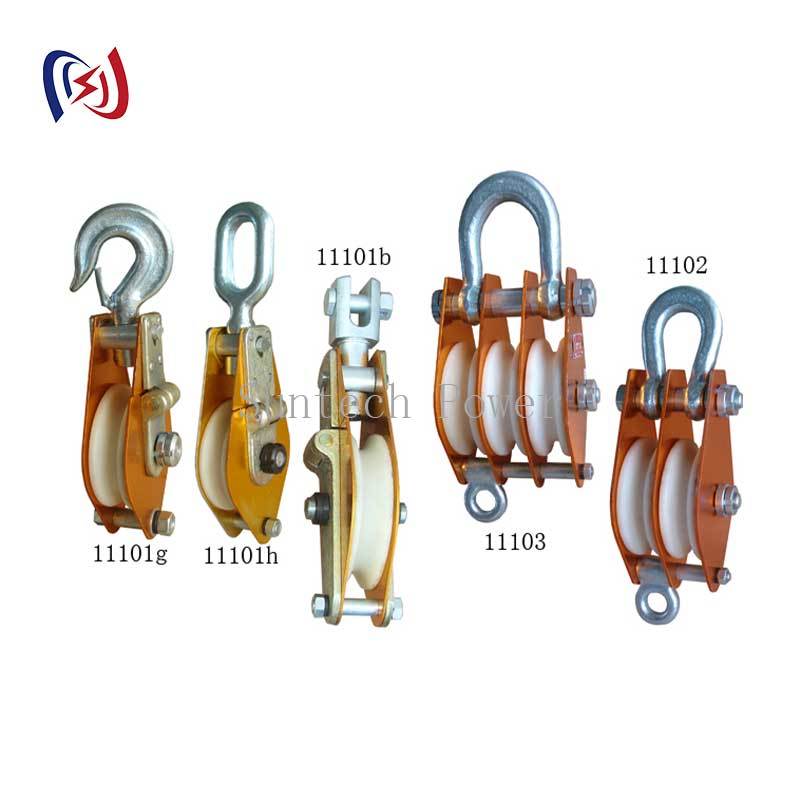

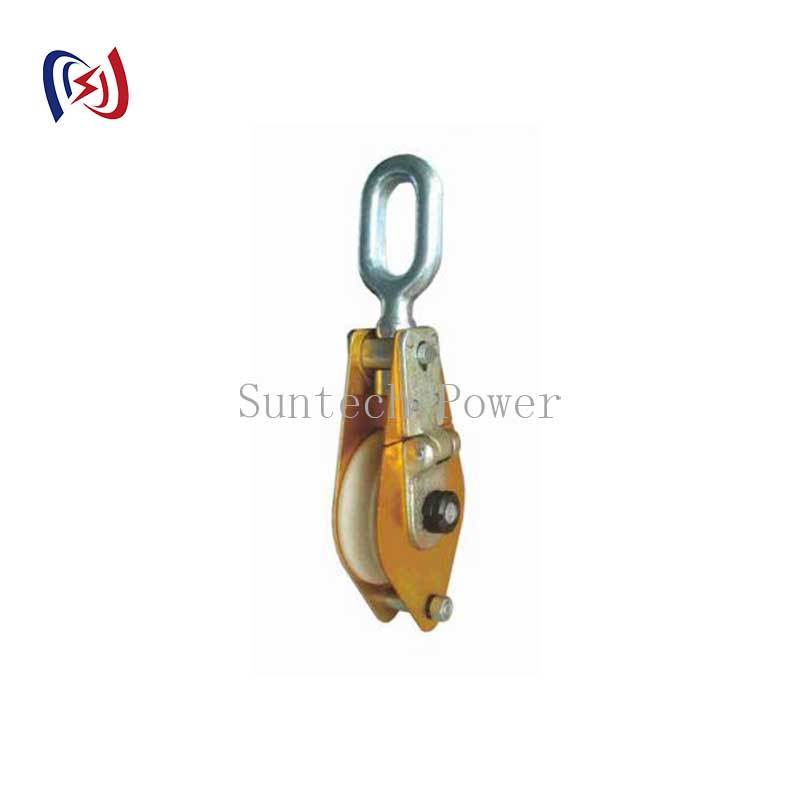

Product Image
Aluminum Hoisting Tackle with Nylon Sheave 10-100KN Load 0
Additional Benefits
  • 40% more efficient than steel blocks with reduced rope wear
  • Self-lubricating nylon sheave requires minimal maintenance
  • CE certified and ISO 9001 compliant with OSHA standards
  • 10,000+ operation cycles with 5-year structural warranty
  • Operates in temperatures from -30°C to +70°C
Note: Specifications may vary by model. Contact us for custom configurations and volume pricing.
