Dual-Sheave Hoisting Tackle Both Side Opening 30-100KN Load

1 PCS
MOQ
Get the newest prices
Price
Dual-Sheave Hoisting Tackle Both Side Opening 30-100KN Load
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hoisting Tackle(Both Side Opening With Dual- Sheave)
Item No.: 11281-11284
Model: QHS2-3-QHS2-10
Rated Load: 30-100KN
Rope Diameter: 11-18.5mm
Weight: 6.3-18KG
Highlight:

110KV Steel Lattice Tower

,

ASTM123 Galvanized Steel Lattice Tower

,

110KV Power Distribution Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: QHS2-3
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 200000 PCS/Month
Product Description

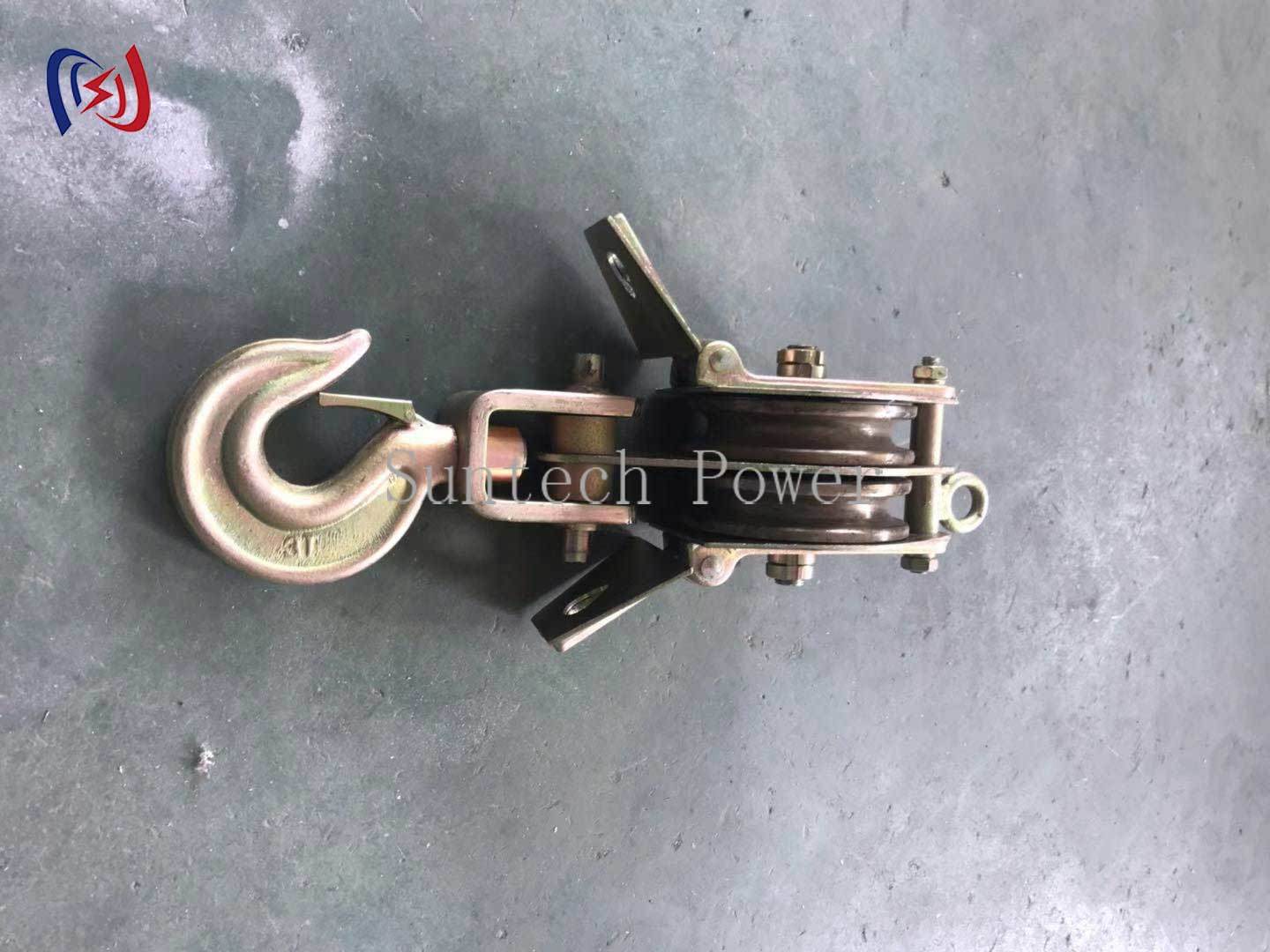

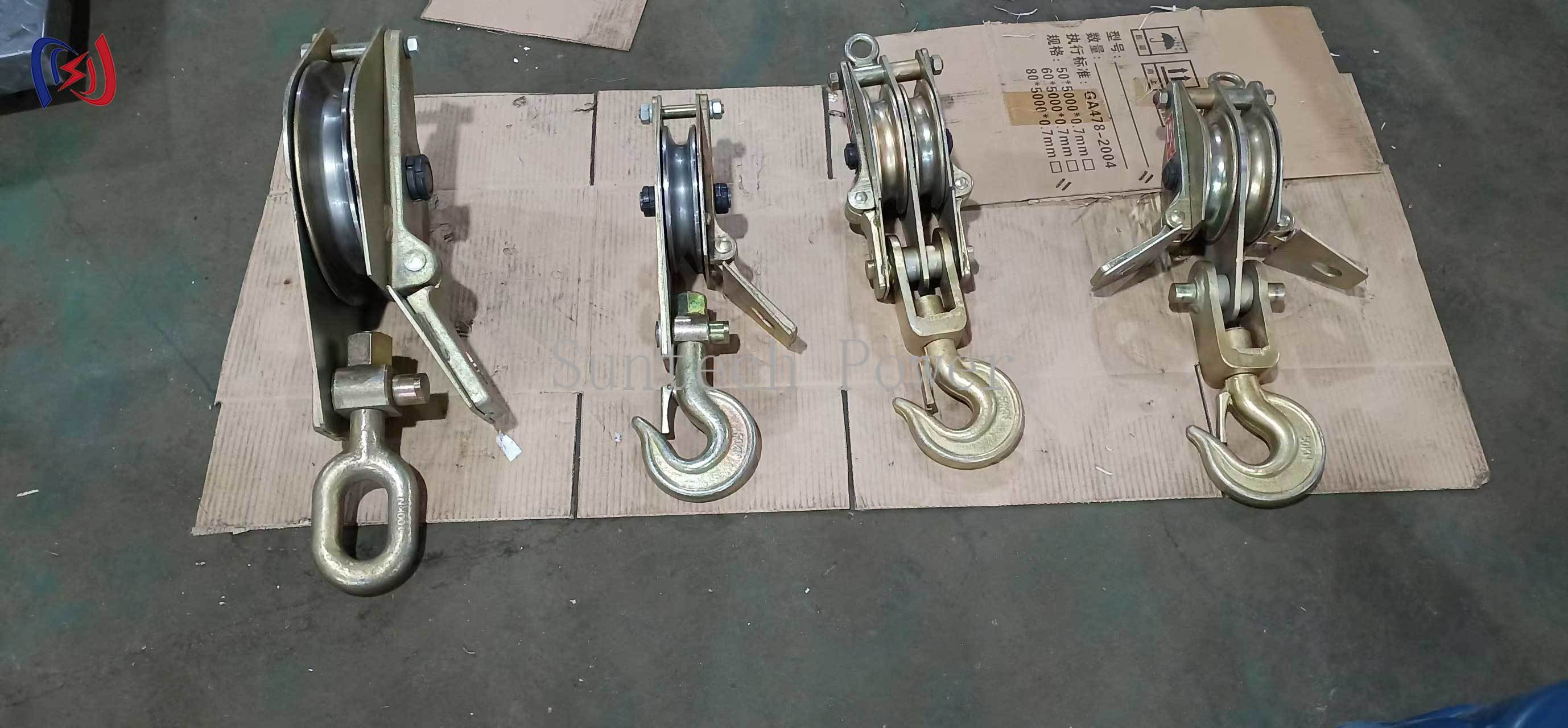

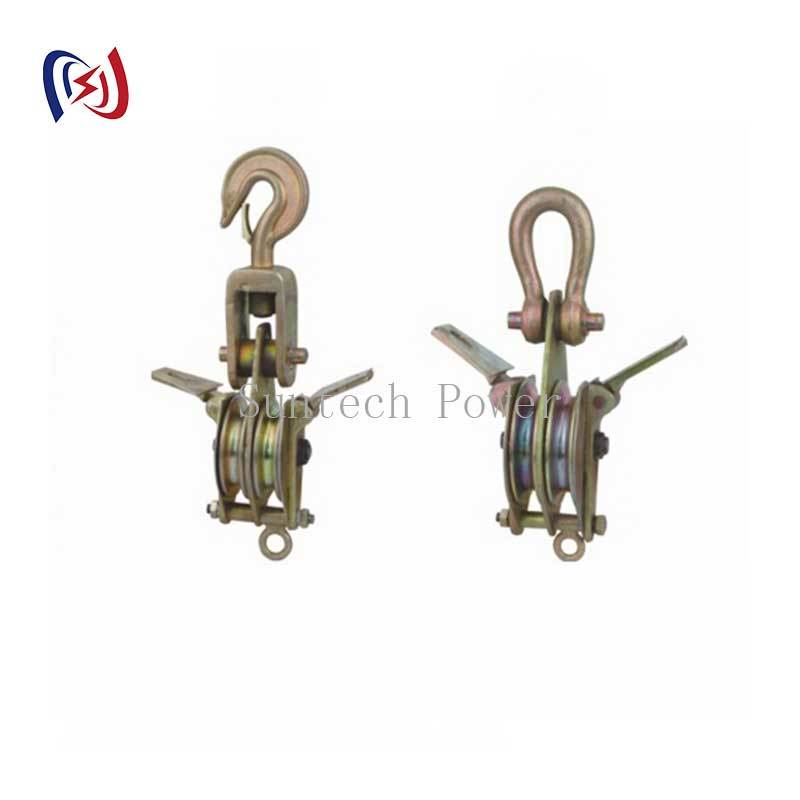

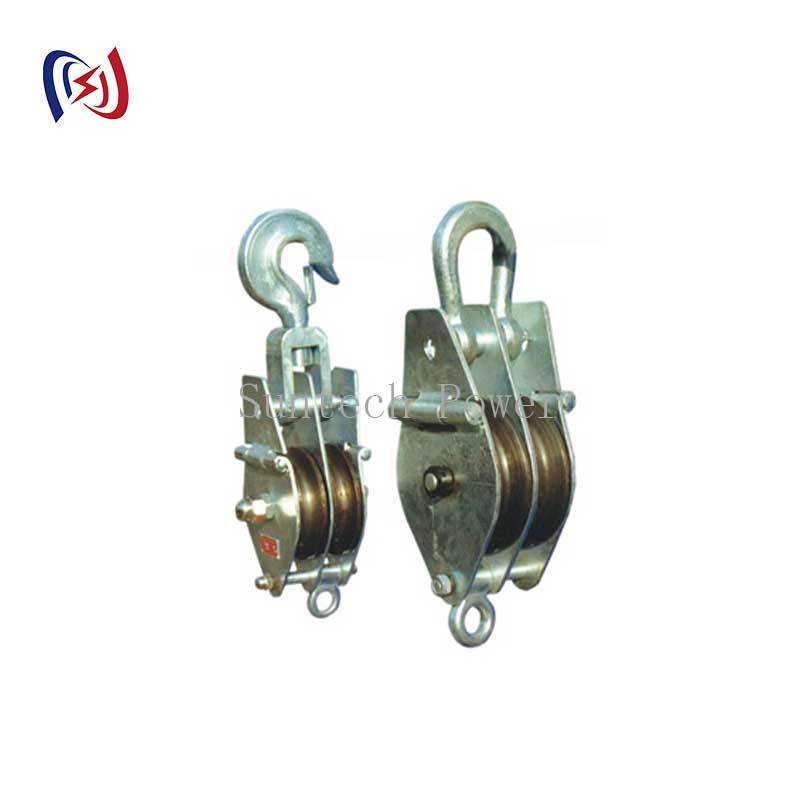

Dual-Sheave Hoisting Tackle With Both Side Opening
Name Hoisting Tackle (Both Side Opening With Dual-Sheave)
Item No. 11281-11284
Model QHS2-3-QHS2-10
Rated Load 30-100KN
Rope Diameter 11-18.5mm
Weight 6.3-18KG
Professional Lifting Performance
  • Working load limit: 10,000 lbs (4,536 kg)
  • Suitable for wire rope diameters: 10mm to 30mm
  • Dual-sheave design for balanced load distribution
Industrial-Grade Construction
  • High-strength cast steel frame (ZG270-500)
  • Sealed roller bearings (SKF/NSK)
  • Hardened steel axle (42CrMo)
Advanced Safety Features
  • Both side opening for easy rope installation
  • Load tested to 4:1 safety factor
  • Non-slip sheave surfaces
Technical Specifications
Item number Model Rated load (kN) Roller Dia×width(MM) Rope Diameter (mm) Weight (kg)
11281 QHS2-3 30 Φ120×35 ≤Φ10 6.3
11282 QHS2-5 50 Φ150×39 ≤Φ11 11.0
11283 QHS2-8 80 Φ166×40 ≤Φ13 16.0
11284 QHS2-10 100 Φ166×40 ≤Φ13 18.0
Dual-Sheave Hoisting Tackle Both Side Opening 30-100KN Load 0
Comprehensive Applications
  • Construction site lifting
  • Shipyard operations
  • Mining and quarrying
  • Power plant maintenance
  • Heavy equipment moving
Quality Assurance
  • CE certified
  • ISO 9001 compliant
  • Meets OSHA standards
  • Each unit load tested
  • Full traceability
  • 1-year performance guarantee
