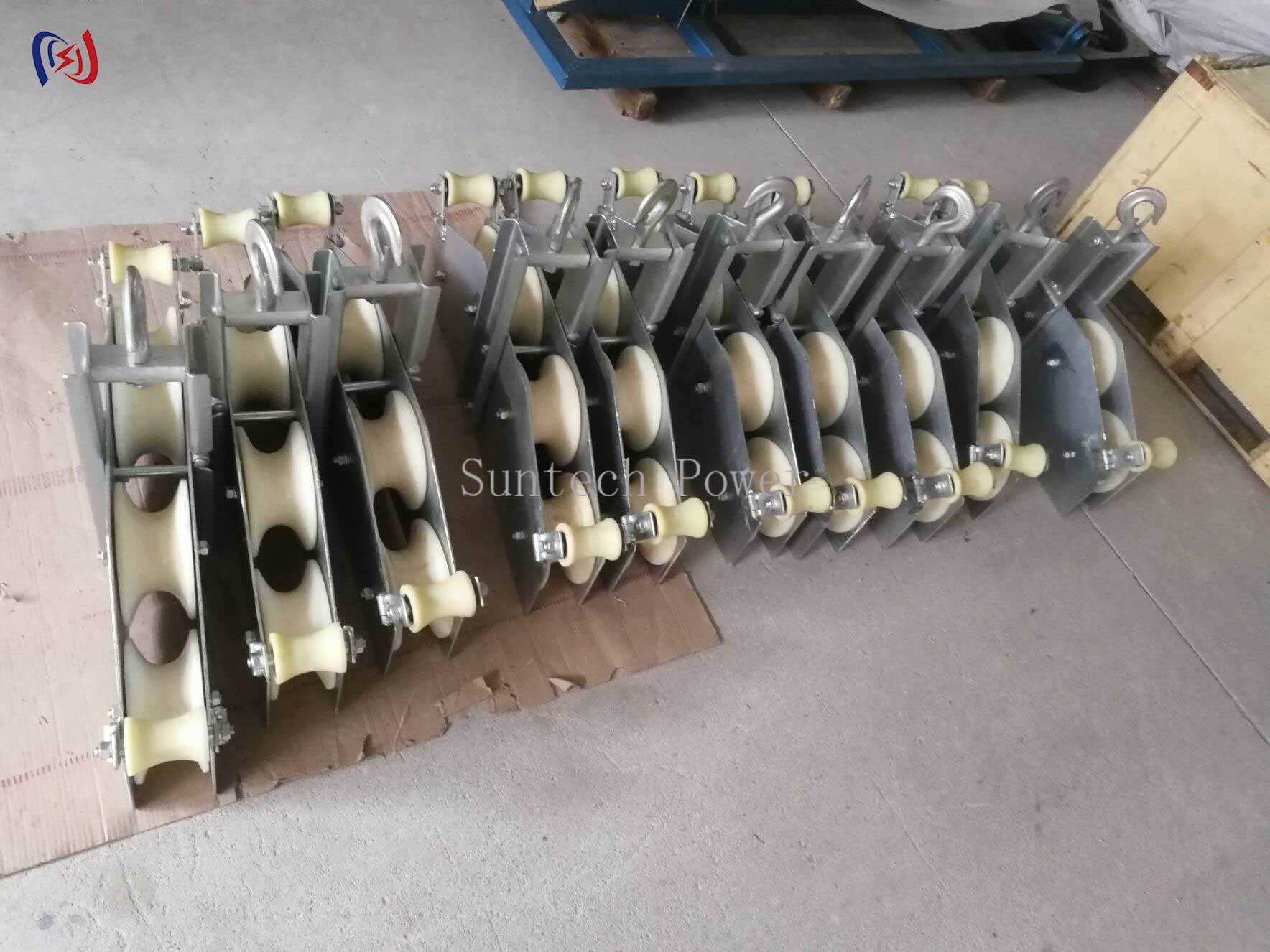

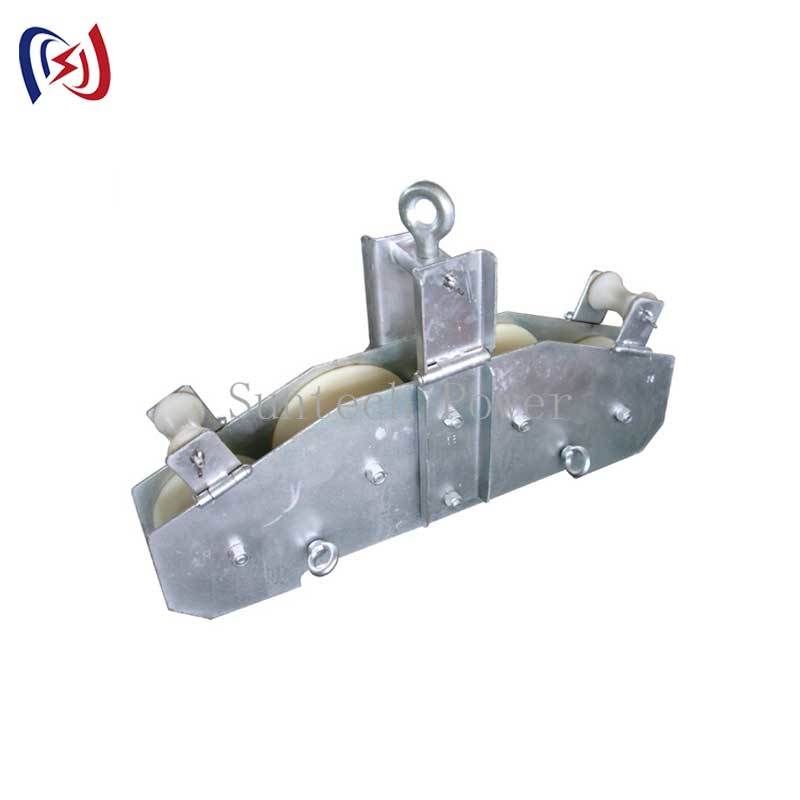

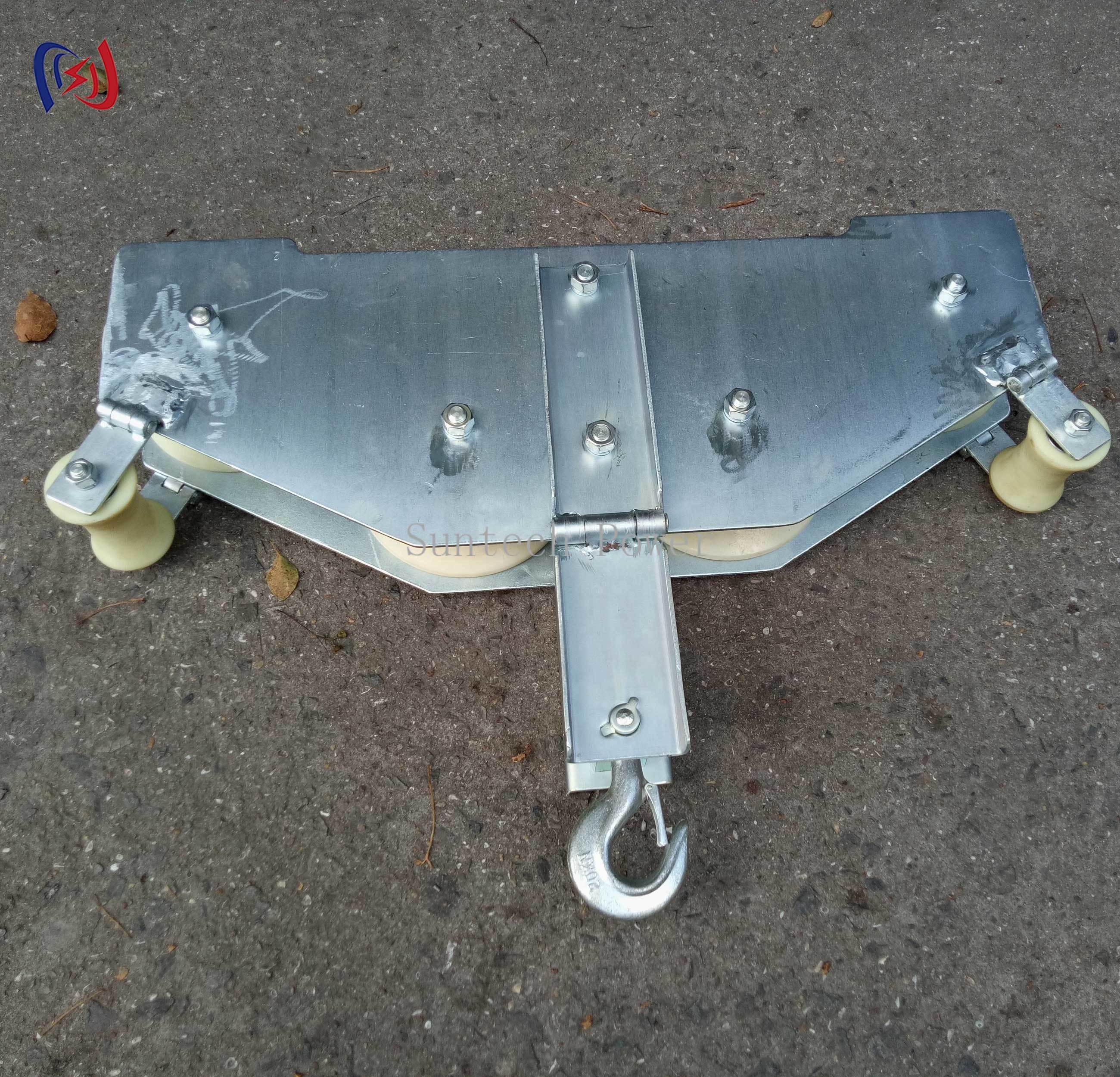

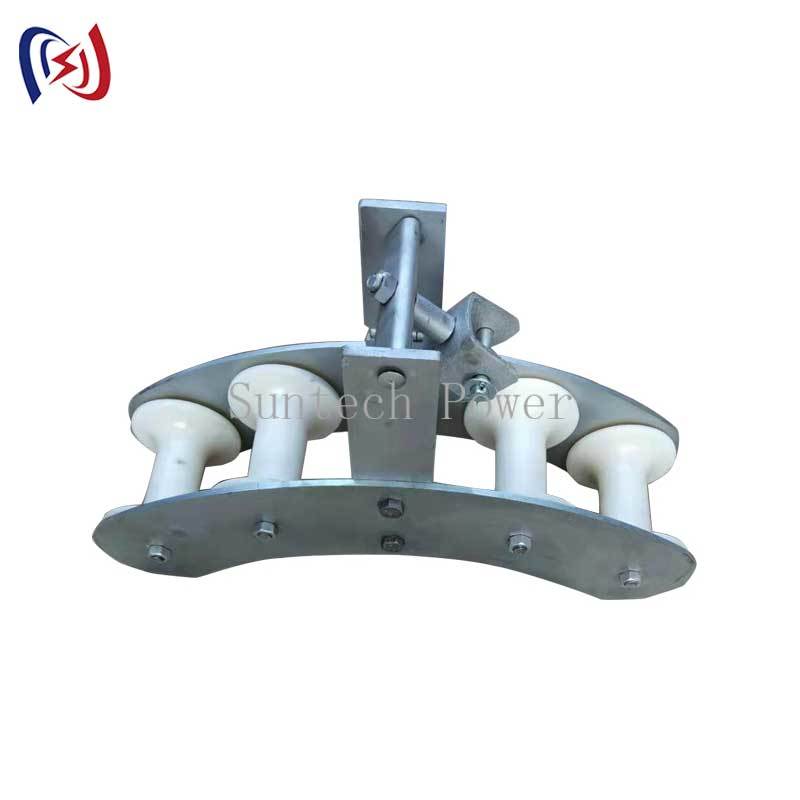

Four Sheaves Combined Block 10KN Heavy Duty Conductor Stringing

1 PCS
MOQ
Negotiation
Price
Four Sheaves Combined Block 10KN Heavy Duty Conductor Stringing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Four Sheaves Combined Block
Item No.: 20141
Model: SHZHD10
Rated Load: 10KN
Bend Radius: R570
Weight: 23.5KG
Highlight:

OHTL Site Electric Power Tower

,

132KV Galvanized Electric Power Tower

,

OHTL Site Angle Steel Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SHZHD10
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 12000 PCS/Month
Product Description
Professional Four Sheaves Combined Block For Heavy Duty Power Line Construction
Product Specifications
Attribute Value
Name Four Sheaves Combined Block
Item No. 20141
Model SHZHD10
Rated Load 10KN
Bend Radius R570
Weight 23.5KG
Product Introduction
  • Advanced cable handling solution for power transmission projects
  • Quad-sheave design provides superior load distribution
  • Essential for heavy cable installations and complex routing
Key Features
  • Enhanced Load Capacity: Four-sheave configuration distributes weight evenly. Rated for heavy conductor and cable installations.
  • Robust Construction: Forged alloy steel frame withstands extreme loads. Reinforced side plates prevent deformation.
  • Smooth Operation: Precision ball bearings in each sheave. Self-aligning design maintains cable position.
  • Safety Assurance: Integrated load indicator prevents overloading. Positive locking mechanism secures cables.
  • Durability Features: Corrosion-resistant coating for outdoor use. Replaceable sheave liners extend service life.
Technical Specifications
Item number Model Outline Size (MM) Rated Load (KN) Bend Radius Weight (KG)
20141 SHZHD10 760X120X480 10 R570 23.5
Typical Applications
  • Heavy transmission line conductor stringing
  • Substation cable routing systems
  • Underground cable pulling operations
  • Temporary cable support during maintenance
Workflow Integration
  • Compatible with all standard pulling equipment
  • Works with tensioners and pullers
  • Integrates with load monitoring systems
Maintenance Advantages
  • Self-lubricating bearings minimize maintenance
  • Easy to inspect and service
  • Modular design simplifies repairs
User Guidelines
  • Pre-Operation: Inspect all sheaves and frame. Verify load rating for application.
  • During Use: Monitor load indicator continuously. Maintain steady pulling speed.
  • Post-Use: Clean after exposure to contaminants. Store in dry conditions.
Industry Compliance
  • Meets IEEE transmission line standards
  • OSHA compliant for construction sites
  • Certified by major utilities
Why Professionals Choose Us
  • 50% higher load capacity than standard blocks
  • 40% smoother operation than triple-sheave designs
  • 1-year structural warranty
Customer Support
  • Free installation planning
  • 24/7 technical support
  • On-site training available
Purchasing Options
  • Standard and custom configurations
  • Bulk discounts for large orders
  • Fast delivery options
