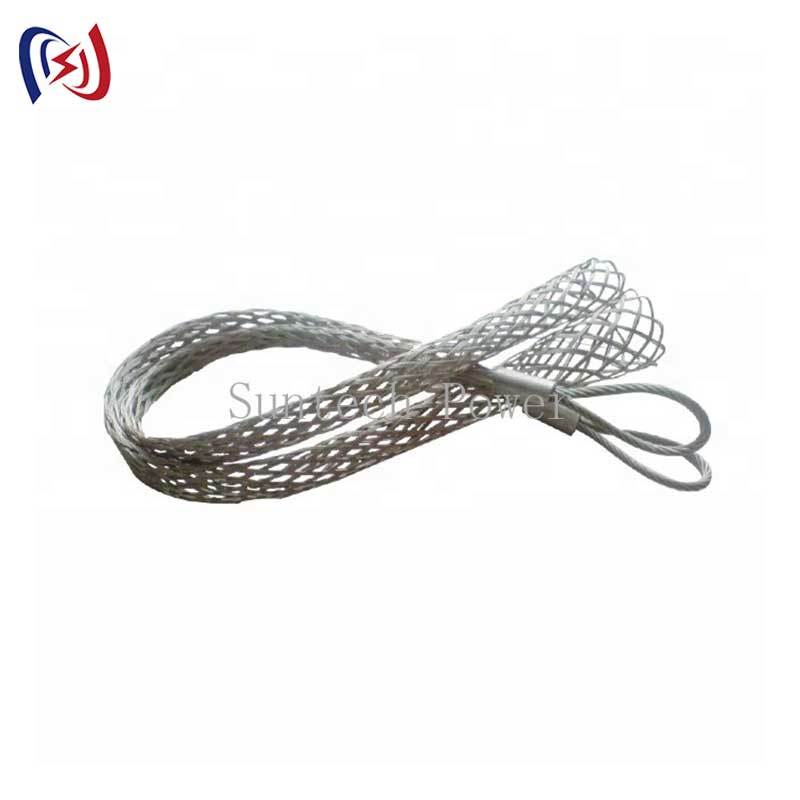

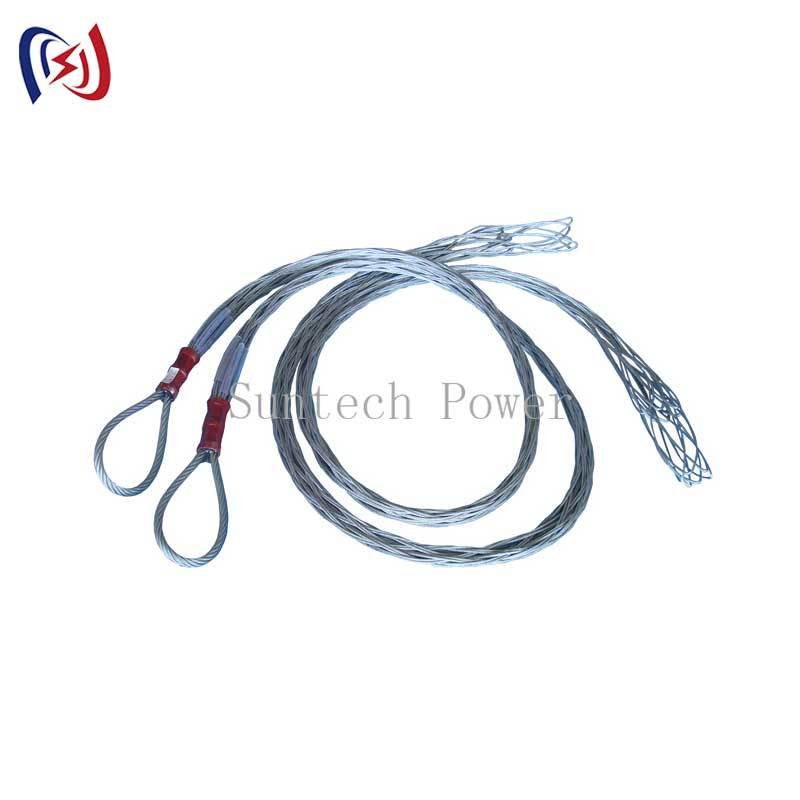

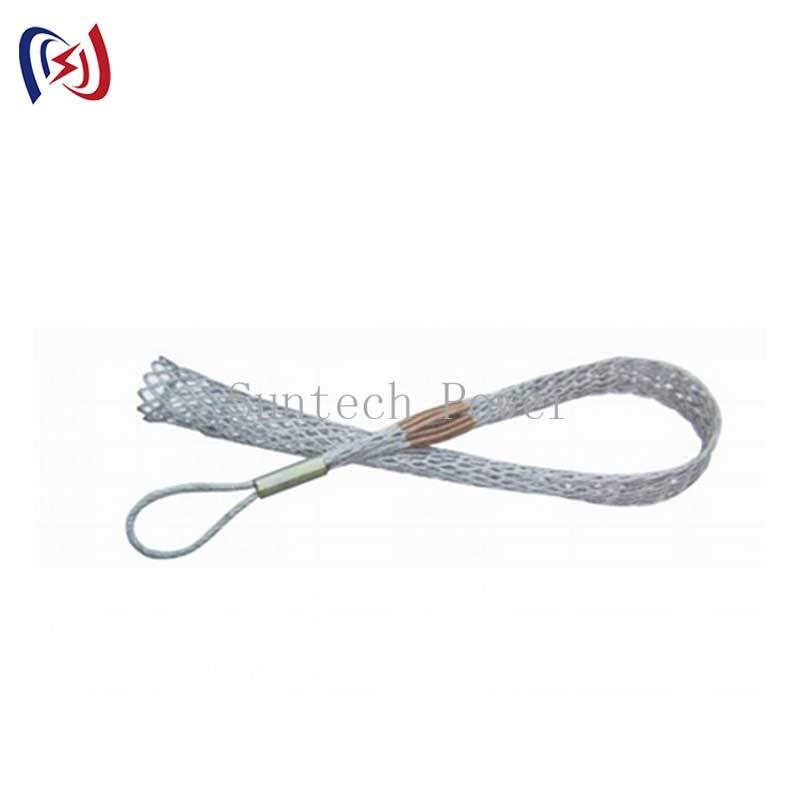

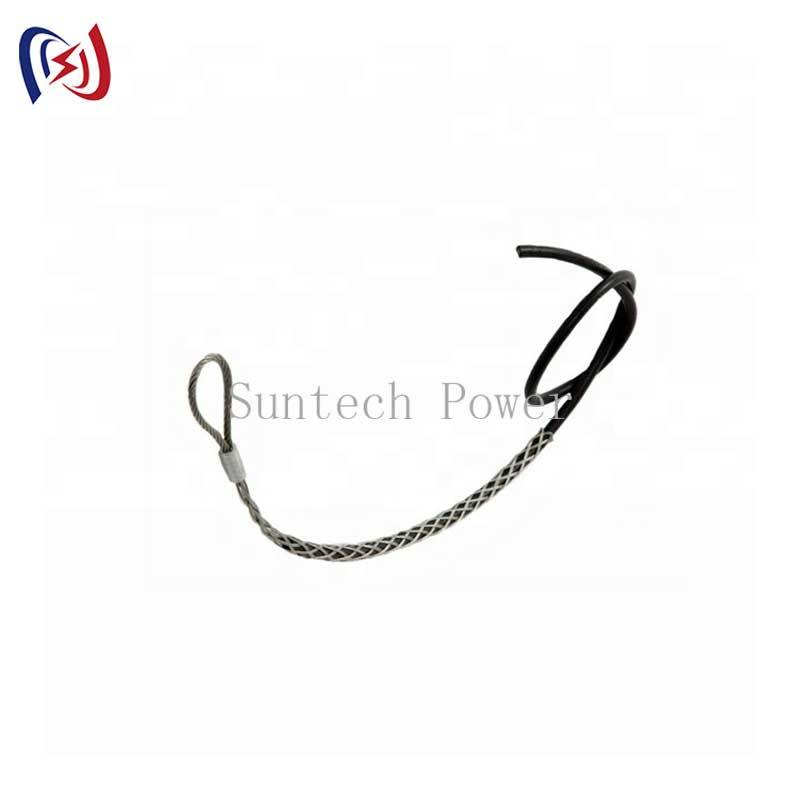

Cable Mesh Sock Joints 10-30KN for Transmission Line Terminations

1 PCS
MOQ
Get the newest prices
Price
Cable Mesh Sock Joints 10-30KN for Transmission Line Terminations
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cable Mesh Sock Joints
Item No.: 21361-21370
MOdel: SWL-16-SWL-150
Rated Load: 10-30KN
Weight: 0.8-2.6KG
Warranty: 1 Year
Highlight:

Galvanized Lattice Transmission Line Tower

,

110KV Angel Steel Transmission Line Tower

,

132KV Galvanized Lattice Transmission Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: SWL-16
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-7days
Payment Terms: L/C,T/T
Supply Ability: 50000 PCS/Month
Product Description
High Quality Cable Mesh Sock Joints System For Cable Termination
Product Specifications
Attribute Value
Name Cable Mesh Sock Joints
Item No. 21361-21370
Model SWL-16-SWL-150
Rated Load 10-30KN
Weight 0.8-2.6KG
Warranty 1 year
Product Introduction
  • Essential connecting solution for power cable installations
  • Mesh sock design ensures secure and reliable terminations
  • Trusted by utility companies for transmission line projects
Key Features
Secure Connection Technology
  • Interwoven steel mesh provides 360° grip
  • Even pressure distribution prevents cable damage
Robust Construction
  • High-tensile stainless steel mesh
  • Reinforced collar for added strength
Corrosion Resistance
  • Hot-dip galvanized coating
  • Suitable for coastal environments
Safety Features
  • Non-conductive insulation options
  • Visual inspection ports
Installation Efficiency
  • Tool-free assembly process
  • Color-coded size identification
Technical Specifications
Item number Model Applicable Cable Diameter (mm) Rated Load (KN) Weight (kg)
21361 SWL-16 Φ12-16 10 0.8
21362 SWL-20 Φ16-20 10 0.8
21363 SWL-25 Φ20-25 15 1.0
21364 SWL-37 Φ25-37 15 1.0
21365 SWL-50 Φ37-50 15 1.0
21366 SWL-60 Φ50-60 25 2.4
21367 SWL-80 Φ60-80 25 2.4
21368 SWL-100 Φ80-100 25 2.4
21369 SWL-120 Φ100-120 30 2.6
21370 SWL-150 Φ120-150 30 2.6
Typical Applications
  • Overhead transmission line terminations
  • Substation cable connections
  • Underground cable joints
  • Emergency repairs
Workflow Integration
  • Compatible with standard pulling equipment
  • Works with all common cable types
  • Integrates with tension monitoring systems
Maintenance Benefits
  • Self-cleaning mesh design
  • Easy to inspect for wear
  • Replaceable wear components
Industry Compliance
  • Meets IEEE connector standards
  • OSHA compliant for construction
  • Certified by major utilities
Why Professionals Choose Us
  • 40% stronger grip than conventional joints
  • 30% faster installation than competitors
  • 1-year performance warranty
