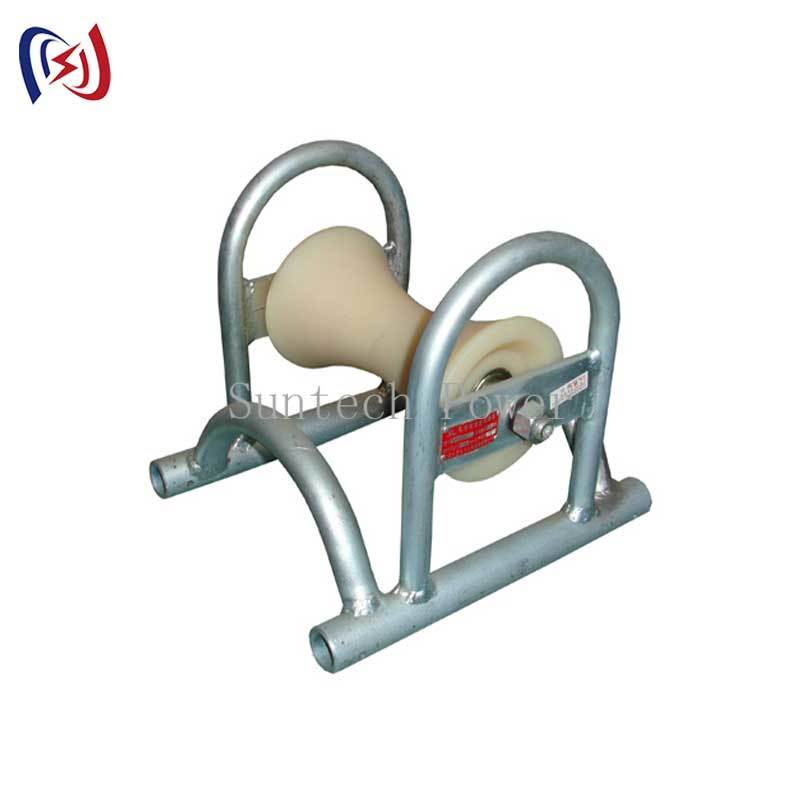

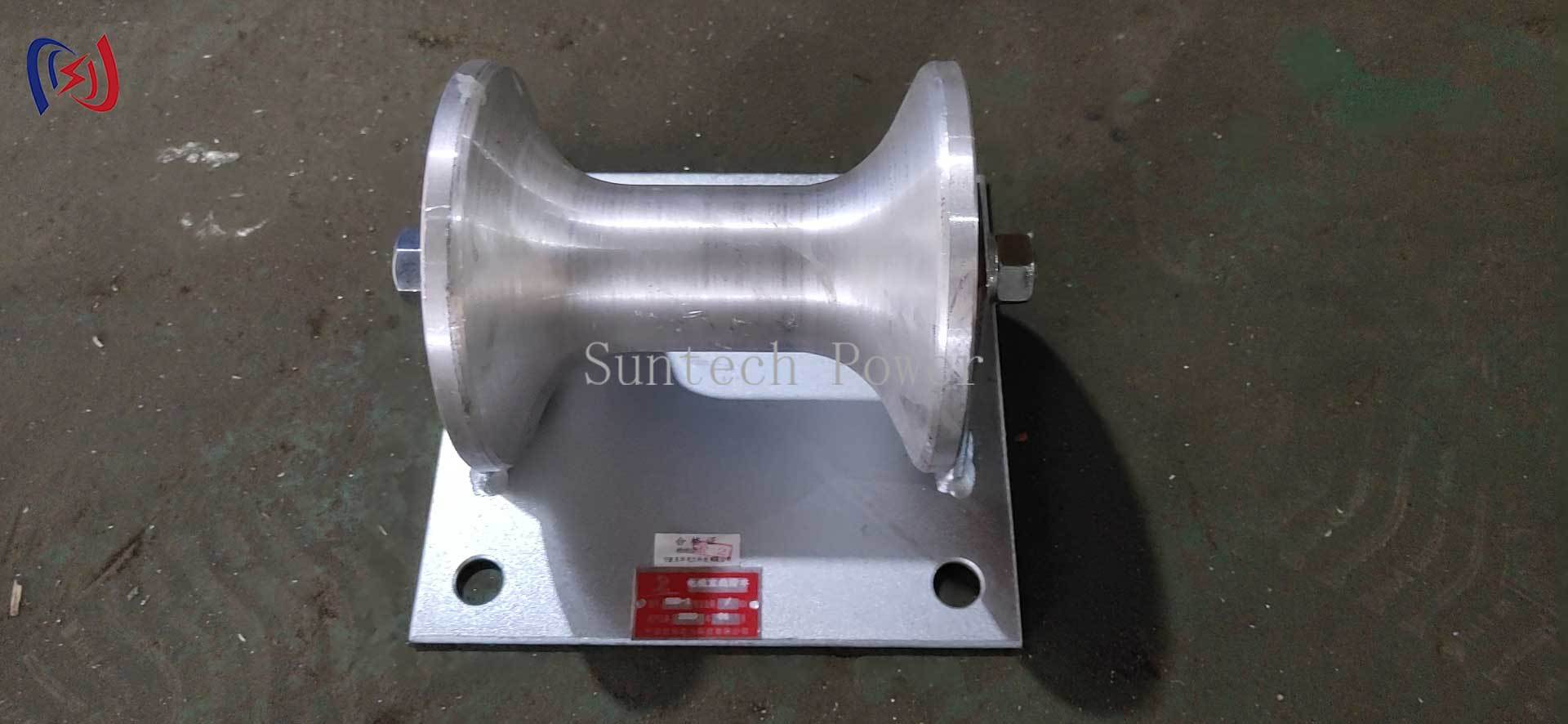

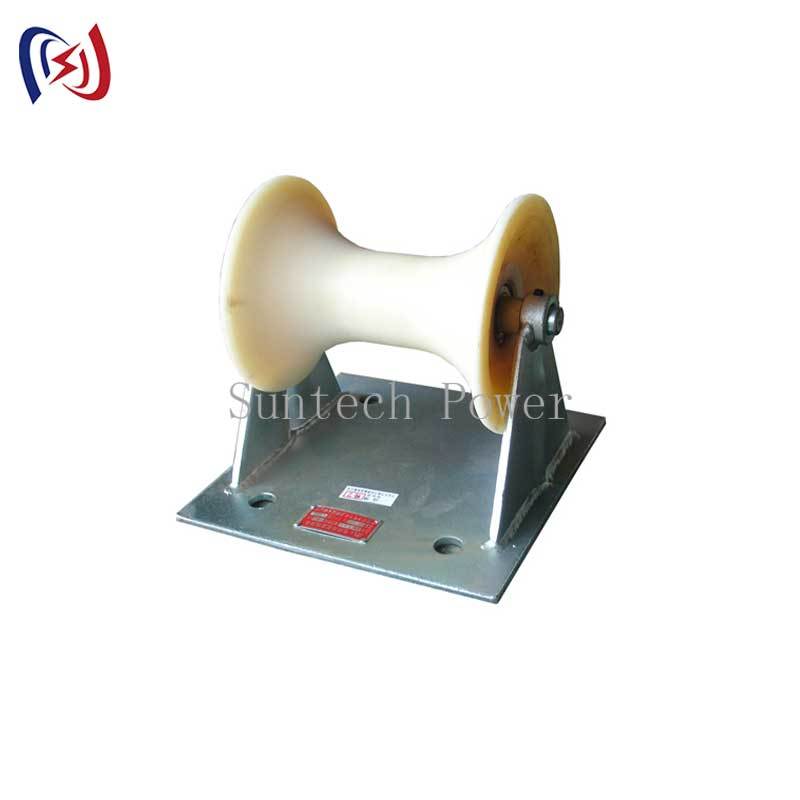

Heavy Duty Cable Ground Roller 5KN Load Power Line Construction

1 PCS
MOQ
Negotiation
Price
Heavy Duty Cable Ground Roller 5KN Load Power Line Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cable Ground Roller
Item No.: 21171-21194
Model: SHL1-SHL3GN
Rated Load: 5KN
Weight: 5.4-8.5KG
Warranty: 1 Year
Highlight:

Overhead Transmission Line Tower

,

JIS H8641 Galvanized Transmission Line Tower

,

Hot Dip Galvanized Overhead Line Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Cable Ground Roller
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 40000 PCS/Month
Product Description
Heavy Duty Cable Ground Roller For Power Line Construction With Smooth Rolling System
Product Attributes
Attribute Value
Name Cable Ground Roller
Item No. 21171-21194
Model SHL1-SHL3GN
Rated Load 5KN
Weight 5.4-8.5KG
Warranty 1 year
Product Introduction
  • Essential equipment for power cable installation and maintenance
  • Protects cable jackets during pulling through conduits or trenches
  • Reduces friction coefficient by up to 70% compared to direct ground contact
Core Features
  1. Robust Construction
    • Aircraft-grade aluminum alloy frame withstands 2+ ton loads
    • Hardened steel axles prevent bending under stress
  2. Cable Protection
    • Rubber-coated rolling surface prevents insulation damage
    • Rounded edges eliminate sharp contact points
  3. Operational Efficiency
    • Ball bearing system ensures effortless cable movement
    • Modular design allows quick assembly/disassembly
  4. Job Site Adaptability
    • Adjustable height accommodates different trench depths
    • Interlocking capability for continuous cable runs
  5. Maintenance Benefits
    • Sealed components resist dirt and moisture ingress
    • No lubrication required for 5+ years of service
Typical Applications
  • Underground residential distribution (URD) projects
  • Substation control cable installations
  • Transmission line underground crossings
  • Industrial plant wiring upgrades
Workflow Integration
  • Compatible with all standard cable pulling grips
  • Works with both manual and power pullers
  • Integrates with cable tension monitoring systems
Safety Advantages
  • Bright orange powder coating enhances visibility
  • Non-sparking materials for hazardous locations
  • Fail-safe locking pins prevent accidental separation
User Guidelines
  1. Preparation
    • Clear debris from roller path before operation
    • Verify proper alignment of multiple roller units
  2. Operation
    • Maintain steady pulling speed below 15 ft/min
    • Use roller every 20 feet for optimal cable support
  3. Maintenance
    • Rinse with fresh water after saltwater exposure
    • Store horizontally to prevent frame warping
Industry Certifications
  • Complies with IEEE 524 cable installation standards
  • Meets OSHA 1926 construction safety requirements
  • Recognized by major utility specification sheets
Comparative Advantages
  • 50% faster setup than traditional wooden rollers
  • 3x service life compared to plastic competitors
  • 30% lighter weight than steel alternatives
Customer Support Package
  • Free job site configuration consulting
  • Emergency replacement part delivery within 48 hours
  • Detailed installation video tutorials
Purchasing Options
  • Available as single units or 10-piece crew kits
  • Custom branding available for utility companies
  • Volume discounts for contractor accounts

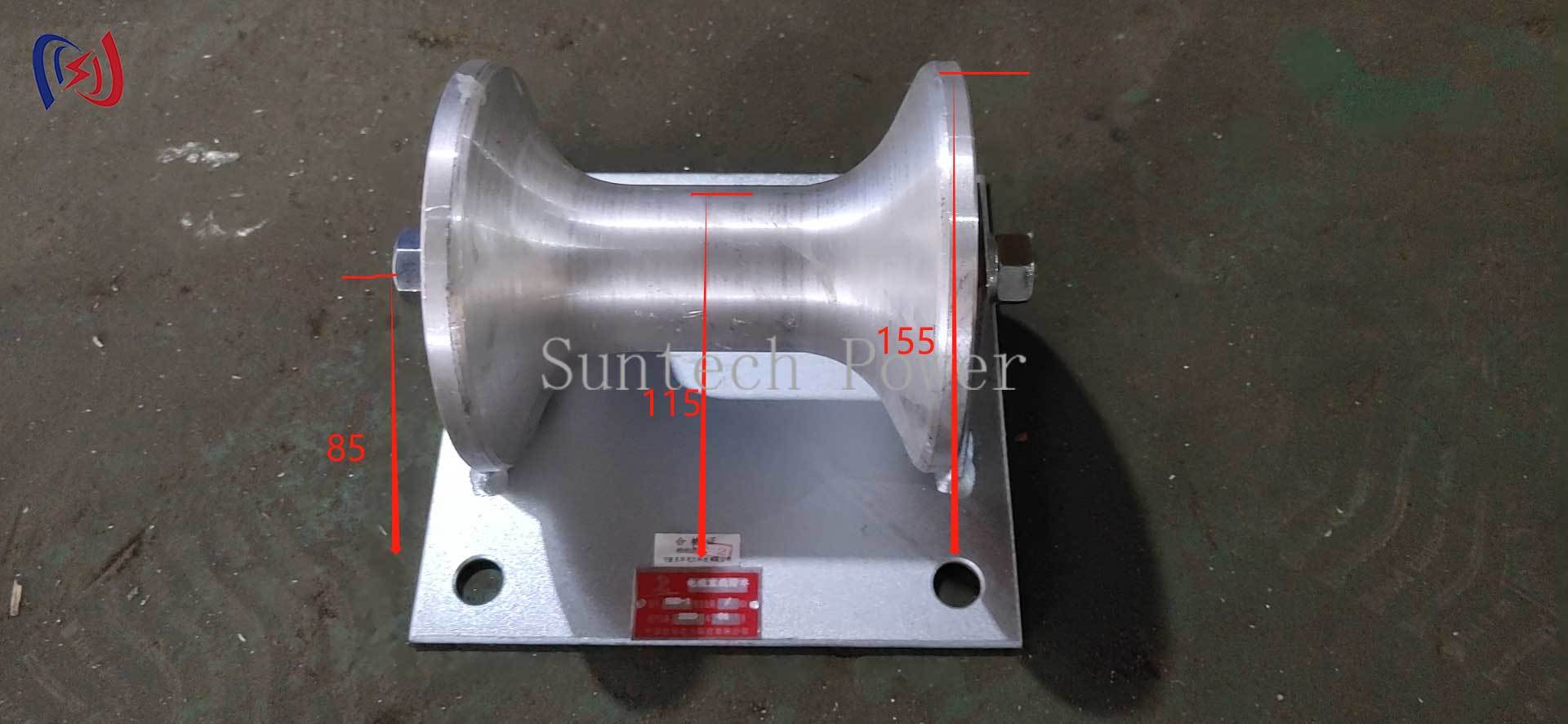

Technical Specifications
Item No. Model Applicable Cable Diameter(MM) Rated Load(KN) Carrier Structure Weight(KG)
21181 SHL1B <150 5 Steel Plate Carrier 5.5
21182 SHL1BN 5 3.7
21183 SHL2BN <160 5 5.5
21184 SHL3BN <200 5 8
Heavy Duty Cable Ground Roller 5KN Load Power Line Construction 0
