YJZ2 Splicing Sleeves Straightener 20-150KN for LGJ720-LGJ1250

1 PCS
MOQ
Get Newest Price
Price
YJZ2 Splicing Sleeves Straightener 20-150KN for LGJ720-LGJ1250
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Splicing Sleeves Straightener
Item No.: 17211-17212A
Model: YJZ2
Straighten Force: 20-150KN
Application Conductor: LGJ720-LGJ1250
Weight: 12-15.5KG
Highlight:

Electric Transmission Tower JIS H8641

,

Angle Steel Electric Transmission Line Tower

,

Angle Steel High Tension Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: YJZ2
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 60000 PCS/Month
Product Description

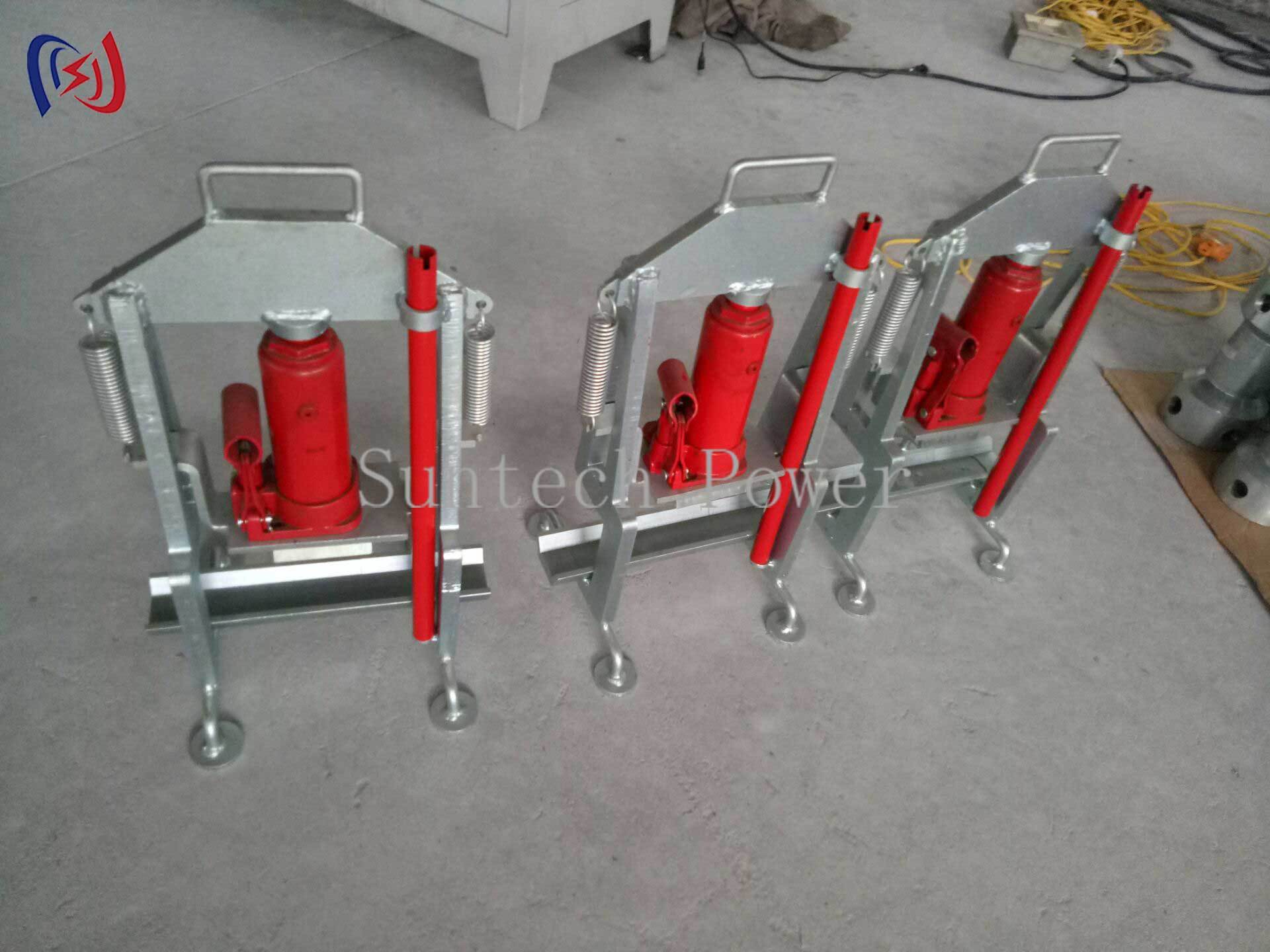

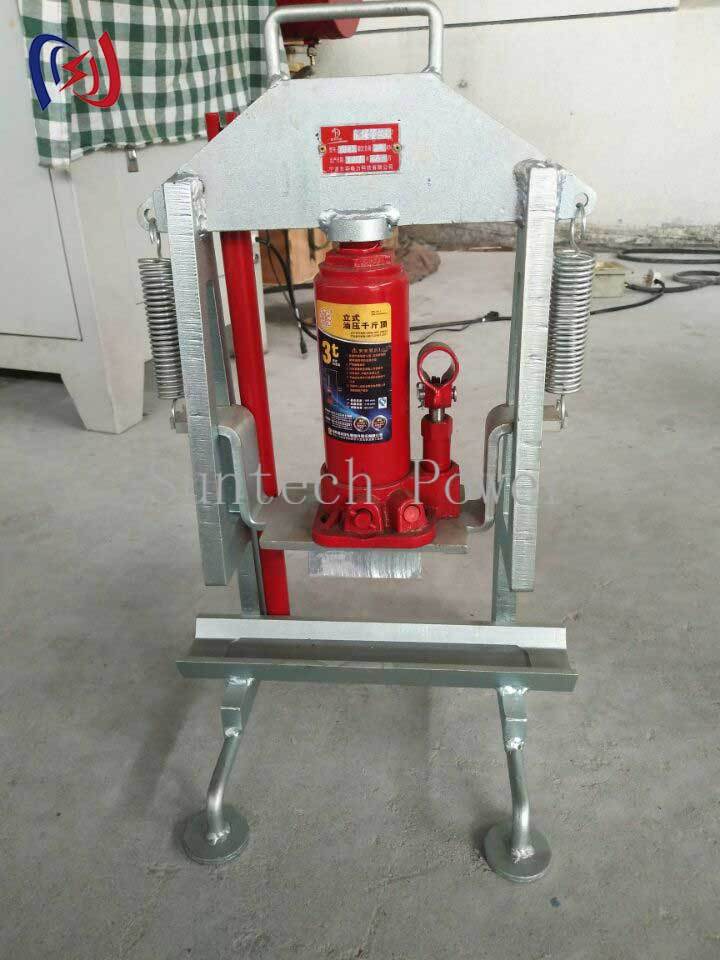

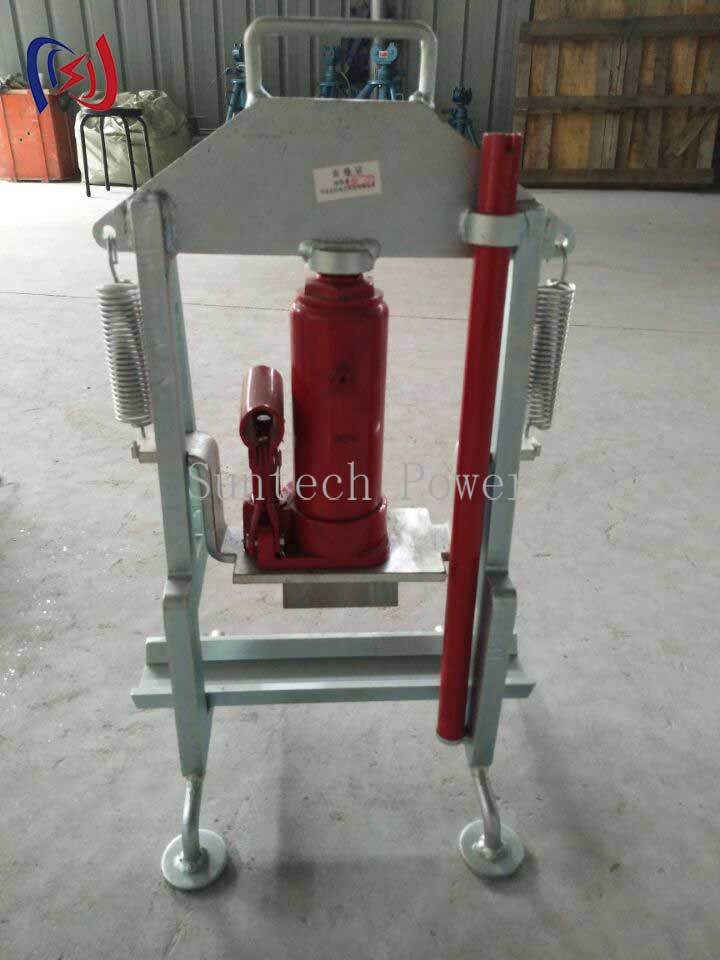

Professional Splicing Sleeves Straightener For Cable Jointing
Product Specifications
Attribute Value
Name Splicing Sleeves Straightener
Item No. 17211-17212A
Model YJZ2
Straighten force 20-150KN
Application conductor LGJ720-LGJ1250
Weight 12-15.5KG
Key Features
  • Professional Straightening Performance: Straightens splicing sleeves from 10mm to 100mm diameter with ±0.5mm alignment accuracy for copper and aluminum sleeves
  • Industrial-Grade Construction: Forged steel frame with hardened jaws, precision-machined guiding surfaces, and corrosion-resistant coating
  • Advanced Control Features: Adjustable pressure settings, visual alignment indicators, and overload protection
  • Ergonomic Design: Lightweight (under 5kg) with comfortable non-slip handles and balanced force distribution
  • Comprehensive Applications: Ideal for power cable splicing, telecom cable joints, underground cable repairs, and industrial wiring
Technical Specifications

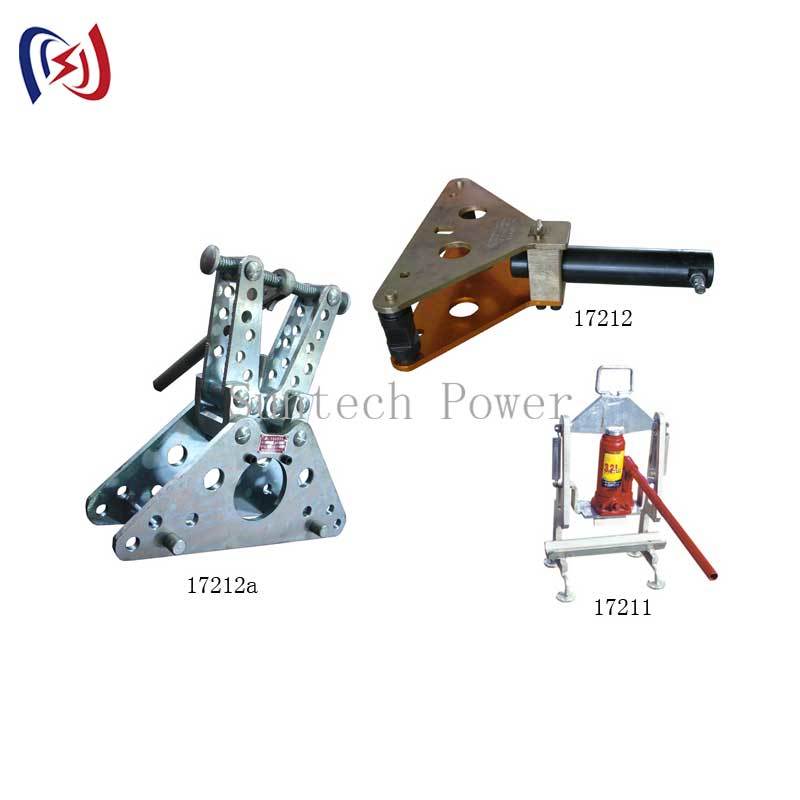

Item number 17211 17212 17212A
Model YJZ2 YJZ3 YJZ4
Straighten force (KN) 20 50 150
Application conductor LGJ720 LGJ900 LGJ1250
Diameter of splicing sleeves (MM) Φ60 Φ68 Φ80
Shape size (MM) 300×260×507 452×391×145 400×375×140
Weight (KG) 12 13.5 15.5
Additional Features
  • Low Maintenance: Self-lubricating bushings with easy-access adjustment points
  • Productivity Enhancements: 60% faster than manual straightening with reduced sleeve damage risks
  • Field Ready: Compact folding design with protective carrying case
  • Certifications: CE safety certified and ISO 9001 compliant
  • Environmental Resistance: Operates from -20°C to +50°C with waterproof components
Package Includes: Straightener main unit, set of interchangeable dies, operation manual, and maintenance toolkit.
Warranty: 1-year warranty with serial number traceability and performance testing for each unit.
