Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field

|
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | 308mm,508mm,660mm |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Case or Containers |
| Delivery Time: | 7-10 days after Payment |
| Payment Terms: | L/C , T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Type: | Conductor Stringing Blocks | Material: | MC Nylon,Steel Support |
|---|---|---|---|
| Load Capacity: | 20KN,40KN,60KN | Application: | Construction Site |
| Package: | Wooden Case | Usage: | Transmission Line |
| High Light: | Handcart Type 3 Phase Circuit Breaker,GB1984-89 3 Phase Circuit Breaker,GB1984-89 High Voltage Circuit Breaker |
||
Single Nylon Sheave ACSR Overhead Line Conductor Stringing Blocks
Ningbo Suntech Power Machinery Tools Co.,Ltd.is a professional manufacturer and exporter in Ningbo,Zhejiang,China.
Electric construction tools included stringting tools and equipment,such as stringing blocks,cable roller,hoisting tackles,
conductor gripper,cable rell stand,gin poles,inspection trolley,cable pulling winch,pilot wire,hydraulic puller and tensioner,etc.

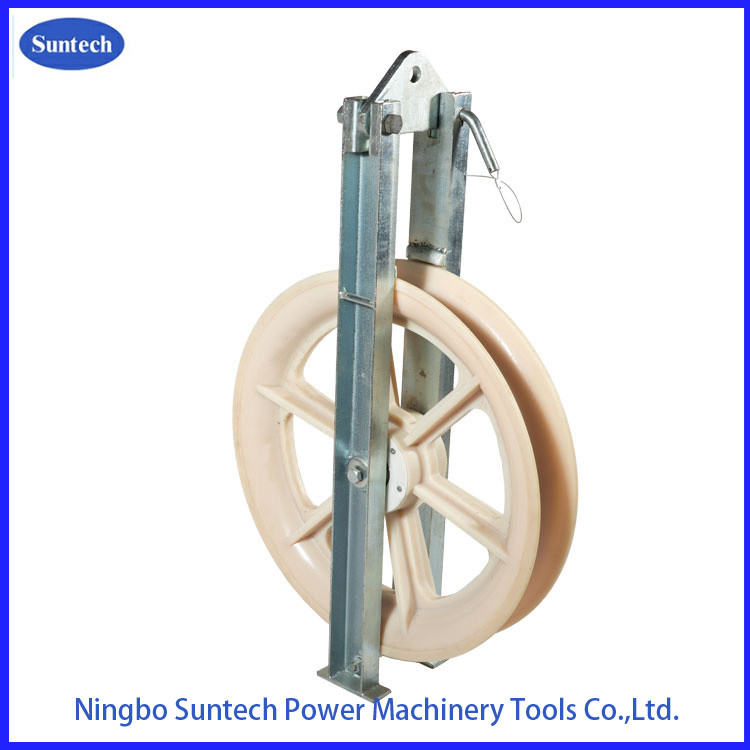

Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120x30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160x40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200x40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200x60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250x40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250x60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270x60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320x60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400x80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,
swivel connectors, and pulling rope connectors can pass through the groove.
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Contact Person: Peter
Tel: 86-13958364836
