Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Conductor Stringing Block |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Case or Container |
| Delivery Time: | 7-10days after Payment |
| Payment Terms: | L/C , T/T |
| Supply Ability: | 1000 pcs per month |
| Name: | Stringing Blocks | Size: | 660X100mm |
|---|---|---|---|
| Wheel Number: | 1,3,5,7 | Capacity: | 20KN,40KN,60KN |
| Application: | Transmission Line | Usage: | Construct Works |
| High Light: | 40.5KV Vacuum Circuit Breaker,GB/T 11022 Vacuum Circuit Breaker,40.5KV Indoor Circuit Breaker |
||

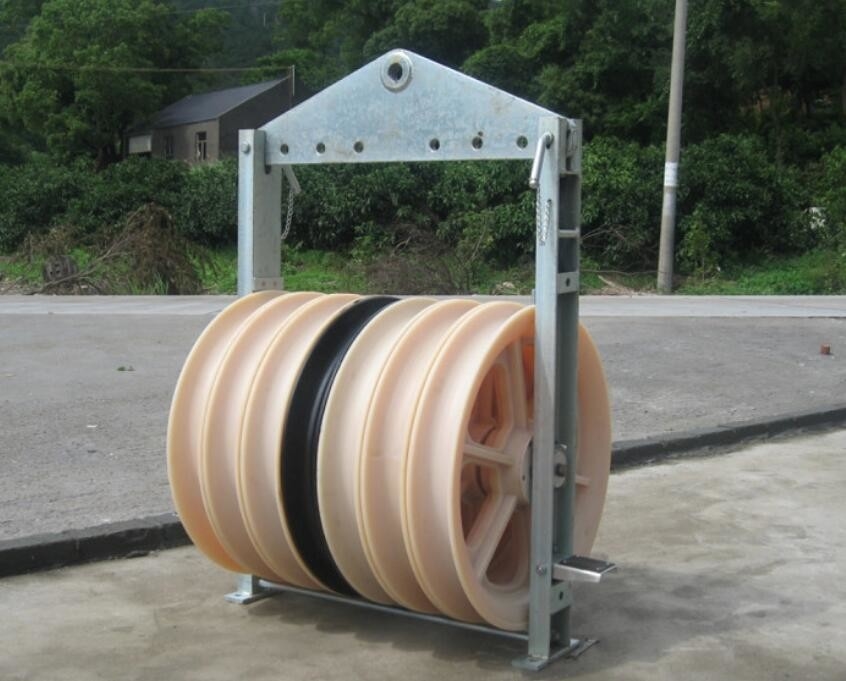

660mm Large Diameter Nylon Sheaves Bundled Wire Conductor Pulley Stringing Block
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1. Maximum suitable conductor ACSR500
2. Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)
3. Sheave dimension Φ660×Φ560×110(mm) can be customized
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
Contact Person: Peter
Tel: 86-13958364836
