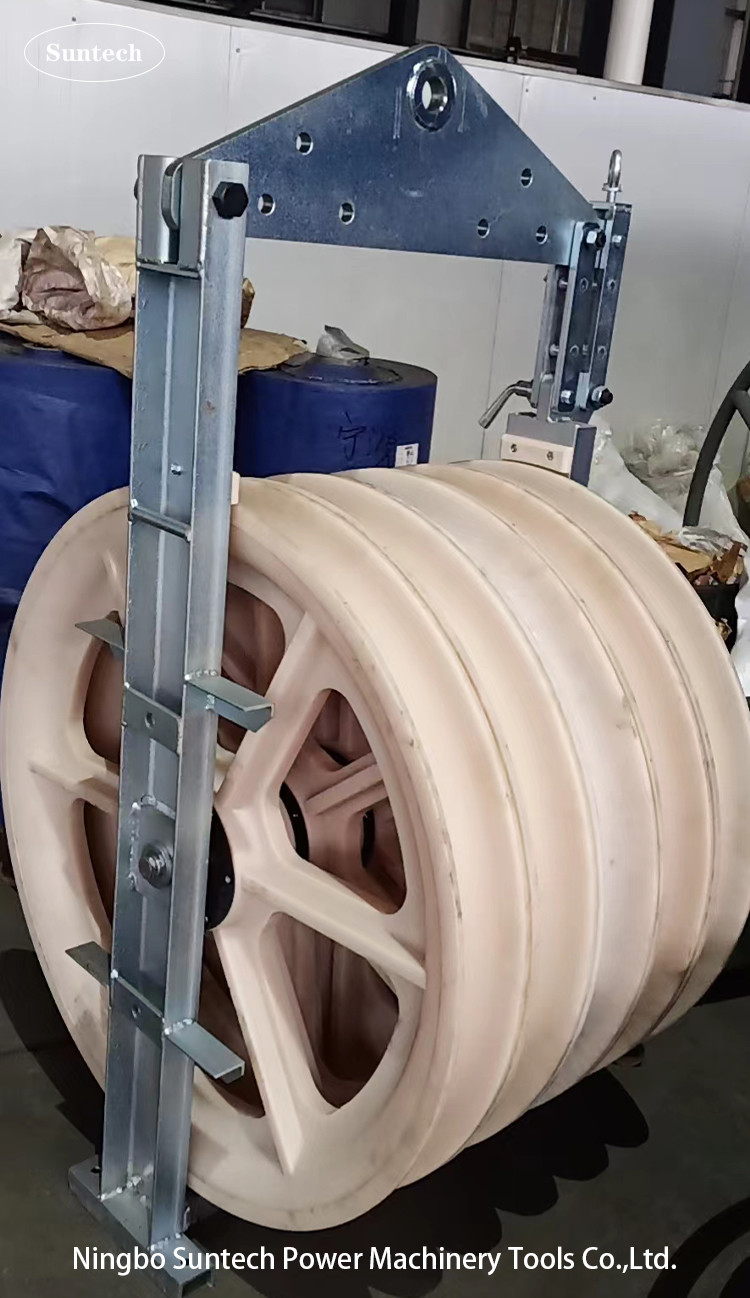

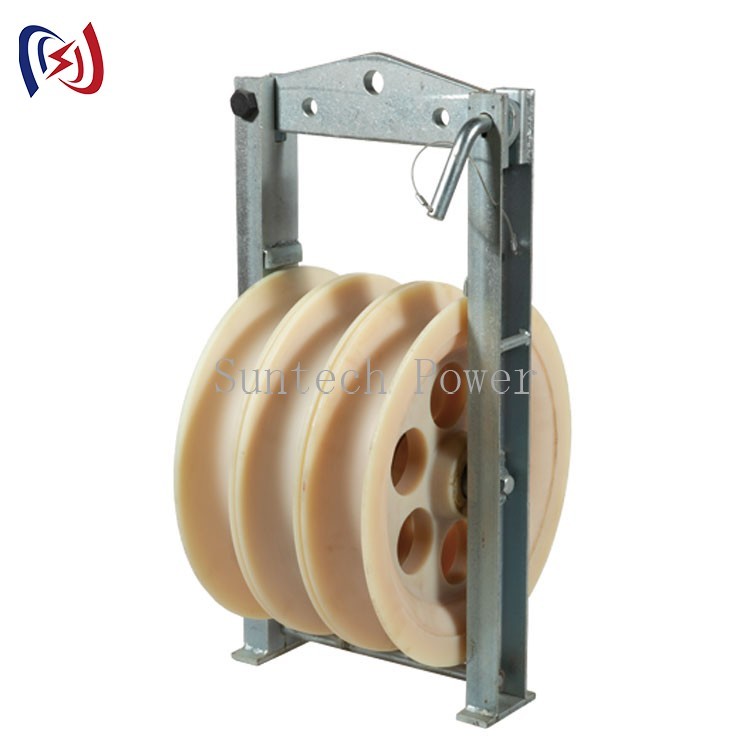

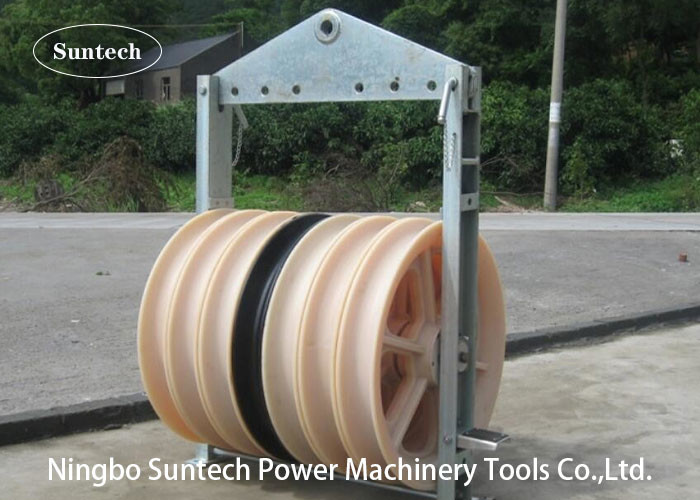

Name: 660mm Large Diameter Nylon Sheaves Bundled Pulley Conductor Pulley Stringing Block
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: Conductor Stringing Block
Price: 285,715.00 USD
Availability: InStock

660mm Large Diameter Nylon Sheaves Bundled Pulley Conductor Pulley Stringing Block

1 Set

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Stringing Blocks

Size: 660X100mm

Wheel Number: 1,3,5,7

Capacity: 20KN,40KN,60KN

Application: Transmission Line

Usage: Construct Works

Highlight:

40.5KV Vacuum Circuit Breaker

GB/T 11022 Vacuum Circuit Breaker

40.5KV Indoor Circuit Breaker

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO

Model Number: Conductor Stringing Block

Payment & Shipping Terms

Packaging Details: Exported Case or Container

Delivery Time: 7-10days after Payment

Payment Terms: L/C , T/T

Supply Ability: 1000 pcs per month

Gallery

660mm Large Diameter Nylon Sheaves Bundled Pulley Conductor Pulley Stringing Block

Product Description

660mm Large Diameter Nylon Sheaves Bundled Wire Conductor Pulley Stringing Block

Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.

1. Maximum suitable conductor ACSR500

2. Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)

3. Sheave dimension Φ660×Φ560×110(mm) can be customized

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

Technical Data

Item number	Model	Number of sheaves	Rated load (kN)	Weight (kg)	Features
10121	SHD660	1	20	30	Rubber lined aluminium sheave
10122	SHS660	3	40	100	Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave
10123	SHW660	5	60	150
10124/10124A	SHDN660	1	20	26	MC nylon sheave
10125	SHSLN660	3	40	86	Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave
10126	SHWLN660	5	60	120
10127/10127A	SHSQN660	3	40	70	MC nylon sheave
10128/10128A	SHWQN660	5	60	110	MC nylon sheave
10130	SHQ660A	7	75	190	Middle :cast steel sheave Conductor : MC nylon sheave

660mm Large Diameter Nylon Sheaves Bundled Pulley Conductor Pulley Stringing Block 0
