Single Nylon Sheave Large Diamging Conductor Stringing Blocks

Single Nylon Sheave Large Diamging Conductor Stringing Blocks

  • Single Nylon Sheave Large Diamging Conductor Stringing Blocks
  • Single Nylon Sheave Large Diamging Conductor Stringing Blocks
Single Nylon Sheave Large Diamging Conductor Stringing Blocks
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: 508X75mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Get Latest Price
Packaging Details: Exported Case or Containers
Delivery Time: 25 days after Payment
Payment Terms: L/C , T/T
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 508X75mm Conductor Block Name: Single Stringing Blocks
Width: 75mm Or 100mm Diameter: Up To 25mm
Application: Transmission Line Apply For: Conductors
High Light:

IEC 62271-100 Indoor Vacuum Circuit Breaker

,

12KV Indoor Vacuum Circuit Breaker

,

12KV High Voltage Circuit Breaker

508mm Single Nylon Sheave Large Diamging Conductor Stringing Blocks



The 508MM Overhead Conductor Stringing Blocks (Running out blocks) are used for overhead transmisson line conductor or OPGW stringing.

The sheave of blocks is made in aluminum alloy lined with neoprene or high strength MC Nylon.



508MM Overhead Transmission Line Cable Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10101 SHD508 300-400 20 18 Aluminum alloy
10104 SHDN508 300-400 20 16 MC Nylon
10104A SHDN508X100 300-400 20 17 MC Nylon
10102 SHS508 300-400 40 61 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10105 SHSLN508 300-400 40 47
10107 SHSQN508 300-400 40 43 Nylon, optional can be lined with neoprene
10107A SHSQN508X100 400 40 46
10108 SHWQN508 300-400 60 70
10108A SHWQN508X100 300-400 60 76



Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel

connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm

aluminum alloy sheave can be lined with neoprene.



Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer

    diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

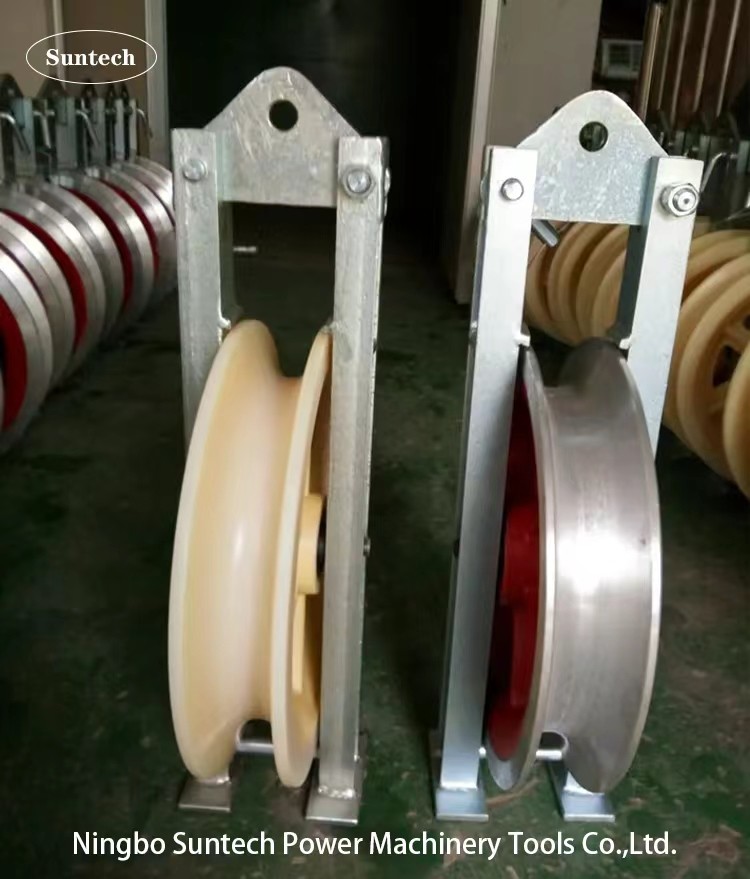

Single Nylon Sheave Large Diamging Conductor Stringing Blocks 0

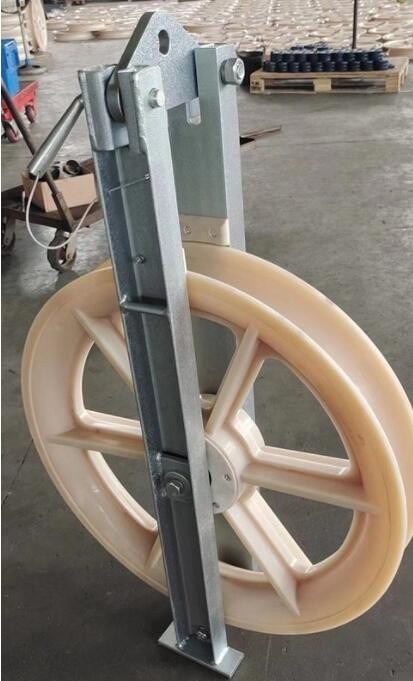

Single Nylon Sheave Large Diamging Conductor Stringing Blocks 1
