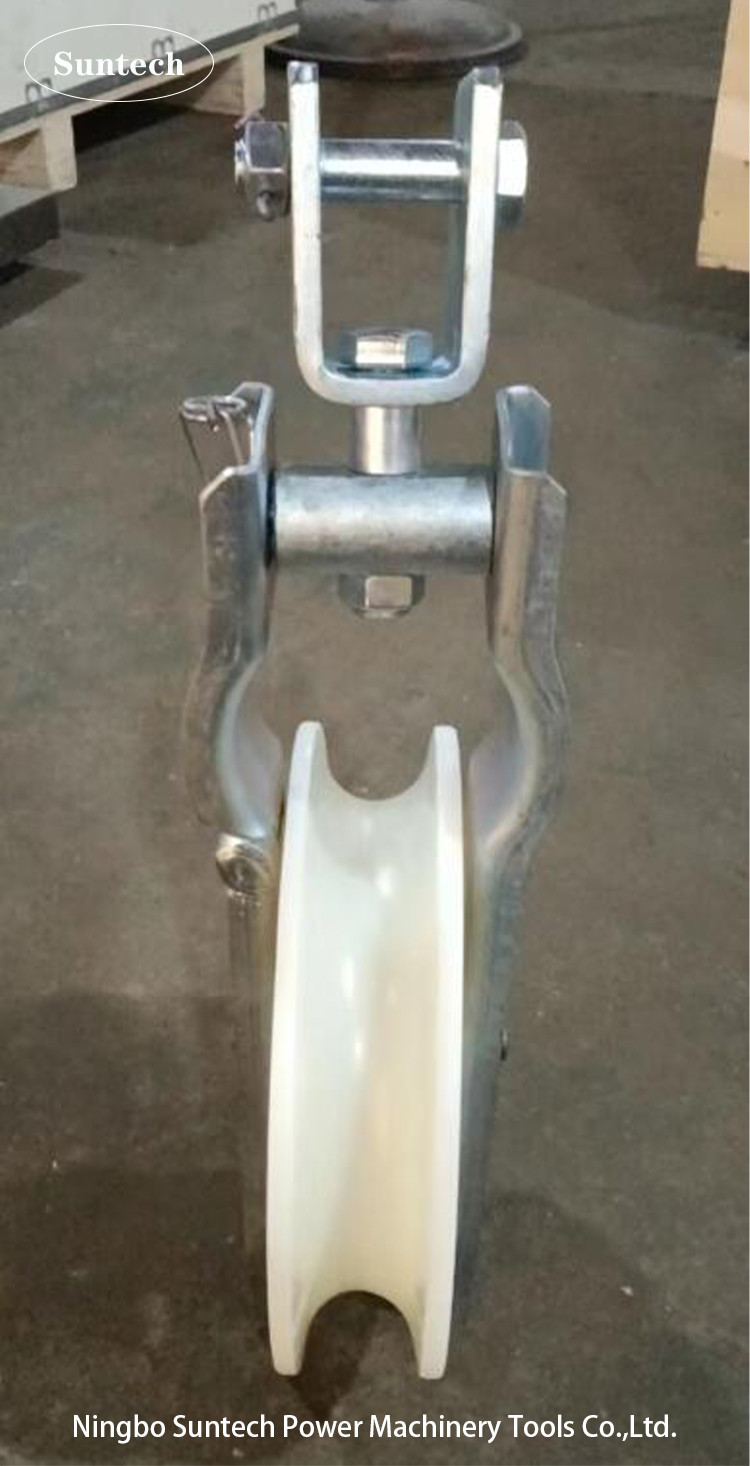

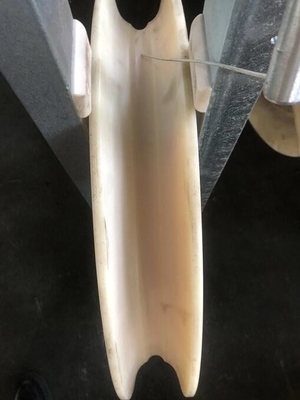

Single Nylon Wheel Helicopter Bundled Conductor Stringing Blocks

Single Nylon Wheel Helicopter Bundled Conductor Stringing Blocks

  • Single Nylon Wheel Helicopter Bundled Conductor Stringing Blocks
  • Single Nylon Wheel Helicopter Bundled Conductor Stringing Blocks
Single Nylon Wheel Helicopter Bundled Conductor Stringing Blocks
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: ZW32-12M
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Get the lastest price
Packaging Details: Exported Wooden Cases or Container
Delivery Time: 15 days after Payment
Payment Terms: L/C , T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Name: Helicopter Conductor Stringing Blocks Conductor Diameter: Up To 30 Mm
Material: Nylon Application: Power Transmission
Usage: Construction Works Term: FOB,EXW,CIF,CFR
High Light:

12KV Auto Circuit Breaker

,

GB311.1-6 Auto Circuit Breaker

,

12KV Mini Circuit Breaker

Single wheel 660 110 nylon sheave pulley block pilot bundled conductor stringing block



Single sheave Nylon Stringing Block

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10191 SHDN-120x30 25-70 5 1.5 Nylon
10192 SHDN-160x40 70-95 10 2.4
10193 SHDN-200x40 95-120 15 2.6
10194 SHDN-200x60 120-150 15 3.1
10195 SHDN-250x40 120-150 20 3.7
10196 SHDN-250x60 150-180 20 3.9
10197 SHDN-270x60 180-240 20 4.4
10198 SHDN-320x60 240-300 20 7.5
10199 SHDN-400x80 300-400 20 8
10104 SHDN508 300-400 20 16 Nylon, optional can be lined with neoprene
10124 SHDN660 400-500 20 24
10131 SHDN750 500-600 30 32
10141 SHDN822 600-700 30 38
10151 SHDN916 700-800 50 51
10165 SHDN1040 800-900 50 60

Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,

swivel connectors, and pulling rope connectors can pass through the groove.



660MM Overhead Transmission Line Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10121 SHD660 400-500 20 30 Aluminum alloy
10124 SHDN660 400-500 20 24 MC Nylon
10122 SHS660 400-500 40 106 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10125 SHSLN660 400-500 40 92
10127 SHSQN660 400-500 40 76 MC Nylon
10123 SHW660 400-500 60 150 Aluminum Alloy lined with neoprene
10126 SHWLN660 400-500 60 120
10128 SHWQN660 400-500 60 110 MC Nylon
10129 SHQZ660 400-500 80 260 Central steel, conductor sheave nylon or aluminum alloy
10130 SHQ660A 400-500 80 190



Single Nylon Wheel Helicopter Bundled Conductor Stringing Blocks 0
