Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley

Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley

  • Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley
  • Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley
Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Bundled Conductor Pulley
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Exported Wooden Cases
Delivery Time: 15 days after Payment
Payment Terms: L/C , T/T
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Product Name: Bundled Conductor Pulley Block Diameter: 508,660,822
Material: MC Nylon Wheel Number: 1,3,5,7,9
Application: Transmission Line Usage: Construction Works
High Light:

24KV Outdoor Vacuum Circuit Breaker

,

GB1102 Outdoor Vacuum Circuit Breaker

,

24KV Transmission Line Circuit Breaker

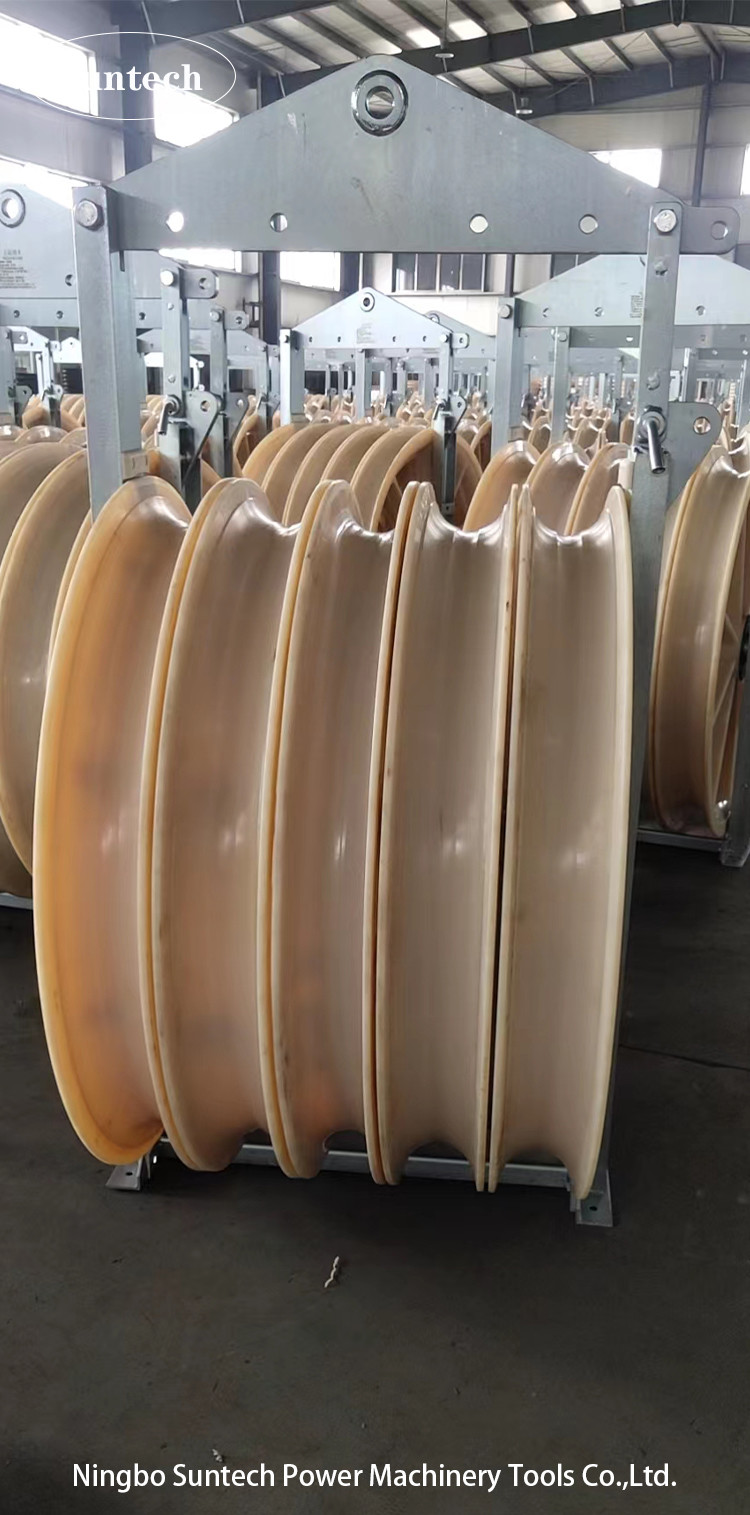

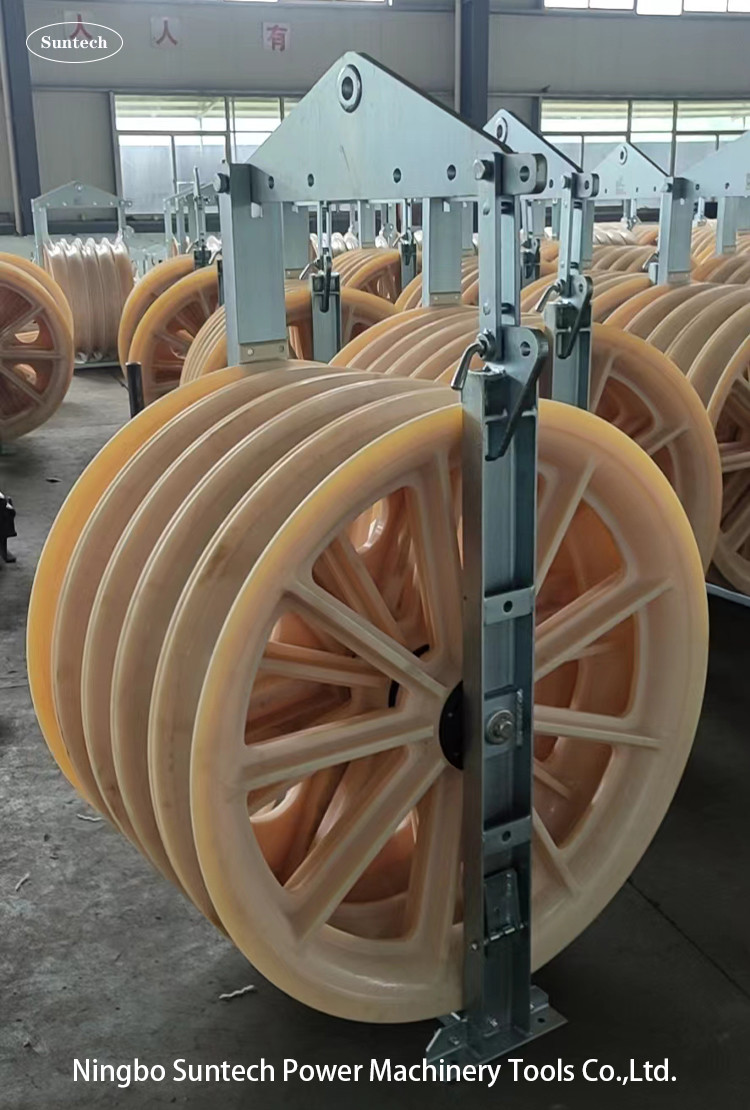

Transmission Nylon Wheel Bundled Conductor Stringing Blocks



750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing.

The sheave is made in MC Nylon.



750MM Nylon Sheaves Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10131 SHDN750 500-600 30 39 Nylon, optional can be lined with neoprene
10132 SHSQN750 500-600 60 98
10133 SHWQN750 500-600 100 156



Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors,

and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central

sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.



Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter

of sheave X width of sheave (mm).

2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm



Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley 0
