Transmission Line MC Nylon Wheels Conductor Stringing Blocks With Aluminum Rollers

1 PCS
MOQ
Negotiation
Price
Transmission Line MC Nylon Wheels Conductor Stringing Blocks With Aluminum Rollers
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 750MM STRINGING BLOCKS
Material: MC Nylon Sheave
Block: Transmission Line Stringing Block
Usage: Construction Works
Capacity: 20KN-150KN
Term: FOB,CIF,CFR
Highlight:

WiFi 1250A Circuit Breaker

,

3 Phase 1250A Circuit Breaker

,

Overhead Line 1250 Amp Circuit Breaker

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: 750X110mm stringing blocks
Payment & Shipping Terms
Packaging Details: Exported Cases and Containers
Delivery Time: 30days after Payment
Payment Terms: L/C , T/T, Western Union, MoneyGram
Supply Ability: 500 pcs per month
Product Description

Transmission Line MC Nylon Wheels Conductor Stringing Blocks With Aluminum Rollers



About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.



Ningbo Suntech Power Machinery Tools Co.,Ltd. has strong strength,pays attention to credit,abides by the contract,guarantees the product quality,and wins the trust of customers with the principe of multi variety business characteristics and small profit for quick sale.We appreciate your business and look forward to serving you!

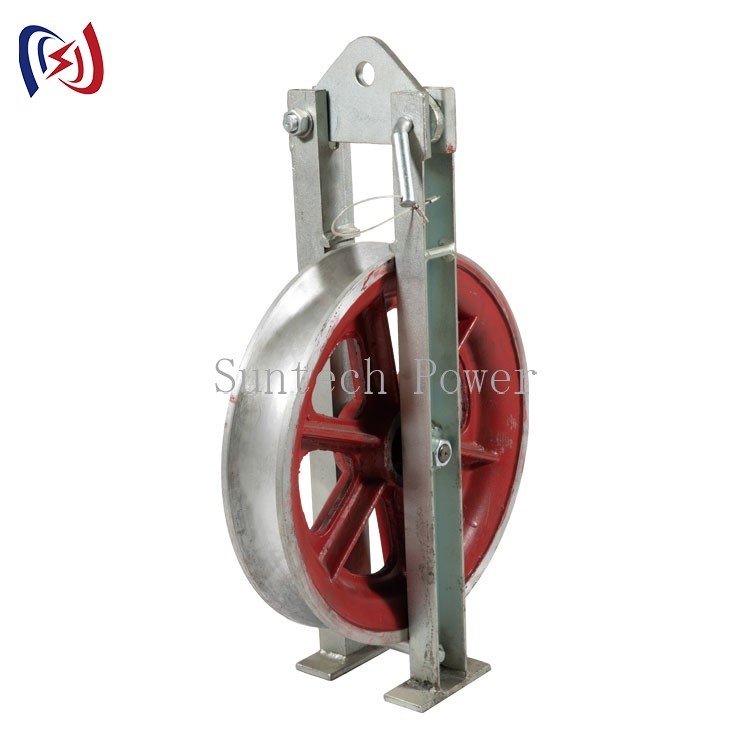

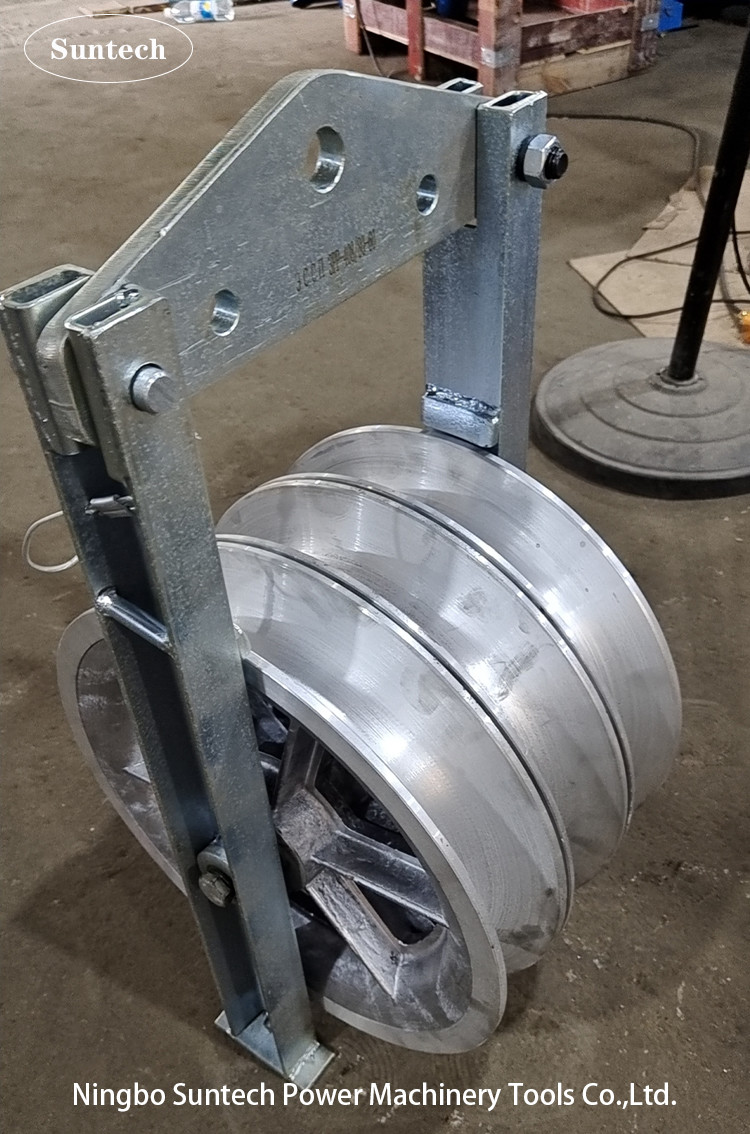

750MM Nylon Sheaves Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10131 SHDN750 500-600 30 39 Nylon, optional can be lined with neoprene
10132 SHSQN750 500-600 60 98
10133 SHWQN750 500-600 100 156



Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves,

swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are

mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.



Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the

outer diameter of sheave X width of sheave (mm).

2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm
