Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 508X75mm Stringing Blocks |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Wooden Case |
| Delivery Time: | 7-15 days after payment |
| Payment Terms: | L/C , T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Name: | Conductor Stringing Blocks | Size: | 508X75mm |
|---|---|---|---|
| Material: | MC Nylon Sheave | Application: | For Transmission Line |
| Usage: | High Voltage | Trade Term: | FOB,CIF,CFR,EXW |
| High Light: | Permanent Magnet 3 Phase Circuit Breaker,12KV 3 Phase Circuit Breaker,Permanent Magnet Mechanism 12KV Circuit Breaker |
||
Ningbo Suntech Power Machinery Tools Co.,Ltd.is a professional manufacturer and exporter in Ningbo,Zhejiang,China.
We have two product ranges,electric construction tools and equipments.
Such as stringing blocks,cable roller,hoisting tackles,conductor gripper,cable rell stand,gin poles,inspection trolley,
cable pulling winch,pilot wire,hydraulic puller and tensioner,etc.
Suntech Power has strong strength,pays attention to credit,abides by the contract,guarantees the product quality,
and wins the trust of customers with the principe of multi variety business characteristics and small profit for quick sale.
We appreciate your business and look forward to serving you!

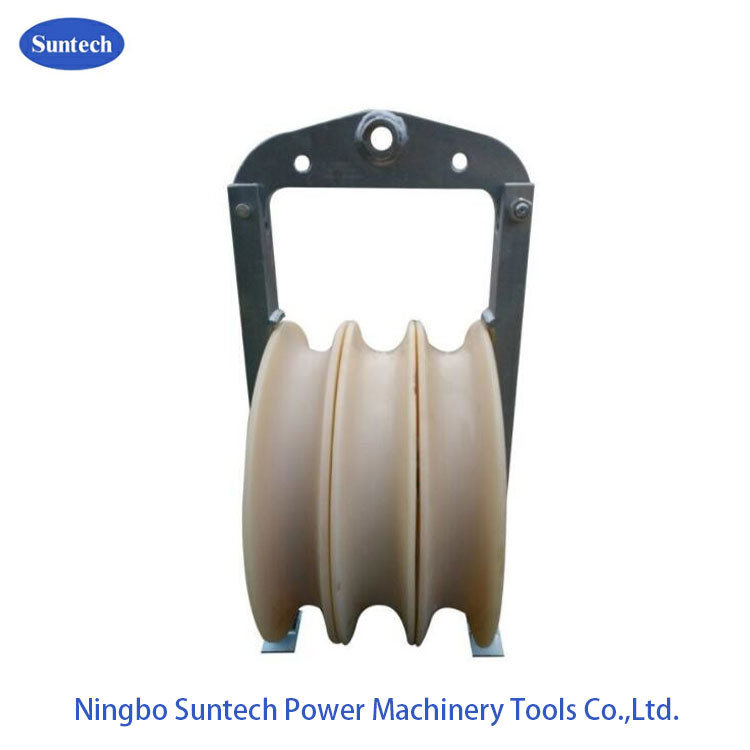

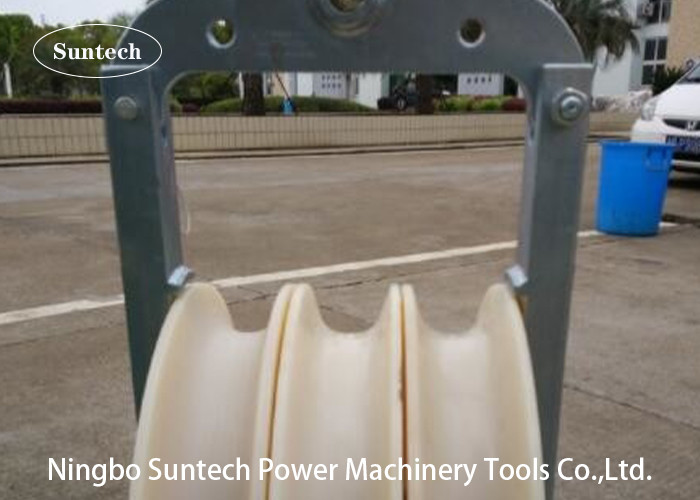

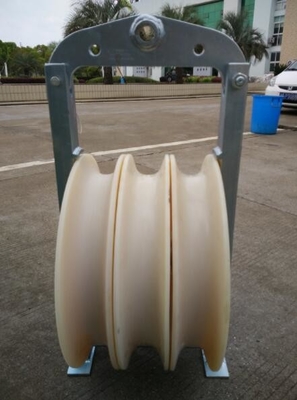

508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction.
We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing.
1.Maximum suitable conductor ACSR400.Configuration;
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm)
3.Sheave dimension Φ508×Φ408×100 (mm) can be customized
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
Contact Person: Peter
Tel: 86-13958364836
