40KN Transmission Line MC Nylon Bundled Conductor Stringing Pulley Blocks

40KN Transmission Line MC Nylon Bundled Conductor Stringing Pulley Blocks

  • 40KN Transmission Line MC Nylon Bundled Conductor Stringing Pulley Blocks
  • 40KN Transmission Line MC Nylon Bundled Conductor Stringing Pulley Blocks
40KN Transmission Line MC Nylon Bundled Conductor Stringing Pulley Blocks
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: Conductor Pulley
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Get the lastest price
Packaging Details: Exported Wooden Cases Or Containers
Delivery Time: 7-10 days after Payment
Payment Terms: L/C , T/T
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Name: Helicopter Conductor Stringing Blocks Model: SHDN660 SHSQN750 SHSQN822 SHWQN916
Material: High Strength Nylon, Lined With Neoprene Diameter: 308,508,660,822,916mm
Terms: FOB,CIF,CFR Usage: Construction Works
High Light:

Outdoor 12KV Vacuum Circuit Breaker

,

Power Line 12KV Vacuum Circuit Breaker

,

AC 3 Phase VCB Breaker

Cable Pulley Customized Bundle Conductor Pulley For Transmission Line



Product Description

Overhead Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. We have produced sheave rollers with nylon or aluminum alloy, both kinds of rollers could be lined with neoprene, to protect some special kind of conductors.



Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave x width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.



Three sheaves Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10107 SHSQN508 300-400 40 43 Nylon, optional can be lined with neoprene
10127 SHSQN660 400-500 40 76
10132 SHSQN750 500-600 60 98
10142 SHSQN822 600-700 60 110
10152 SHSQN916 700-800 75 126
10166 SHSQN1040 800-900 105 200

Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.



Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

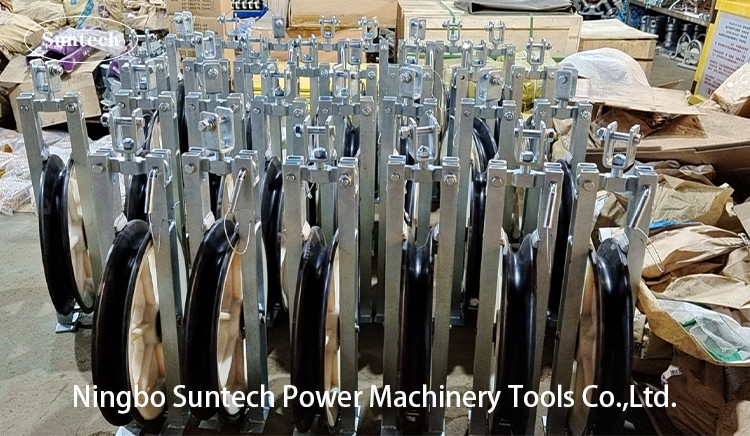

40KN Transmission Line MC Nylon Bundled Conductor Stringing Pulley Blocks 0

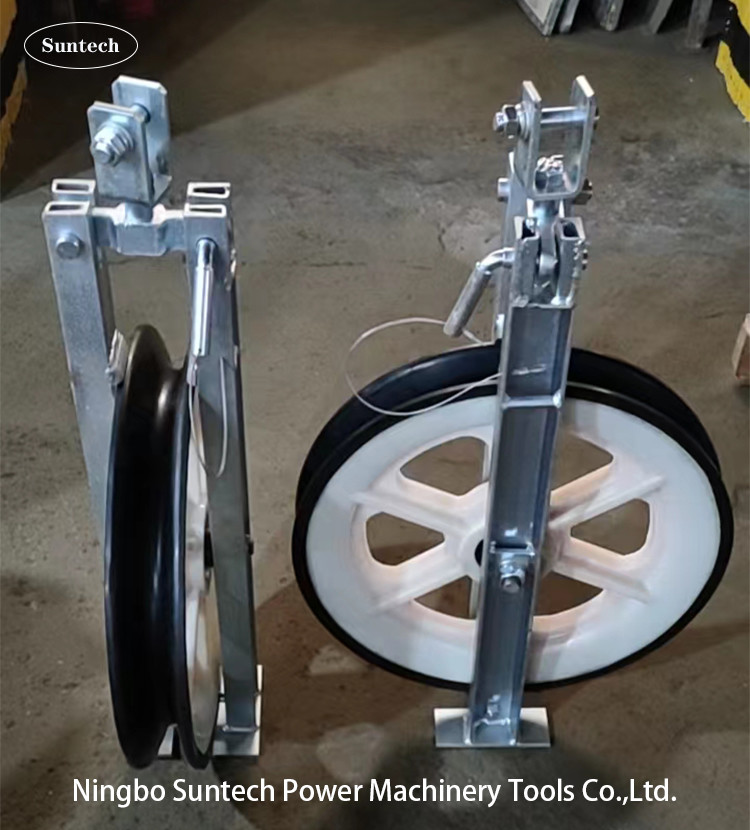

40KN Transmission Line MC Nylon Bundled Conductor Stringing Pulley Blocks 1
